118 Photos
2001 Cat AP-650B Track Asphalt Paver
Located
Yazoo City, MS
Yazoo City, MS
Usage
172 hrs
172 hrs
Serial number
CATAP650K9DN00452
CATAP650K9DN00452
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14353792
In yard
No
Features
CAT Extend-A-Mat 8-16B Diesel Heated 8 ft - 16 ft Screed, Ultrasonic Sensors, 14 in Track Shoes w/Rubber Pads

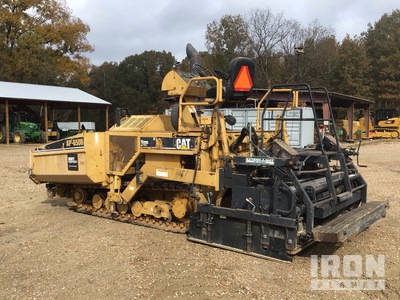

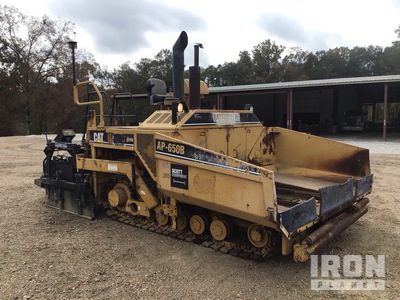

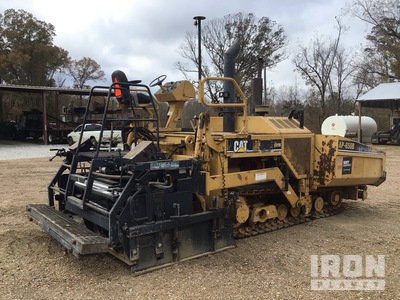

General Appearance
Serial Number / VIN
CATAP650K9DN00452
CE Mark
No CE mark found
Hour Meter / Odometer
172 hrs, Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
No change label found
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Exterior Lights
Some not operational, 1 front and 1 rear lights are not operational
Safety
Travel Alarm
Operational
Horn
Inoperable
Seat Belts
Inoperable
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Hydraulic Controls
Conveyors do not operate from rear controls but only from feeder control
Steering Control
Drivetrain Controls
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Has red light on unknown reason ! light stays on
Screed Control Switches
Operational, Vibrator does not come on , burners were not checked
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Emission Label
No label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Fresh oil under engine appears to be from a hose
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Drivetrain
Transmission
Operational
Left Drive Motor
Right Drive Motor
Left Final Drive
Right Final Drive
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hydraulic Motors
Hoses (Hydraulics)
Hose leaking under engine
Hopper Wing Cylinders
Screed Tow Point Cylinders
Screed Lift Cylinders
Screed Extension Cylinders
Dripping leak on the left cylinder, Dripping leak on the right cylinder
Limited Function Check
The hydraulic system was operational. Some functions did not operate
Chassis
Screed Serial Number
Serial Number: 7MR02157
Screed Tow Arms
Screed Bottom Plate
Hopper Wings
Auger/ Screw Condition
Feed Conveyors
Conveyor Drive Chains and Sprockets
Bottom gears are not visible
Push Rollers
Do not turn
Screed Heaters
Not operationally checked
Screed Slope Adjustment
Powered adjustment
Screed Crown Adjustment
Powered adjustment
Screed Tow Point Adjustment
Powered adjustment, Operational
Mat Thickness Adjusters
Manual adjustment, Operational
Extension Tubes
Some damage left side top tube , noise when extended
End Gates
Spray Down System
Not operationally checked
Wheel Studs
Limited Function Check
The main components were operational in a limited check.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Track Links
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Track Links
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Nov 25, 2025 | Nov 25, 2025 |
| Silicon | 12.3 PPM | 4.14 PPM |
| Tin | 0 PPM | 0 PPM |
| Silver | 0.06 PPM | 0.01 PPM |
| Aluminum | 3.64 PPM | 1.12 PPM |
| Chromium | 1.14 PPM | 0.06 PPM |
| Lead | 1.51 PPM | 2.68 PPM |
| Copper | 21.77 PPM | 122.89 PPM |
| Nickel | 0.33 PPM | 0.35 PPM |
| Iron | 25.01 PPM | 5.17 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
