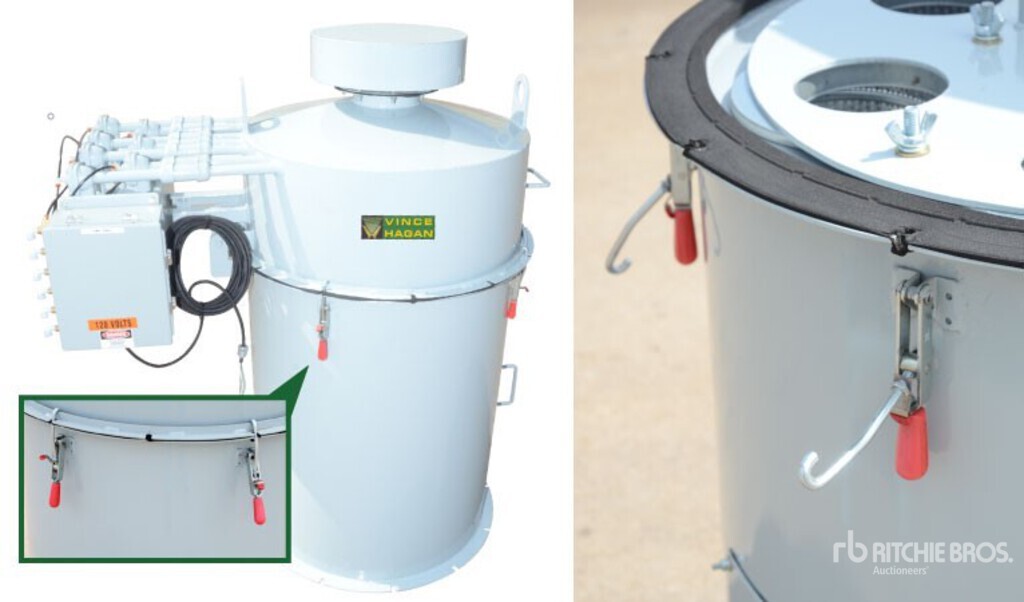

Two (2) Model VH-245JP Silo Top Dust Collectors
Located
Las vegas, NV
Loading...
Inspection report:
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#12848312
In yard
No
Manufacturer
Asset type
Features
These units have the following features and specifications: silo mounted flange/top access hinged door. 245 sq ft cloth filtering area. Seven 8" cartridges - 36" long. Cloth weight 8.1 oz/sq yd. Permeability 28-33 CFM/sq ft at 0.5" water. Exhaust opening size 0/226 sq ft. Filter efficiency 99.995 at 0.2 - 2 microns. Included air filter and regulator unit mounted to air manifold. Unit requires approximately 9 CFJ at 70 psi in collector manifold to operate bag system. Quick Release toggle clamps to allow easy acces for filter cartridge maintenance. Automatic timer switch at 0.75 psi senses when the silo is being filled and turns on the silo top dust collector's cleaning cycle. Electrical: 115V/1PH/60HZ for the power unit input. Units will be painted color of your choice. External air piping and wiring not included. Shipping/freight costs are not included. Availability based on manufacturing schedule. Must claim by 6/30/25.
Notes
Donated by The Vince Hagan Company.
