Model VH-245JP Silo Top Dust Collector
Located
Las vegas, NV
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#11086435
In yard
No
Manufacturer
Asset type
Features

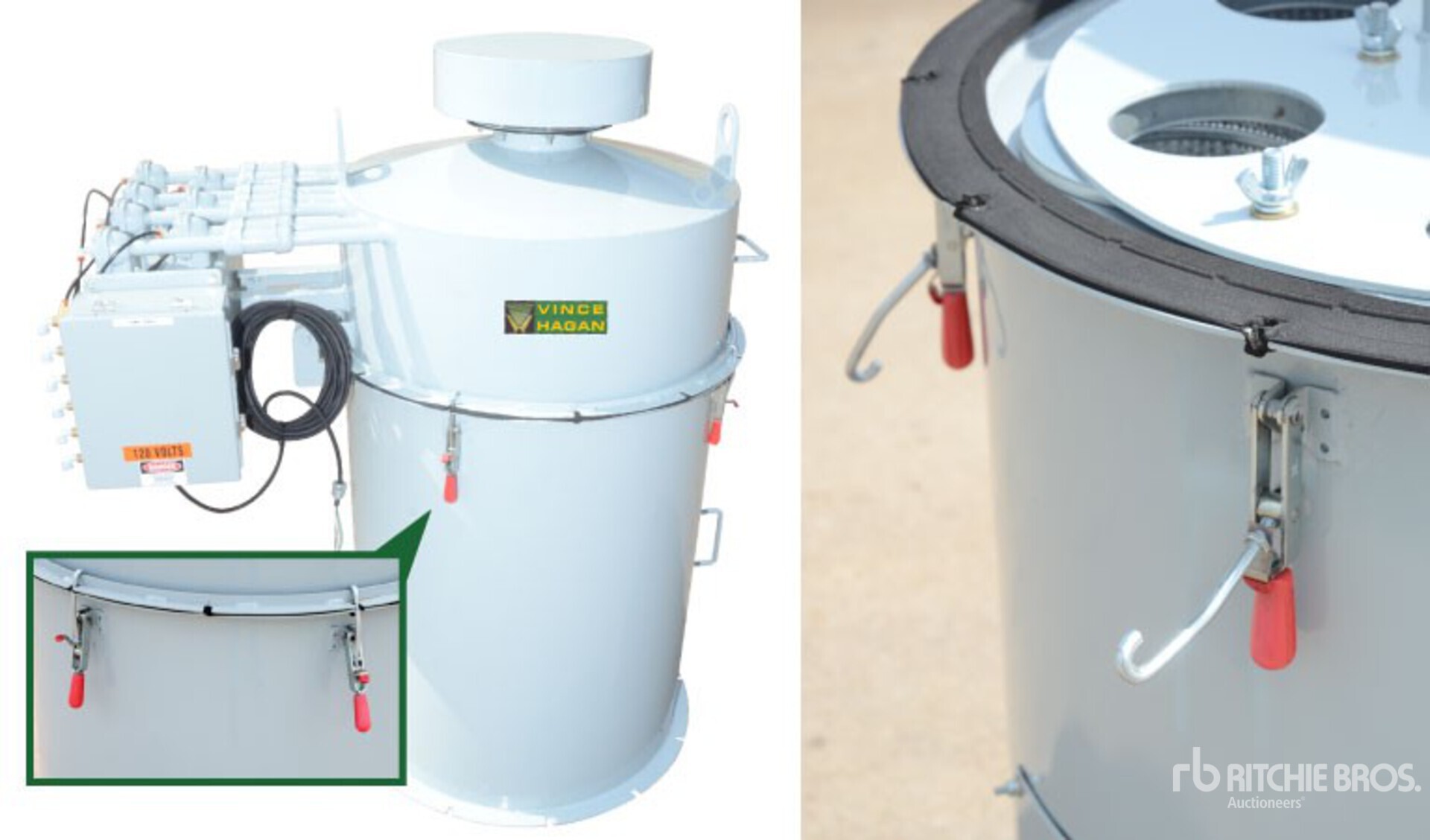

Silo mounted flange/top access hinged door. 245 sq ft cloth filtering area. Seven 8" cartridges - 36" long. Cloth weight 8.1 oz/sq yrd. Permeability 28-33 CFM/sq ft at 0.5" water. Exhaust opening size 0.27 sq ft. Filter efficiency 99.9 at 0.2-2 microns. Included air filter and regulator unit mounted to air manifold. Unit requires approximately 9 cfm at 70 psi in collector manifold to operate bag system. External air piping and wiring included. Electrical: 115V/1PH/60HZ for the power unit input. All steel wire brushed/chemically cleaned (SP2). One coat epoxy primer and one coat urethane paint. Shipping not included. Available for shipment by 3/30/24, provided winner contacts donor by 2/16/24 to select paint color and shipping address.
Notes
Donated by Vince Hagan Company
