Manitowoc 1015 132 ton Lattice-Boom Crawler Crane
Located
Henderson, NV
Usage
5,091 hrs
Serial number
10151003
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#14055283
In yard
No
Manufacturer
Model
Asset type
Serial number or VIN
10151003
Features
Load Moment Indicator, 123 ft Boom, Self Erecting, 1 Sheave Hook Block, 5800 lb 30 ton Overhaul Ball, 53420 lb Counterweight, Counterweight Removal System, 39.5 in Double Grouser Track Shoes
Notes
COMES WITH IRONCLAD ASSURANCE. SUBJECT TO NEVADA SALES TAX.
General Appearance

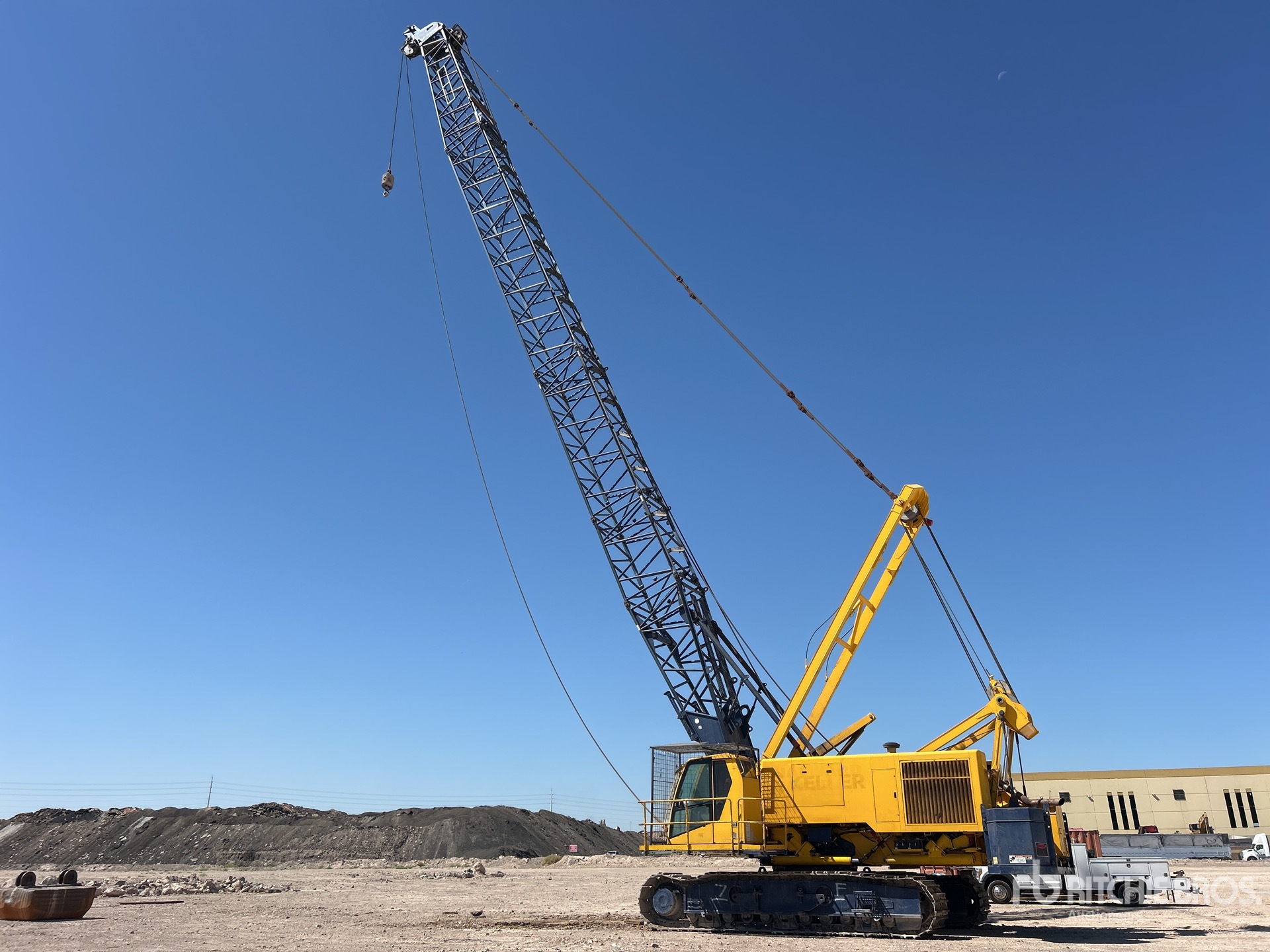

Featured Photo

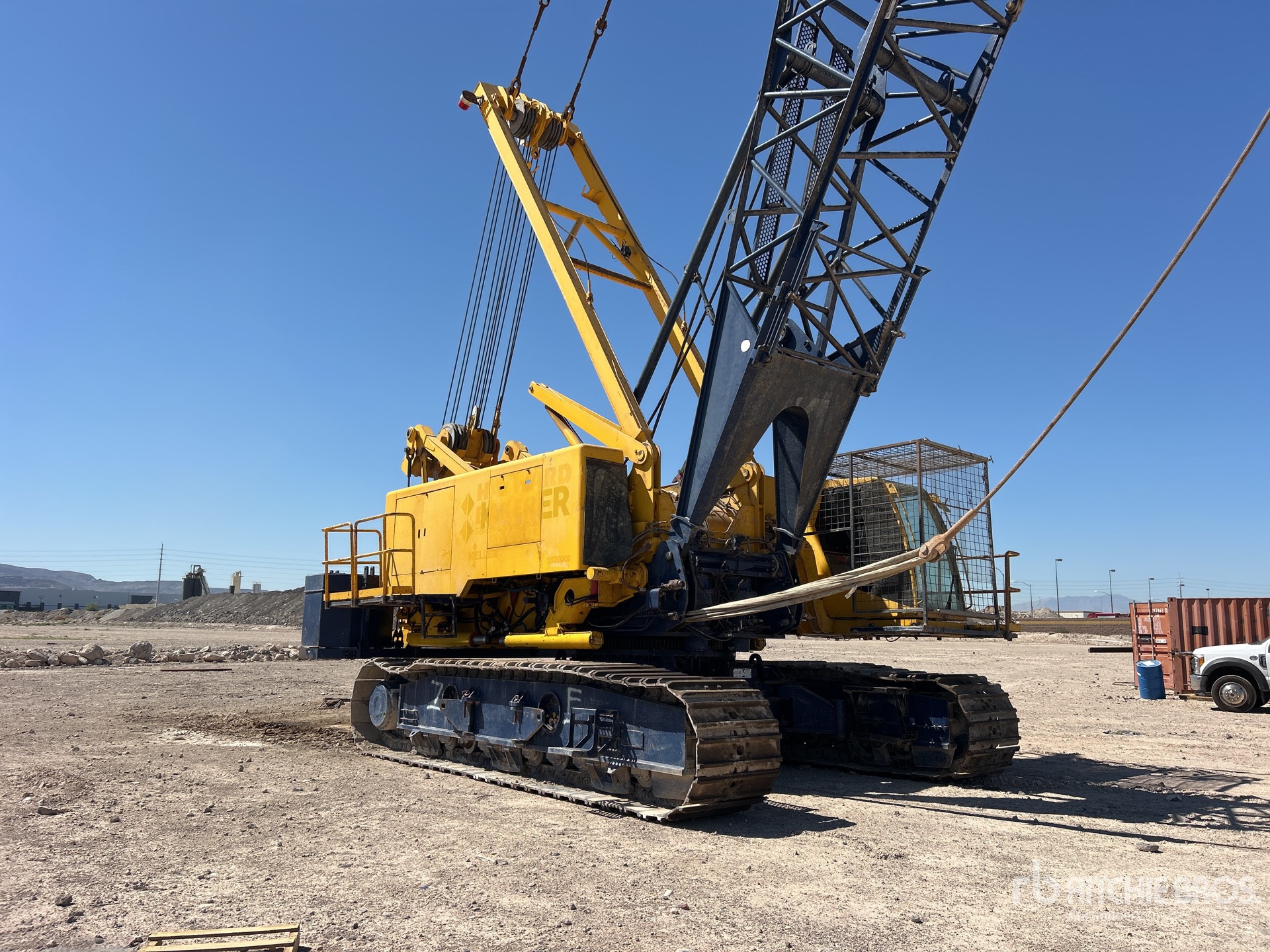

Picture, Left Front Corner

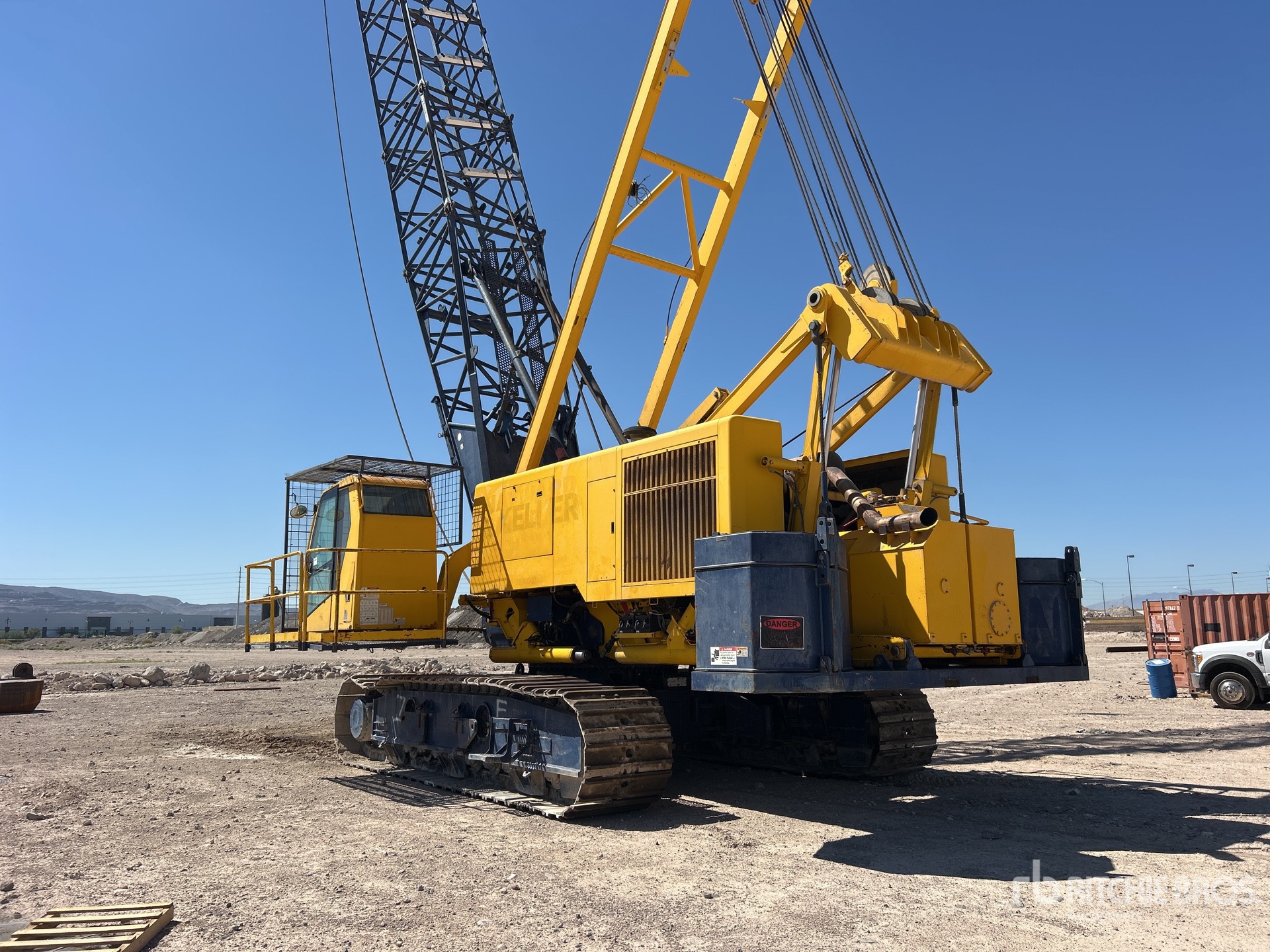

Picture, Left Rear Corner

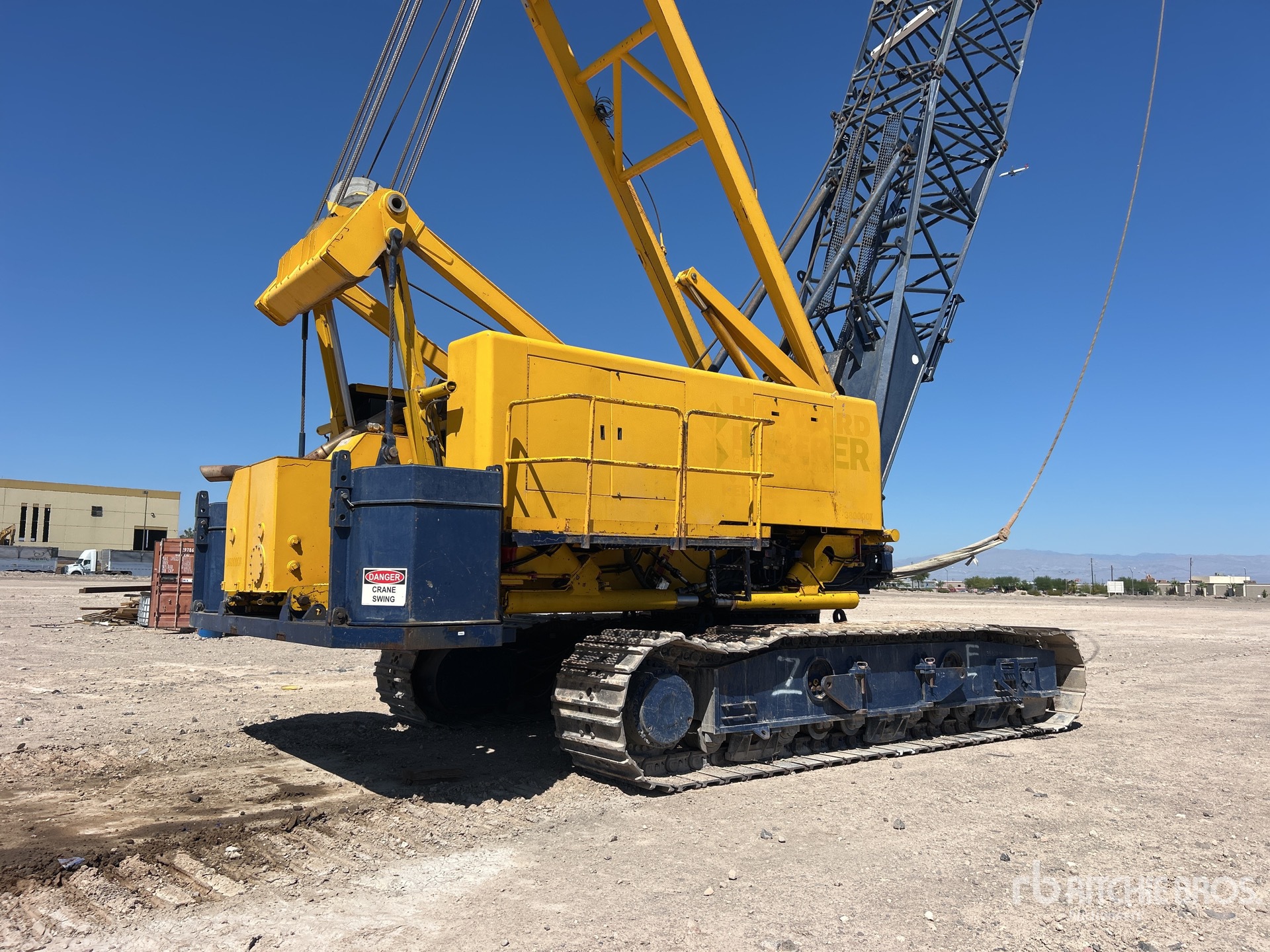

Picture, Right Rear Corner

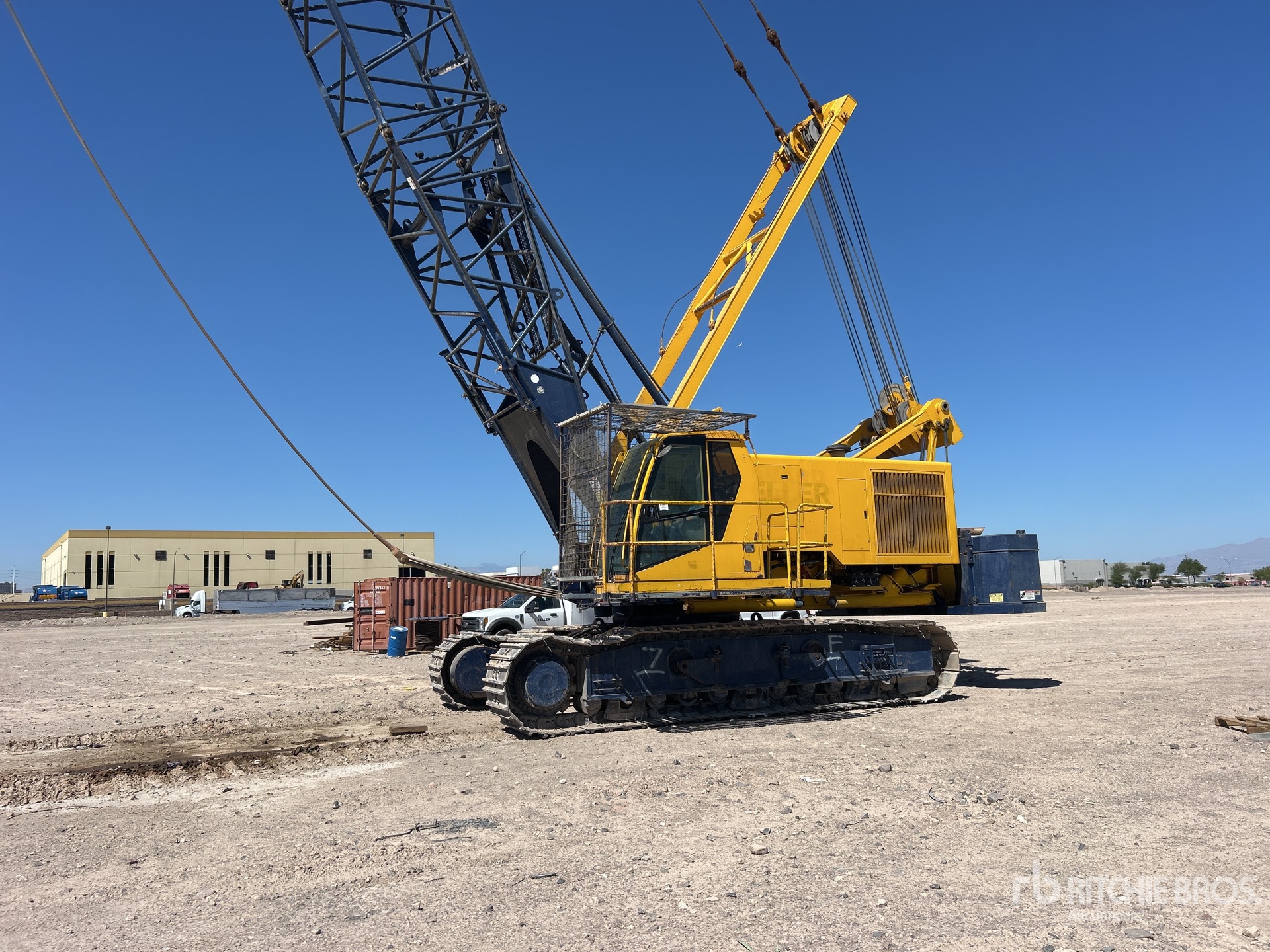

Picture, Right Front Corner
Serial Number / VIN
10151003
Hour Meter / Odometer
5091 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Steps/Ladders
Hand Rails
Glass
Safety Certification Label
There is a safety certification label with a date of 08-09-2023
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load., No data plate or make model info found in cab
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
5 bars PSI
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Not operationally checked
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Chains/Sprockets
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Dripping leak
Valves
Dripping leak
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Dripping leak
Auxiliary Hoist
Dripping leak
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
123 ft overall length, 30 ft tip section, 3 Sections, 23 ft base section, 3 sections , 10 ft, 30 ft, 40 ft
Boom Angle Indicator
Turntable Bearing
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
46 mm
Left Track Links
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
48 mm
Right Track Links
Right Idler
Right Sprocket
Specialty
Main Load Block
Overhaul Ball
Counterweights
Additional information
