Kleemann KT80-2 36 in x 80 ft Tracked Stacking Conveyor
Located
Yonges Island, SC
Yonges Island, SC
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15882658
In yard
No
Features
Lattice Frame, Folding End Section, Hydraulic Raise

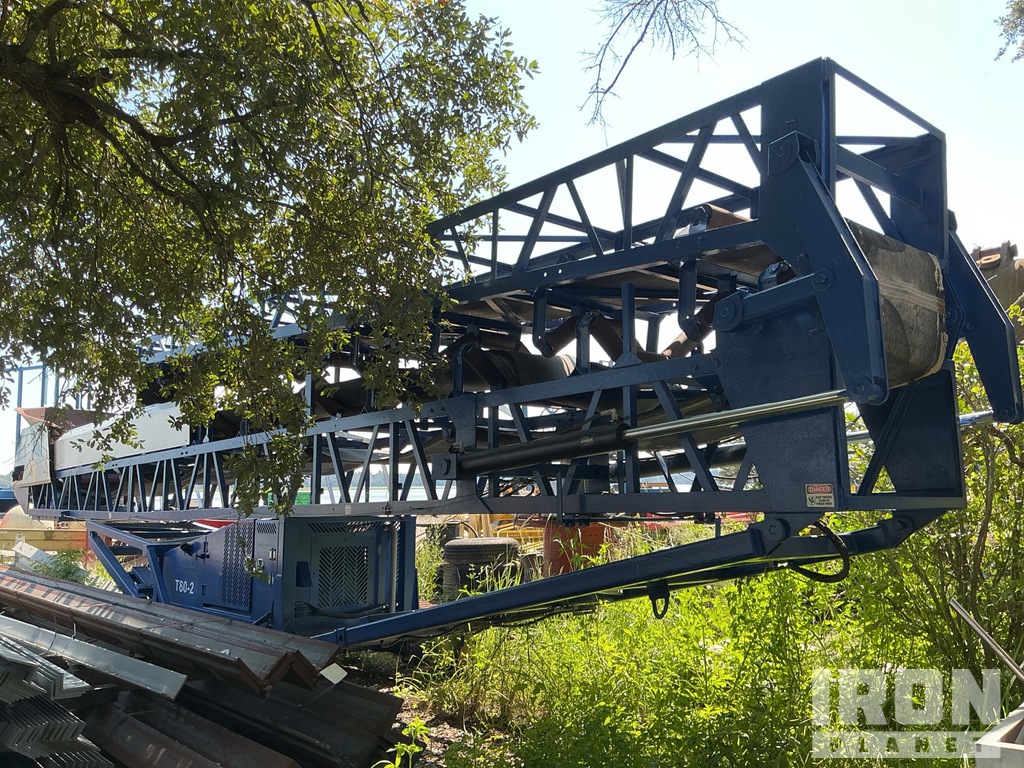

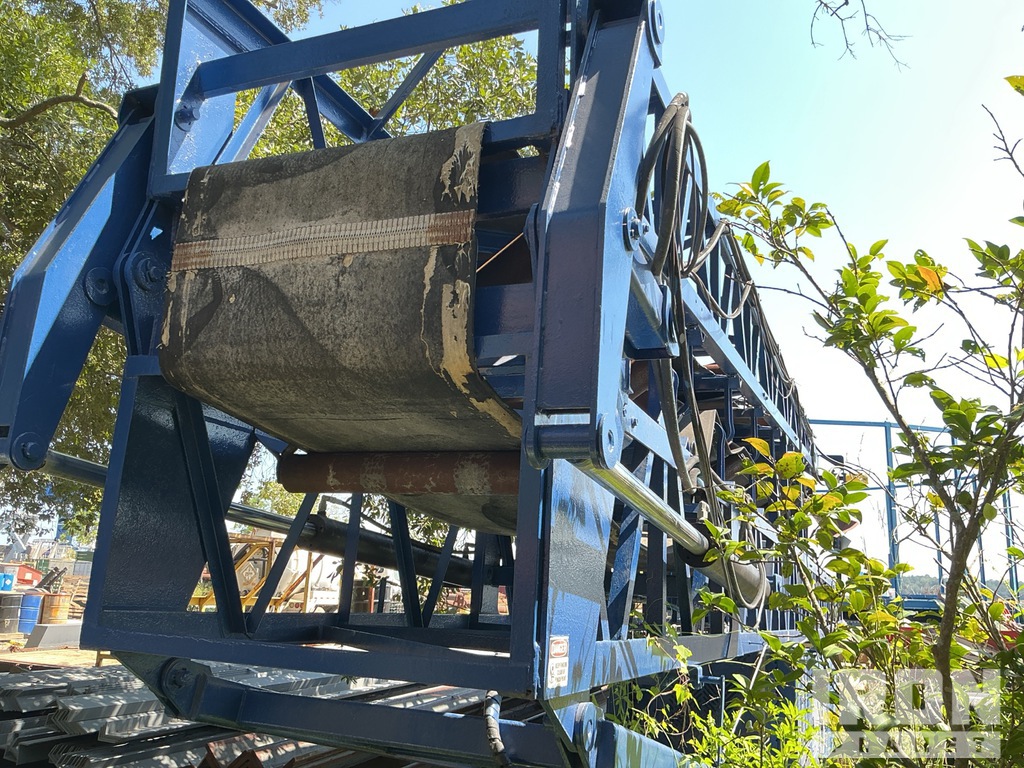

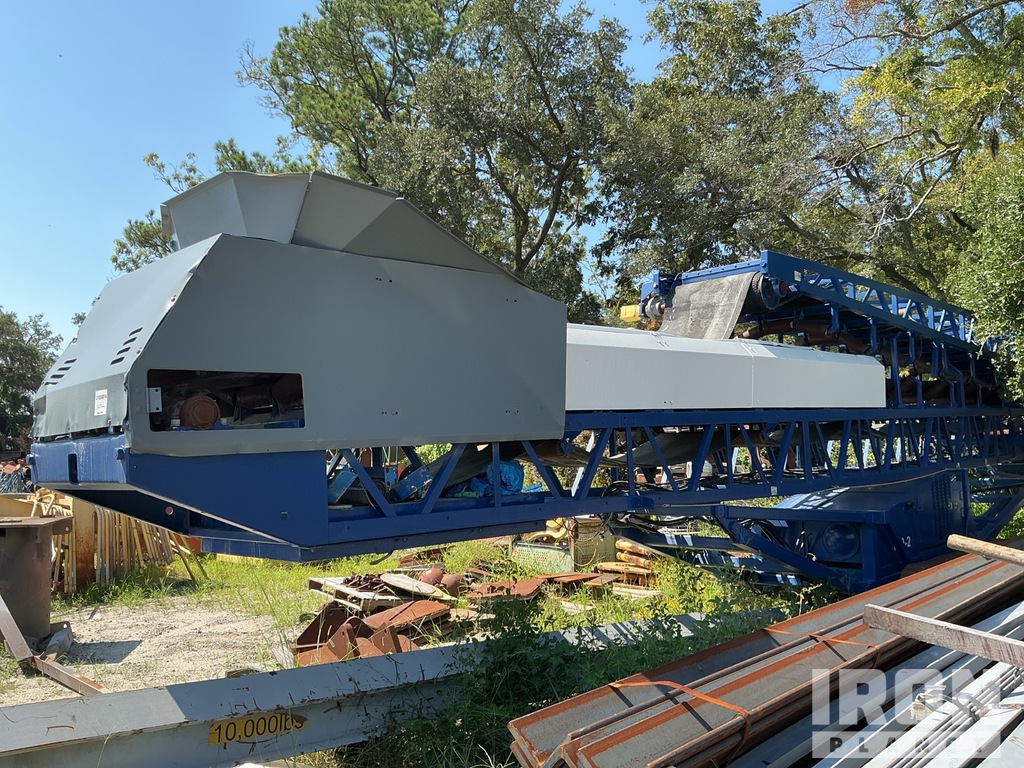

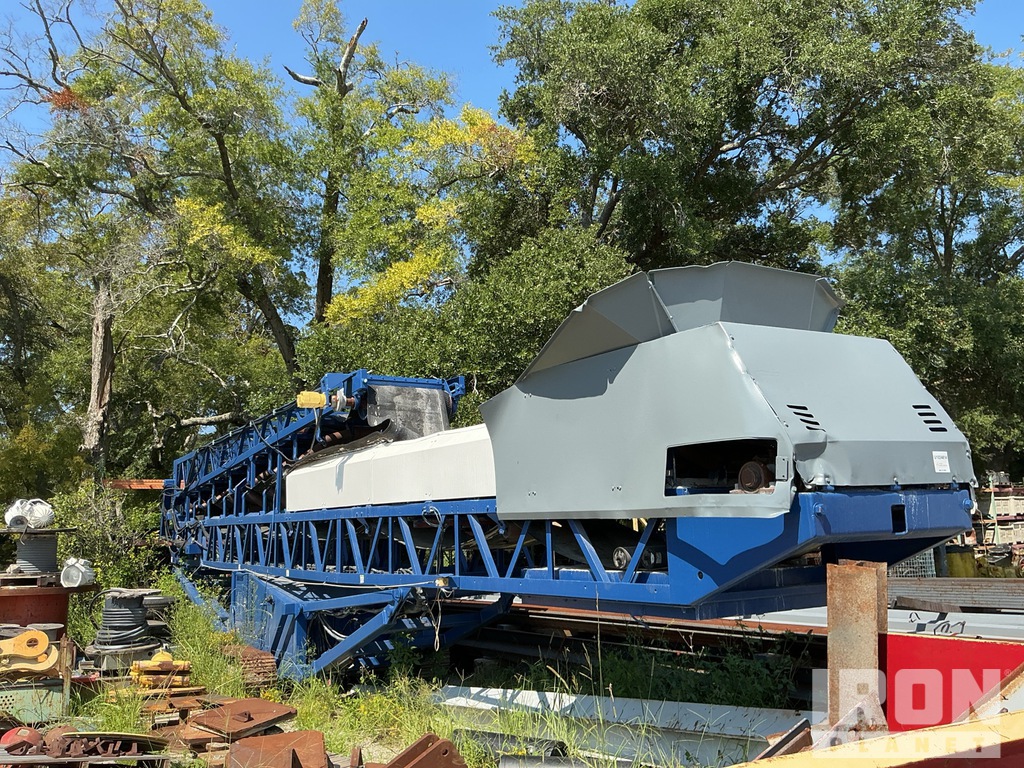

General Appearance
Serial Number / VIN
No serial number or manufacturer’s identifying number found. This unit may be difficult to export.
CE Mark
No CE mark found
Hour Meter / Odometer
Meter reading could not be obtained-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Electrical
Disconnect Switch
Not operationally checked
Engine
Emission Certification Label
None found
Starter
Not operationally checked
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine could not be started.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Conveyor Cylinders
Limited Function Check
The hydraulic system could not be operationally checked.
Power Travel Drive
Yes, Hydraulic, Appears to be complete
Conveyor/Rollers
Raise / Lower Mechanism
Hydraulic raise
Support Frame
Conveyor Frame
Feed Hopper
Peter Hopper sheet metal is bent
Conveyor Belt Condition
Conveyor belt is delaminating and shredding
Conveyor Rollers
Several rollers removed and laying on belt in belt structure
Belt Tensioner
Belt tensioner is rusty
Carrier
Axle Condition
Axles are rusty
Limited Function Check
The unit could not be started and run; several components could not be checked.
Frame Rails/ Main Beams Condition
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Shoes
Left Grouser Height
14 mm
Left Track Links
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Right Grouser Height
13 mm
Right Idler
