34 Photos

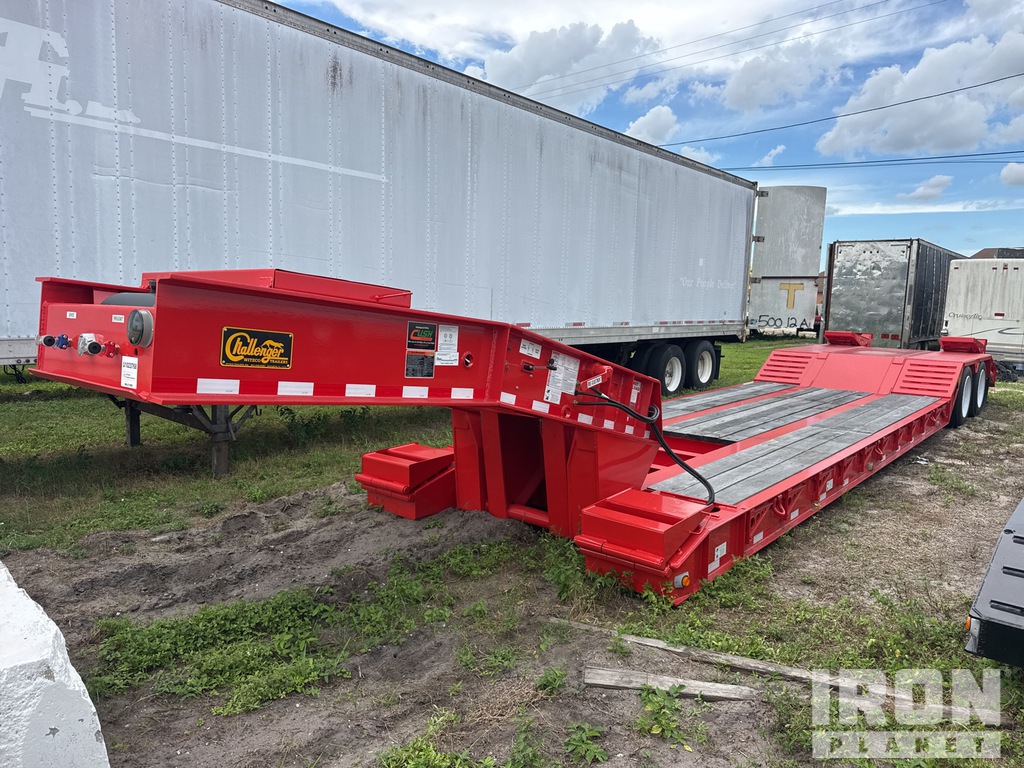

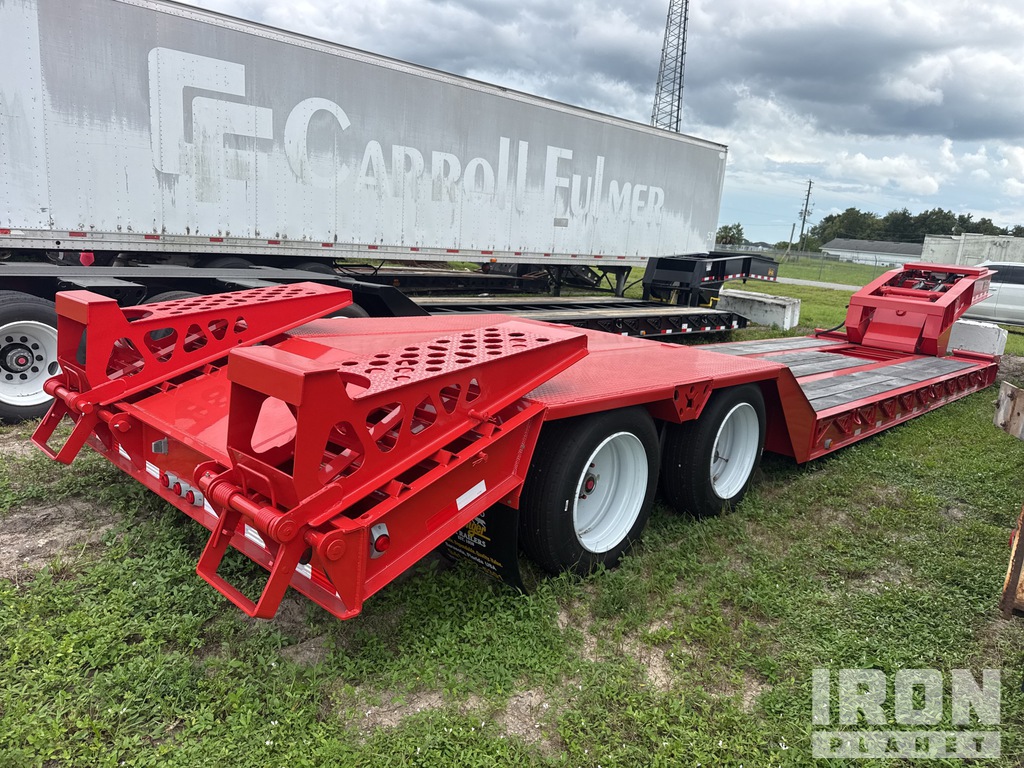

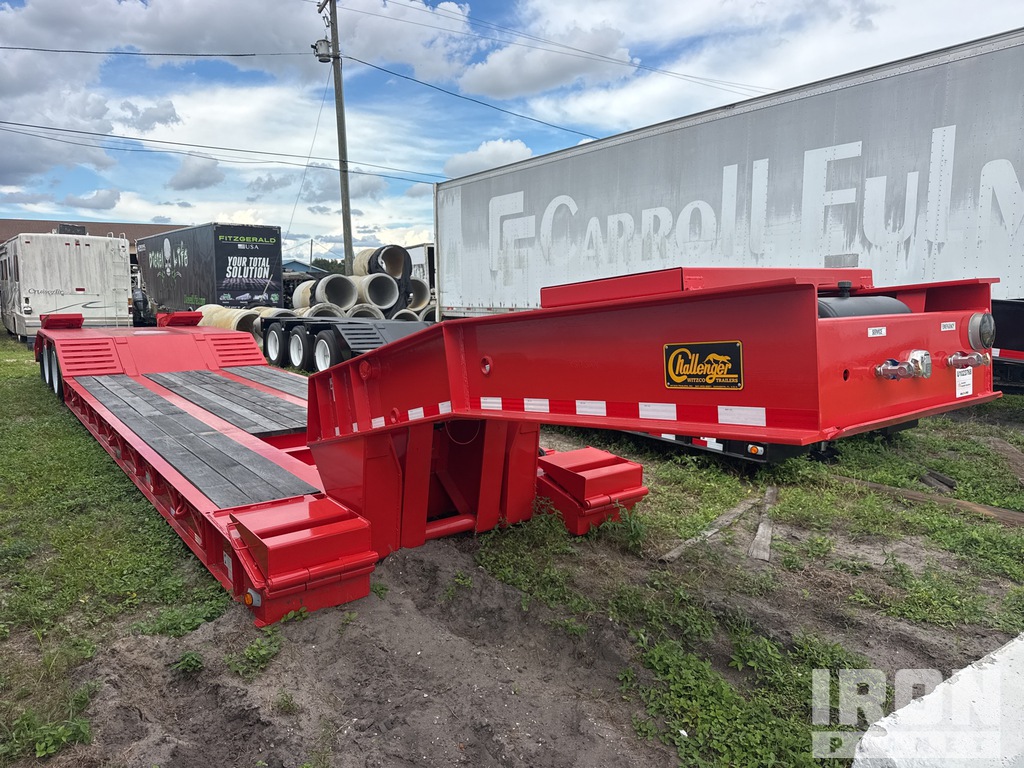

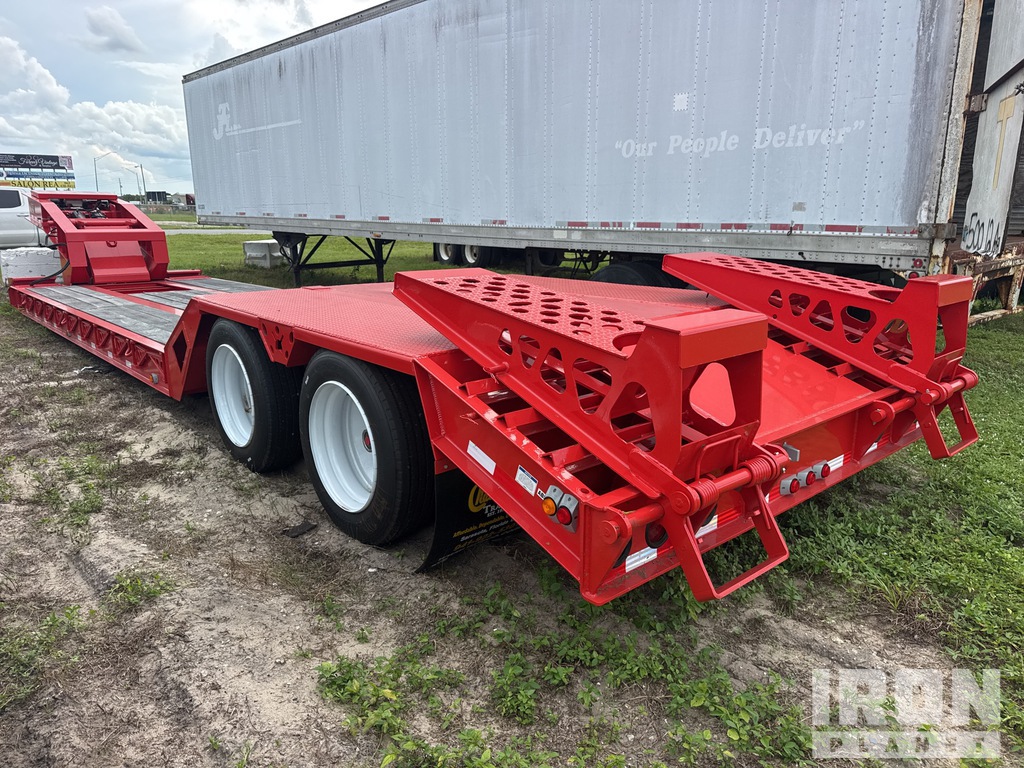

2027 Witzco NGB-35 70000 lb T/A Removable Gooseneck Lowboy Trailer (Unused)
Located
Dundee, FL
Dundee, FL
Serial number
1W8A11E20VS000021
1W8A11E20VS000021
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15696597
In yard
No
Features
89500 lb GVWR, Hydraulic Removable Gooseneck, 21 ft x 102 in Main Deck, Deck Over Tires, Side Extensions, Air Ride Suspension, Gasoline Driven Self Contained Hydraulic System
Notes
Seller Supplied Information: 70,000 lb capacity, 8'6" wide, 46'6" length, 21' loadwell, 3 Hendrickson 25,000# capacity axles, Cush Air Ride suspension with automatic height control, 8-255/70 R 22.5 wheel assemblies, steel diamond plate covered wheels, 90" swing clearance, 13 HP Honda Engine, 2-6" cylinders, hydraulic neck support, 16 D rings, 2 D rings in tail section, 26 outriggers, front flip ramps and flush bed hooks, 36" self-cleaning beavertail, 24" × 60" all-steel self-cleaning manual ramps, flag holders, Peterson LED multi-volt lights, expanded metal toolbox, 2" oak lumber, gooseneck 4 ride height positions in 2" increments, high gloss acrylic enamel in Red <BR><BR>**No Title Available. A MSO will be provided to transfer ownership. Please check with your local licensing agency**
General Appearance
Serial Number / VIN
1W8A11E20VS000021
Paint
Sheet Metal (fiberglass) Condition
Engine
Engine Make and Model
Make: Honda, Model: GX390, 1 Cylinder Engine
Emission Certification Label
US EPA certification label
Engine Leaks
None Seen
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses
Cylinder(s)
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Trailer Chassis
Frame Rails/ Main Beams Condition
Axle Condition
Springs/Hangers Condition
Suspension Air Bags
Not operationally checked
Brake Lines/Hoses
Not operationally checked
Limited Function Check - Brakes
The brakes were not operationally checked.
Tire Condition
Tires
Left front outer: 15 /32", Left front inner: 15 /32", Left rear outer: 15 /32", Left rear inner: 15 /32", Right rear outer: 15 /32", Right rear inner: 15 /32", Right front outer: 15 /32", Right front inner: 15 /32"
Wheel Condition
Wheel Studs
Tongue/ Hitch Condition
No visible damage
Power Receptacle Functional
Not operationally checked
Lights/Wiring Condition
Not operationally checked
Marker Lights Functional
Not operationally checked
Brake Lights Functional
Not operationally checked
License Plate Light Functional
Not operationally checked
Deck/ Floor Condition
Ramps
