146 Photos
2022 Screen Machine 4043TR Recirculating Impact Crusher
Located
Burgettstown, PA
Usage
441 hrs
Serial number
4043TR-1224
Inspection report:
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#12608358
In yard
Yes
Year
2022
Manufacturer
Model
Asset type
Serial number or VIN
4043TR-1224
Features
2022 US EPA Label, CARB Compliant, Cat C9 6 Cylinder 9.3 L Diesel Engine, Requires Diesel Exhaust Fluid, 6 ft x 14 ft Vibratory Pan Feeder 24 in Impact Crusher, 48 in Wide Fines Discharge Conveyor, 24 in Wide Under Crusher Conveyor, 36 in x 24 ft Crusher to Screen Conveyor, 48 in Wide Under Screen Conveyor, 20 in Wide Right Discharge Conveyor, 36 in x 6 ft 6 in Cross Belt Magnet, Radio Remote Control, Auto Lube, 20 in Triple Grouser Track Shoes
Notes
Our standard transaction fees do not apply. A flat transaction fee of 12% will be applied to each Lot purchased.
General Appearance

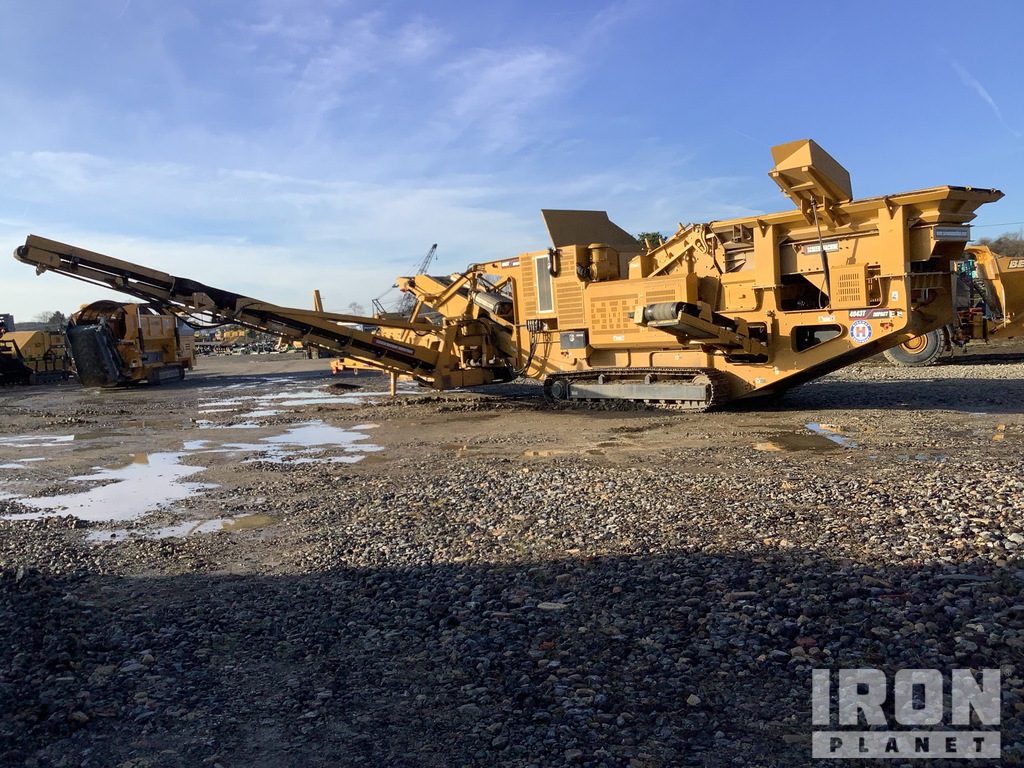

Picture, Left Front Corner

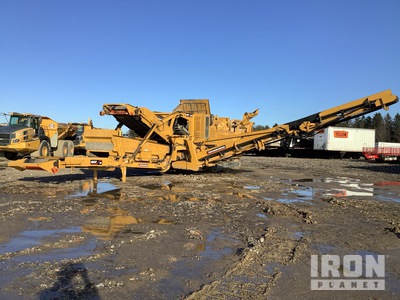

Picture, Left Rear Corner

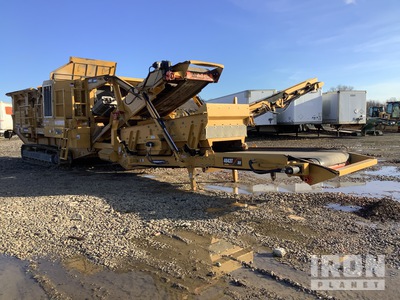

Picture, Right Rear Corner

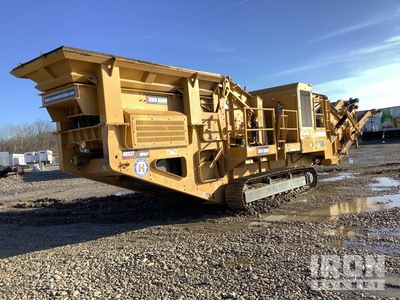

Picture, Right Front Corner
Serial Number / VIN
4043TR-1224
CE Mark
No CE mark found
Hour Meter / Odometer
441 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
US EPA certification label
Block Heater
No
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Stabilizer Jack Cylinders
Power Travel Drive System
1 Travel Speed, Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 14 ft, Width @ top: 6 ft
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
Belt driven off a clutch off the engine
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Deck Frames / Wear Bars
Screen Cloth
Chute Condition
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
25 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
25 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Additional information
