186 Photos
2022 Rubble Master RM90GO! Tracked Impact Crusher Plant
Located
Milliken, CO
Milliken, CO
Usage
1,142 hrs
1,142 hrs
Serial number
05.428
05.428
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15753890
In yard
No
Features
John Deere 6 Cylinder 260 hp 6.8 L Diesel Engine, Requires Diesel Exhaust Fluid, Belt Feeder Rubble Master 35 in Impact Crusher, 3 kW Drive Motor, 6 ft 8 in x 3 ft 8 in Single Deck Screen, 31 in Wide Feed Conveyor, 39 in Wide Fines Discharge Conveyor, 32 in Wide Under Crusher Conveyor, 31 in Crusher to Screen Conveyor, 18.5 in Wide Under Screen Conveyor, 15.5 in Wide Left Discharge Conveyor, 39 in Wide End Discharge Conveyor, x 31 ft 5 in Cross Belt Magnet, Radio Remote Control, Track Shoes

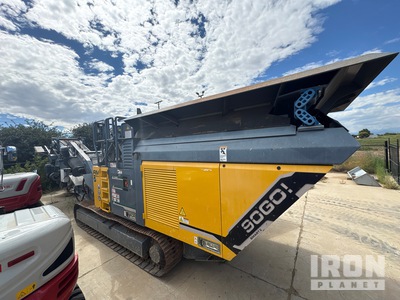

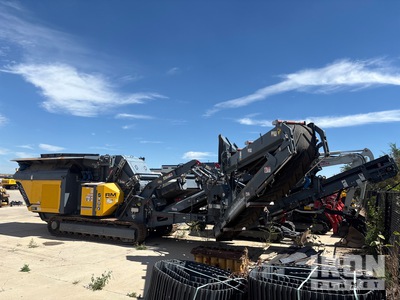

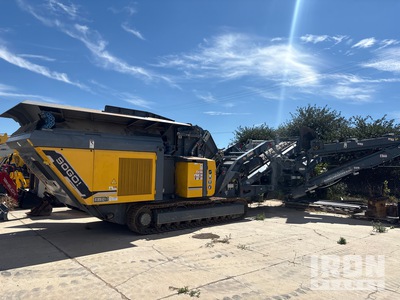

General Appearance
Serial Number / VIN
05.428
Hour Meter / Odometer
1142 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Missing service gauge gauges are inoperable
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Electrical
Electric Motors
Manufacture brand MOLL-motor
Switch Gear
Number of switches 1
Disconnect Switch
Not operationally checked
Cables and Connections
Engine
Emissions Status
US EPA Label not legible
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Power Travel Drive System
2 Travel Speeds
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 13 ft, Width @ top: 67 in
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Jaw width and spacing between jaws 5.5 in
Crusher Drive System
VSI / HSI Crusher Chamber
Feed Conveyor Condition
Feed Conveyor Frame
Feed Conveyor Drive Motor
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Wear and buildup
Deck Frames / Wear Bars
Chute Condition
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Grouser Height
21 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Right Roller Frame
Right Grouser Height
21 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
