168 Photos
2020 Wirtgen W210Fi Tracked Cold Planer
Located
Sharonville, OH
Sharonville, OH
Usage
5,559 hrs
5,559 hrs
Serial number
23200117
23200117
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15608227
In yard
No
Features
Rear View Camera, 2019 US EPA Label, 7 ft 3 in Cutting Width, 13 in Milling Depth, Water System, 33 in Discharge Conveyor, Air Compressor, 12 in Triple Grouser Track Shoes w/Rubber Pads

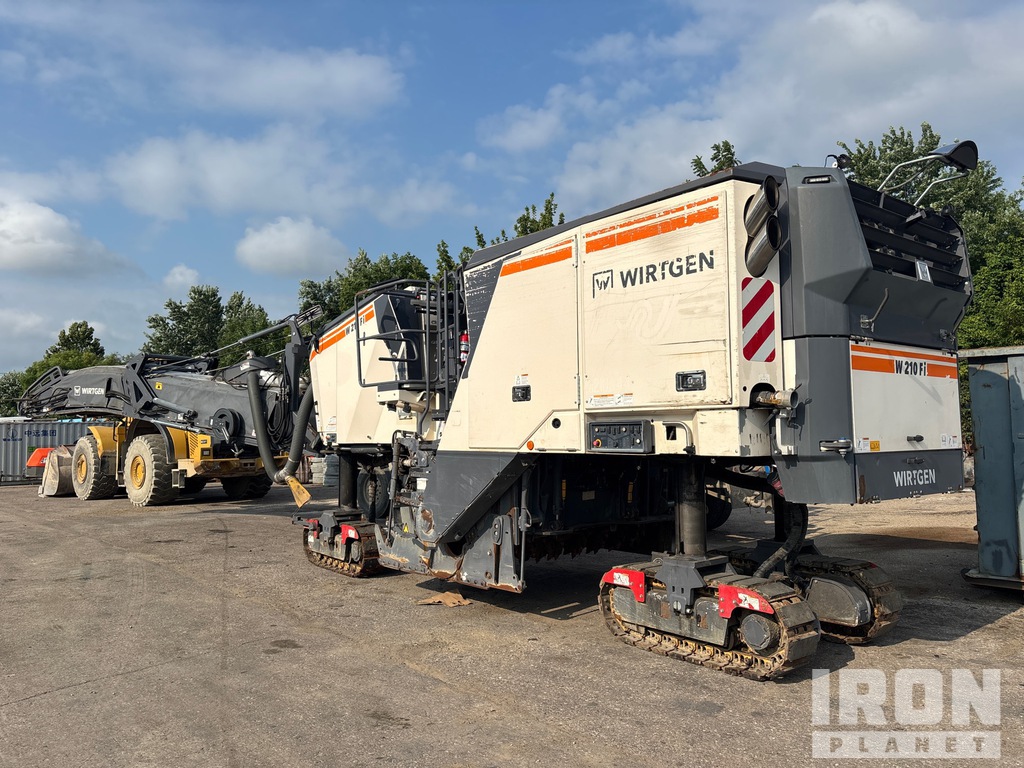

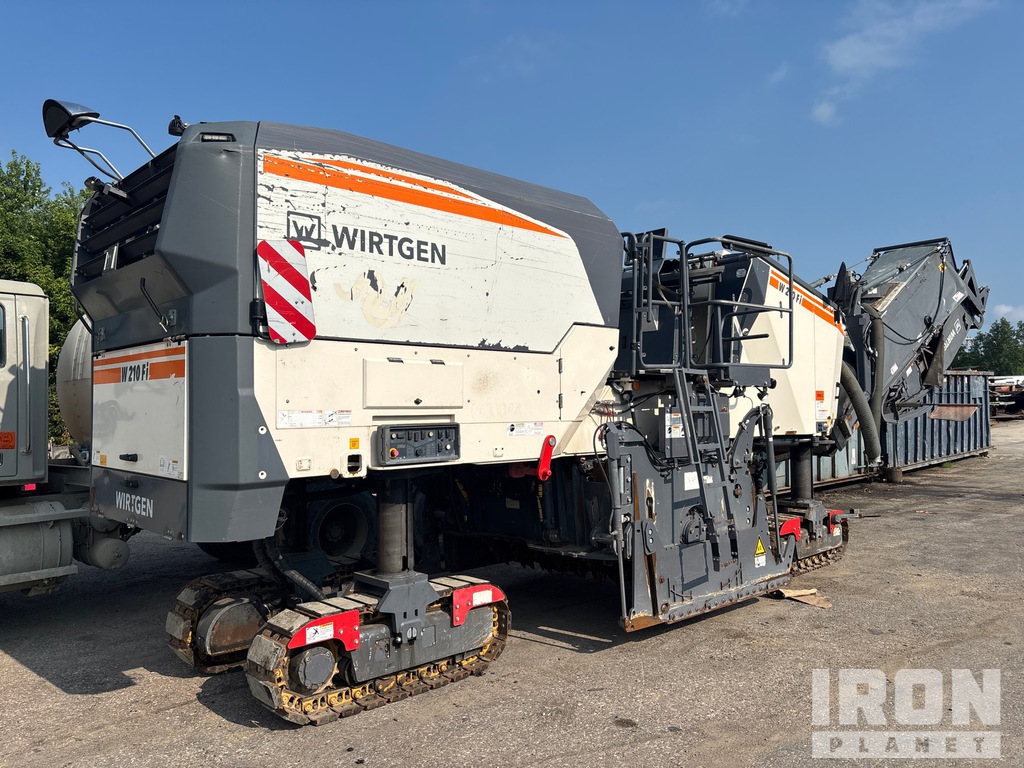

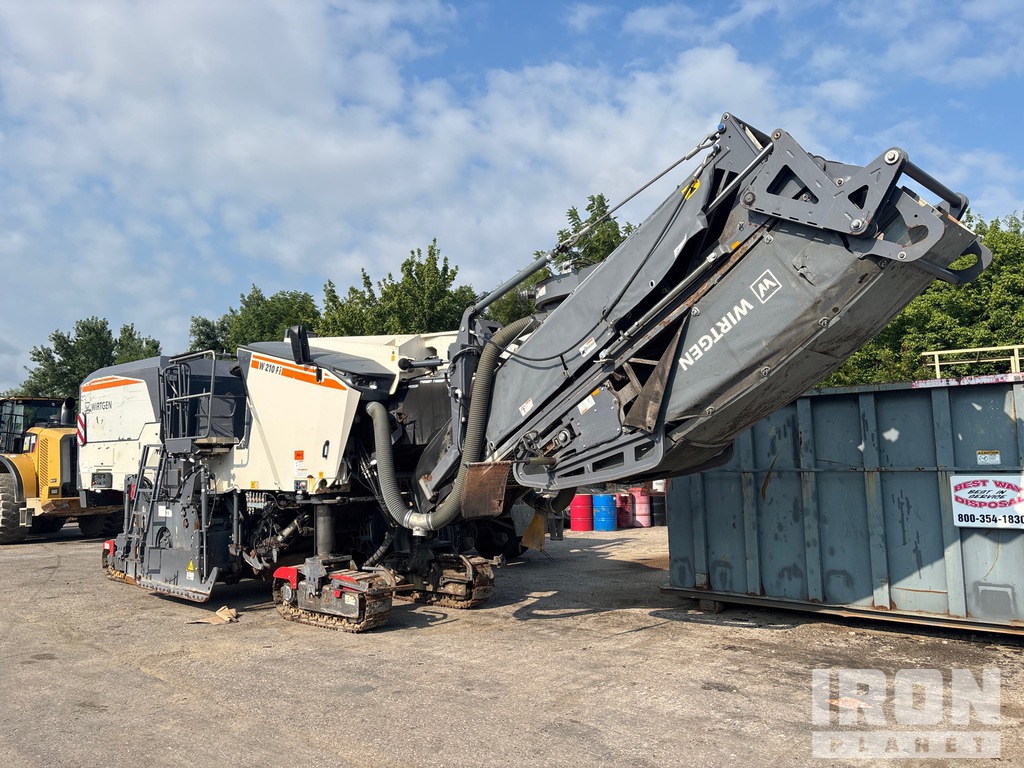

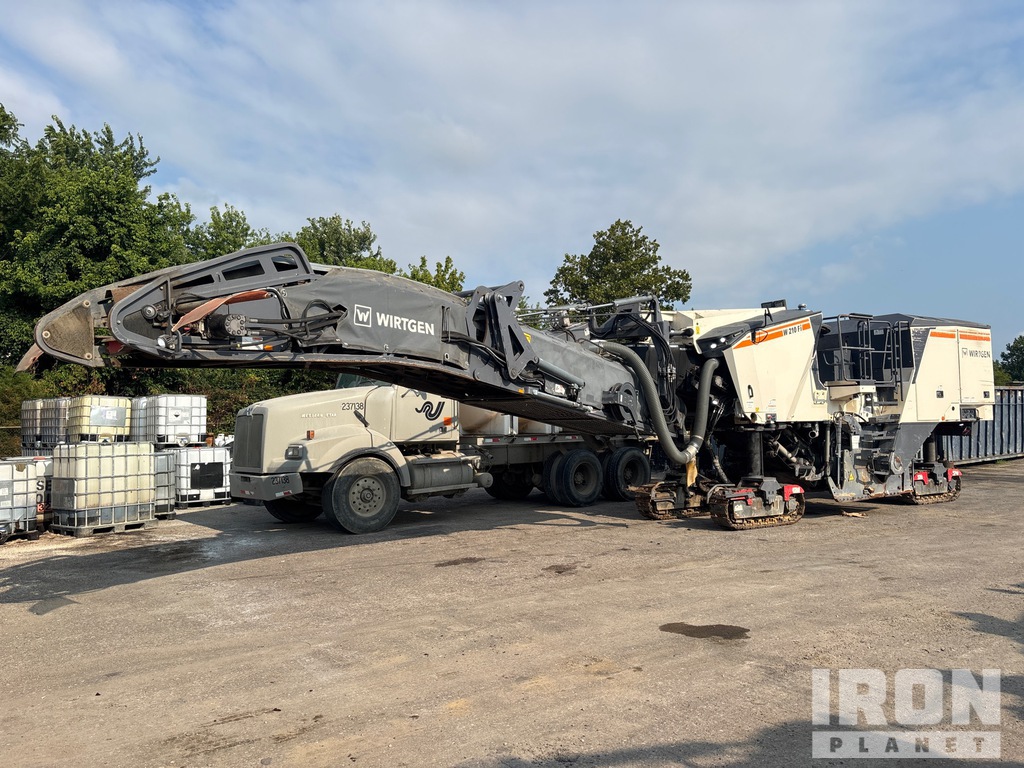

General Appearance
Serial Number / VIN
23200117
CE Mark
CE Marked
Hour Meter / Odometer
5559 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Exterior Lights
Operational
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Fault codes
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Engine
Engine
2019 US EPA Label
Emission Label
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks Residue on side of engine, no dripping leak during inspection
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Chassis
Drive/Propel Motors
Final Drives
Limited Function Check
The drivetrain was operational.
Rotor Drive Clutch
Fluid accumulation
Rotor Drive Pulleys
Rotor Drive Belt
Rotor Final Drive
Residue
Rotor Drive Brake
Rotor Shaft Bearings
Residue
Limited Function Check
The main chassis components functioned.
Main Frame
Track Frame
Rotor Mandrel
Holders and Cutting Bits
Heavy wear
Roller Frame Legs
Rotor Compartment Doors
Conveyor Frame
Conveyor Rollers
Collecting Conveyor
33 " Conveyor
Discharge Conveyor
Water Tank
Not operationally checked
Water Spray System
Not operationally checked
Pressure Washer
Not operationally checked
Air Compressor
Not operationally checked
Limited Function Check
The components that could be checked functioned with wear.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Dripping leak
Hydraulic Tank
Hoses
Cylinder(s)
Cylinder Pins and Bushings
Movement
Limited Function Check
The hydraulic system was operational.
Undercarriage
Track Tensioners
No visible damage
Track Pads
Grouser Height
Left Side: 20 mm, Right Side: 20 mm
Track links
Pins and Bushings Turned?
Yes
Track Rollers
Seepage
Idlers
Sprockets
No visible issues
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 07, 2026 |
| Silicon | 0 PPM |
| Tin | 1.72 PPM |
| Silver | 0 PPM |
| Aluminum | 1.29 PPM |
| Chromium | 0.31 PPM |
| Lead | 0.89 PPM |
| Copper | 0 PPM |
| Nickel | 0.26 PPM |
| Iron | 10.39 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
