116 Photos
2020 Terex Evoquip Colt 1600 Tracked Screen Plant
Located
Crystal Springs, MS
Crystal Springs, MS
Usage
5,718 hrs
5,718 hrs
Serial number
TRXEQ160LDGL52926
TRXEQ160LDGL52926
Loading...
ID number
#14431890
In yard
No
Features
US EPA Label, Cat C4.4 4 Cylinder 82 kW 4.4 L Diesel Engine, Requires Diesel Exhaust Fluid, 16 ft x 5 ft Double Deck Screen, 42 in Wide Feed Conveyor, 48 in Wide Under Screen Conveyor, 36 in Wide Left Discharge Conveyor, 31 in Wide Right Discharge Conveyor, 48 in Wide End Discharge Conveyor, 24 in x 5 ft Cross Belt Magnet, Cable Remote Control, 16 in Triple Grouser Track Shoes

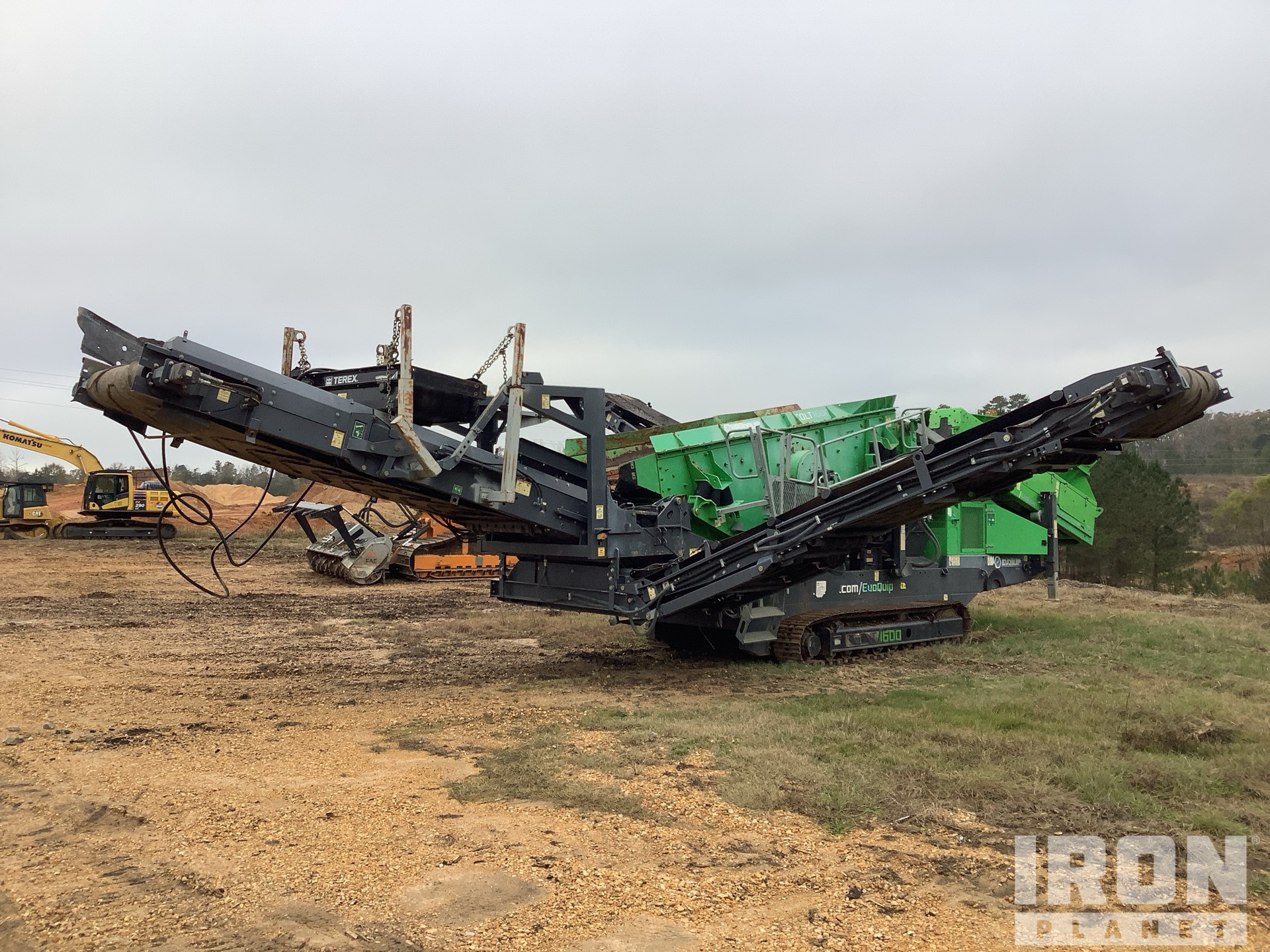

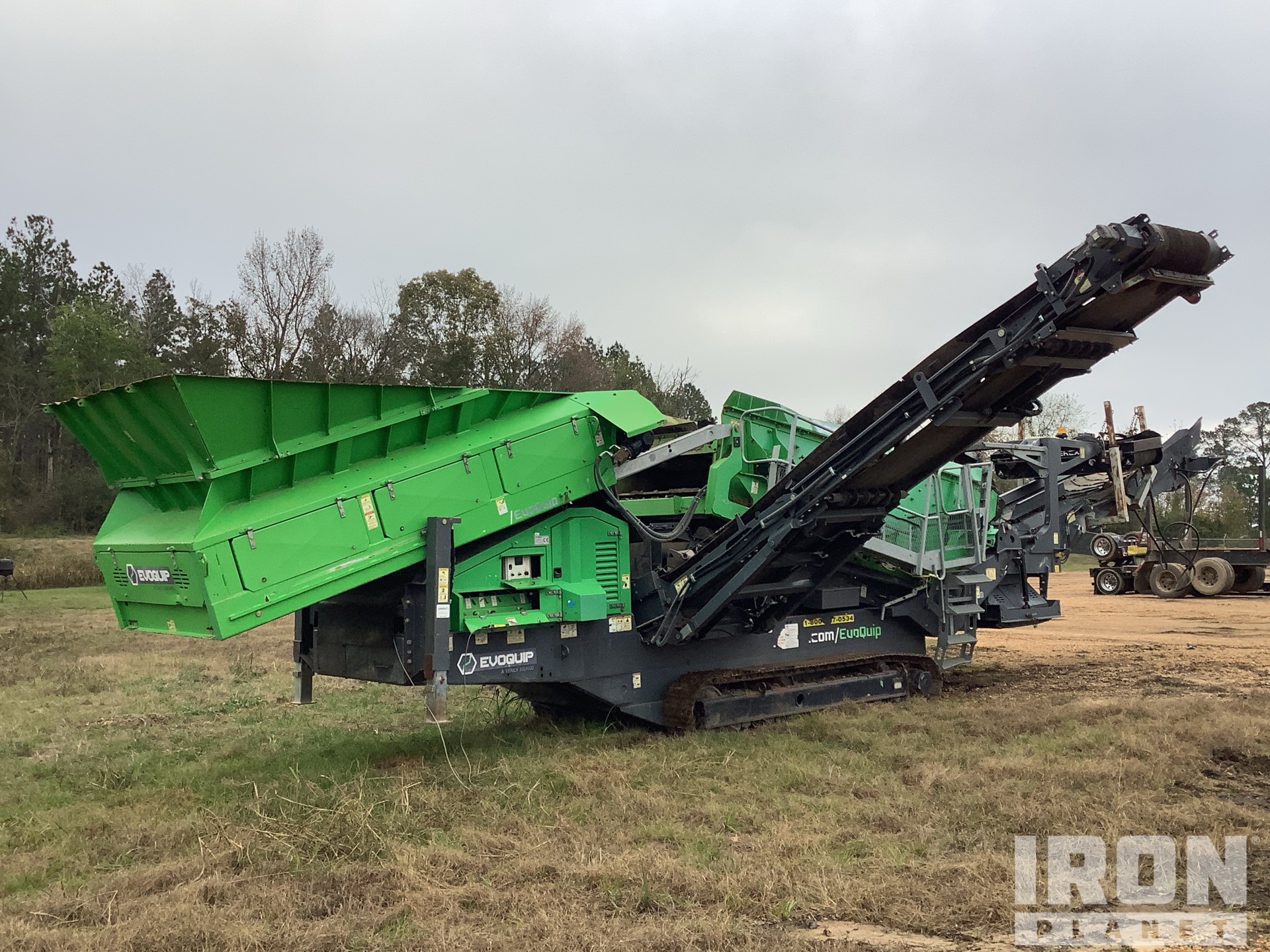

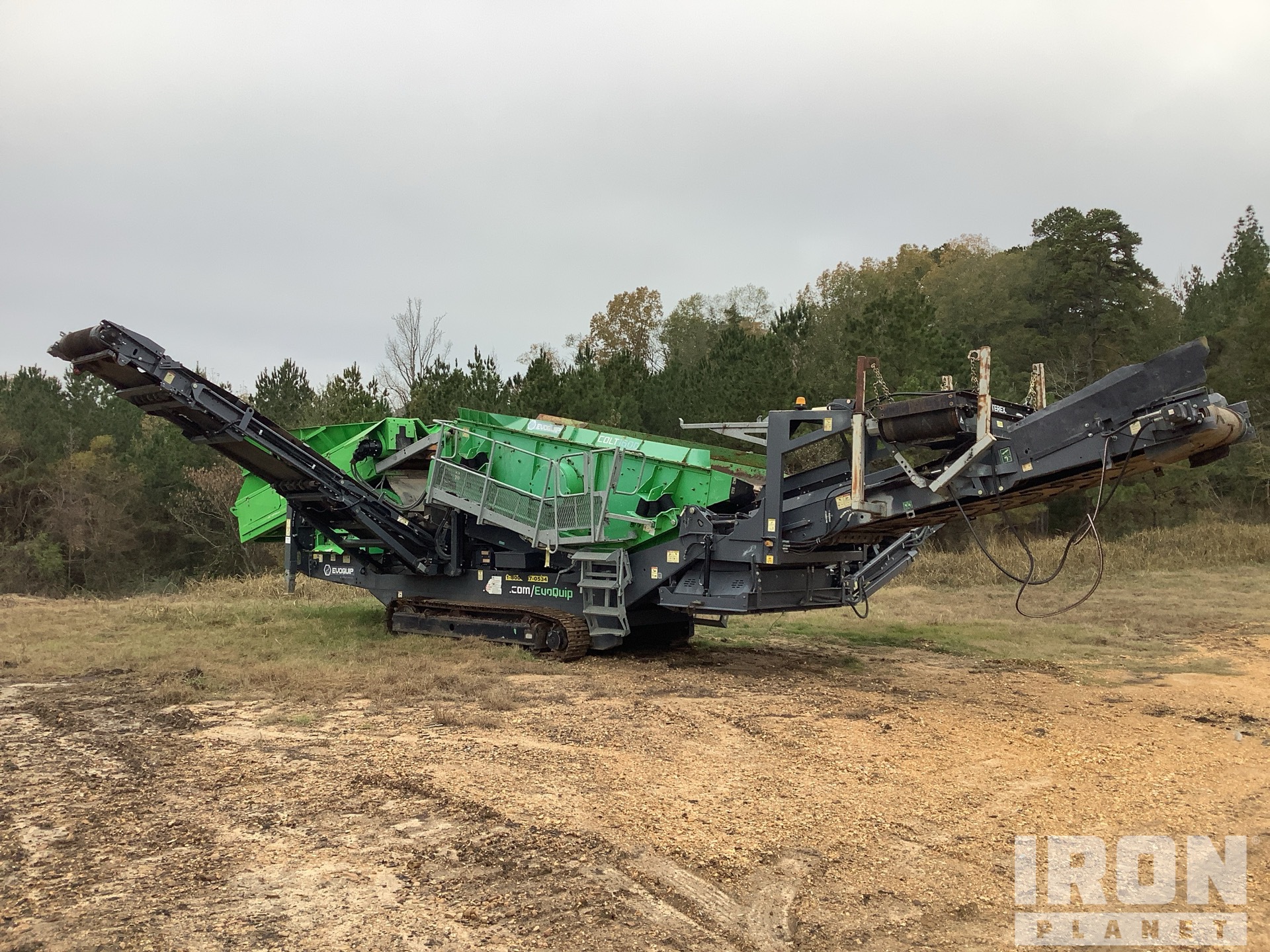

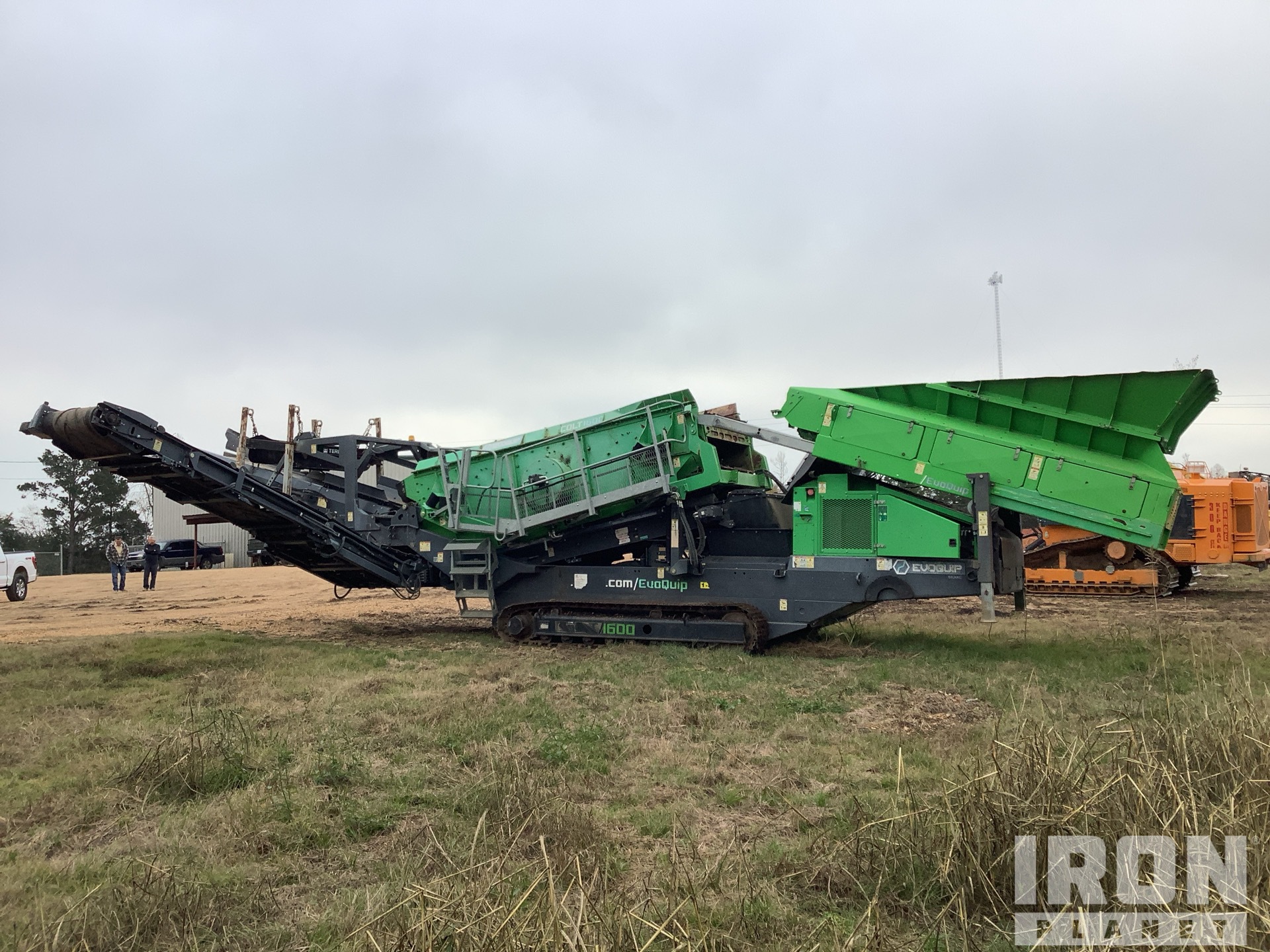

General Appearance
Serial Number / VIN
TRXEQ160LDGL52926
CE Mark
CE Marked
Hour Meter / Odometer
5460 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
US EPA certification label
Blow by @ idle (subjective visual observation)
Recirculating system
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Dripping leak
Hoses
Dripping leak from suction hose, dripping leak from pump hose
Conveyor Cylinders
Dripping leak
Stabilizer Jack Cylinders
Power Travel Drive System
1 Travel Speed, Boggs when steering
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 13’, Width @ top: 54”
Discharge Conveyor Condition
Frame is cracked
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Head and Tail Pulley
No visible damage
Screen Deck
Incline screen, Number of decks: 2
Deck Frames / Wear Bars
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
18 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
18 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Dec 29, 2025 | Dec 29, 2025 |
| Silicon | 0.24 PPM | 10.43 PPM |
| Tin | 1.08 PPM | 0.03 PPM |
| Silver | 0 PPM | 0.02 PPM |
| Aluminum | 0 PPM | 0 PPM |
| Chromium | 0.07 PPM | 0.1 PPM |
| Lead | 0.22 PPM | 0.82 PPM |
| Copper | 0.15 PPM | 0.2 PPM |
| Nickel | 0.58 PPM | 0.49 PPM |
| Iron | 2.07 PPM | 0.31 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
