120 Photos
2019 Keestrack B3 Tracked Crushing Plant
Located
Alpine, CA
Alpine, CA
Usage
1,378 hrs
1,378 hrs
Serial number
711802000
711802000
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#13417023
In yard
No
Features
2018 US EPA Label, Volvo 6 Cylinder 160 kW 7.7 cc Diesel Engine, Requires Diesel Exhaust Fluid, 9 ft x 14 ft Vibratory Grizzly Feeder w/Hydraulic Fold Hopper Wings, Keestrack B3 40 in x 24 in Jaw Crusher, 19.5 in Wide Fines Discharge Conveyor, 36 in Wide Under Crusher Conveyor, 36 in Wide Under Screen Conveyor, 38 in Wide End Discharge Conveyor, 24 in x 72 ft Cross Belt Magnet, Cable Remote Control, 16 in Triple Grouser Track Shoes

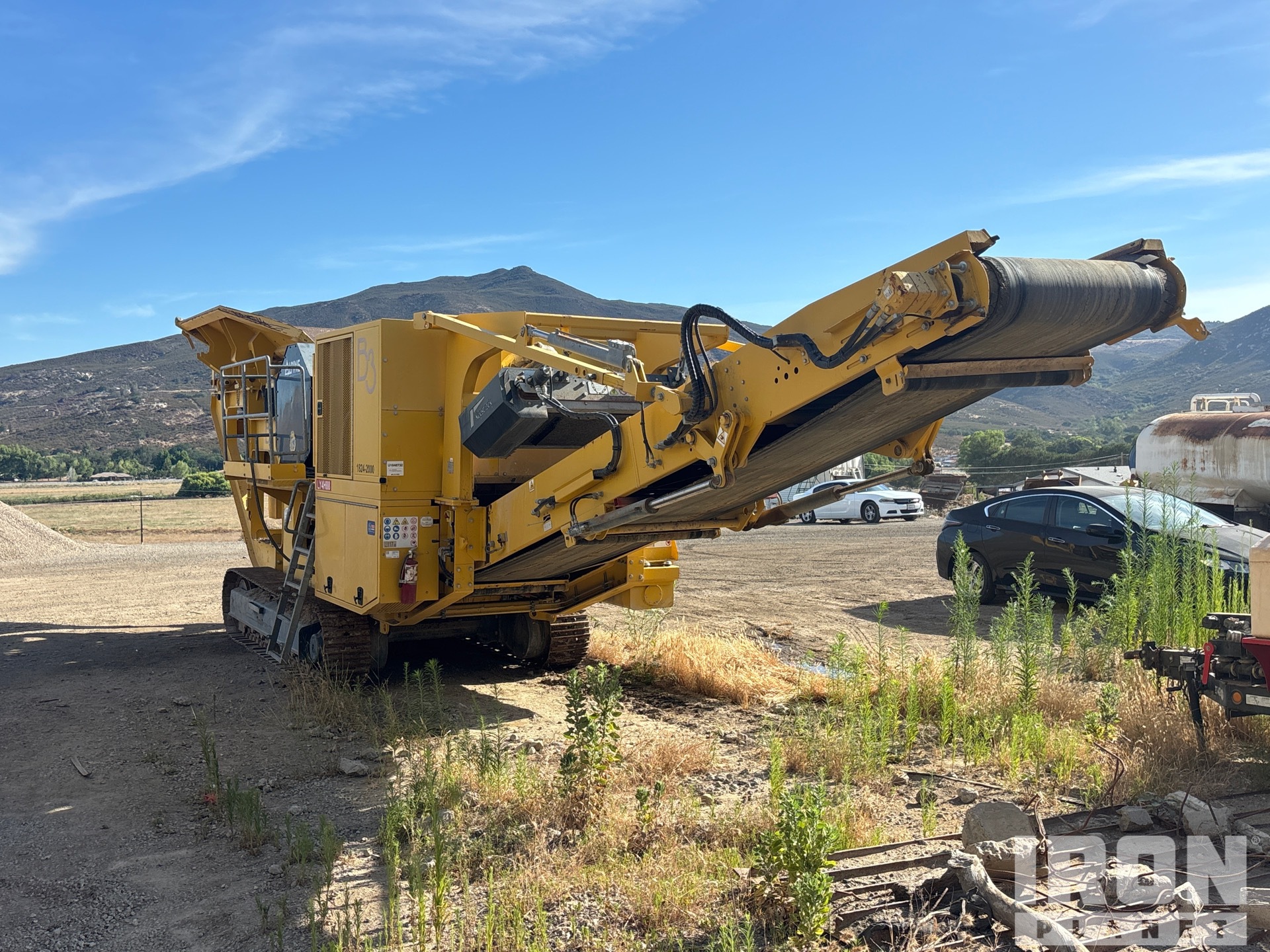

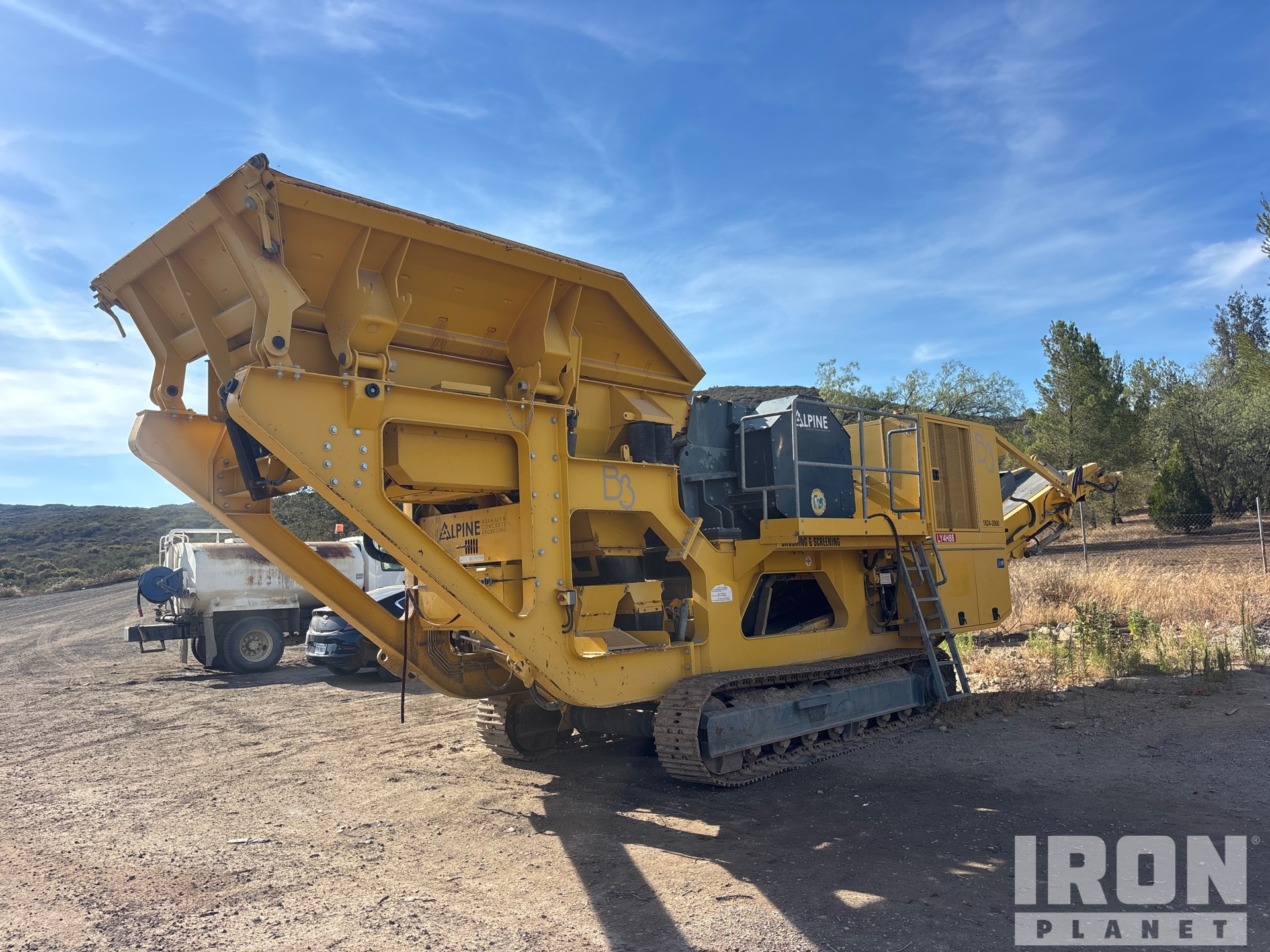

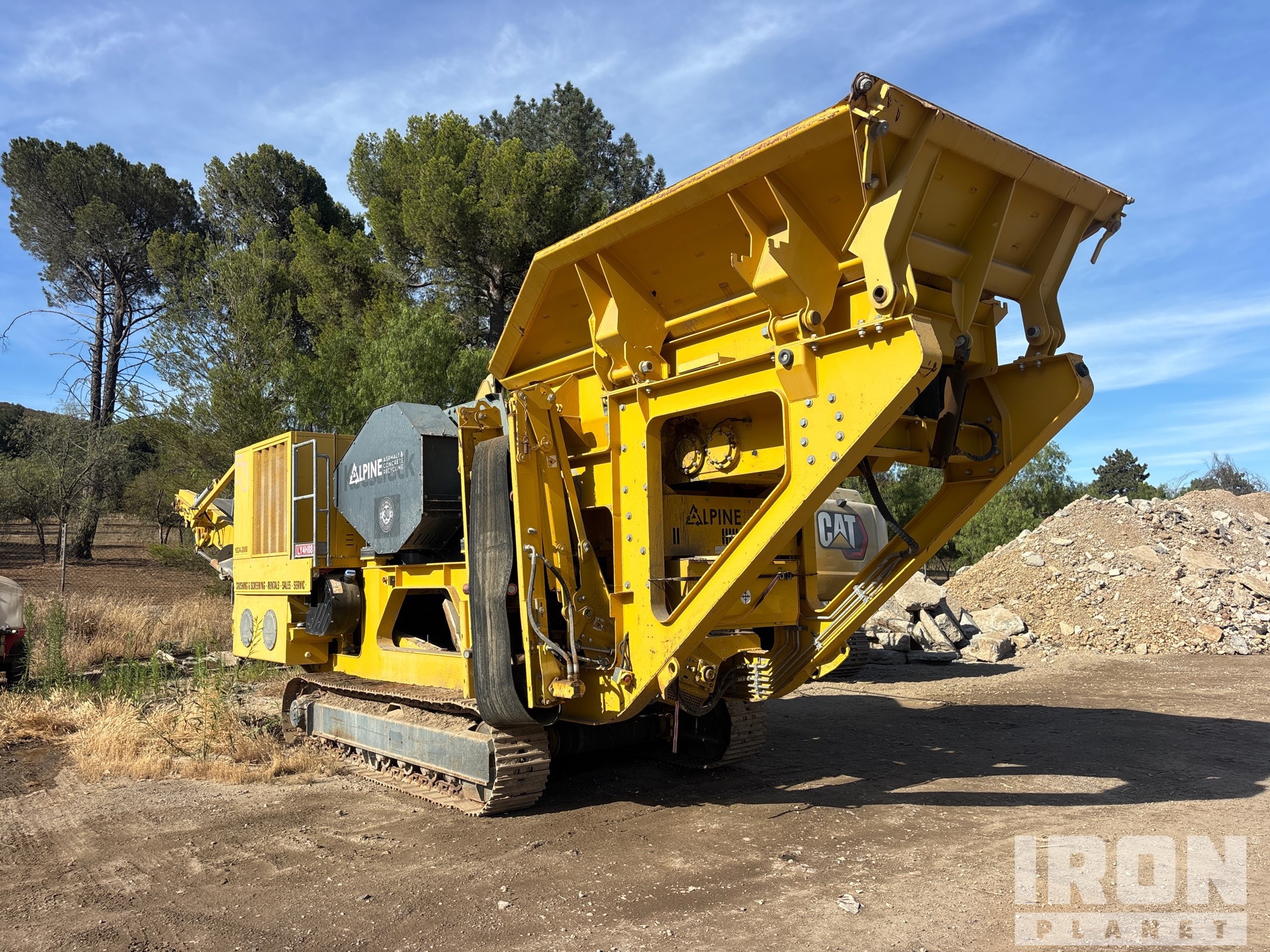

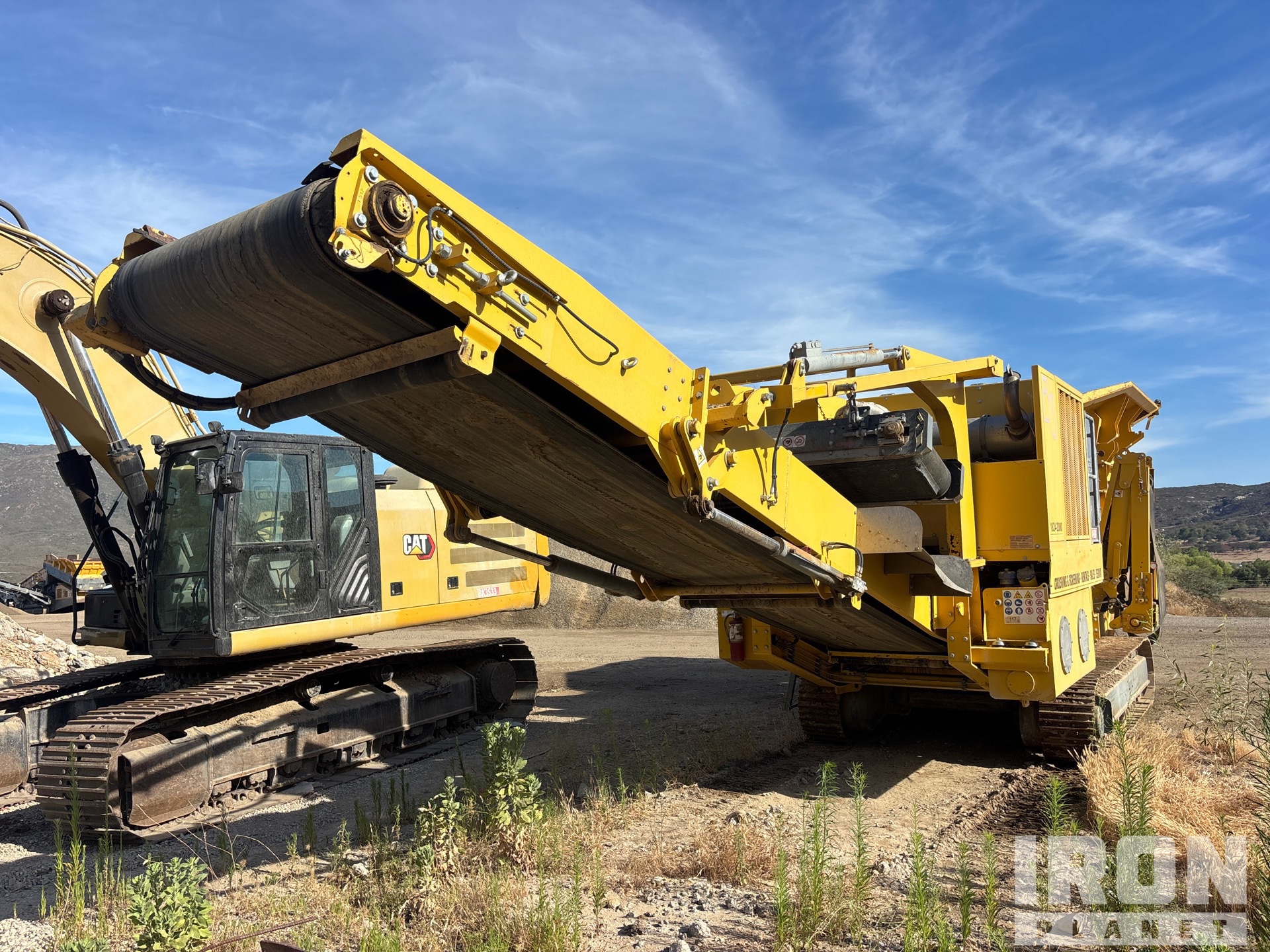

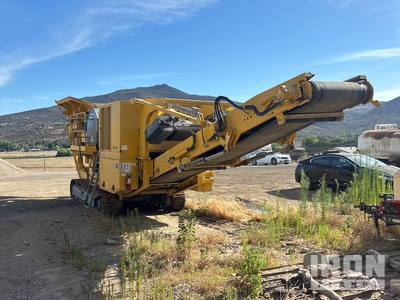

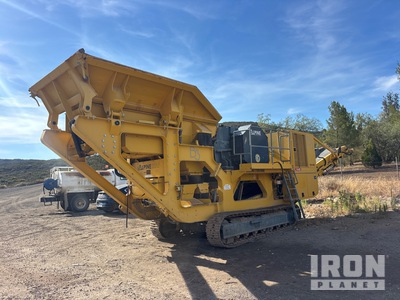

General Appearance
Serial Number / VIN
711802000
CE Mark
CE Marked
Hour Meter / Odometer
1378 hrs, Meter inoperable-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Electrical
Cables and Connections
Engine
Emissions Status
2018 US EPA Label
Emission Certification Label
US EPA certification label
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Power Travel Drive System
1 Travel Speed, Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 14’, Width @ top: 9’, Grizzly length: 48”, Width between grizzly bars: 2”
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
VSI / HSI Crusher Chamber
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Deck Frames / Wear Bars
Chute Condition
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
22 mm
Left Track Links
Left Track Bushings
Bushings have been turned
Left Carrier Rollers
Left Track Rollers
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
21 mm
Right Track Links
Right Track Bushings
Bushings have been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 06, 2026 |
| Silicon | 13.17 PPM |
| Tin | 0.13 PPM |
| Silver | 0.55 PPM |
| Aluminum | 3.16 PPM |
| Chromium | 1.21 PPM |
| Lead | 0.86 PPM |
| Copper | 1.81 PPM |
| Nickel | 2.11 PPM |
| Iron | 36.88 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
