143 Photos

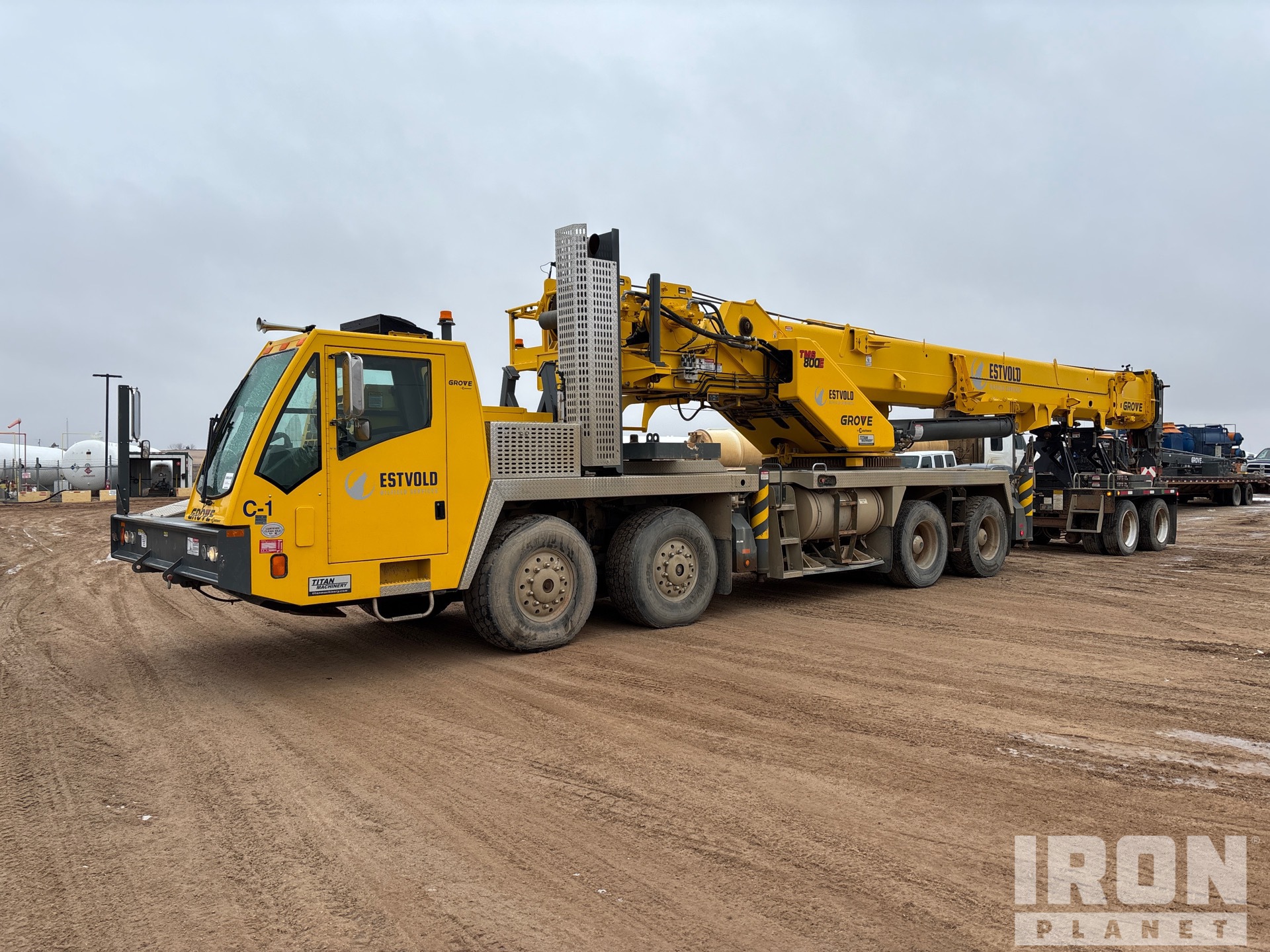

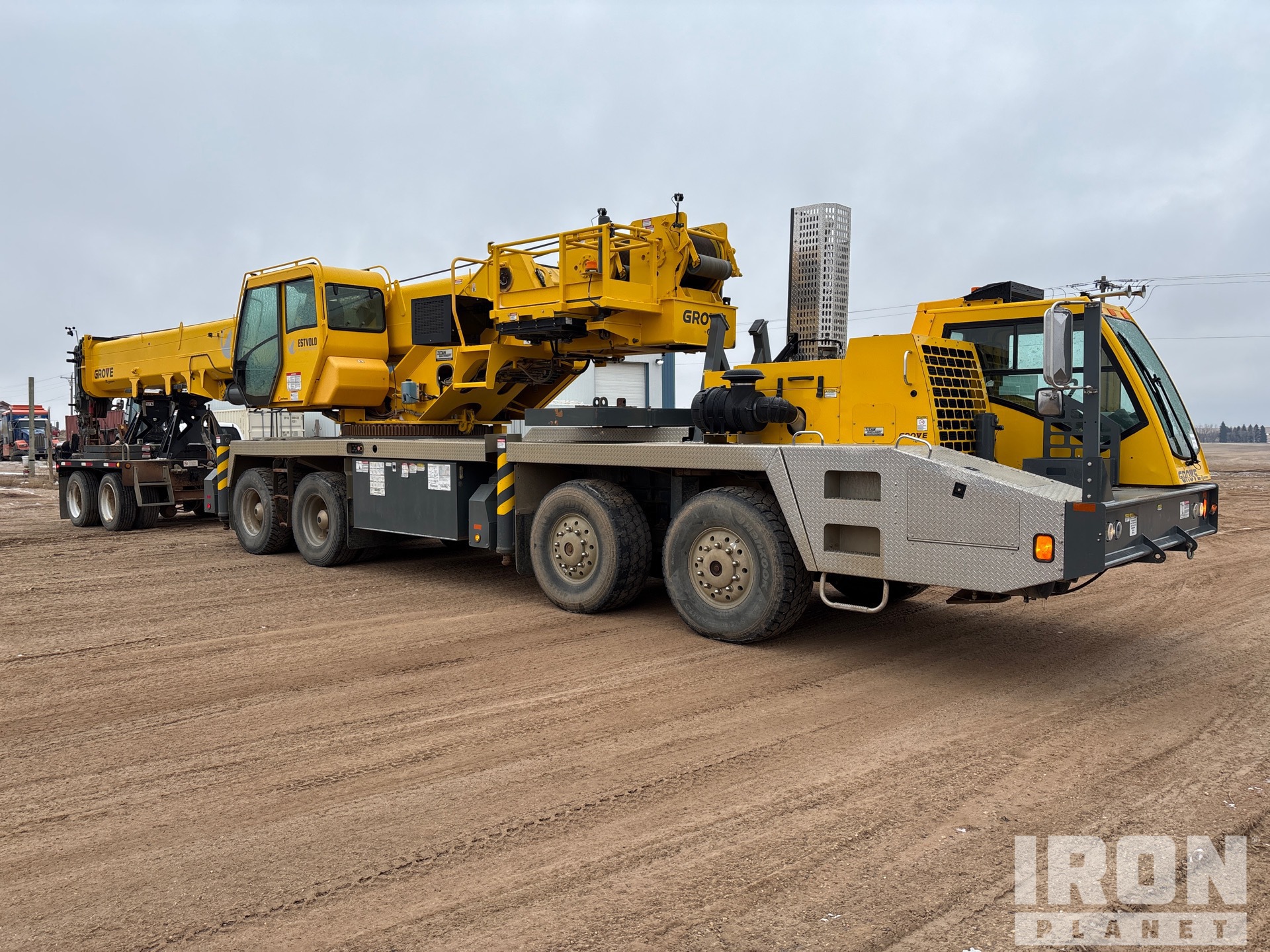

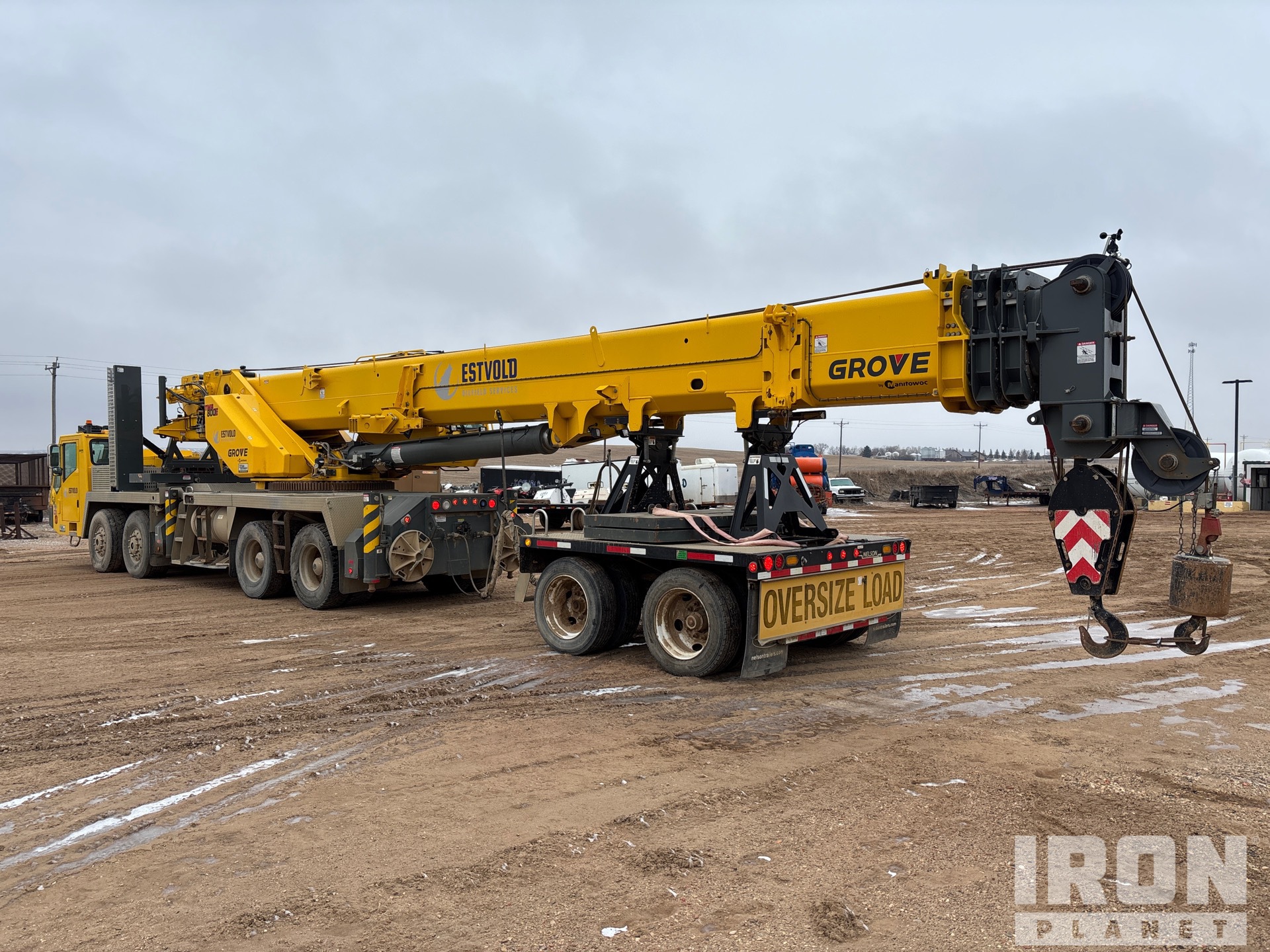

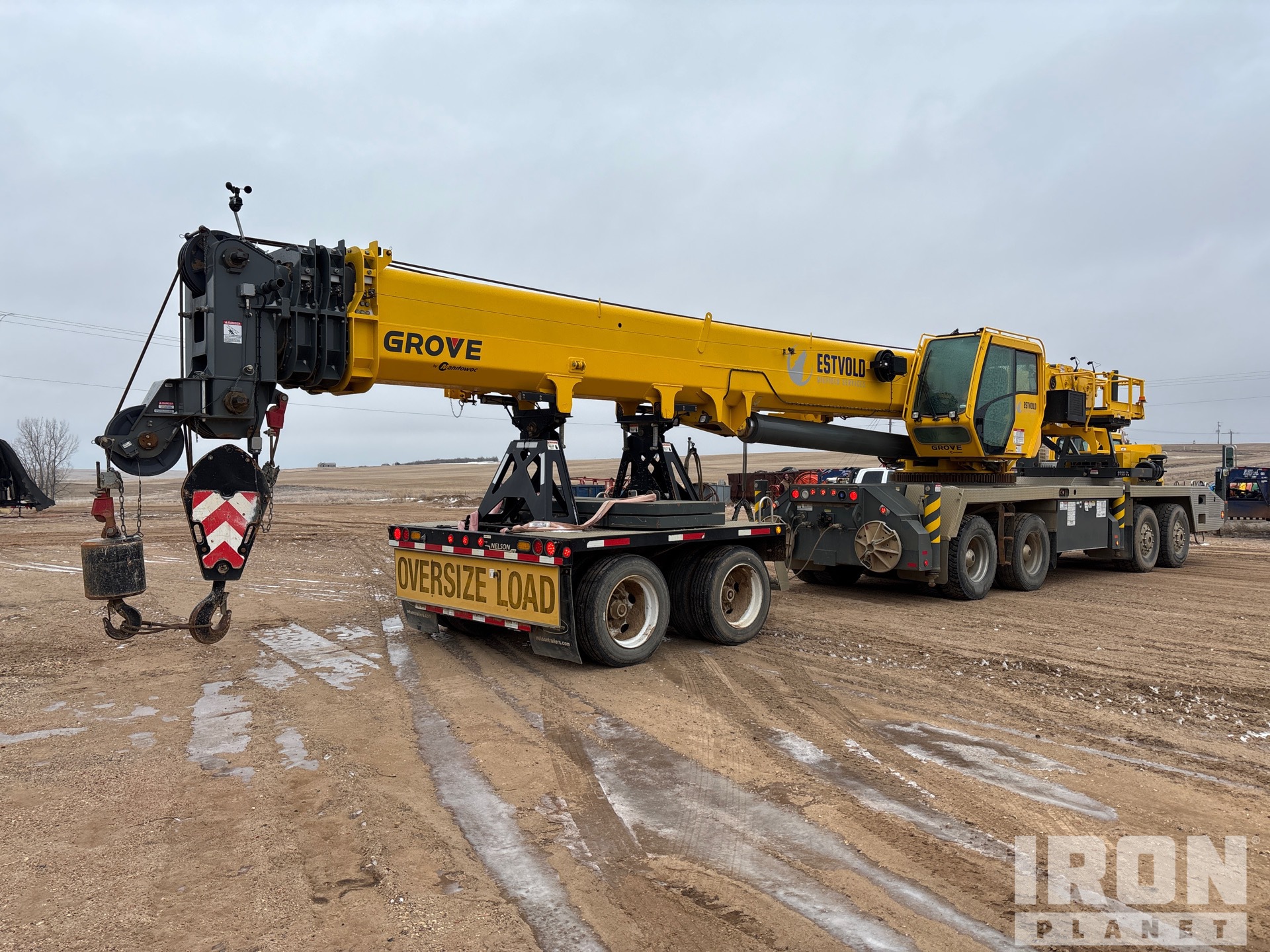

2019 Grove TMS800E 80 ton 8x4 Hydraulic Truck Crane
Located
Minot, ND
Minot, ND
Usage
6,366 hrs
6,366 hrs
Serial number
476S800E2KS236381
476S800E2KS236381
Loading...
ID number
#14888554
In yard
No
Features
Eaton Fuller 9LL Manual Transmission, 6366 hrs Carrier Engine, 2018 US EPA Label, Cummins ISX12 6 Cylinder 11.9 L Diesel Carrier Engine, Requires Diesel Exhaust Fluid, Air Conditioner, Drum Camera, Tilt Cab, Anti Two-Block, LMI Hirschmann Load Moment Indicator, 41 ft Minimum 128 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 33 ft to 56 ft Bifold Swingaway Jib, 814 lb 39 ton Capacity Manitowoc Hook Block, 660 lb 12 ton Capacity Overhaul Ball, 24000 lb Counterweight
Notes
***Equipment trailer in photos is NOT included in sale***
General Appearance
Serial Number / VIN
476S800E2KS236381
Hour Meter / Odometer
6366 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 11/05/2025
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
6366 hrs Carrier Engine
Mirrors
Window Controls
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational, Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational, Check engine light stays on
Gauges
Operational, Def gauge malfunctioning gauges are inoperable
Gear Selector
Brake Control
Engine Brake
Operational
Clutch
Engages
PTO Control
Electric engaged, Operational
ECM Miles
Unable to get ECM reading
Air Conditioner
The ambient temperature is too cold to check
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2018 US EPA Label
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Significant
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
Side of engine, Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Clutch
Engages
Steer Axle
Front Drive Axle
Rear Drive Axle
Dripping Leak
Axle Bump Stops
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Air Bags
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Dripping leak, Low fluid level
Hoses (Hydraulic)
Dripping leak hose under cab
Limited Function Check
The hydraulic system was operational. Hydraulic leak under carrier cap possibly lines to 5th outrigger
Upper Control Station
Hour Meter Reading
Meter reading could not be obtained-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Mirrors
Driver side missing mirror, Passenger side missing mirror, Rear view missing mirror
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Exterior Lights
Warning Lights
Operational, Check engine light stays on
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Not equipped
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Mar 30, 2026 |
| Silicon | 1.81 PPM |
| Tin | 1.29 PPM |
| Silver | 0.04 PPM |
| Aluminum | 0 PPM |
| Chromium | 0.42 PPM |
| Lead | 0.24 PPM |
| Copper | 0.52 PPM |
| Nickel | 0 PPM |
| Iron | 4.8 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
