90 Photos
2018 KPI-JCI GT4400C Tracked Impact Crusher Plant
Located
Butner, NC
Usage
1,970 hrs
Serial number
418254
Inspection report:
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#12610634
In yard
Yes
Year
2018
Manufacturer
Model
Asset type
Serial number or VIN
418254
Features
Cat 6 Cylinder Diesel Engine, Requires Diesel Exhaust Fluid, Vibratory Pan Feeder 38 in Impact Crusher, 18 in Wide Fines Discharge Conveyor, 36 in Wide Under Crusher Conveyor, 24 in Cross Belt Magnet, Radio Remote Control, 16 in Triple Grouser Track Shoes
Notes
Our standard transaction fees do not apply. A flat transaction fee of 12% will be applied to each Lot purchased.
General Appearance

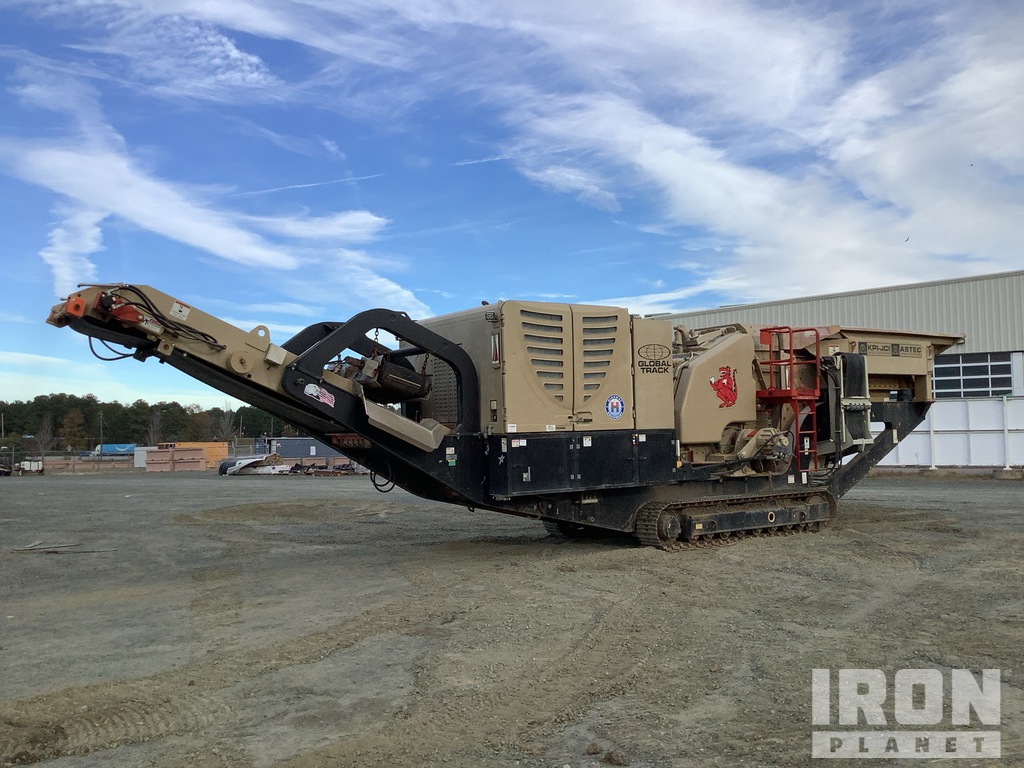

Picture, Left Front Corner

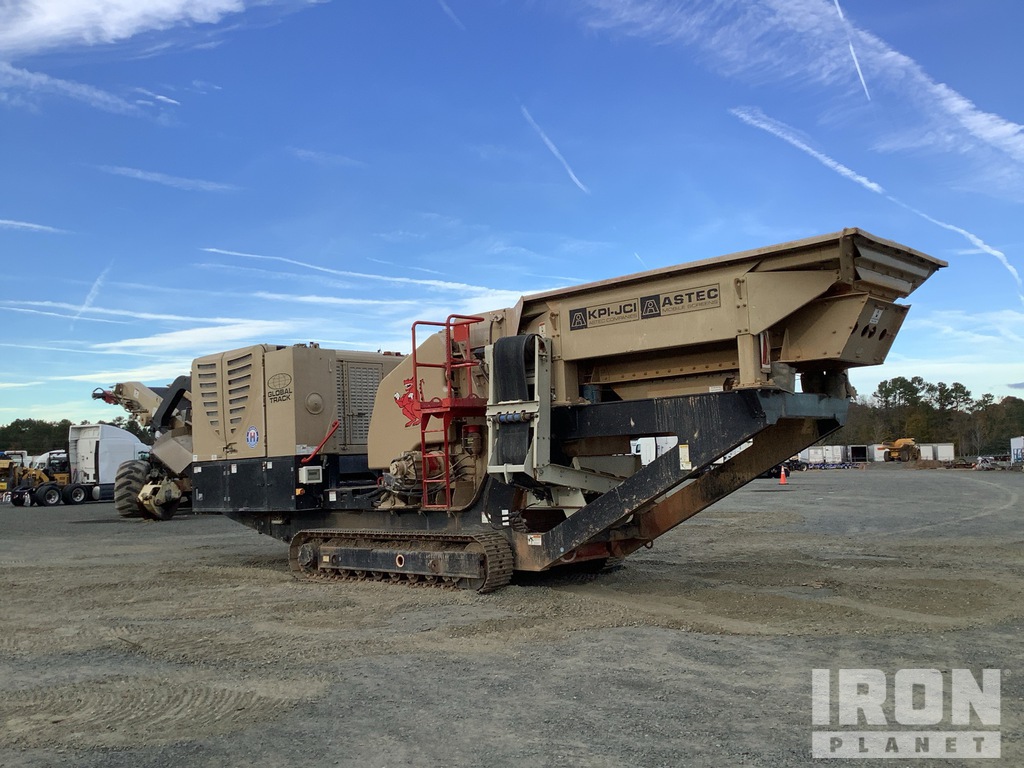

Picture, Left Rear Corner

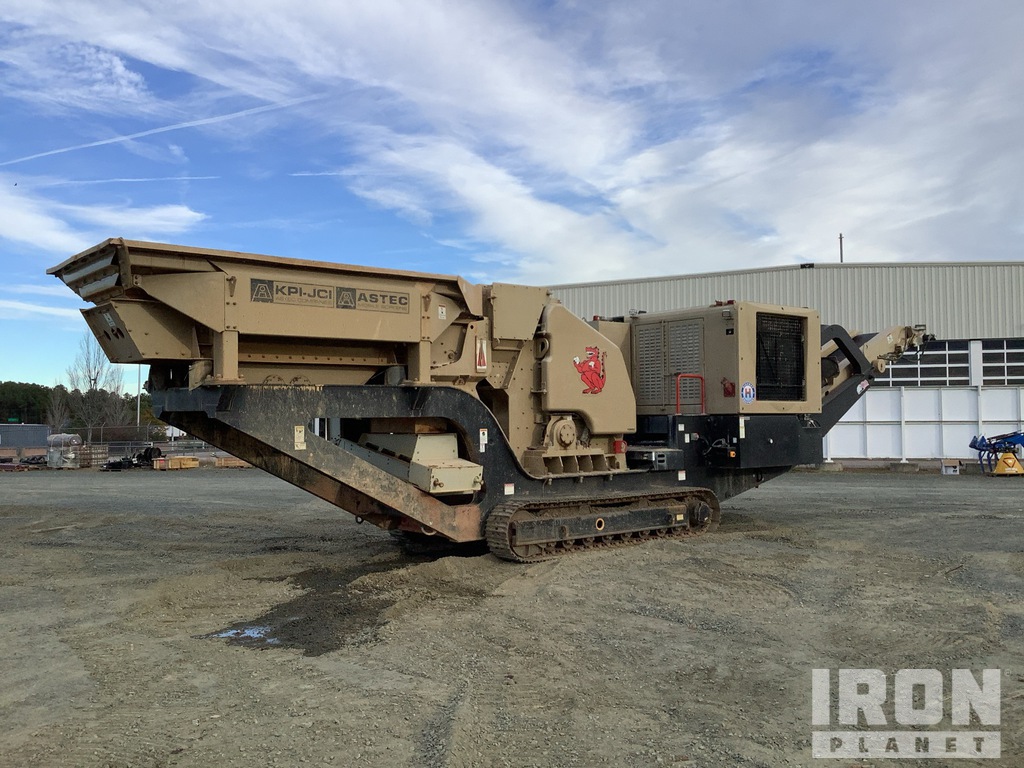

Picture, Right Rear Corner

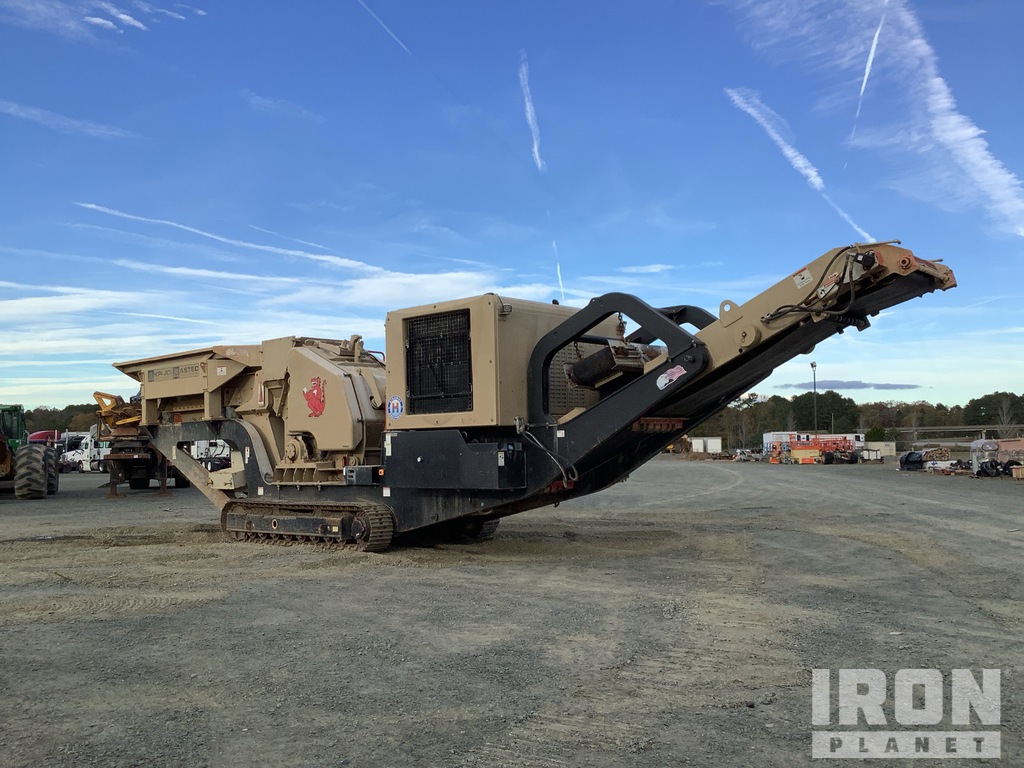

Picture, Right Front Corner
Serial Number / VIN
418254
Hour Meter / Odometer
1970 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
None found
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Not operationally checked
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Auxiliary Hydraulic Plumbing
Not operationally checked
Power Travel Drive System
1 Travel Speed, Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 14 ft, Width @ top: 82 in
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
Not functionally checked
VSI / HSI Crusher Chamber
Crusher Roll Condition
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Not operationally checked
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
21 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
21 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Dec 03, 2024 |
| Silicon | 1.62 PPM |
| Tin | 2.16 PPM |
| Silver | 0 PPM |
| Aluminum | 0.93 PPM |
| Chromium | 0.02 PPM |
| Lead | 0.47 PPM |
| Copper | 0.28 PPM |
| Nickel | 0.48 PPM |
| Iron | 2.83 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
