97 Photos
2017 Genie Z-80/60 4WD Diesel Articulating Boom Lift
Located
Perris, CA
Usage
1,682 hrs
Serial number
Z80H-6668
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#14077378
In yard
No
Year
2017
Manufacturer
Asset type
Serial number or VIN
Z80H-6668
Features
78 ft Max Platform Height, 500 lb Max Weight Capacity, Jib, Power to Platform, 2017 US EPA Label, Foam-Filled Tires
General Appearance

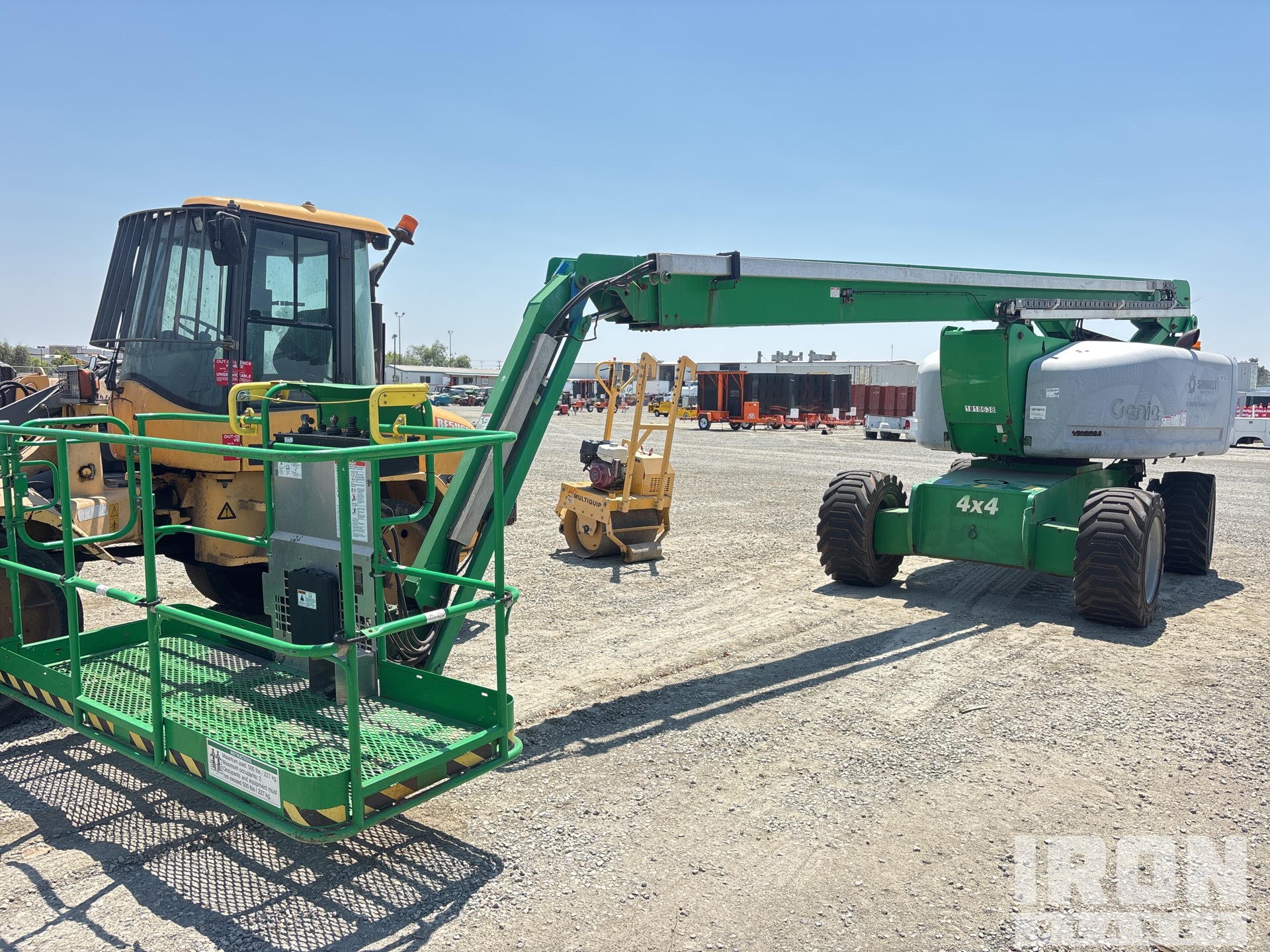

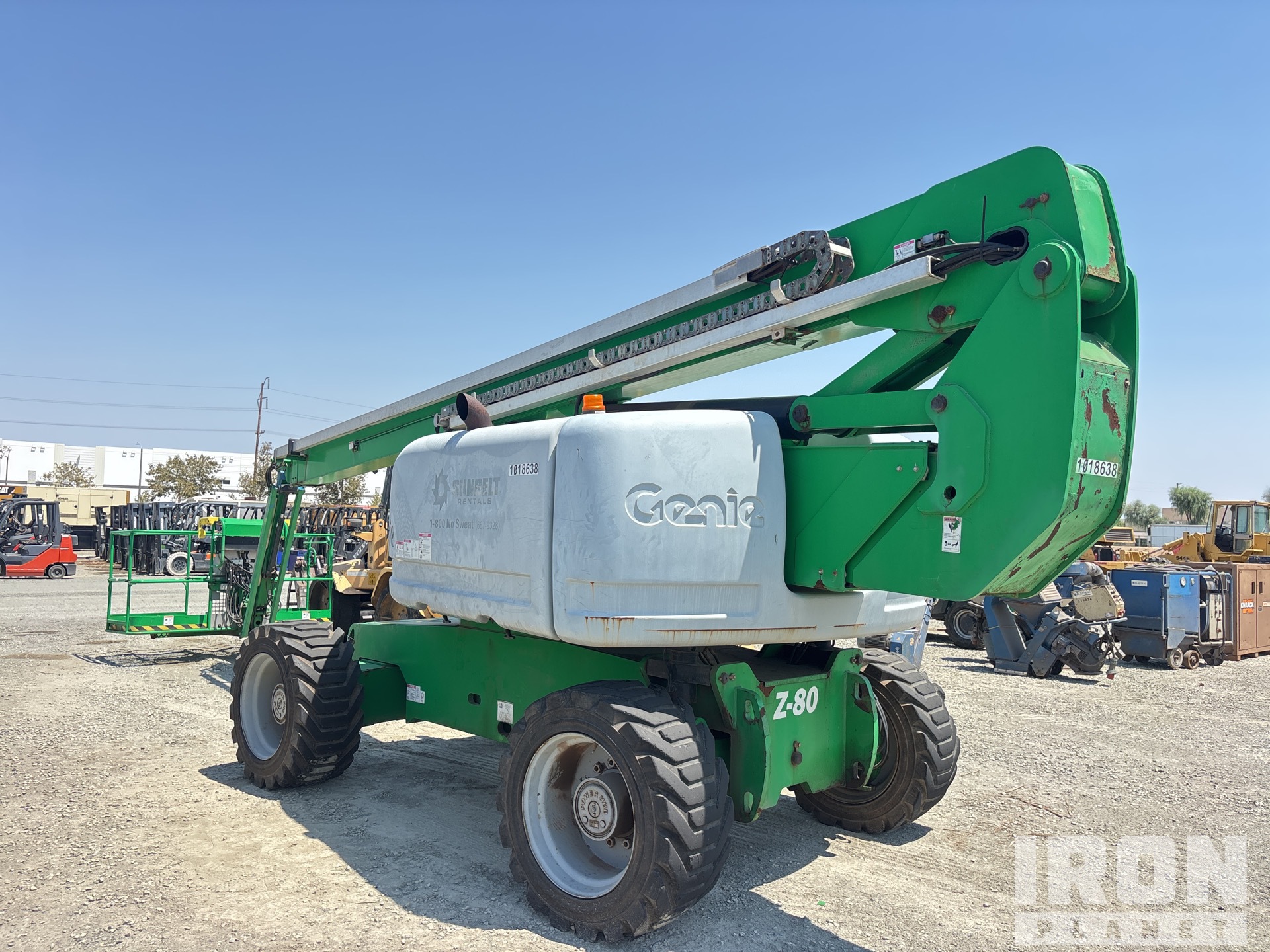

Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

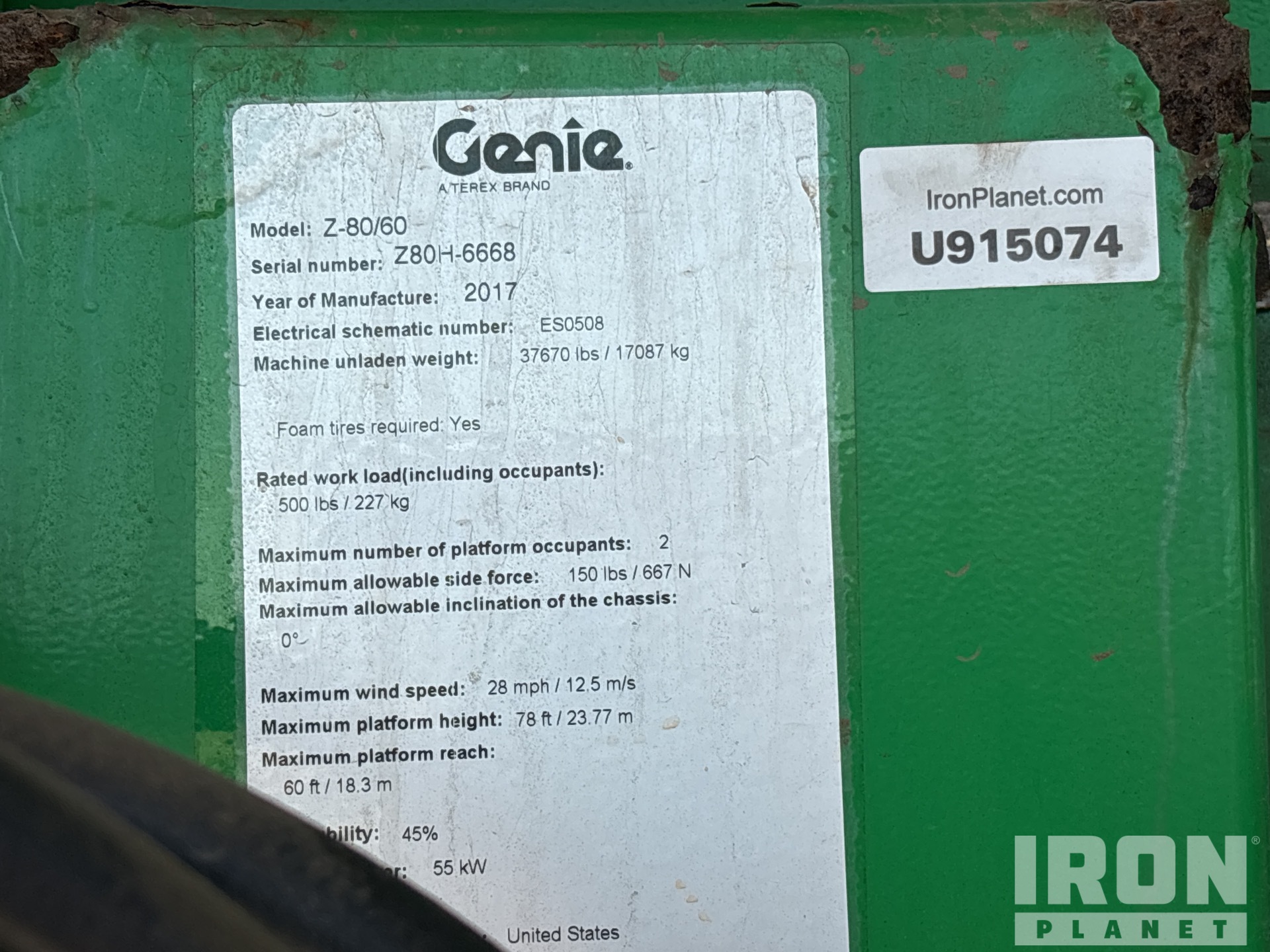

Serial Number / VIN
Z80H-6668
CE Mark
No CE mark found
Hour Meter / Odometer
1682 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Safety
Travel Alarm
Not operationally checked
Horn
Not operationally checked
Swing Brake
Not operationally checked
Current Safety Manual
Yes
Current Operator/Maintenance Manual
Yes
ANSI Guidelines
Yes
Control Station Ground
Gauges
Operational
Function Controls
Not operationally checked
Oil Pressure
Not operationally checked
Warning Lights
Inoperable
Limited Function Check
The item was not operational. The main components could not be operationally checked., Unit will not stay running
Control Station Upper
Control Console
Emergency Shut Off Switch
Not operationally checked
Safety Control Foot Switch
Not operationally checked
Function Controls
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Engine
Emission Label
Starter
Operational
Fuel System
Not operationally checked
Exhaust System
No visible damage or missing components
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine would crank but would not run.
Electric Operating System
Operating Voltage
12 Volts
Battery Condition
Functioned during the inspection
Cables and Connections
Limited Function Check
The electrical system was operational.
Drivetrain
Left Front Final Drive
Left Front Drive Motor
Left Rear Final Drive
Left Rear Drive Motor
Right Rear Final Drive
Right Rear Drive Motor
Right Front Final Drive
Right Front Drive Motor
Limited Function Check
The drivetrain could not be checked.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Steering Cylinders
Boom Lift Cylinder
Boom Extension Cylinder
Not operationally checked
Jib Cylinder
Not operationally checked
Basket Tilt Cylinder
Not operationally checked
Basket Rotator Motor
Not operationally checked
Frame Leveling Cylinders
Limited Function Check
The hydraulic system could not be operationally checked.
Chassis
Steering Linkage
Frame Condition
Brake System
The brake system could not be operationally checked.
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Turntable Bearing
Bottom Covers
Swing Motor
Not operationally checked
Boom Condition
Left Side of Boom
Right Side of Boom
Boom Wear Guides
Jib Condition
Cable Tray Ladder

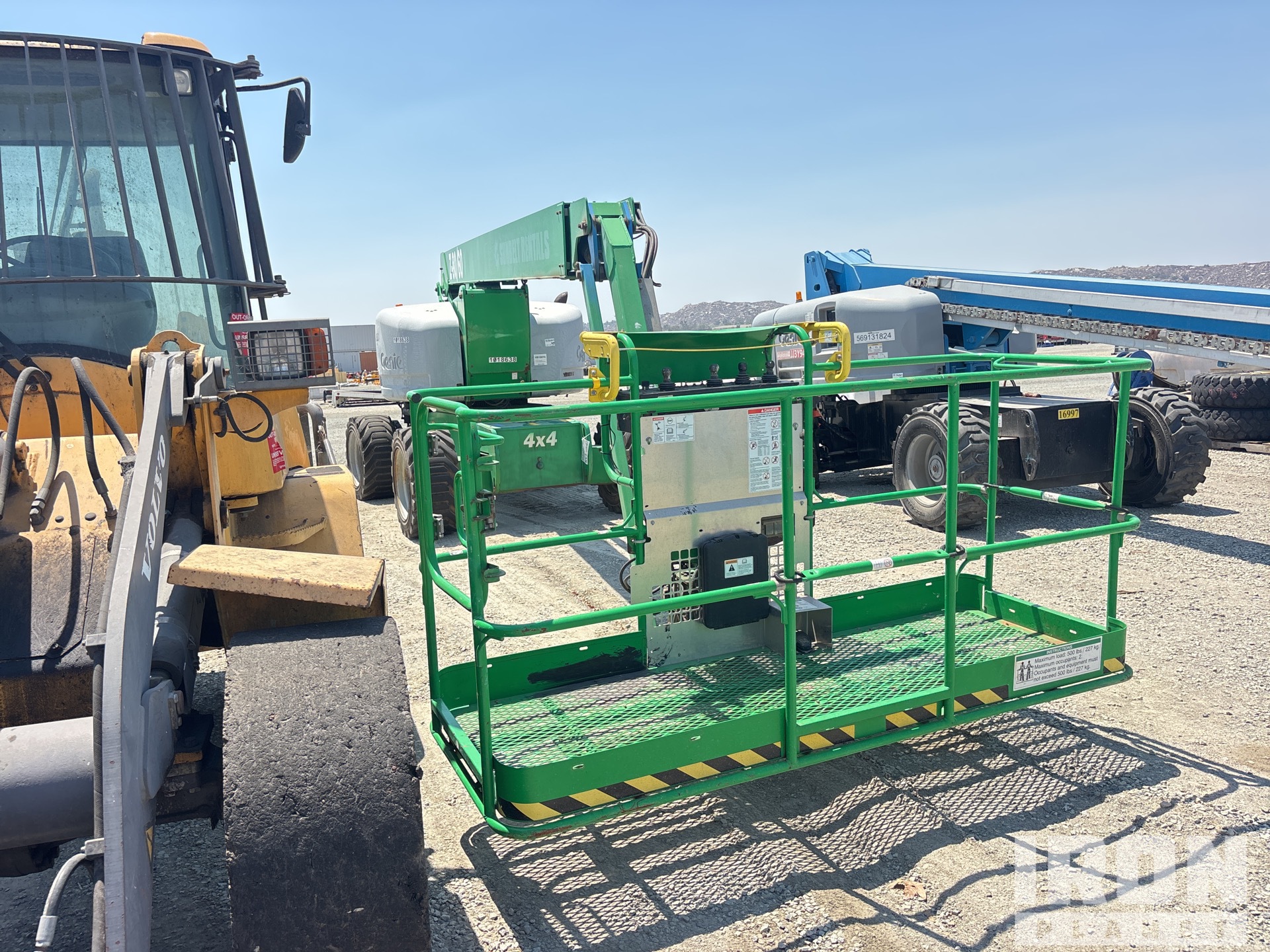

Work Basket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Aug 18, 2025 |
| Silicon | 2.8 PPM |
| Tin | 1.32 PPM |
| Silver | 0 PPM |
| Aluminum | 2.54 PPM |
| Chromium | 0 PPM |
| Lead | 0 PPM |
| Copper | 0.51 PPM |
| Nickel | 0.14 PPM |
| Iron | 2.86 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
