2017 Broderson RT-400 20 ton 4x4x4 Rough Terrain Crane
Located
Port Lavaca, TX
Port Lavaca, TX
Usage
924 hrs
924 hrs
Serial number
11286444
11286444
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15384671
In yard
No
Features
Air Conditioner, Anti Two-Block, Load Moment Indicator, 924 hrs Crane Operation, 2017 US EPA Label, Cummins QSB4.5 4 Cylinder 163 hp 4.5 L Diesel Engine, Requires Diesel Exhaust Fluid, 22 ft Minimum 68 ft Maximum Boom Length, 20 ft Swingaway Offset Jib, 476 lb 40 ton Capacity 2 Sheave Hook Block, 130 lb Overhaul Ball

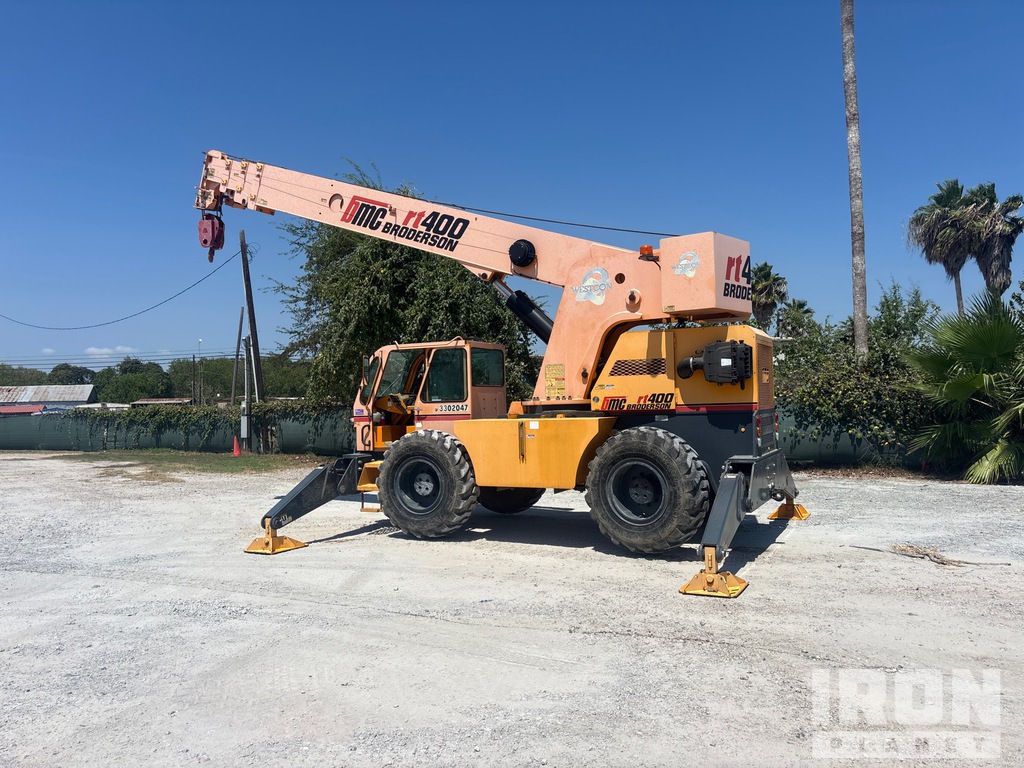

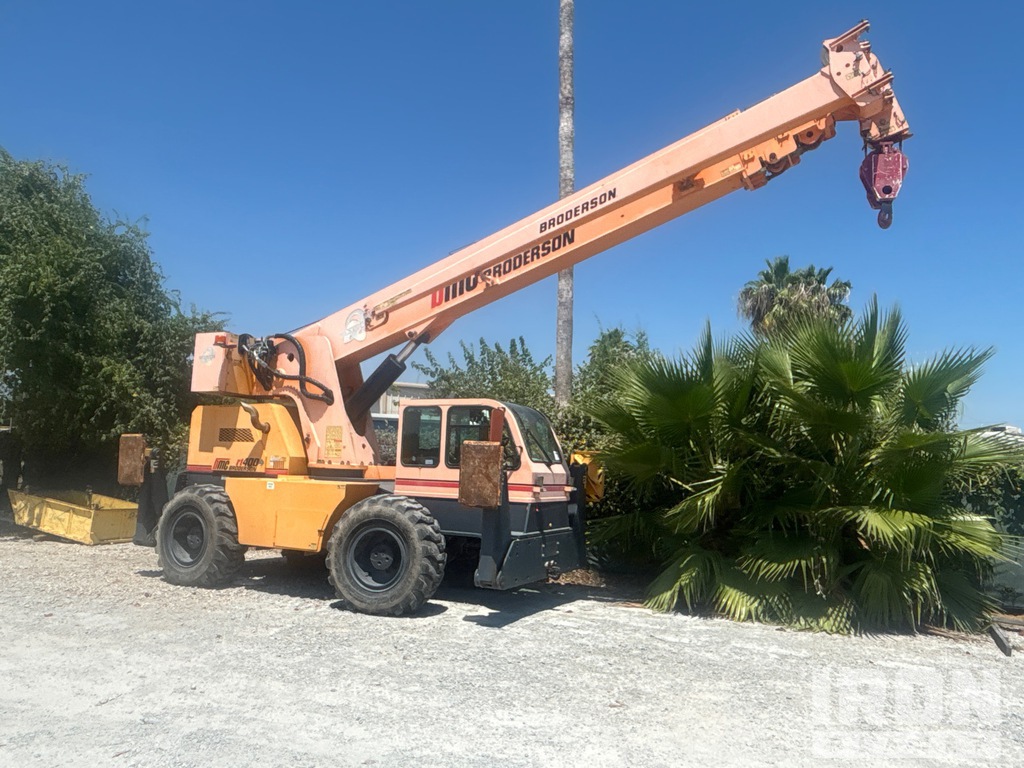

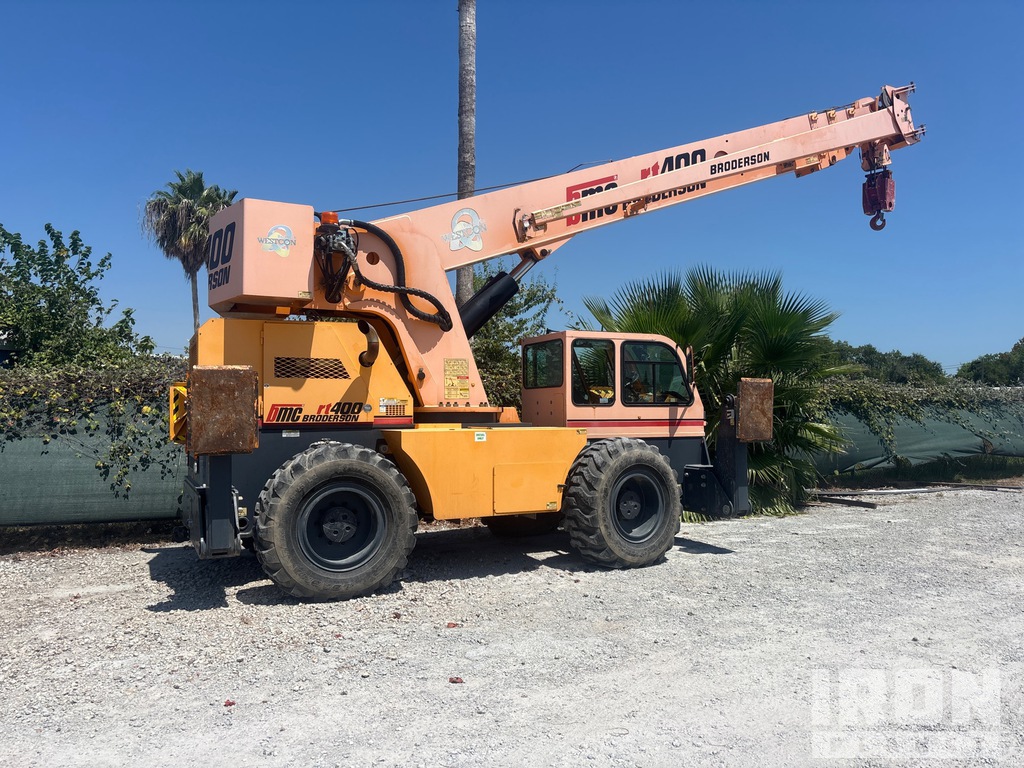

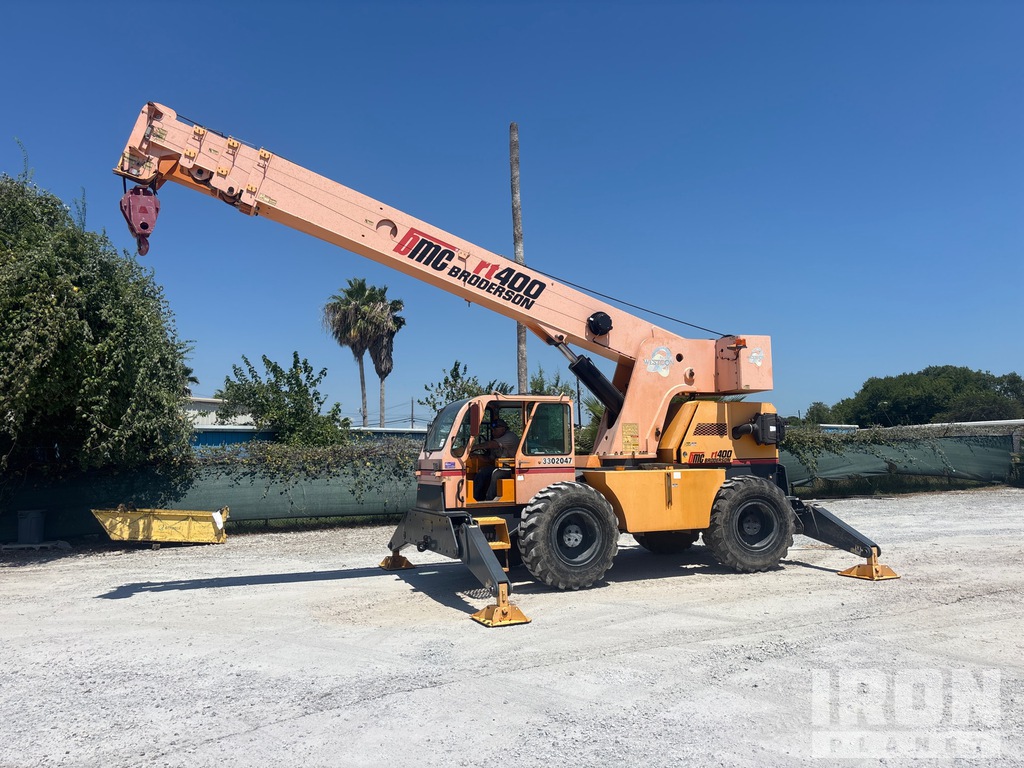

General Appearance
Serial Number / VIN
11286444
Hour Meter / Odometer
924 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Safety Certification Label
There is a safety certification label with a date of 6-30-25
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Hours of Crane Operation
924 hrs Crane Operation
Control Station
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Operational, Powers On
Anti Two Block
Operational
Hydraulic Controls
Drivetrain Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational, Low coolant light stays on
Gauges
Operational
Drum Rotation Indicator
Not operational
Air Conditioner
Inoperable, Blows hot air
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2017 US EPA Label
Emission Label
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Leaking from cap pressure release hose
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
Radiator, Reservoir, Leaking out of pressure overflow
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Brake Type
Hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
17.5-25 Front tires
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
