97 Photos
2016 Komptech Nemus 2700 Portable Trommel Screen Plant
Located
Mills, WY
Mills, WY
Usage
1,536 hrs
1,536 hrs
Serial number
W0902805261KB4020
W0902805261KB4020
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15098258
In yard
No
Features
2015 US EPA Label, Perkins BPKXLO4.4NL1 4 Cylinder 70 kW 4.4 L Diesel Engine, 5 ft 6 in x 13 ft 4 in Belt Feeder w/Hydraulic Raise Grizzly 16 ft 6 in x 6 ft 7 in Single Deck Roller Screen, 40 in Wide Feed Conveyor, 20 in Wide Fines Discharge Conveyor, 40 in Wide Under Screen Conveyor, 20 in Wide Left Discharge Conveyor, 29 in Wide End Discharge Conveyor, Radio Remote Control, T/A Carrier, Spring Suspension, Hydraulic Leveling

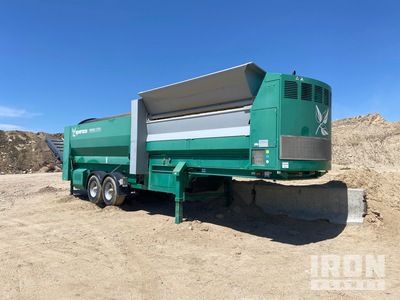

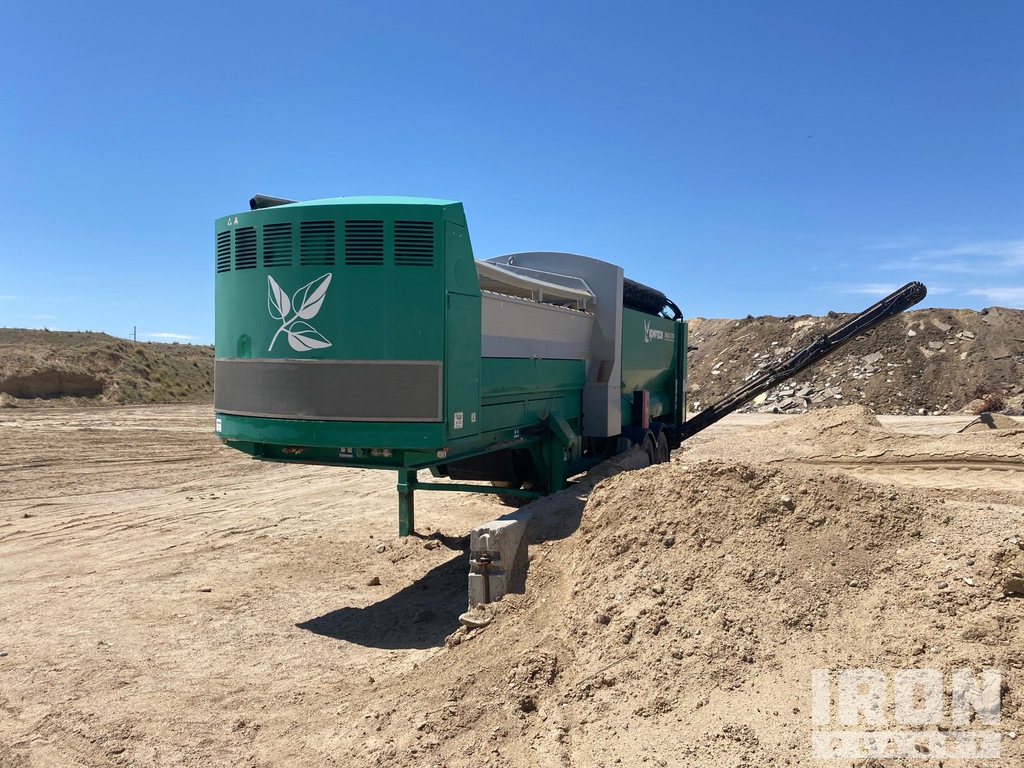

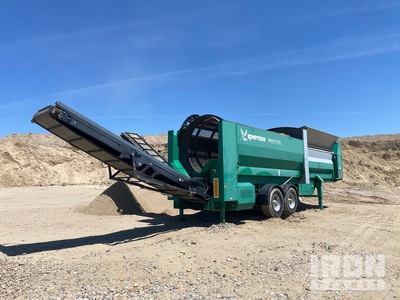

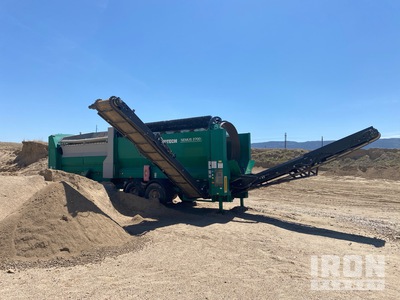

General Appearance
Serial Number / VIN
W0902805261KB4020
Hour Meter / Odometer
1536 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2015 US EPA Label
Emission Certification Label
US EPA certification label
Block Heater
No
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
After jump starting, the engine ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Conveyor Cylinders
Stabilizer Jack Cylinders
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Grizzly length: 13’ 4”, Width between grizzly bars: 6”
Feed Conveyor Condition
40 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Drive Motor
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Number of decks: 1, Roller screen
Deck Frames / Wear Bars
Screen Cloth
Serviceable
Chute Condition
Carrier
Axle Condition
Trailer Brakes
Air, Not operationally checked
Brake Lines/Hoses
Not operationally checked
Limited Function Check
The main chassis components functioned when checked without a load.
Tire Size
385/65R22.5 Rear tires
Tire Condition
Tread Depth
LF 20 /32", LR 21 /32", RR 20 /32", RF 20 /32"
Wheel Condition
Wheel Studs
Springs/Hangers Condition
Tongue/ Hitch Condition
No visible damage
Power Receptacle Functional
Not operationally checked
Lights/Wiring Condition
Not operationally checked
Marker Lights Functional
Not operationally checked
Brake Lights Functional
Not operationally checked
Frame Rails/ Main Beams Condition
No visible damage
Landing Gear / Tongue Jack
Stabilizer Jacks
Number of jacks 2, Hydraulic
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | May 21, 2026 |
| Silicon | 0 PPM |
| Tin | 0.24 PPM |
| Silver | 0 PPM |
| Aluminum | 0.42 PPM |
| Chromium | 0.18 PPM |
| Lead | 1.19 PPM |
| Copper | 11.43 PPM |
| Nickel | 0.58 PPM |
| Iron | 11.18 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
