2015 Terex Crossover XO-80 80 ton 10x6 Hydraulic Truck Crane
Located
Hayward, CA
Hayward, CA
Usage
145,429 mi
145,429 mi
Serial number
1NKDX4TX7FR441673
1NKDX4TX7FR441673
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15872121
In yard
No
Features
Air Conditioner, Allison Autoshift Transmission, 15509 hrs Carrier Engine, 2014 US EPA Label, Cummins ISX15 6 Cylinder 14.9 L Diesel Carrier Engine, Air Conditioner, Anti Two-Block, Greer Load Moment Indicator, 40 ft Minimum 126 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 38 ft to 57 ft Extendable Swingaway Offset Jib, 40 ton Capacity Johnson 3 Sheave Hook Block, 325 lb 12 ton Capacity Overhaul Ball, 15000 lb Counterweight, Counterweight Removal System
Notes
<br><br>**We do not guarantee current registration or that this item will meet local emission requirements. Titles/titling docs may be delayed due to extended processing times at DMV** ***This truck is still in use and will accrue additional miles. Upon purchase, the buyer can request verification of condition and current hours***

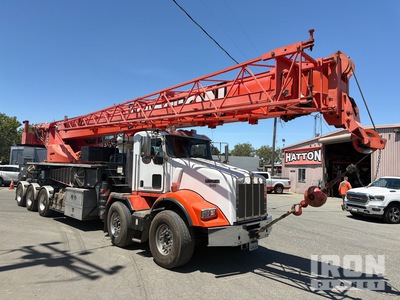

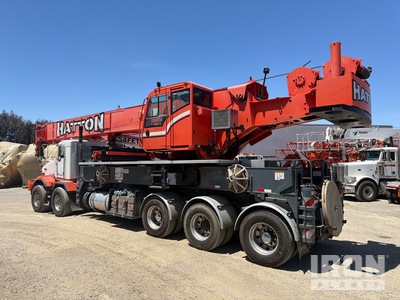

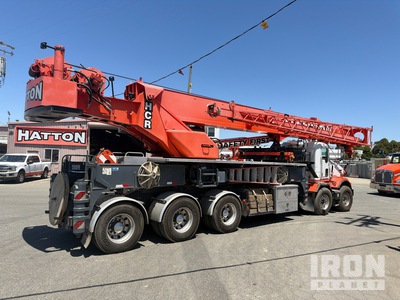

General Appearance
Serial Number / VIN
1NKDX4TX7FR441673
Hour Meter / Odometer
145429 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
Safety Certification Label not legible.
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
15509 hrs Carrier Engine
Mirrors
Window Controls
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational, Operational
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Operational
PTO Control
Air engaged, Operational
ECM Miles
Reader will not display ECM mileage
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2014 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
PTO Pump
Operational
Steer Axle
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Air Bags
Frame Condition
Cross Members
No visible damage
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational. The auxiliary hoist has internally damaged and is inoperable.
Upper Control Station
Hour Meter Reading
9246 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range. 25 PSI
Exterior Lights
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
The auxiliary hoist has internally damaged and is inoperable.
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jul 15, 2026 |
| Silicon | 2.79 PPM |
| Tin | 0.48 PPM |
| Silver | 0.02 PPM |
| Aluminum | 2.16 PPM |
| Chromium | 0.04 PPM |
| Lead | 1.55 PPM |
| Copper | 0.55 PPM |
| Nickel | 0.16 PPM |
| Iron | 3.22 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
