101 Photos
2015 Mack GU713 Granite 8x4 Tri/A Dump Truck
Located
Grayson, KY
Grayson, KY
Usage
682,726 mi
682,726 mi
Serial number
1M2AX07C8FM025368
1M2AX07C8FM025368
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15716971
In yard
No
Features
Mack MP8 6 Cylinder 12.8 L Diesel 455 hp Engine, 2014 US EPA Label, Requires Diesel Exhaust Fluid, 21859 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton Fuller RTO-16908LL 8LL Manual Transmission, 18740 lb Front Axle, 44000 lb Rears, 62740 lb GVWR, Air Ride Cab, Aluminum Wheels, 385/65R22.5 Front Tires, 11R22.5 Rear Tires, Air Lift Pusher Axle, Dual Steering Boxes, Double Frame, Spring Suspension, 252 in Wheelbase, PTO, 18 ft 5 in Long x 6 ft 5 in High Body, Electric Roll Tarp

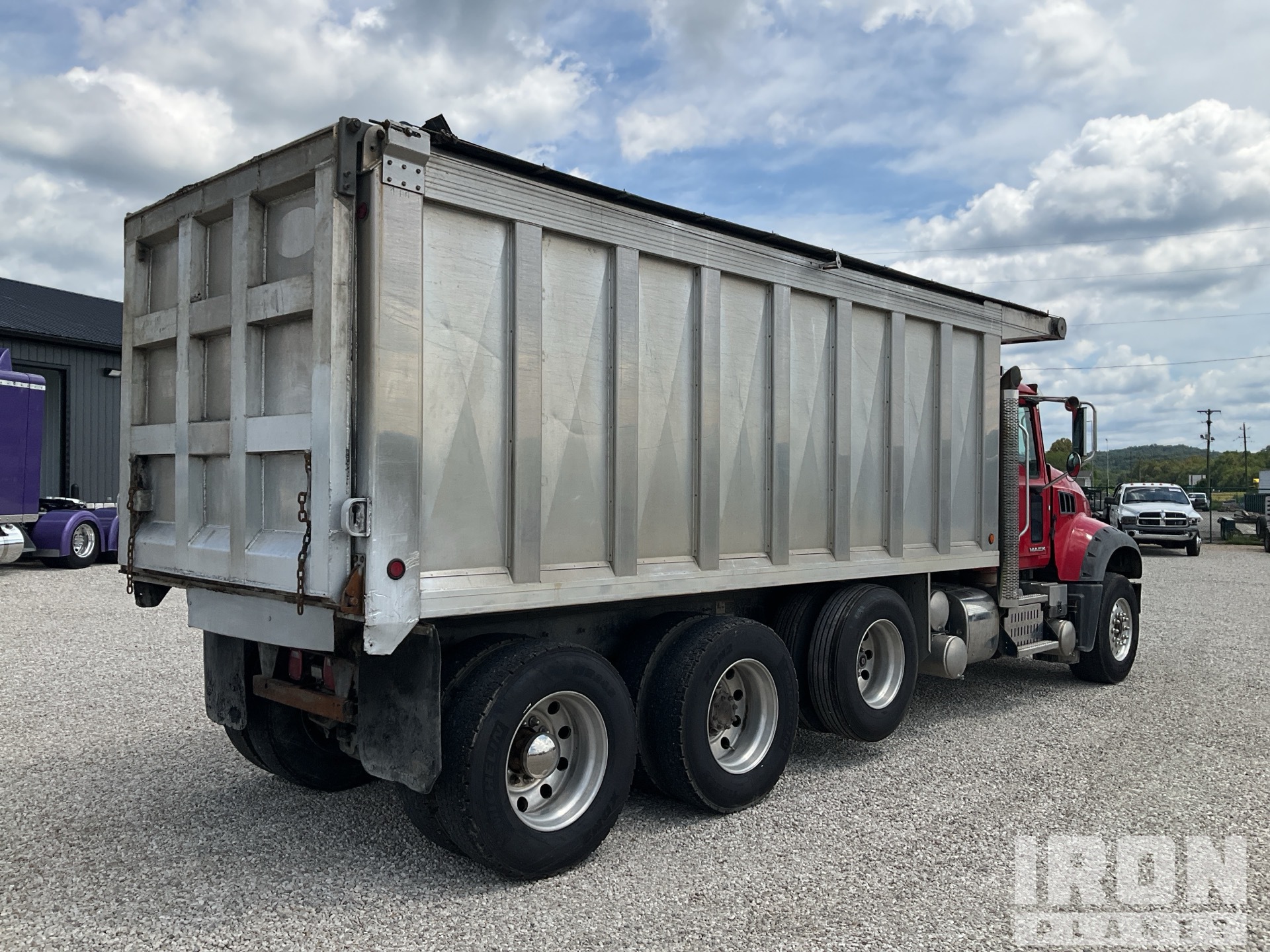

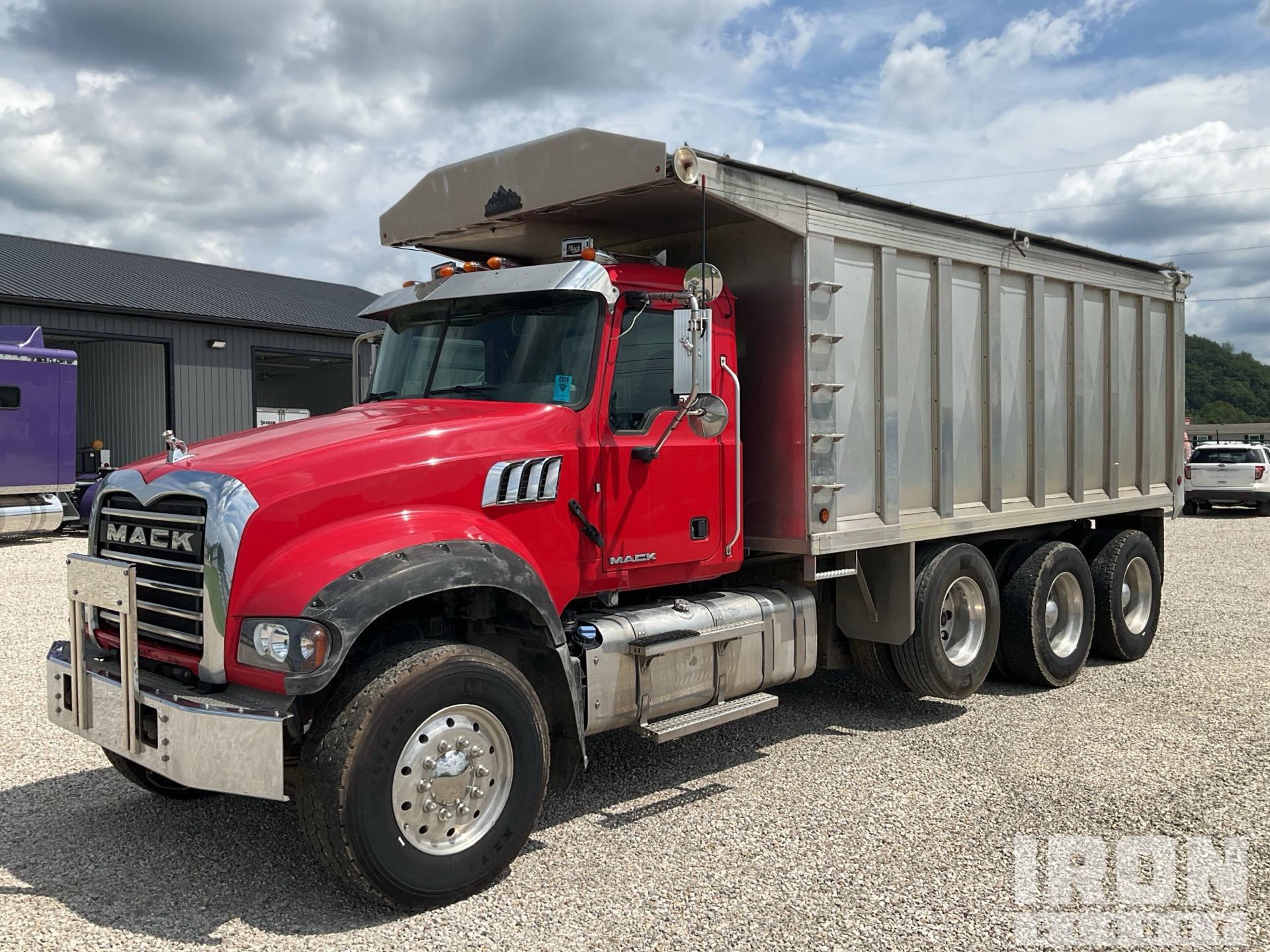

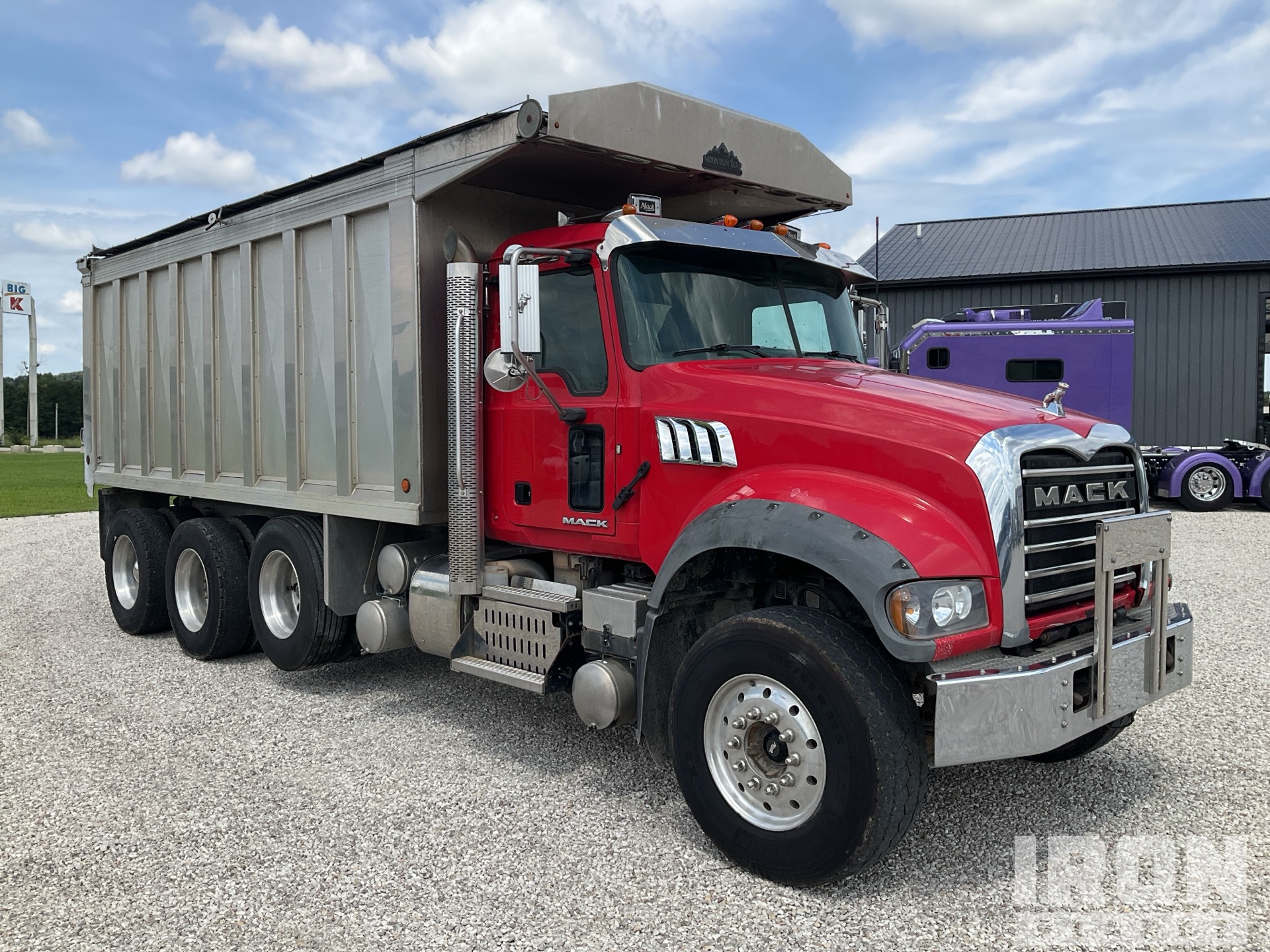

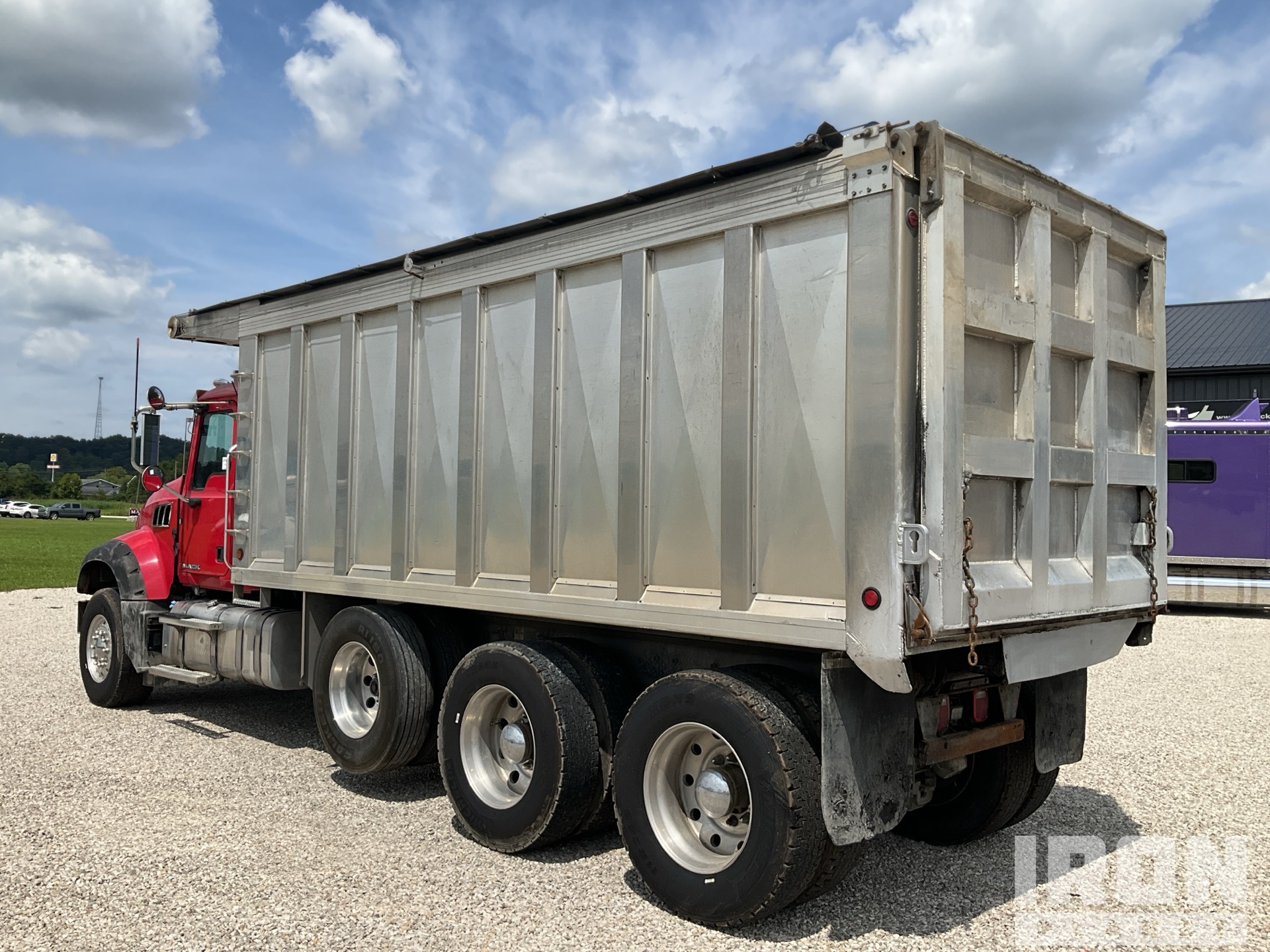

General Appearance
Serial Number / VIN
1M2AX07C8FM025368
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
682726 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 13/32" Aluminum
- Drum
- Drum
- 12/32" Aluminum
Rear Axle
- 7/32" Aluminum
- 9/32" Aluminum
- Drum
- Drum
- 14/32" Aluminum
- 13/32" Aluminum
Rear Axle
- 11/32" Aluminum
- 8/32" Aluminum
- Drum
- Drum
- 10/32" Aluminum
- 13/32" Aluminum
Rear Axle
- 17/32" Aluminum
- 16/32" Aluminum
- Drum
- Drum
- 11/32" Aluminum
- 13/32" Aluminum
Engine
Emissions Information
2014 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Cab
Engine Hours
21859 Engine hrs
Mirrors
Window Controls
Left Manual / Right Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn weak, Electric horn operational
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Operational
Clutch
Engages
PTO Control
Air engaged
ECM Miles
Unable to get ECM reading
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational
PTO Pump
Operational
Non-Driven Drop Axle (1)
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational.
Cab Suspension Air Bags
Frame Condition
Suspension Springs/Hangers
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Dripping leak
Hoses
Cylinder(s)
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Configuration
Bed Body
Cracks
Tailgate
Tailgate Latch
Air operated
Support Frame
Weld cracks
Hinge Points
Tarp
Electric Tarp
Additional information
