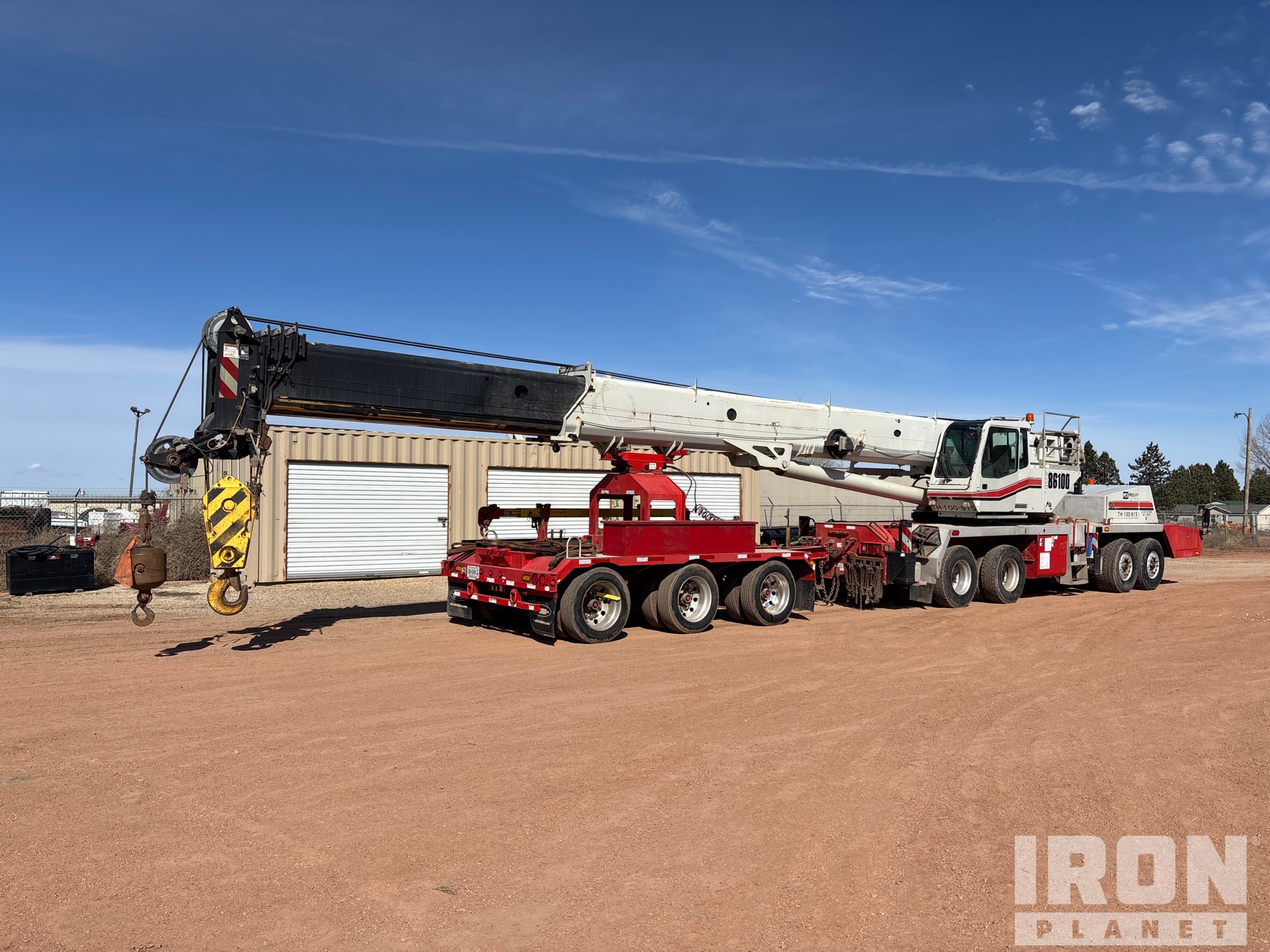

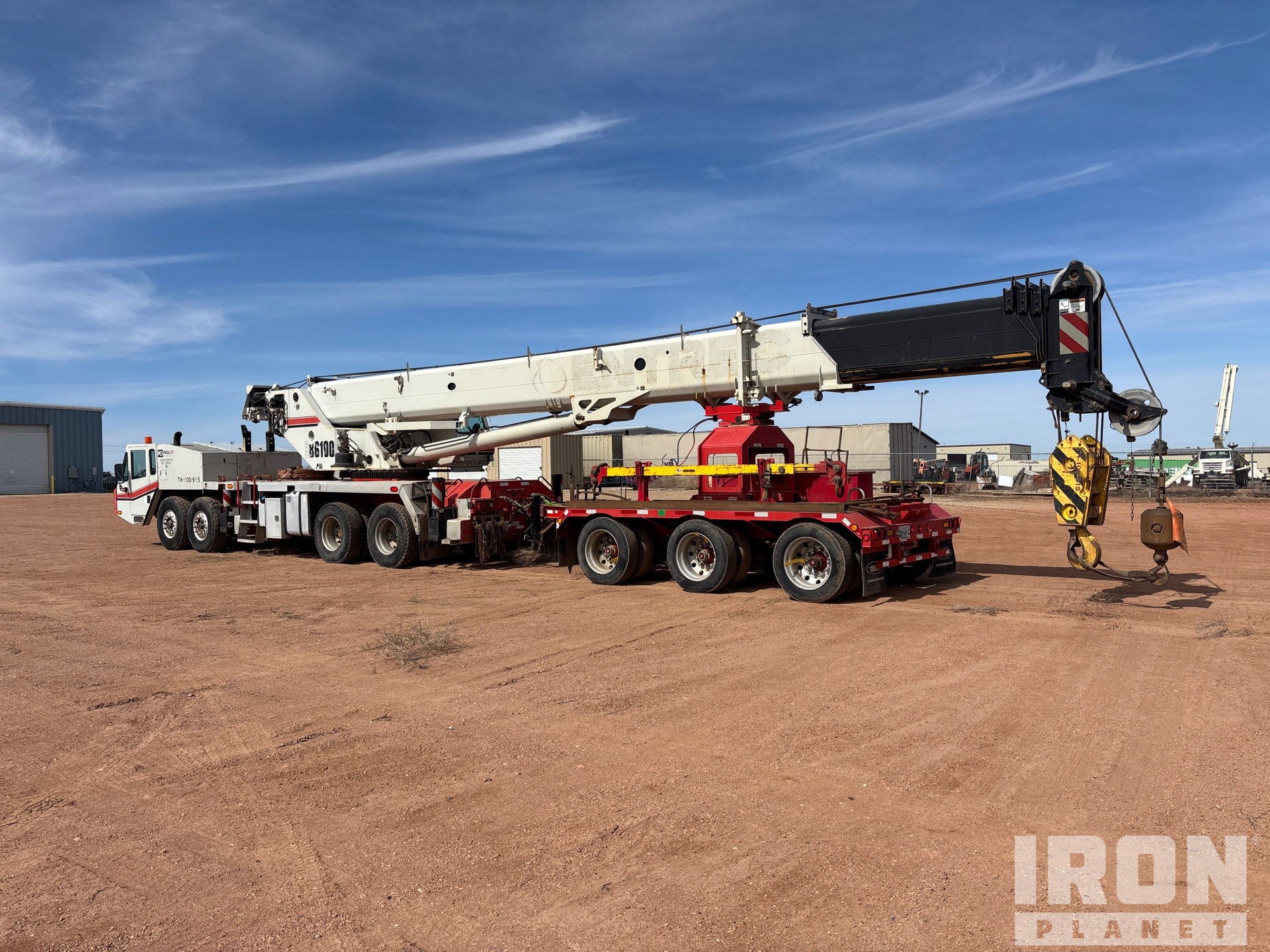

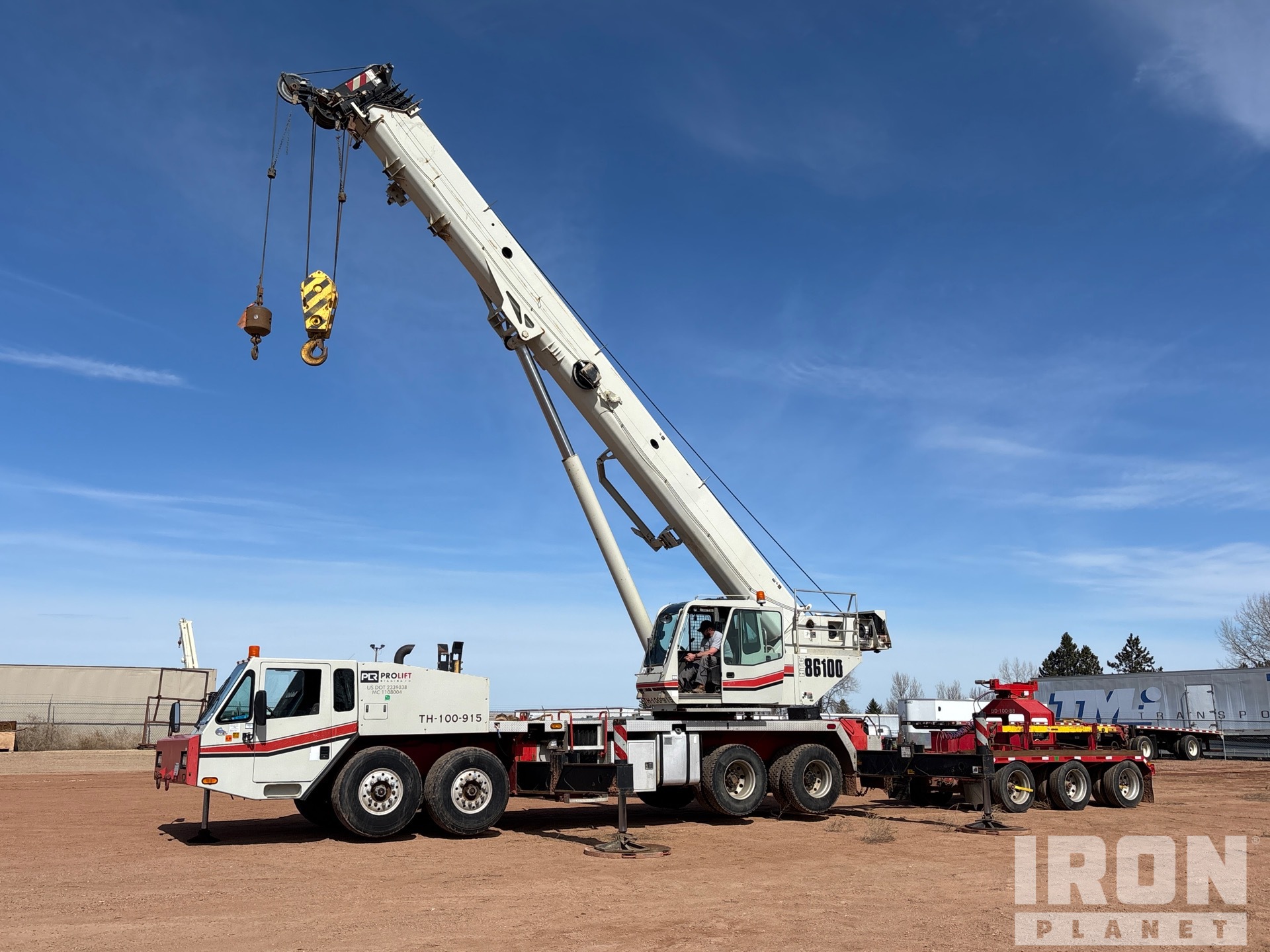

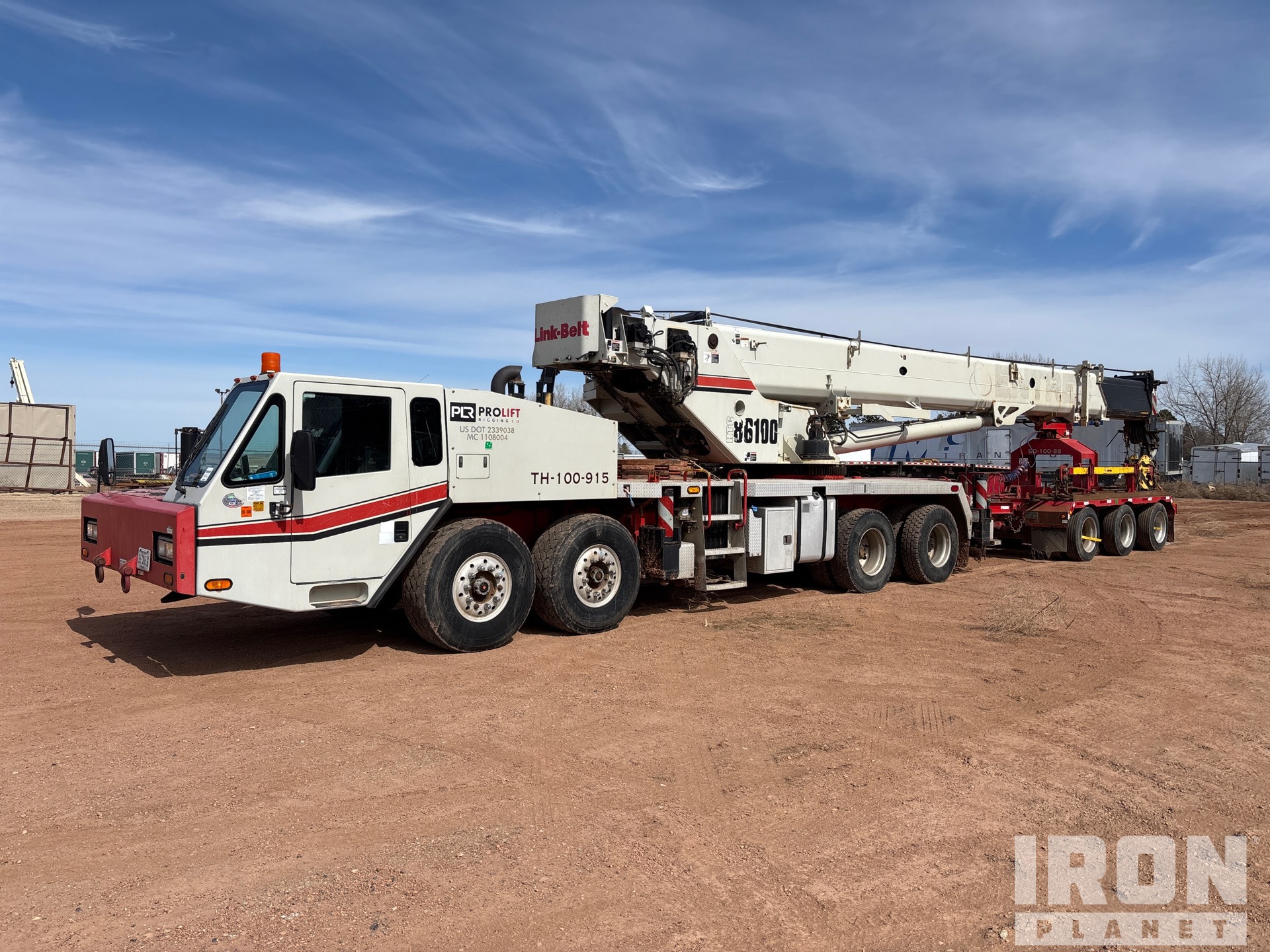

2014 Link-Belt HTC86100 100 lb 8x4 Hydraulic Truck Crane
Located
Dickinson, ND
Dickinson, ND
Usage
19,330 hrs
19,330 hrs
Serial number
1F9N3K440EL028301
1F9N3K440EL028301
Loading...
ID number
#14880225
In yard
No
Features
Air Conditioner, ZF Automatic Transmission, 19329.5 hrs Carrier Engine, 2014 US EPA Label, Cummins ISX12 6 Cylinder 11.9 L Diesel Carrier Engine, Requires Diesel Exhaust Fluid, Air Conditioner, Drum Camera, Anti Two-Block, Link-Belt Load Moment Indicator, 38 ft Minimum 140 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 35 ft to 90 ft Bifold Swingaway Offset Jib, 1345 lb 77 ton Capacity 5 Sheave Hook Block, 515 lb 10 ton Capacity Overhaul Ball, 39500 lb Counterweight, Counterweight Removal System, Nelson Manufacturing Co. Tri/Axle Boom Dolly

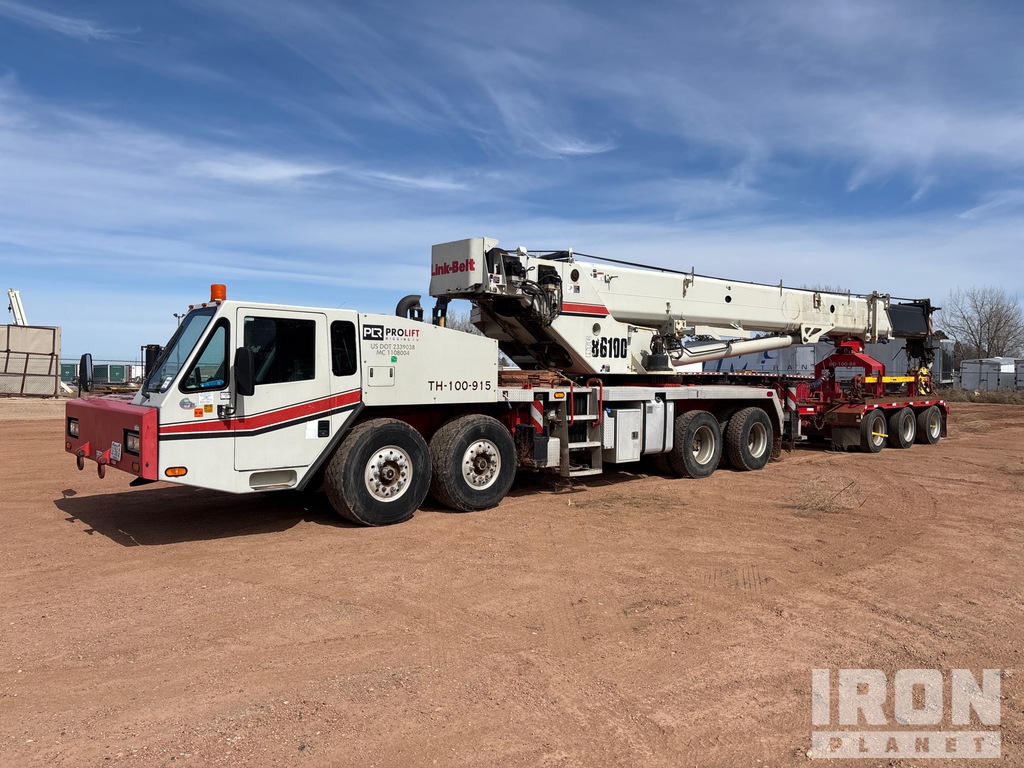

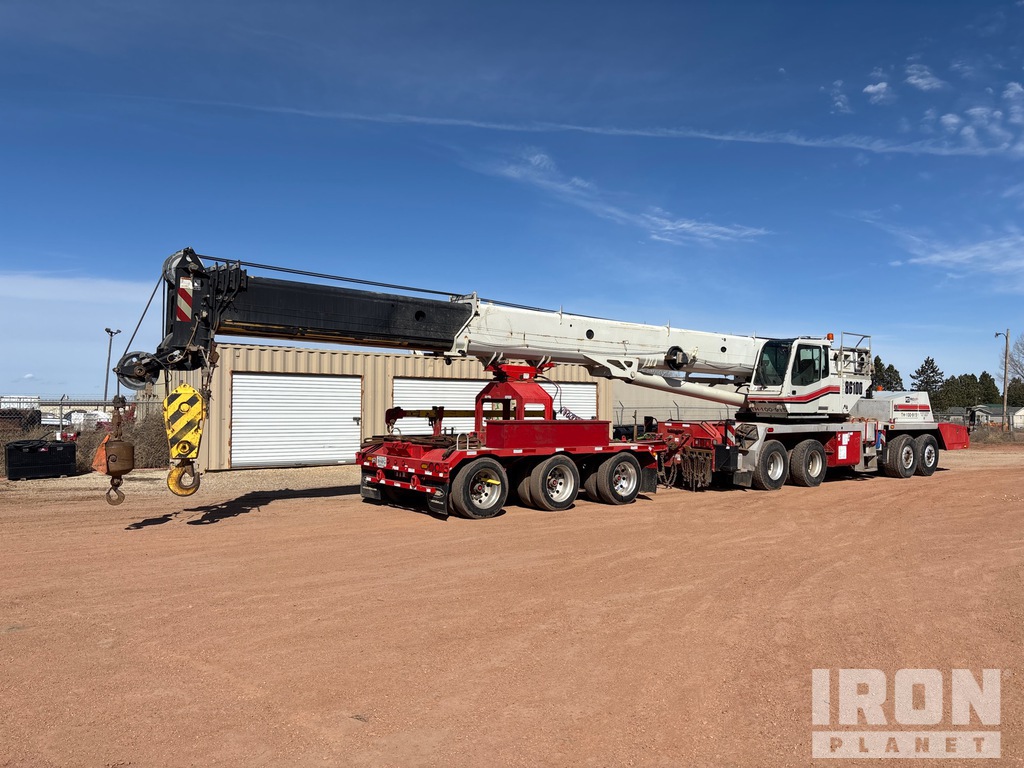

General Appearance
Featured Photo
Serial Number / VIN
1F9N3K440EL028301
Hour Meter / Odometer
19330 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 7-23-26
Safety Certification Report
Safety Certification Report Available, In office
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
19329.5 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Missing, Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Operational
PTO Control
Electric engaged, Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2014 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Retarder
Exhaust: Retarder
PTO Pump
Steer Axle
Front Drive Axle
Rear Drive Axle
Axle Bump Stops
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Air Bags
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
Meter reading could not be obtained-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Exterior Lights
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Apr 08, 2026 |
| Silicon | 2.58 PPM |
| Tin | 0.92 PPM |
| Silver | 0.07 PPM |
| Aluminum | 2.13 PPM |
| Chromium | 2.09 PPM |
| Lead | 2.53 PPM |
| Copper | 3 PPM |
| Nickel | 0.07 PPM |
| Iron | 46.52 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
