134 Photos

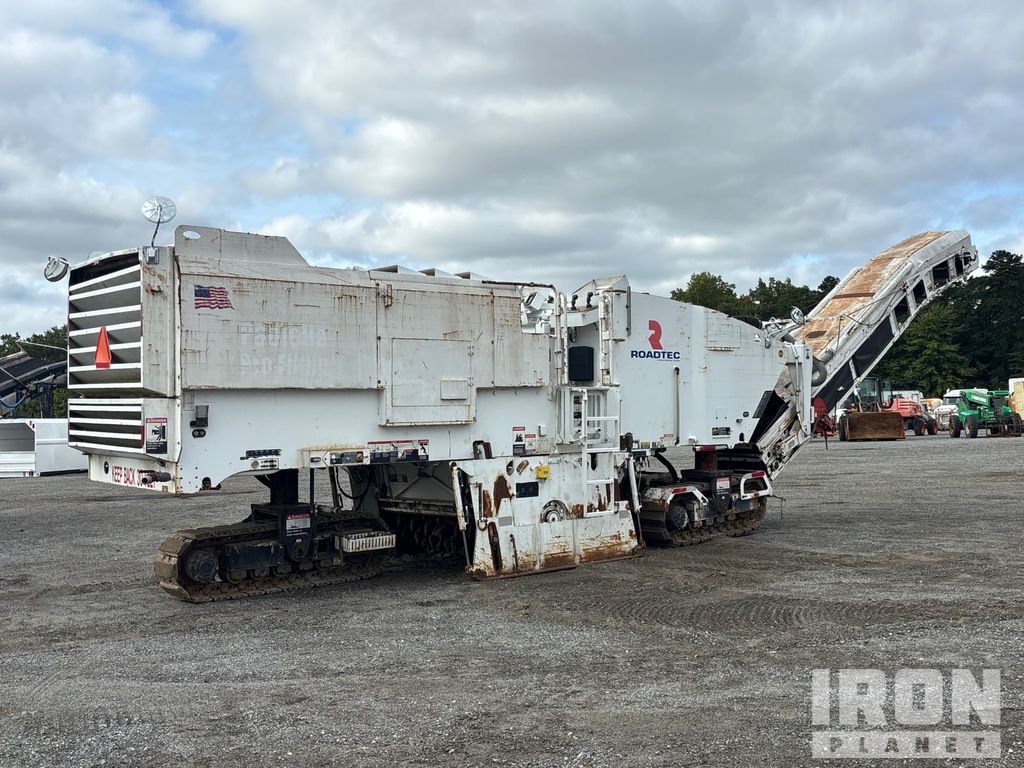

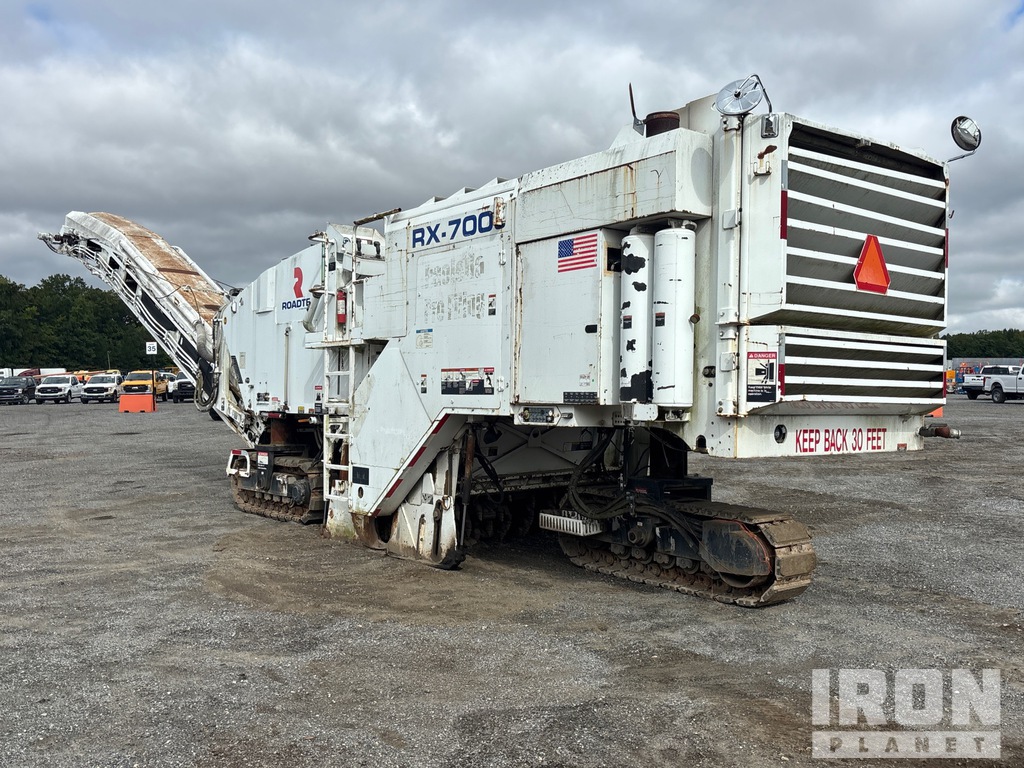

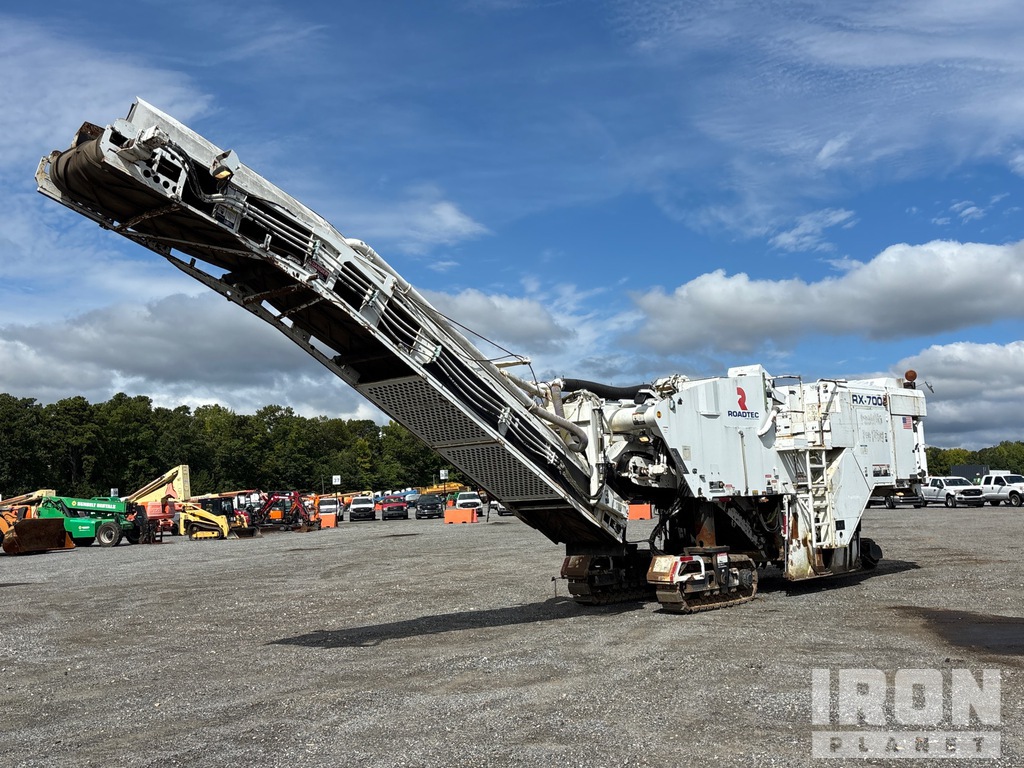

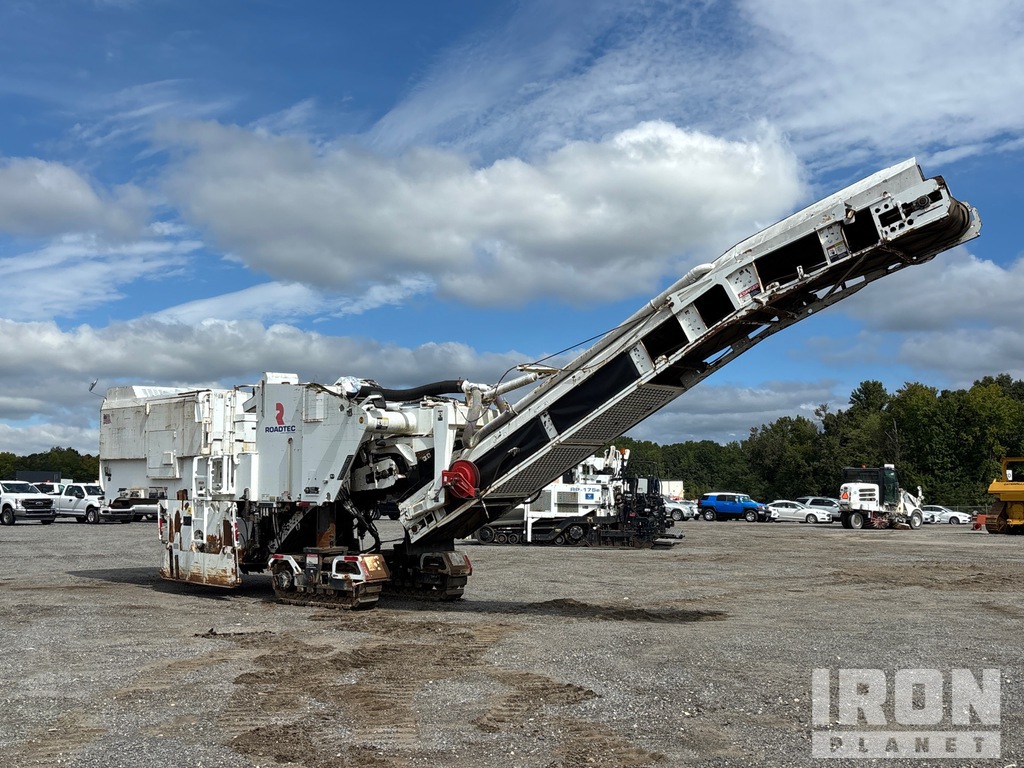

2013 Roadtec RX-700 Tracked Cold Planer
Located
North East, MD
North East, MD
Usage
4,297 hrs
4,297 hrs
Serial number
RX700E-3-2057
RX700E-3-2057
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15682060
In yard
Yes
Features
Rear View Camera, 2014 US EPA Label, 7 ft 2 in Cutting Width, 14 in Milling Depth, Water System, Foamed Bitumen System, 36 in Discharge Conveyor, 16 in Triple Grouser Track Shoes w/Rubber Pads
General Appearance
Serial Number / VIN
RX700E-3-2057
Hour Meter / Odometer
4297 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Exterior Lights
Operational
Control Station
Mirrors
Steering Controls
Hydraulic Controls
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Check engine light stays on, Maintenance/Service light stays on
Gauges
Operational
Limited Function Check
The main components are in place and operational as noted.
Safety
Travel Alarm
Operational, Very weak
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Engine
Engine
2014 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Chassis
Drive/Propel Motors
Dripping Leak, Left front dripping leak
Final Drives
Limited Function Check
The drivetrain was operational.
Rotor Drive Clutch
Rotor Drive Pulleys
Drive belt system missing components
Rotor Drive Belt
Rotor Shaft Bearings
Limited Function Check
The drivetrain could not be checked., Rear safety gate will not drop to allow testing of moldboard.
Main Frame
Track Frame
Rotor Mandrel
Holders and Cutting Bits
Roller Frame Legs
Rotor Compartment Doors
Rear door will not lower safety pin or jammed above lockout hole
Conveyor Frame
Conveyor Rollers
Collecting Conveyor
36 " Conveyor
Discharge Conveyor
Water Tank
Not operationally checked
Water Spray System
Not operationally checked
Pressure Washer
Not operationally checked
Limited Function Check
The components that could be checked functioned with wear.
Wheel Condition
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Cylinder(s)
Dripping leak
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Undercarriage
Track Tensioners
Operational
Track Pads
Grouser Height
Track links
Pins and Bushings Turned?
No
Track Rollers
Visible
Idlers
Sprockets
No visible issues
