117 Photos
2013 Cat 349E L Tracked Excavator
Located
San antonio, TX
Usage
12,344 hrs
Serial number
CAT0349ELTFG00932
Loading...
Inspection report:
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12971816
In yard
No
Year
2013
Manufacturer
Model
Asset type
Serial number or VIN
CAT0349ELTFG00932
Features
Air Conditioner, Straight Travel Pedal, Rear View Camera, 2013 US EPA Label, 11 ft Stick, 35.5 in Triple Grouser Track Shoes, Hydraulic Quick Coupler, 48 in Digging Bucket
General Appearance

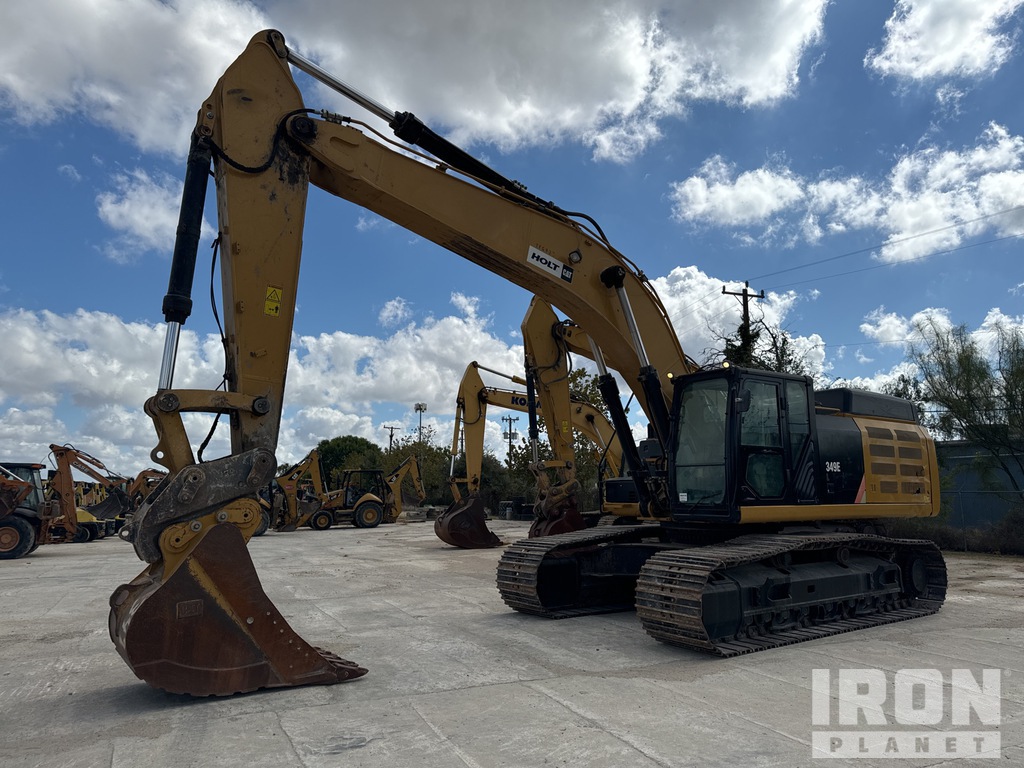

Featured Photo

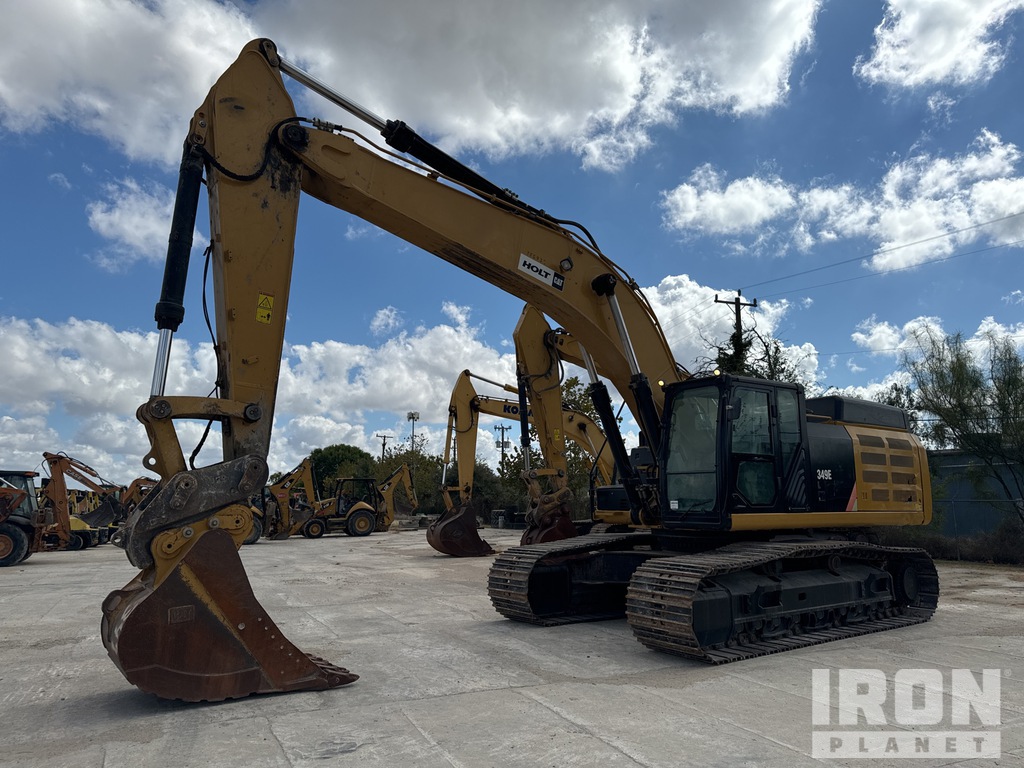

Picture, Left Front Corner

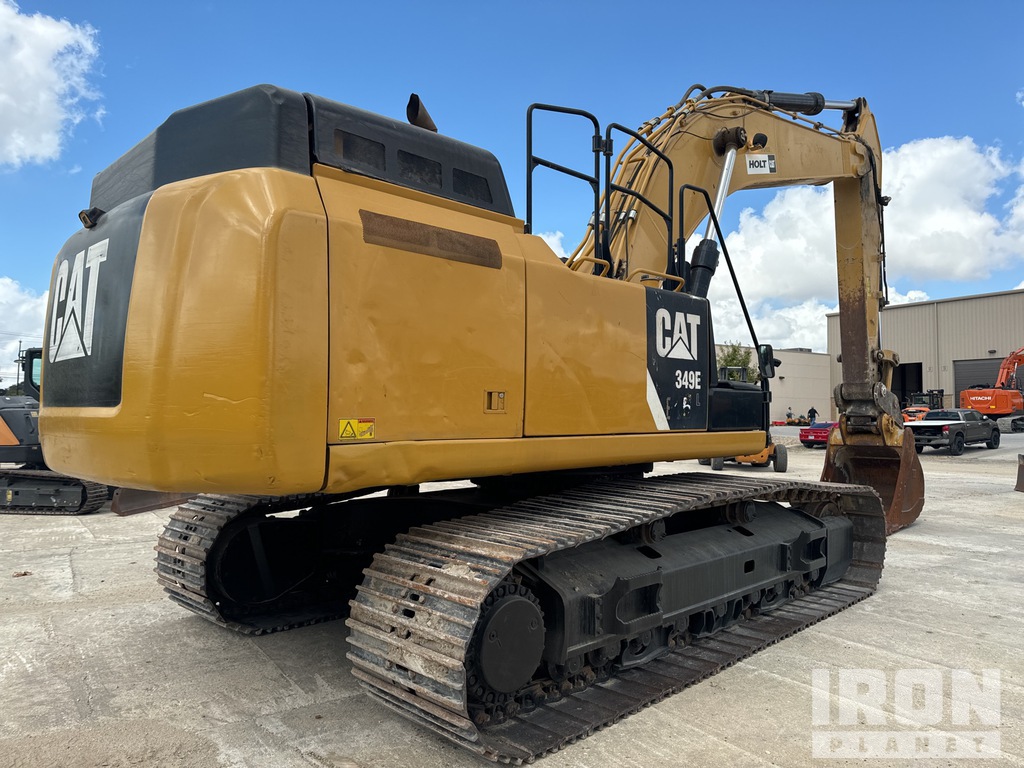

Picture, Left Rear Corner

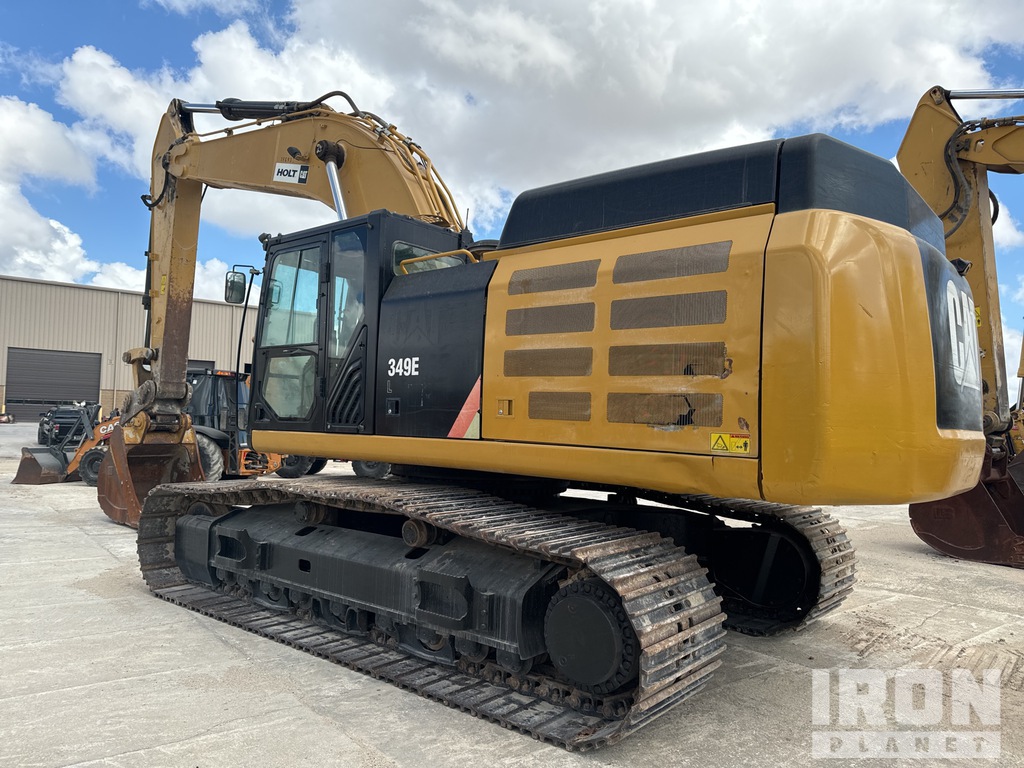

Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
CAT0349ELTFG00932
CE Mark
No CE mark found
Hour Meter / Odometer
12344 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, 1 lights are not operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Swing Brake
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Mirrors
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
No oil pressure indicator
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2013 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Limited Function Check
The engine started and ran.
Drivetrain
Left Drive Motor
Right Drive Motor
Left Final Drive
Right Final Drive
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Swing Motor
Hydraulic Center Swivel
Boom Lift Cylinder(s)
Stick Cylinder
Bucket Cylinder
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
Stick Condition
Boom Base Pin and Bushings
Pin and Bushings Boom to Stick
Pin and Bushings Stick to Bucket
Heavy movement
Pins and Bushings Stick to Coupler
Heavy movement
Turntable Bearing
Bottom Covers
Limited Function Check
The main components were operational in a limited check.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
25 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
26 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Excavator Bucket Condition
Cutting Edge / Teeth / Adapters
Quick Coupler
Not operationally checked
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Nov 18, 2024 | Nov 18, 2024 |
| Silicon | 3.5 PPM | 19.88 PPM |
| Tin | 0 PPM | 0 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 0.9 PPM | 2.41 PPM |
| Chromium | 0.11 PPM | 1.87 PPM |
| Lead | 0 PPM | 0 PPM |
| Copper | 1.17 PPM | 0.16 PPM |
| Nickel | 0.84 PPM | 0.67 PPM |
| Iron | 4.92 PPM | 233.27 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
Additional information
Terms of Bidding and Sale
Bids cannot be retracted. Everything sells "as is, where is". Read the full terms and conditions before you bid.Terms of Bidding and SaleTransaction fees
Successful buyers will be required to pay a buyer transaction fee.More detailsPayment
Items must be paid in full by Friday, February 21, 2025. Late fees will be applied after due date.
Payment optionsNeed additional information
Contact our Event site for more information.713-455-5200Shipping and pick up
- Buyers cannot remove their purchases from the auction site until their invoice is paid in full.
- Drivers must bring a copy of the Ritchie Bros. Auctioneers release ticket to pick up the item.
- We've partnered with trusted shipping vendors to make it easy for you to find the best transporters at the lowest prices. Request free quotes or get instant shipping estimates from our vendor’s websites.
Shipping estimator
Submit your item to VeriTread and receive free, no-obligation freight quotes.
General
The detailed equipment information is limited in scope, and Ritchie Bros. Auctioneers has not inspected any aspects or components of the equipment other than those expressly set forth herein. Unless expressly stated, we make no representations or warranties, express or implied, concerning the equipment or its components, including without limitation any representations or warranties concerning functionality, conformity or compliance with any safety standard or requirement of any applicable authority or regulatory body, fitness for any particular purpose, or merchantability. You are strongly advised to perform your own detailed inspection of the equipment prior to bidding.
Functions
Equipment is not tested under load or operated in all available gears. We make no representation or warranty that equipment is operating in accordance with manufacturers' specifications. No inspection has been performed with respect to any functionality aspect other than those expressly included herein. Only select photos have been provided for individual undercarriage components, and may not be indicative of the condition of the entire undercarriage as a whole.
Dimensions
Measurements are given as an estimate only. Actual loaded dimensions may vary based on truck/trailer height and the loaded machine configuration/position. It is the buyer's responsibility to measure all loads before leaving our auction site to ensure the load is safe for transport. All measurements should be verified by the buyer. Do not rely on these measurements for transportation purposes.
