139 Photos
2012 Terex T560 60 ton 8x4 Hydraulic Truck Crane
Located
Baltimore, MD
Baltimore, MD
Usage
609 mi
609 mi
Serial number
1T9T500APCW120122
1T9T500APCW120122
Loading...
ID number
#14203063
In yard
No
Features
Air Conditioner, Allison 6 Speed Automatic Transmission, 13227 hrs Carrier Engine, 2011 US EPA Label, Cummins ISX15 6 Cylinder 15 L Diesel Carrier Engine, Requires Diesel Exhaust Fluid, Air Conditioner, Anti Two-Block, Greer RCI510 Load Moment Indicator, 35 ft Minimum 110 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 33 ft to 57 ft Extendable Swingaway Jib, 5 Sheave Hook Block, 13000 lb Counterweight, Counterweight Removal System
Notes
<br><br>**No Title available. Bill of Sale will be provided upon request to convey ownership**

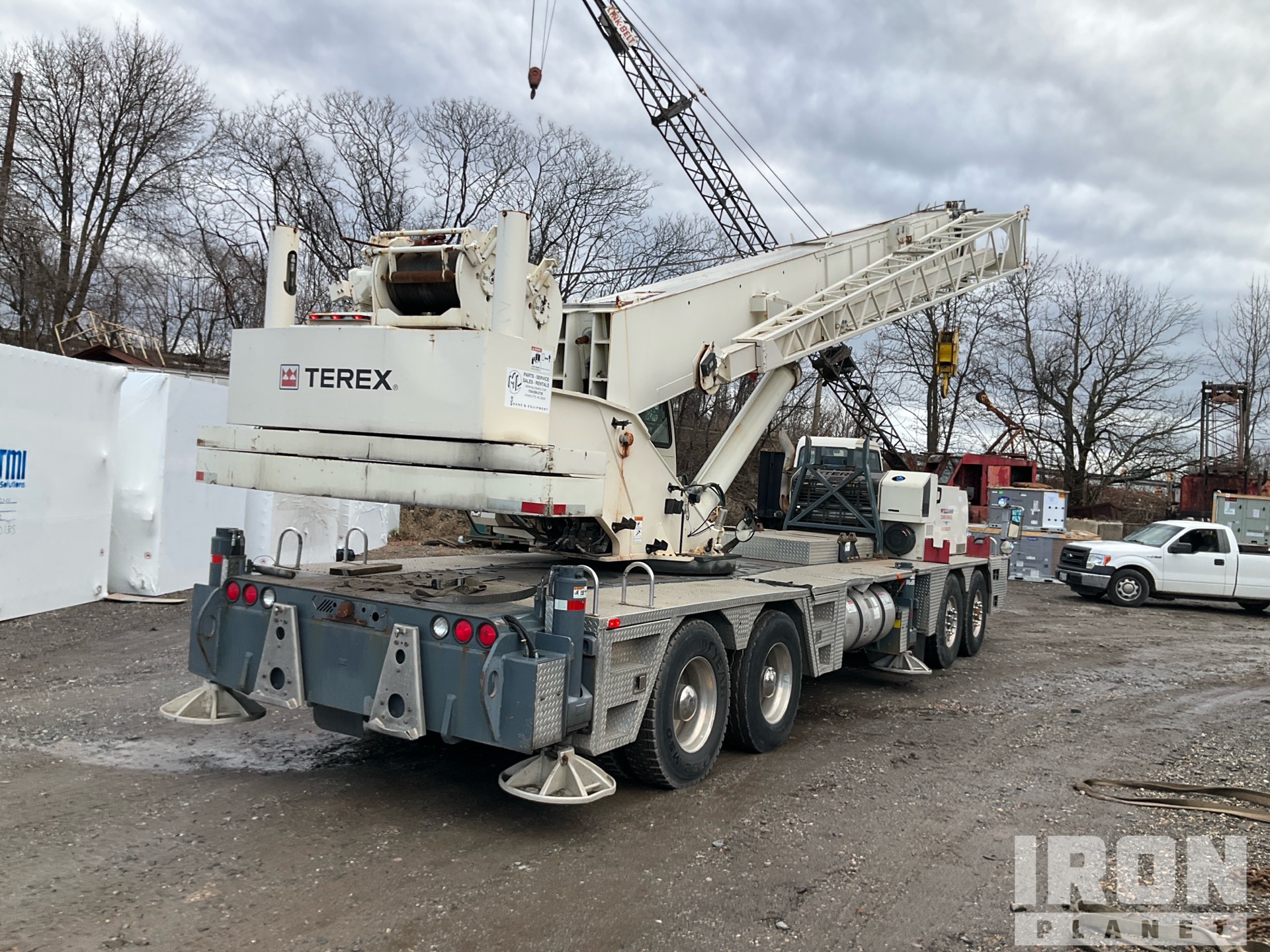

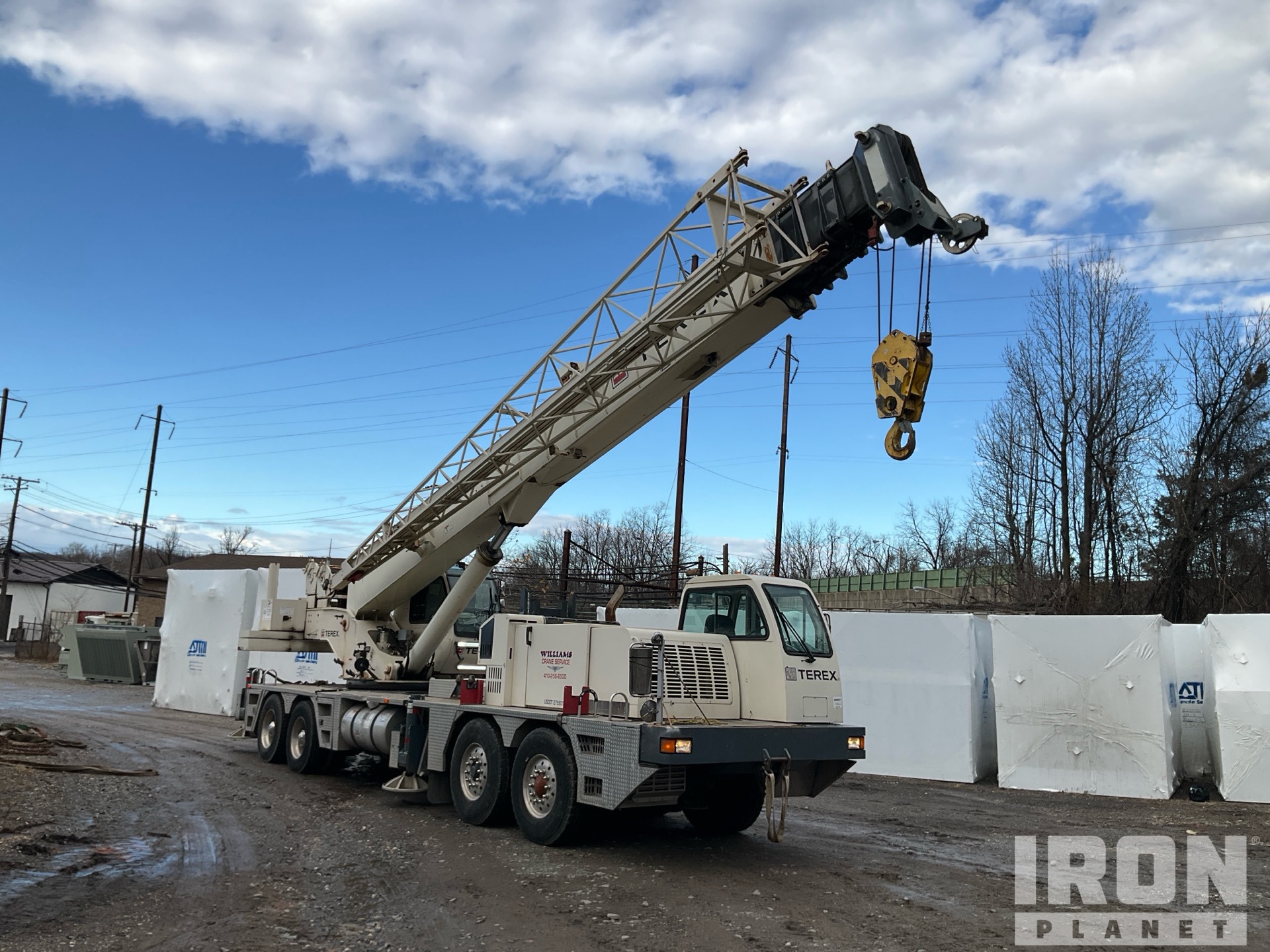

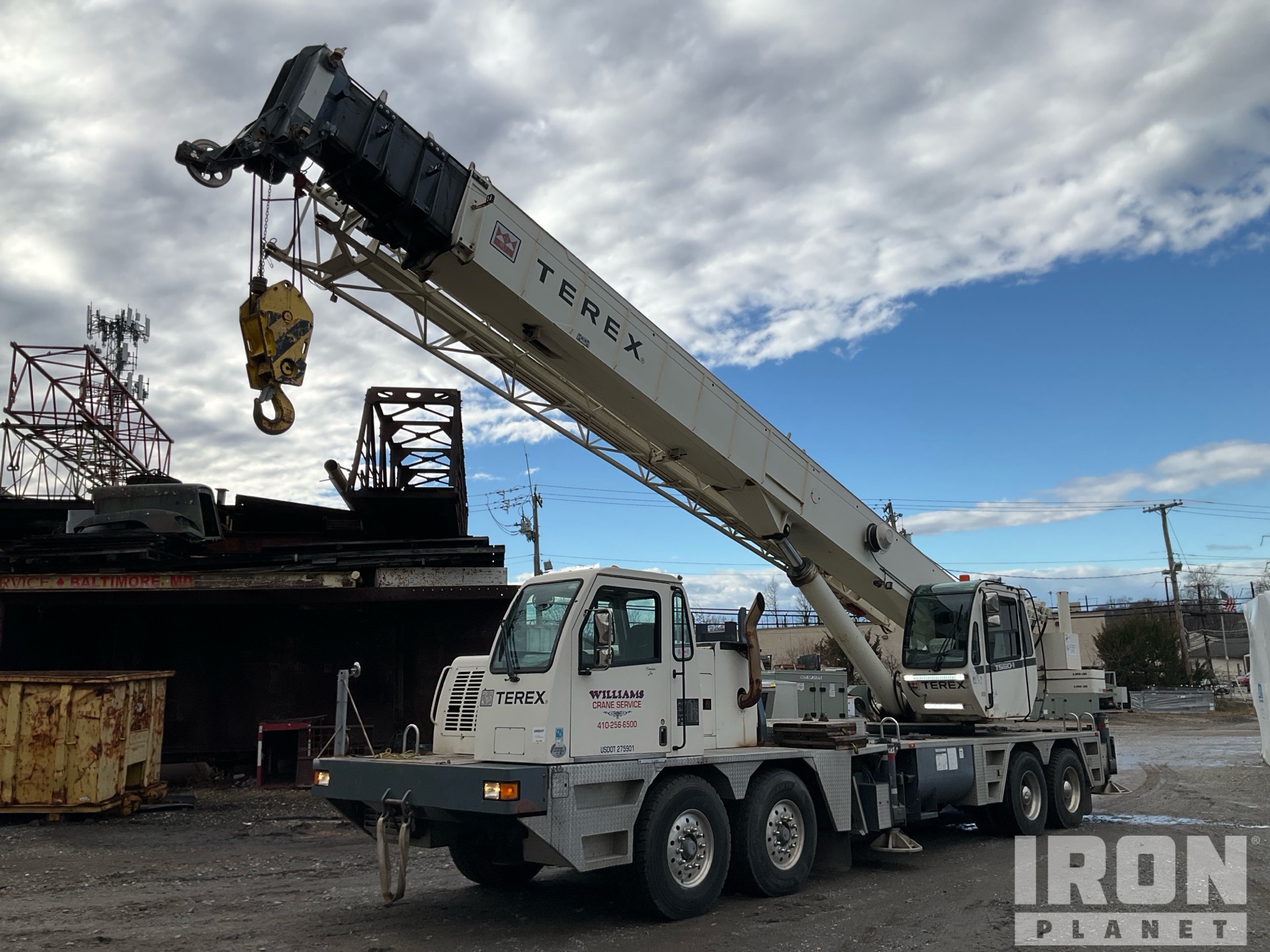

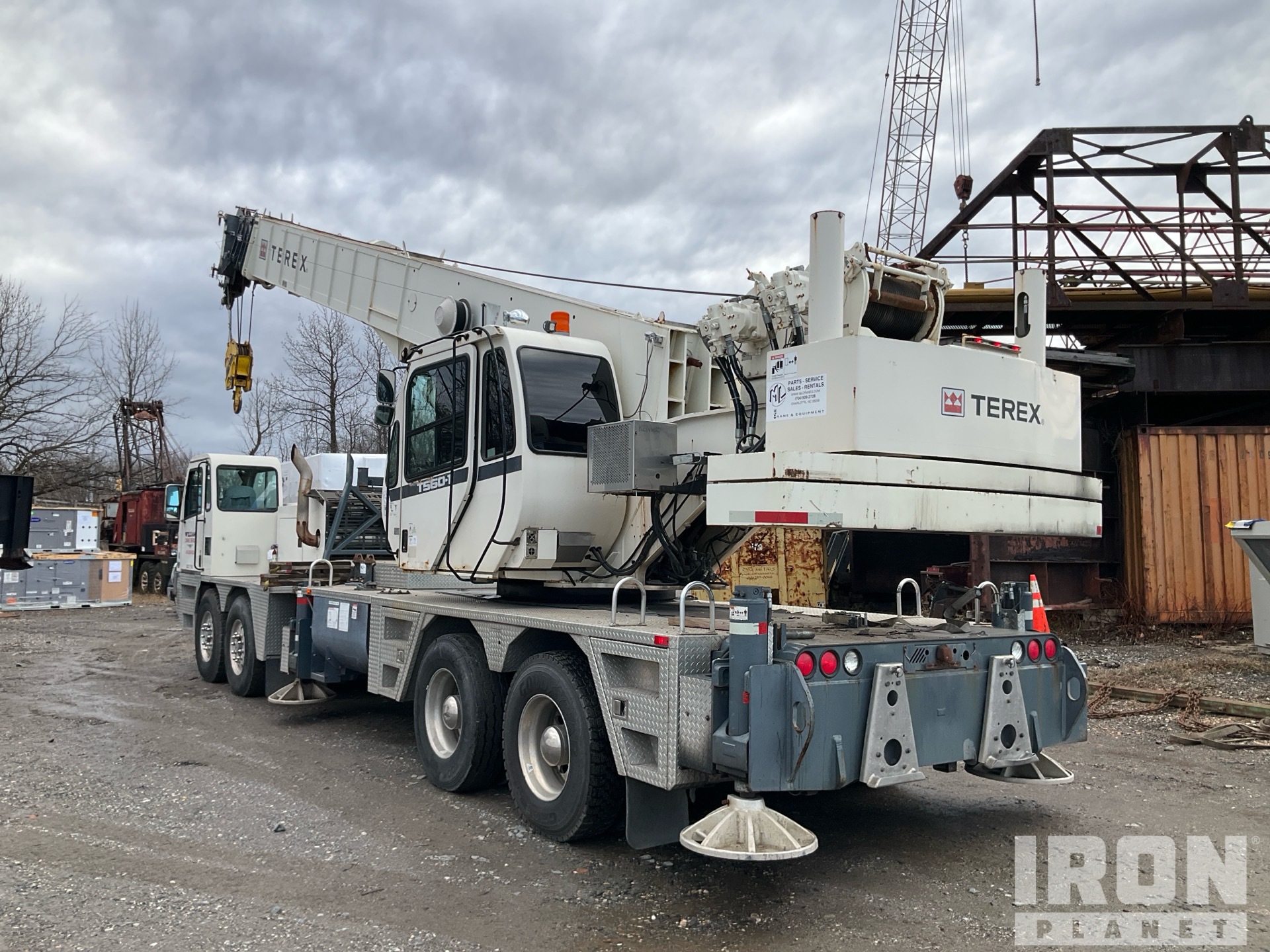

General Appearance
Serial Number / VIN
1T9T500APCW120122
Hour Meter / Odometer
609 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
There is an hour meter replacement/change label that has the following reading on it: Data report shows 1636 engine hours
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 10/23/2025
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
13227 hrs Carrier Engine
Mirrors
Window Controls
Inoperable
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Inoperable, Inoperable
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Check engine light stays on
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Not operationally checked
PTO Control
Electric engaged, Operational
ECM Miles
13481 mi
Air Conditioner
The ambient temperature is too cold to check
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
Side of engine, Oil Pan, Under air compressor, locations with unknown origin see additional photos
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational, Dripping leak
PTO Pump
Operational, Dripping leak
Steer Axle
Front Drive Axle
Rear Drive Axle
Dripping Leak
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Air Bags
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational, Powers On
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range.
Exterior Lights
Warning Lights
Operational, Check engine light stays on
Gauges
Operational
Air Conditioner
Not operationally checked
Heater
Controls inoperable
Limited Function Check
The main components are in place and operational as noted.
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Jib
Main Load Block
Minor wear
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Dec 29, 2025 |
| Silicon | 0.73 PPM |
| Tin | 0 PPM |
| Silver | 0.06 PPM |
| Aluminum | 0.57 PPM |
| Chromium | 1.03 PPM |
| Lead | 2.02 PPM |
| Copper | 4.42 PPM |
| Nickel | 1.3 PPM |
| Iron | 20.95 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
