149 Photos
2012 Grove GMK5225 225 ton 10x10x6 All Terrain Crane
Located
Watford City, ND
Watford City, ND
Usage
100,321 mi
100,321 mi
Serial number
W09170520CWG12146
W09170520CWG12146
Loading...
ID number
#14880224
In yard
No
Features
Air Conditioner, Allison Automatic Transmission, 7645 hrs Carrier Engine, 2010 US EPA Label, Mercedes-Benz OM 502 LA CID 972 V8 15.9 L Diesel Carrier Engine, Air Conditioner, Drum Camera, Tilt Cab, Anti Two-Block, Hirschman EKS 5 Load Moment Indicator, Mercedes-Benz 7.2 L Diesel Upper Engine, 45 ft Minimum 210 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 36 ft to 59 ft Bifold Swingaway Hydraulic Offset Jib, 950 kg 80 ton Capacity Manitowoc 3 Sheave Hook Block, 300 kg 12 ton Capacity Overhaul Ball, 117000 lb Counterweight, Counterweight Removal System, 3-Axle Boom Dolly

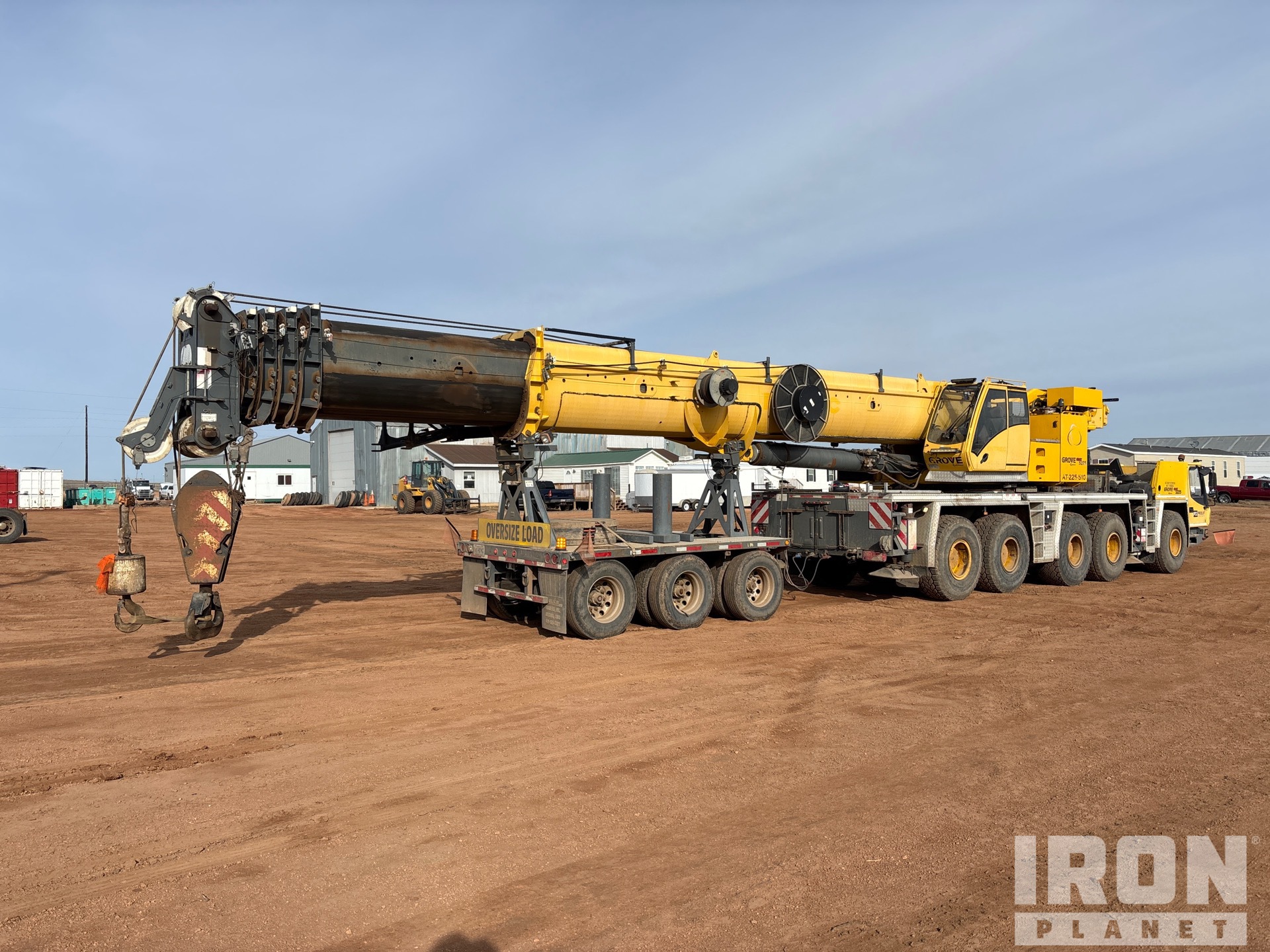

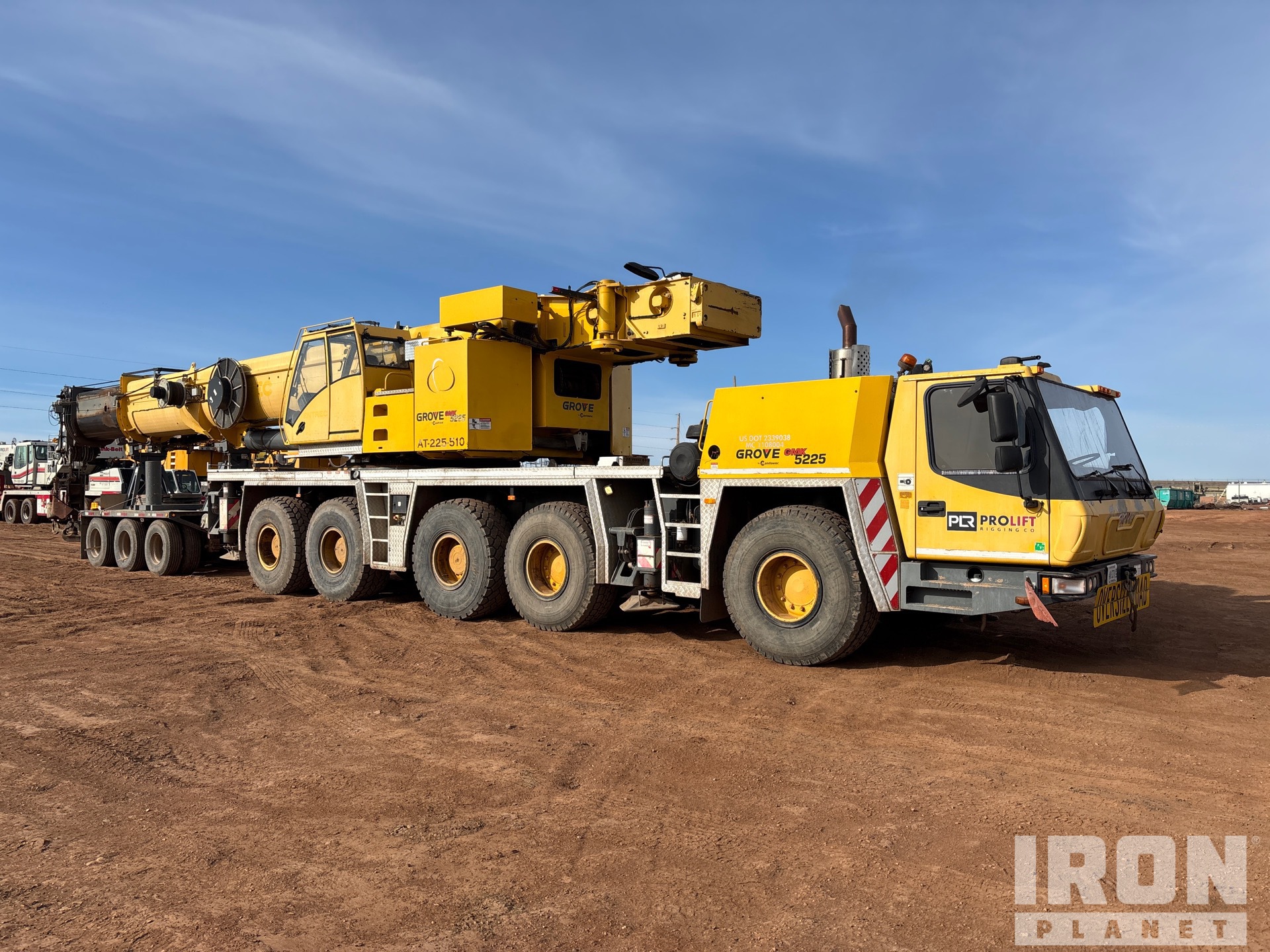

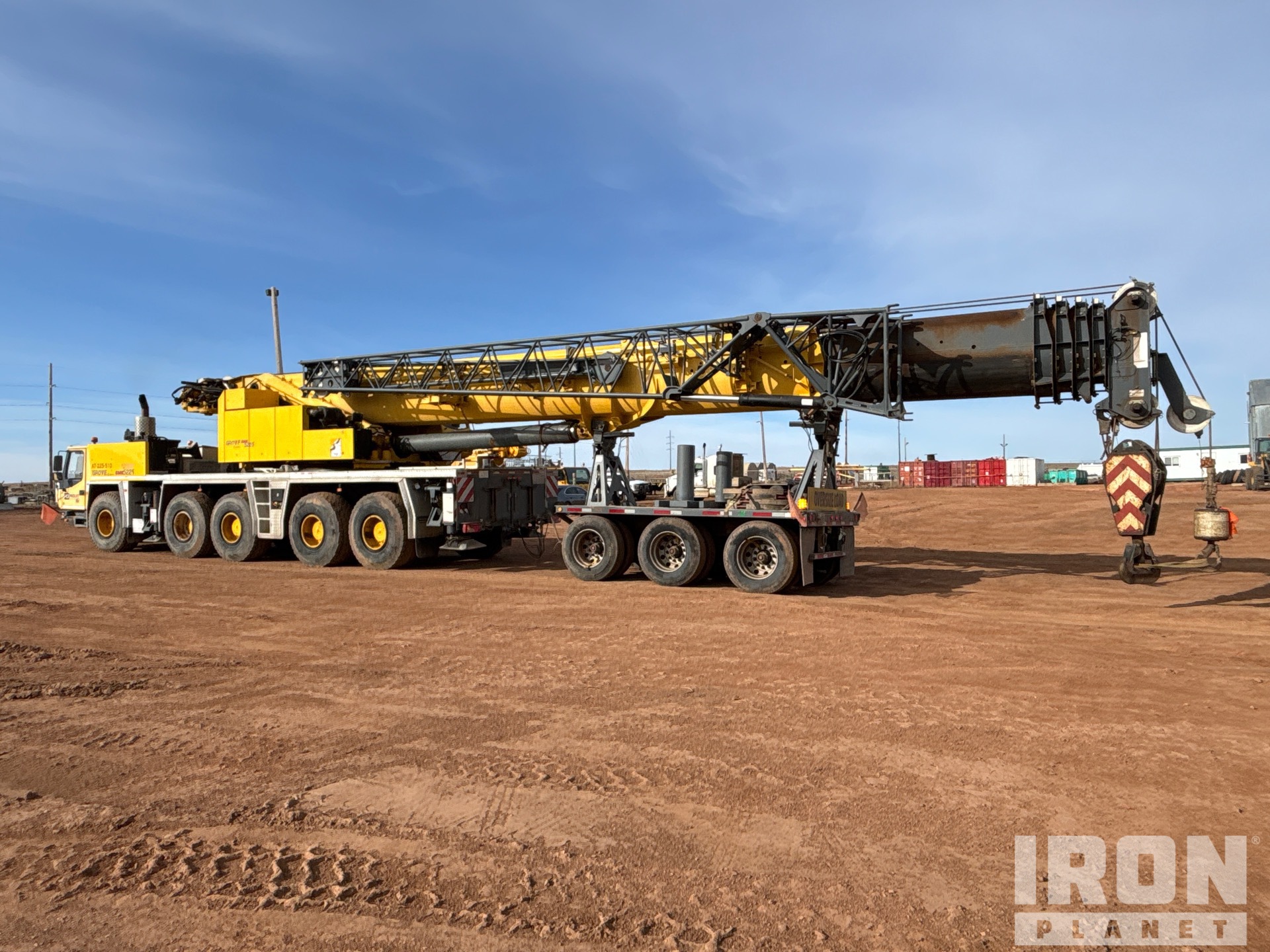

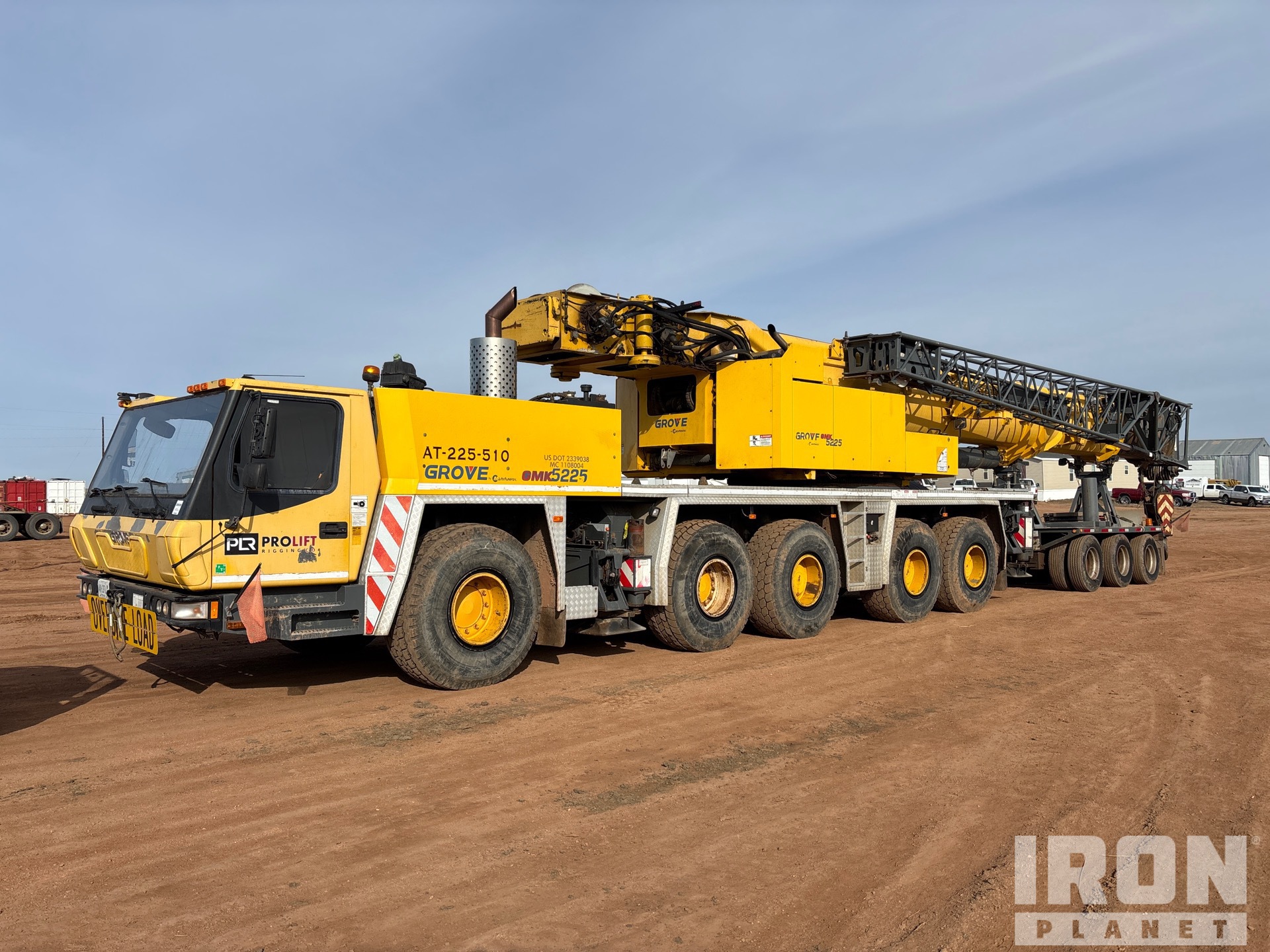

General Appearance
Serial Number / VIN
W09170520CWG12146
CE Mark
CE Marked
Hour Meter / Odometer
100321 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Safety Certification Label
There is a safety certification label with a date of 2-2-27
Load Chart
Yes
Safety Certification Report
Safety Certification Report Available, Located in the office
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Glass
Exterior Lights
Operational
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
7645 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Engine Brake
Operational
ECM Miles
Unable to get ECM reading
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
2010 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Steer Axle
Front Drive Axle
Dripping Leak
Center Drive Axle
Rear Drive Axle
Axle Bump Stops
In place
Final Drives
Limited Function Check - Carrier
The drivetrain was operational except as noted.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Frame Condition
Automatic Lube System
Yes
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
18005 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Safety Lock Out/Stop
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Exterior Lights
Operational
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Upper Engine
Emission Certification Label
US EPA certification label
A/C Compressor
Operational
Blow by @ idle (subjective visual observation)
Minor
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Limited Function Check (Engine)
The engine started and ran.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Not equipped
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Fluid accumulation
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine-1 | engine-2 | |
|---|---|---|
| Aluminum | 0.49 PPM | 1.11 PPM |
| Chromium | 0 PPM | 0.12 PPM |
| Copper | 0 PPM | 0.25 PPM |
| date of analysis | Apr 08, 2026 | Apr 08, 2026 |
| Iron | 0 PPM | 2.36 PPM |
| Lead | 0.69 PPM | 1.28 PPM |
| Nickel | 0.12 PPM | 0.14 PPM |
| Silicon | 0 PPM | 3.85 PPM |
| Silver | 0 PPM | 0 PPM |
| Tin | 0.58 PPM | 0.35 PPM |
