109 Photos
2009 Terex Pegson XA400 Jaw Crusher
Located
Pacific Junction, IA
Pacific Junction, IA
Usage
3,984 hrs
3,984 hrs
Serial number
400608FMXA
400608FMXA
Loading...
ID number
#13201042
In yard
No
Features
Cat C9 6 Cylinder 275 hp Diesel Engine, 3 ft 6 in x 14 ft Vibratory Grizzly Feeder 46 in x 24 in Jaw Crusher, 42 in Crusher to Screen Conveyor, 24 in Wide Left Discharge Conveyor, 42 in Wide End Discharge Conveyor, 30 in Cross Belt Magnet, Cable Remote Control, 19.5 in Triple Grouser Track Shoes

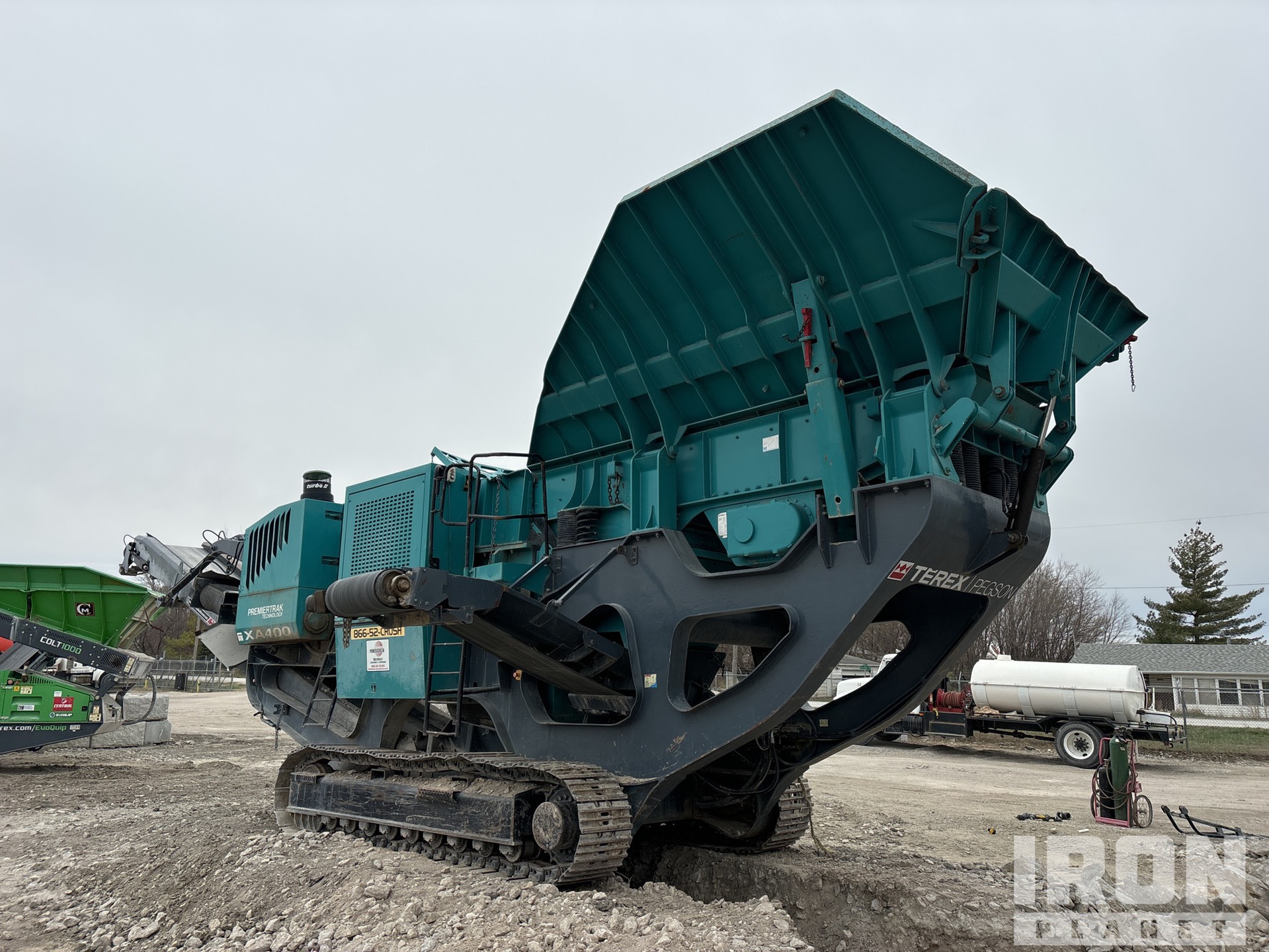

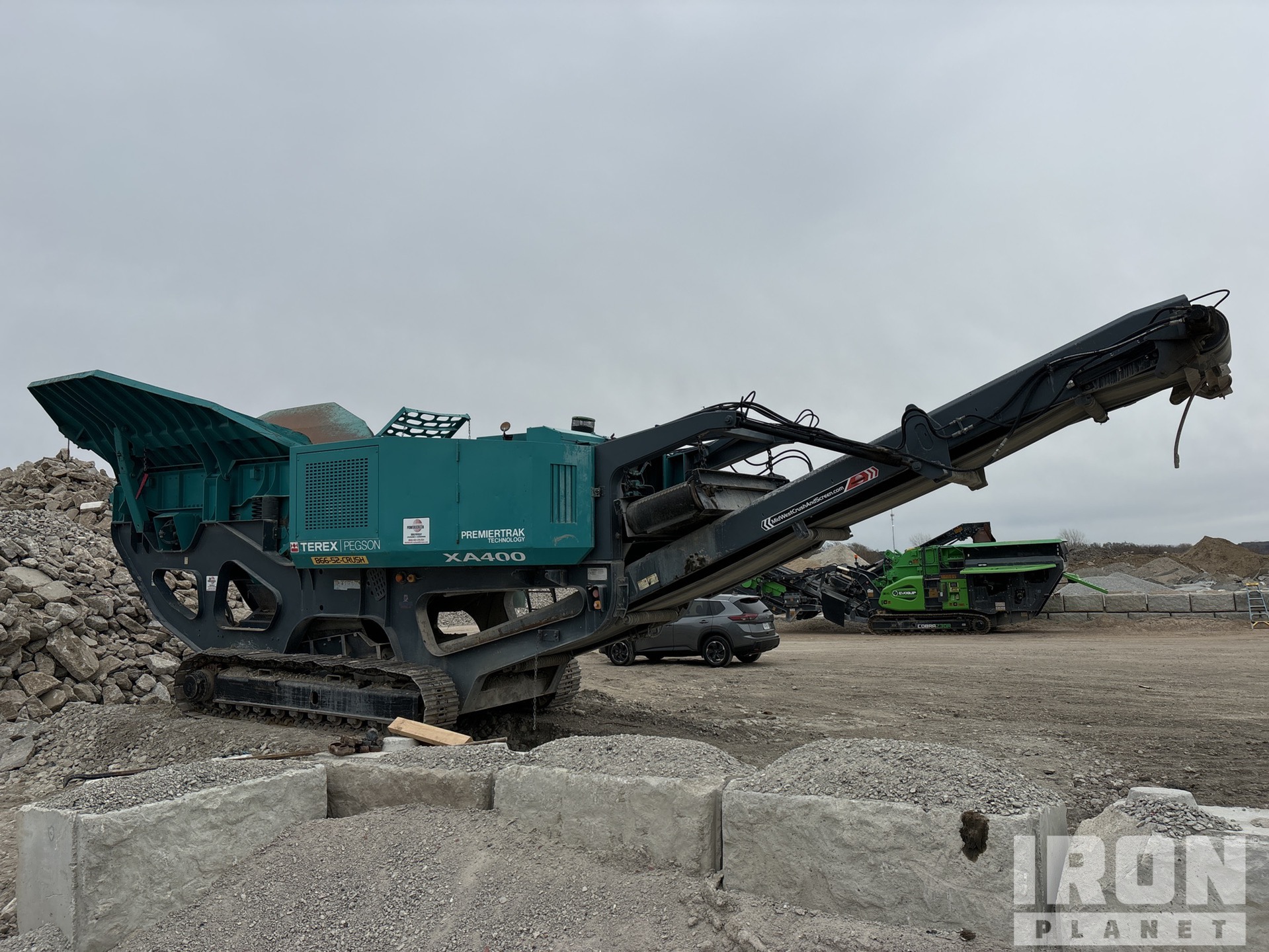

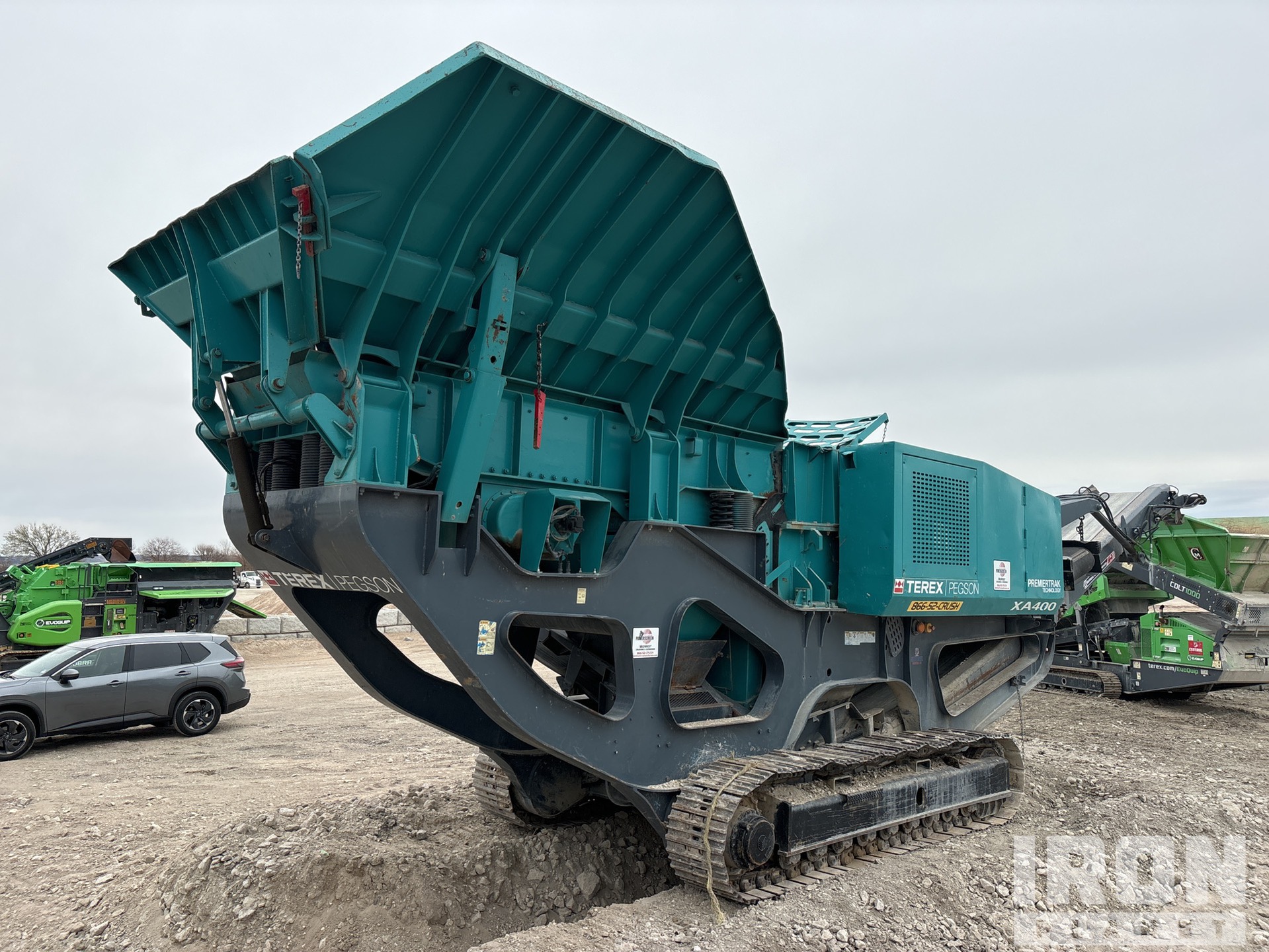

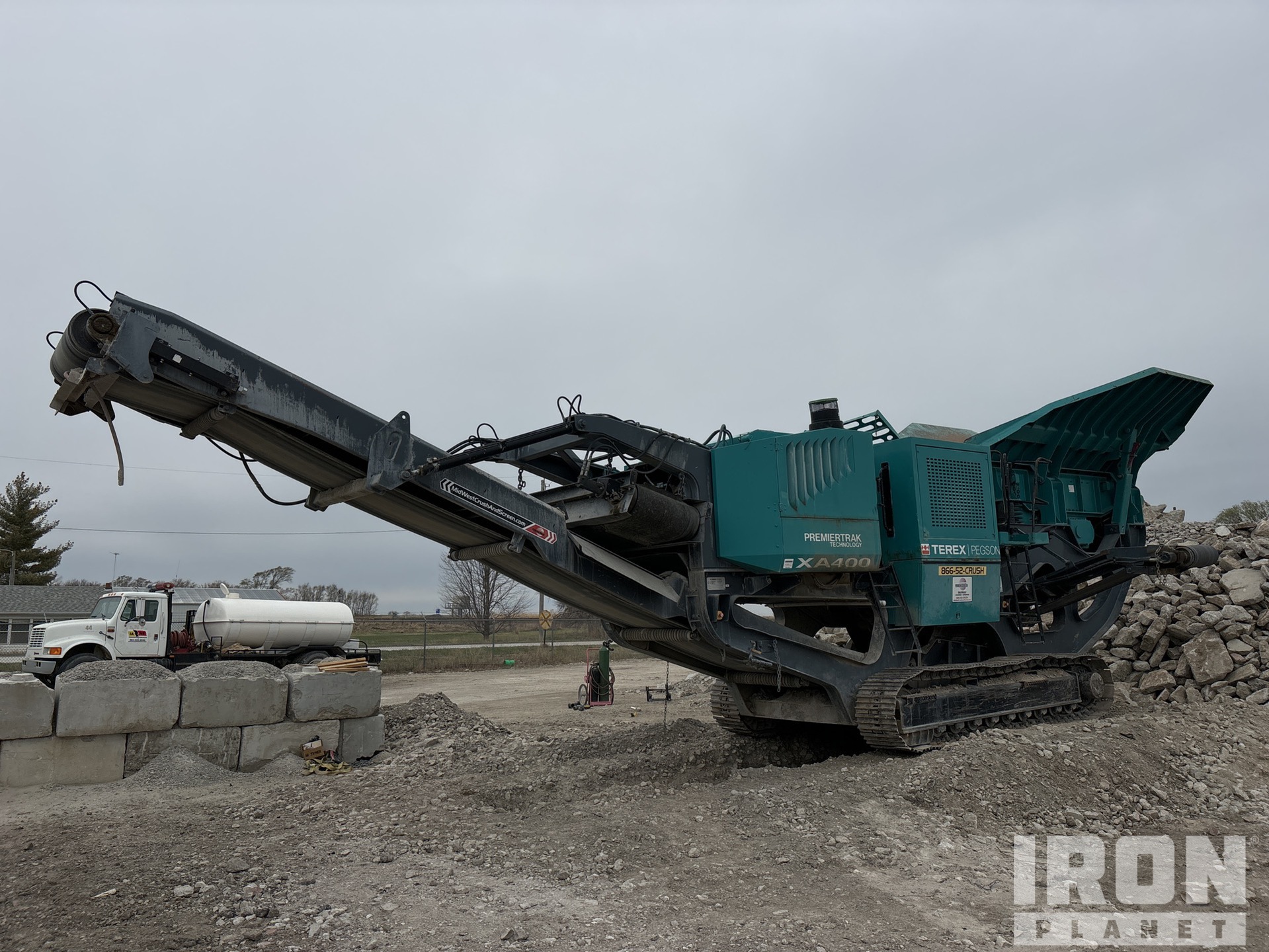

General Appearance
Serial Number / VIN
400608FMXA
Hour Meter / Odometer
3984 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
None found
Blow by @ idle (subjective visual observation)
Visible
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Dripping leak
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Dripping leak
Power Travel Drive System
Travels properly, Missing drive motor cover on right side
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 16’, Width @ top: 13’, Grizzly length: 3’6”, Width between grizzly bars: 2”, Heavy wear
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Heavy wear
Undercarriage
Left Roller Frame
Left Track Pads
Left Grouser Height
24 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Pads
Track pads loose
Right Grouser Height
24 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
