100 Photos

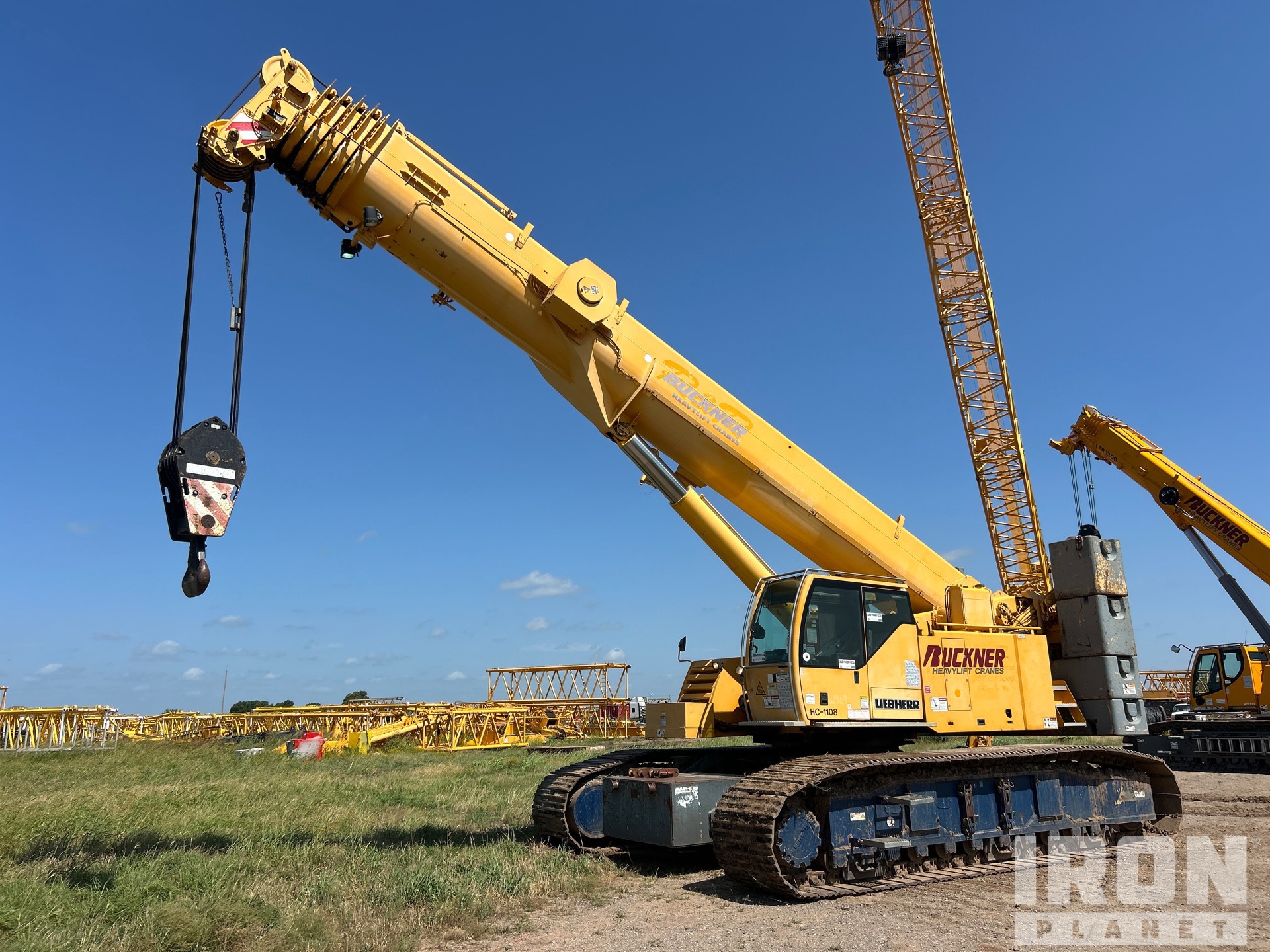

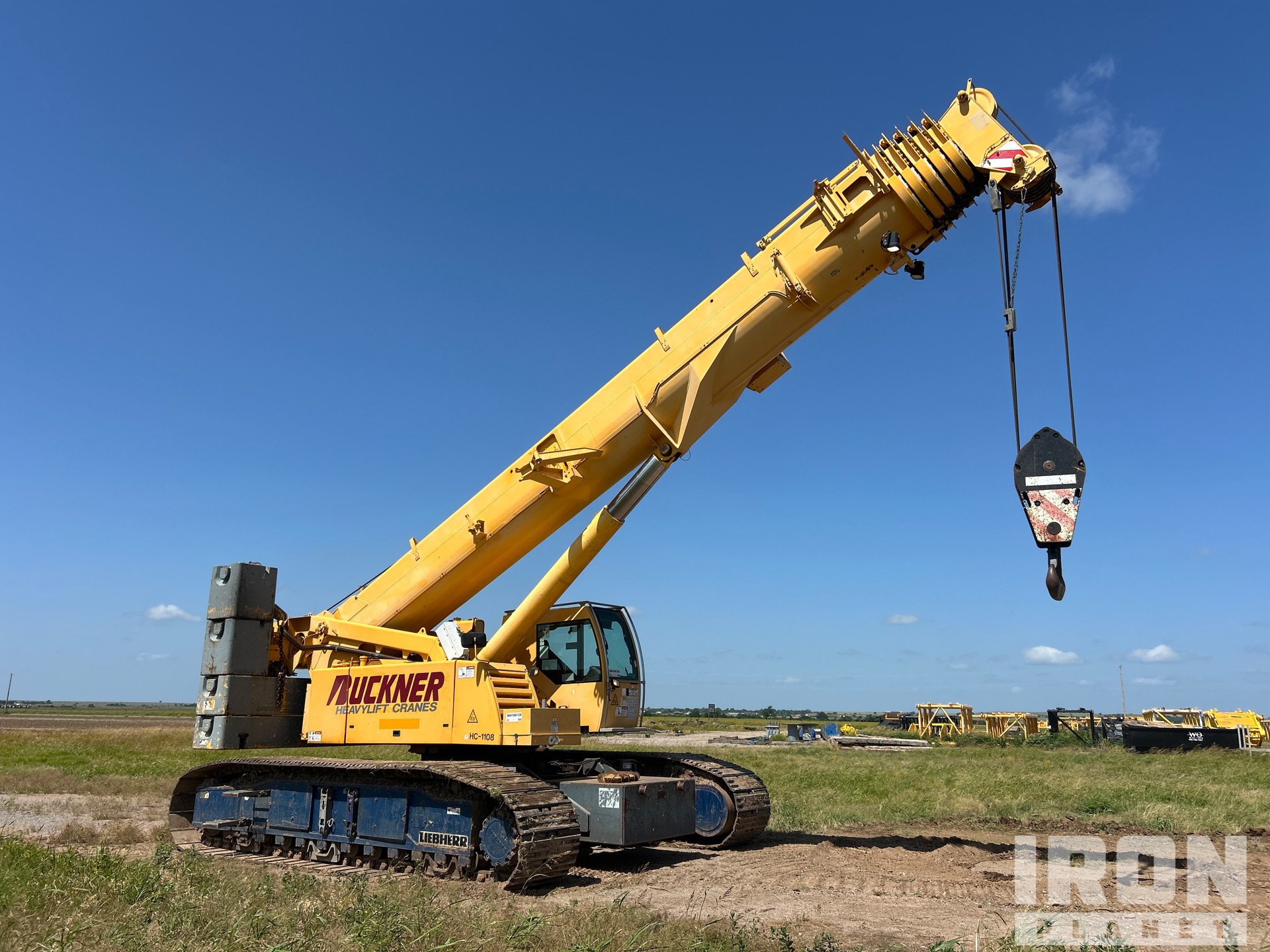

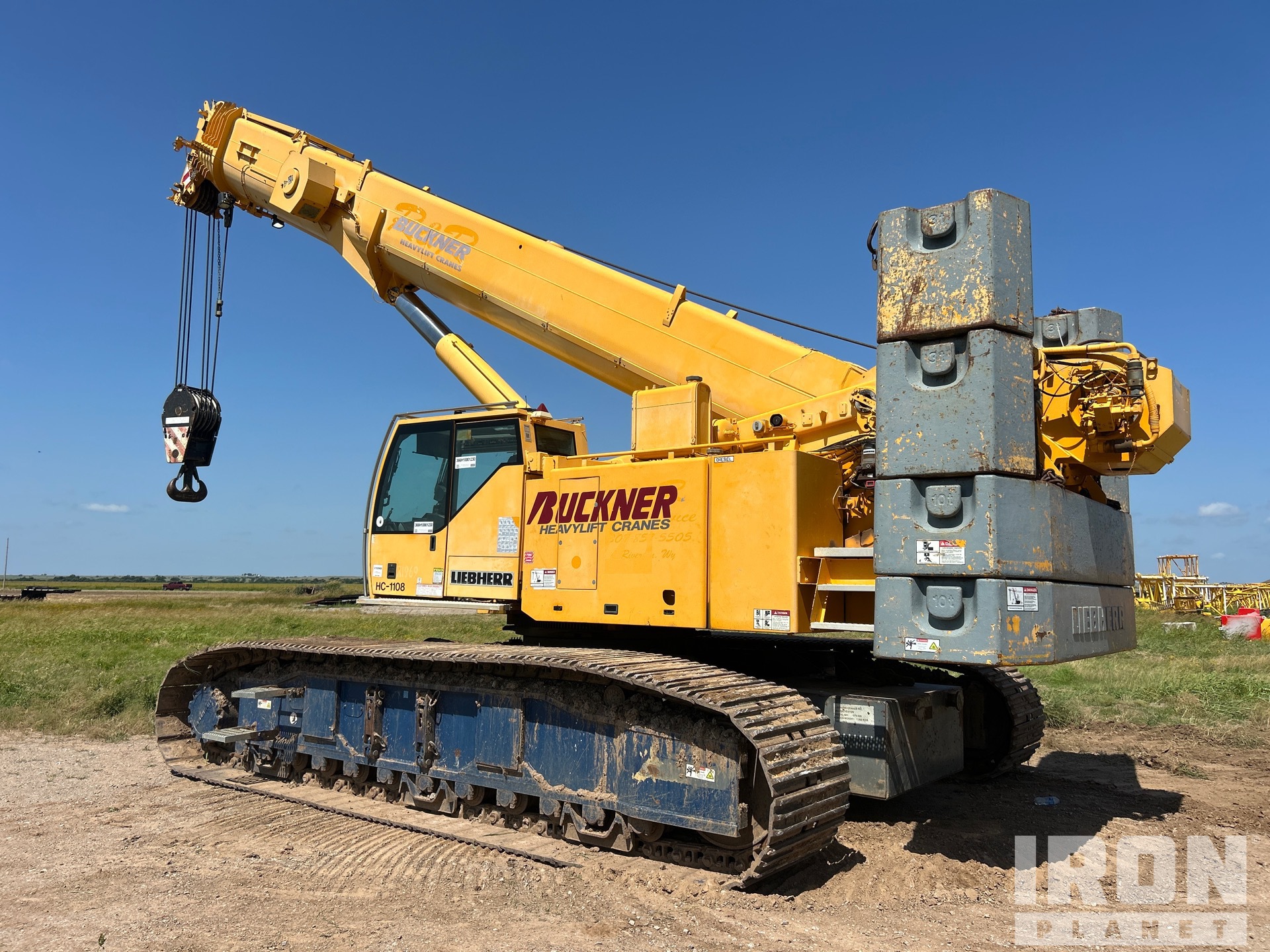

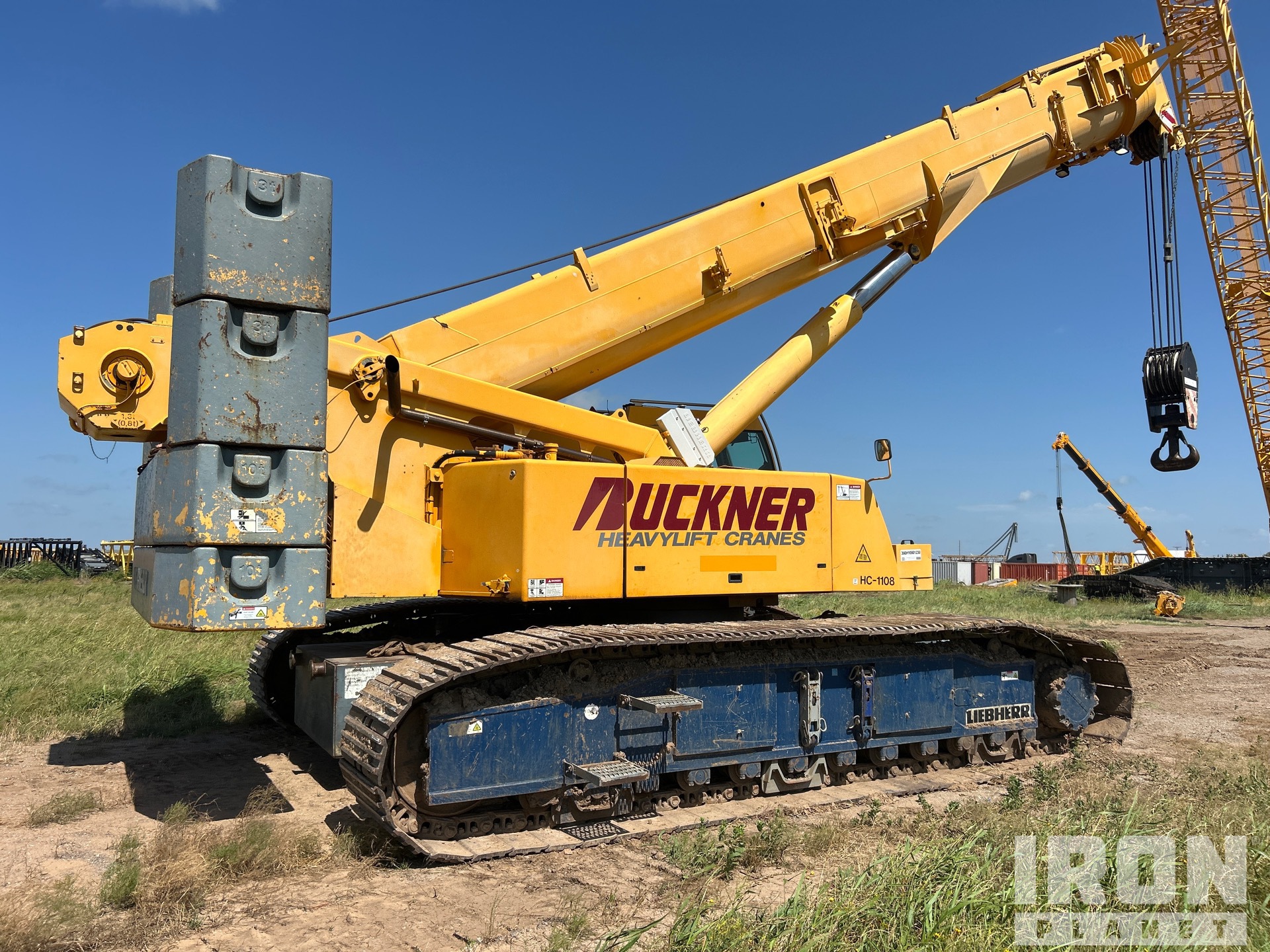

2008 Liebherr LTR1100 110 ton Telescopic Crawler Crane
Located
Pocasset, OK
Pocasset, OK
Usage
16,107 hrs
16,107 hrs
Serial number
074929
074929
Loading...
ID number
#15350058
In yard
No
Features
Air Conditioner, Tilt Cab, Anti Two-Block, Liccon Load Moment Indicator, 16107 hrs Crane Operation, 37 ft Minimum 171 ft Maximum Boom Length, 700 kg 100 ton Capacity Liebherr 5 Sheave Hook Block, 103600 lb Counterweight, Counterweight Removal System, Track Shoes
General Appearance
Serial Number / VIN
074929
CE Mark
CE Marked
Hour Meter / Odometer
16107 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There was no safety certification label located on the machine.
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes, On LMI only
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
No equipped per operator
Current Safety Manual
Current Operator/Maintenance Manual
Upper Control Station
Hours of Crane Operation
16107 hrs Crane Operation
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load., Liccon, Liccon 1
Controls Hydraulic or Air
Load Charts
Just electronic on LMI
Oil Pressure
No oil pressure indicator
Warning Lights
Operational
Gauges
Operational
Drum Rotation Indicator
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
A/C Compressor
Operational
Blow-by (subjective visual observation)
Video capture could not be performed
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Leak
Hydraulic Motors
Valves
Dripping leak, Leak
Hydraulic Tank
Hoses (Hydraulic)
Leak
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Cylinders
Outrigger Pads
Missing
Undercarriage
Overall width (outside to outside of shoes)
16’7” Overall width
Track Tensioners
No visible damage
Shoe Width
35.5 in track shoes
Track links
Pins and bushings
Carrier Rollers
Track Rollers
Front idler wear
Sprockets
No visible issues
Specialty
Main Load Block
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Jun 29, 2026 | Jun 29, 2026 |
| Silicon | 0.35 PPM | 0 PPM |
| Tin | 0 PPM | 0.29 PPM |
| Silver | 0 PPM | 0.03 PPM |
| Aluminum | 0.65 PPM | 0.02 PPM |
| Chromium | 1.39 PPM | 0.15 PPM |
| Lead | 3.14 PPM | 2.03 PPM |
| Copper | 10.98 PPM | 2.59 PPM |
| Nickel | 0.31 PPM | 0.18 PPM |
| Iron | 10.72 PPM | 0.39 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
