102 Photos
2008 John Deere 3554 Heel Boom Log Loader
Located
Weaverville, CA
Weaverville, CA
Usage
18,099 hrs
18,099 hrs
Serial number
FF3554X350091
FF3554X350091
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15152856
In yard
No
Features
Air Conditioner, Tilting Cab, Heel Boom, Right Front Corner Guard, 27.62 in Double Grouser Track Shoes, Rock Guards

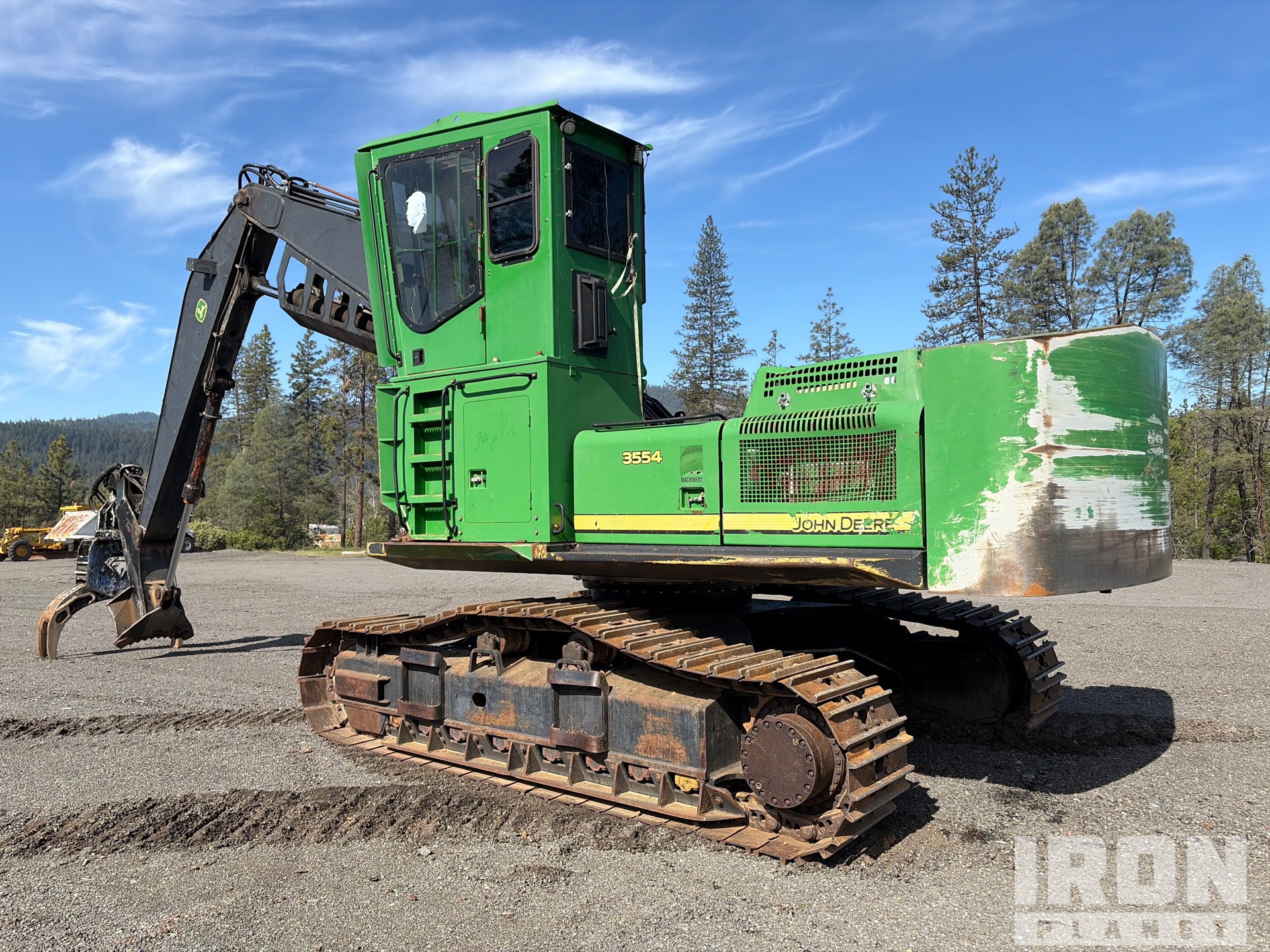

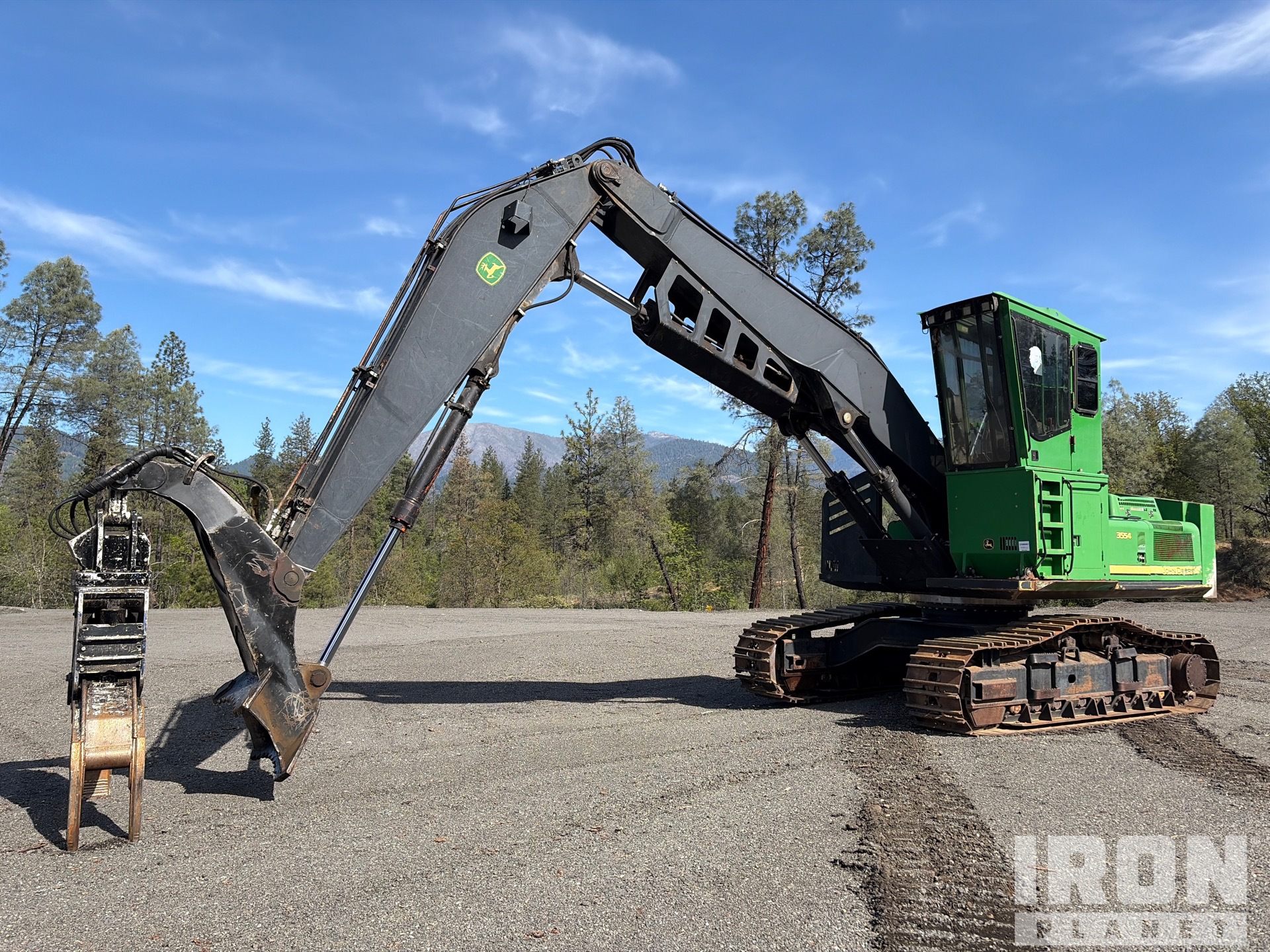

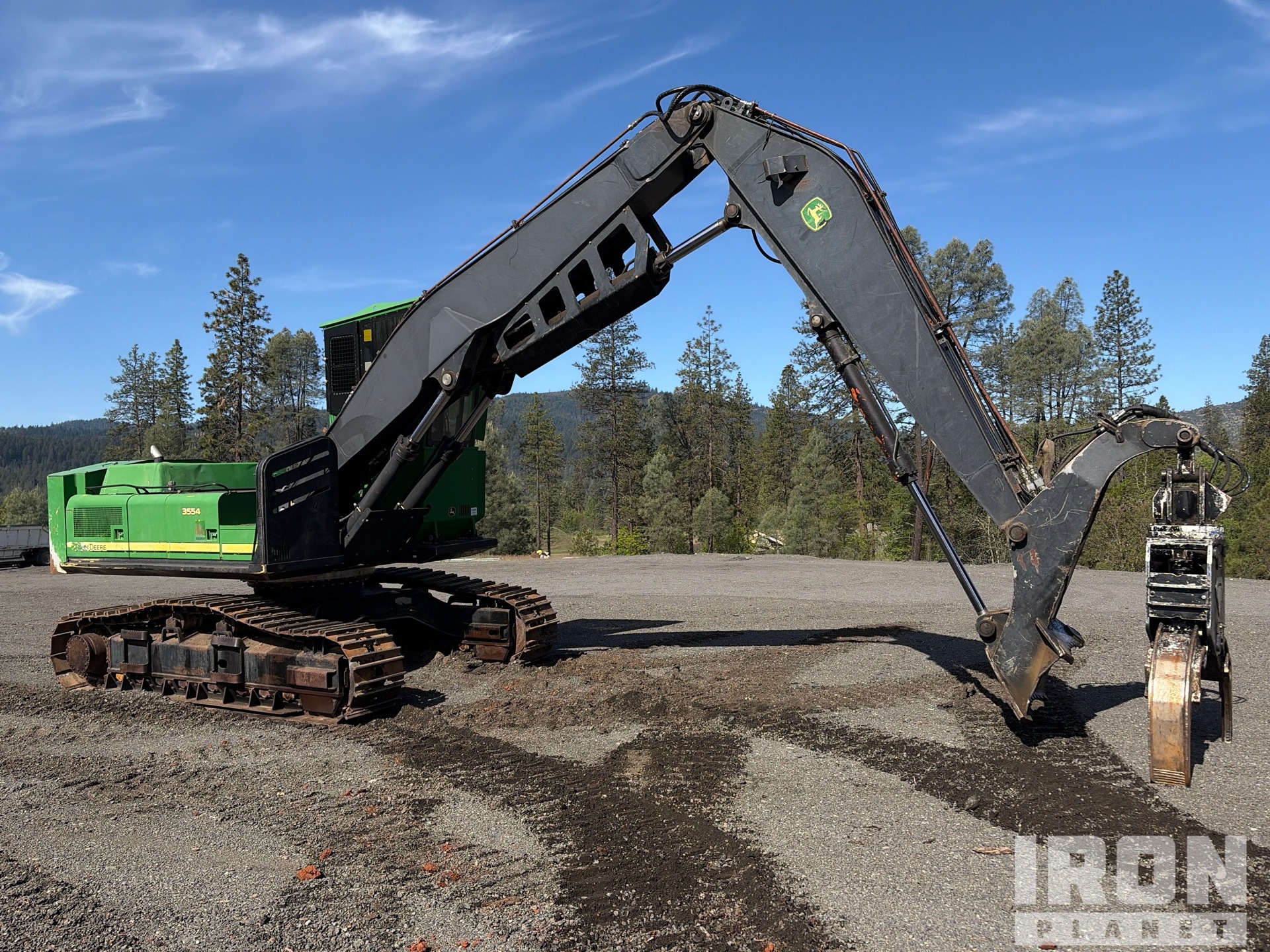

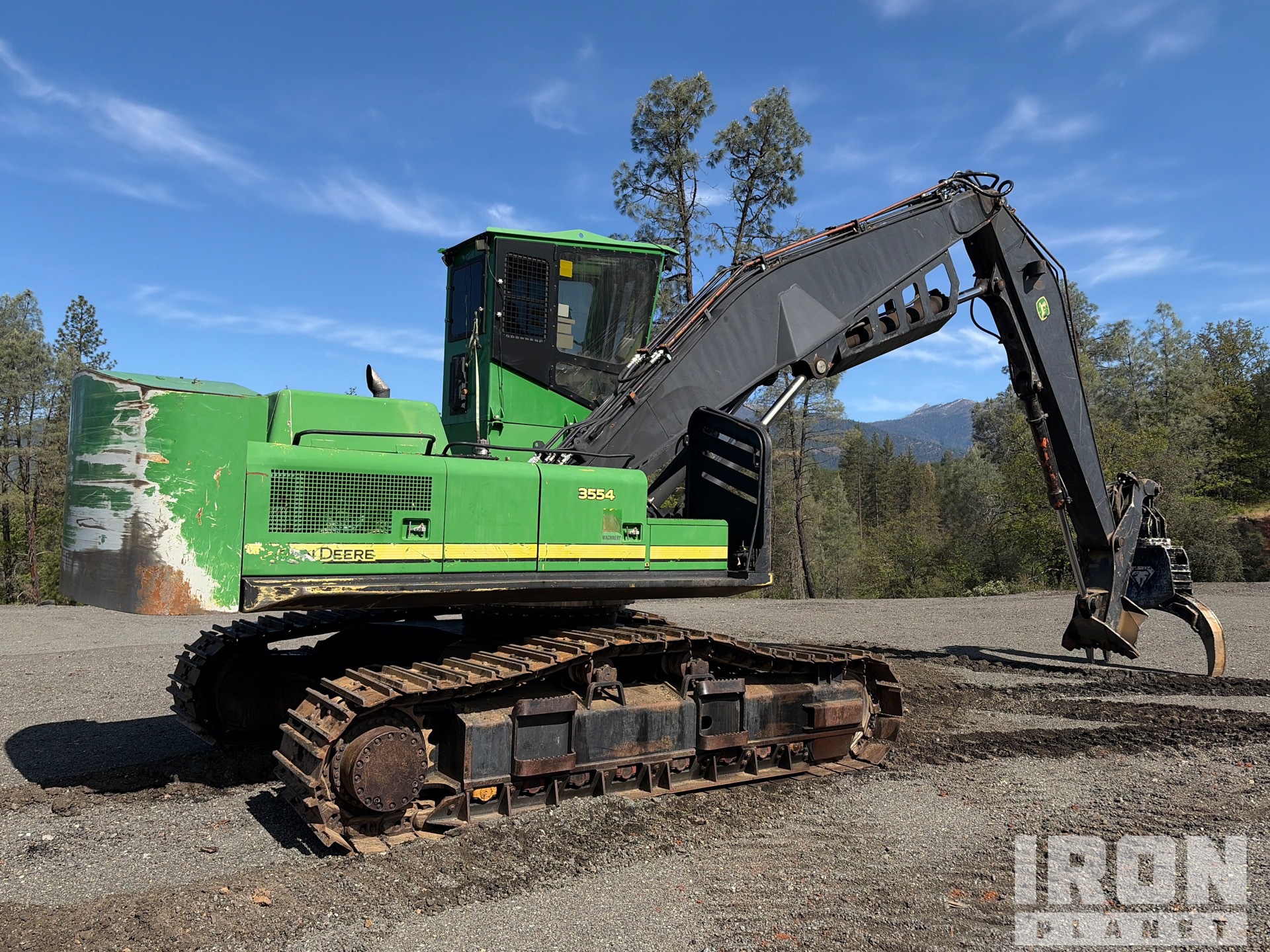

General Appearance
Serial Number / VIN
FF3554X350091
Hour Meter / Odometer
18099 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Indication of Additional Hours
There is an hour meter replacement/change label that has the following reading on it: 20779 hrs, 12077 hrs, There are (2) additional hour meters
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
The front upper glass is damaged.
Exterior Lights
Not operational
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Swing Brake
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
The back rest adjustment is not operational, The adjustment does not maintain selected position
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Emission Label
A/C Compressor
Belt missing
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Left Drive Motor
Dripping Leak
Right Drive Motor
Dripping Leak
Left Final Drive
Dripping Leak
Right Final Drive
Dripping Leak
Limited Function Check
The drivetrain was operational., There is a dripping leak on both sides from an unknown source
Hydraulics
Pumps (Hydraulics)
Dripping leak
Valves
Hydraulic Tank
Sight glass leak
Hoses (Hydraulics)
Multiple lines and fittings have a dripping leak
Auxiliary Hydraulic Plumbing
Capped off, End of stick
Swing Motor
Hydraulic Center Swivel
There is a dripping leak from an unknown source
Boom Lift Cylinder(s)
Dripping leak on the left cylinder, Dripping leak on the right cylinder, Heavy pin and bushing movement
Stick Cylinder
Dripping leak
Live Heel Cylinder
Heavy pin and bushing movement
Grapple Clamp Cylinders
Heavy pin and bushing movement
Grapple Rotation Motor
Limited Function Check
The hydraulic system was operational. Some hydraulic components are not visible.
Chassis
Grapple Condition
Signs of wear
Boom Condition
Stick Condition
Weld repair
Boom Base Pin and Bushings
Heavy movement, Has visible cracks
Pin and Bushings Boom to Stick
Pins and Bushings Stick to Grapple
Turntable Bearing
Bottom Covers
Limited Function Check
The main components were operational in a limited check.
Grapple Arm Pins and Bushings
Heavy movement
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
45 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
45 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
