69 Photos

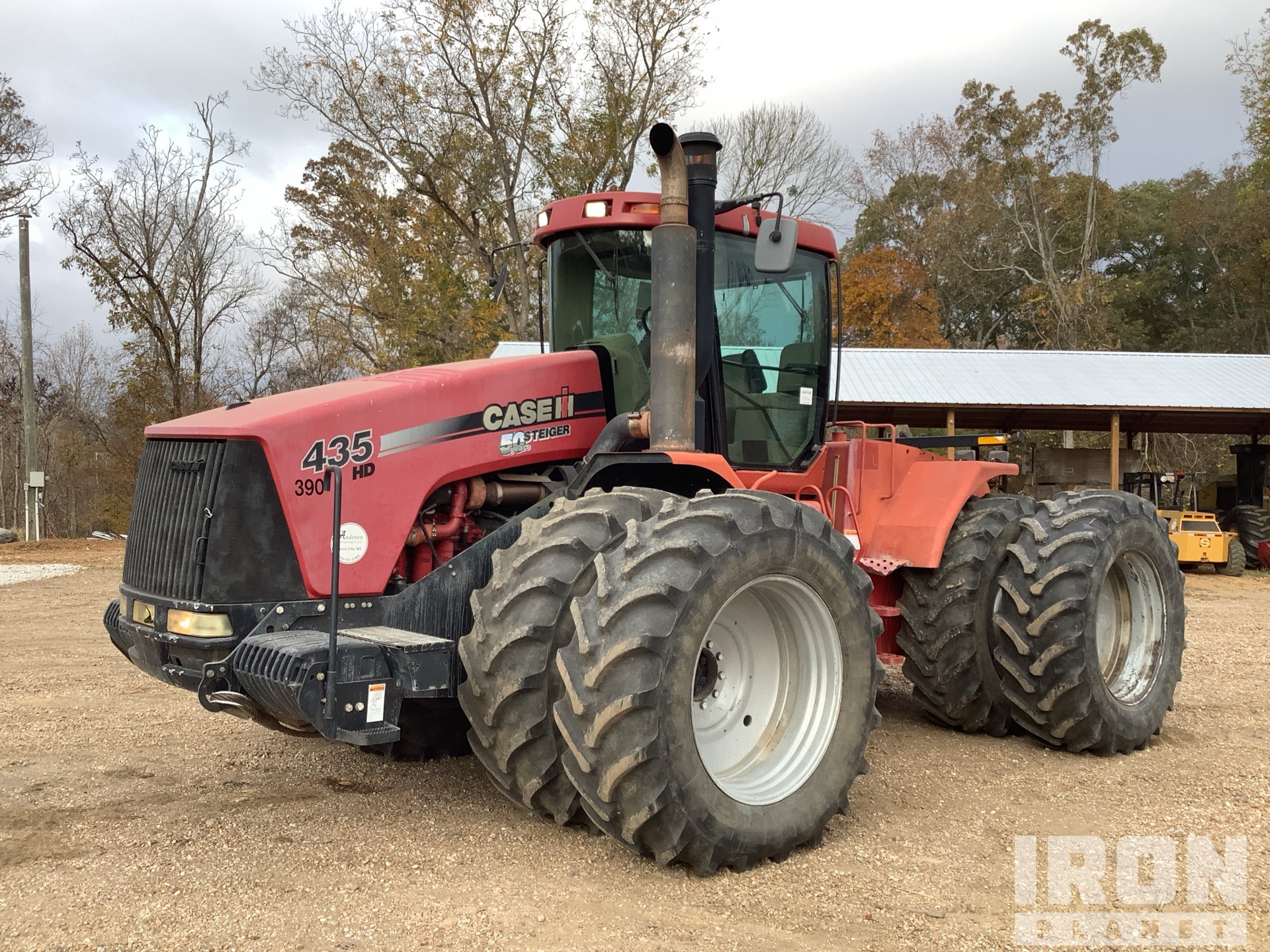

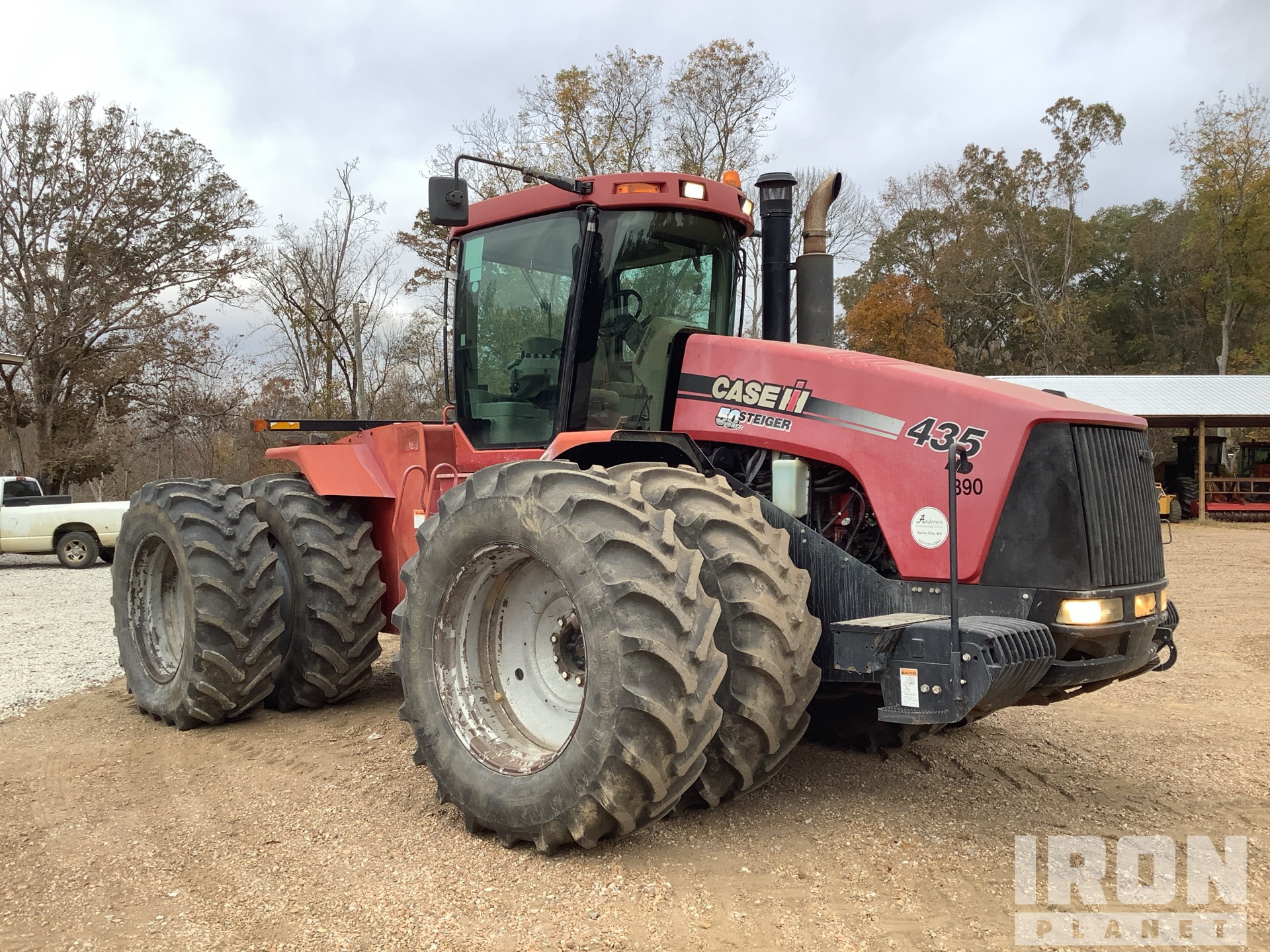

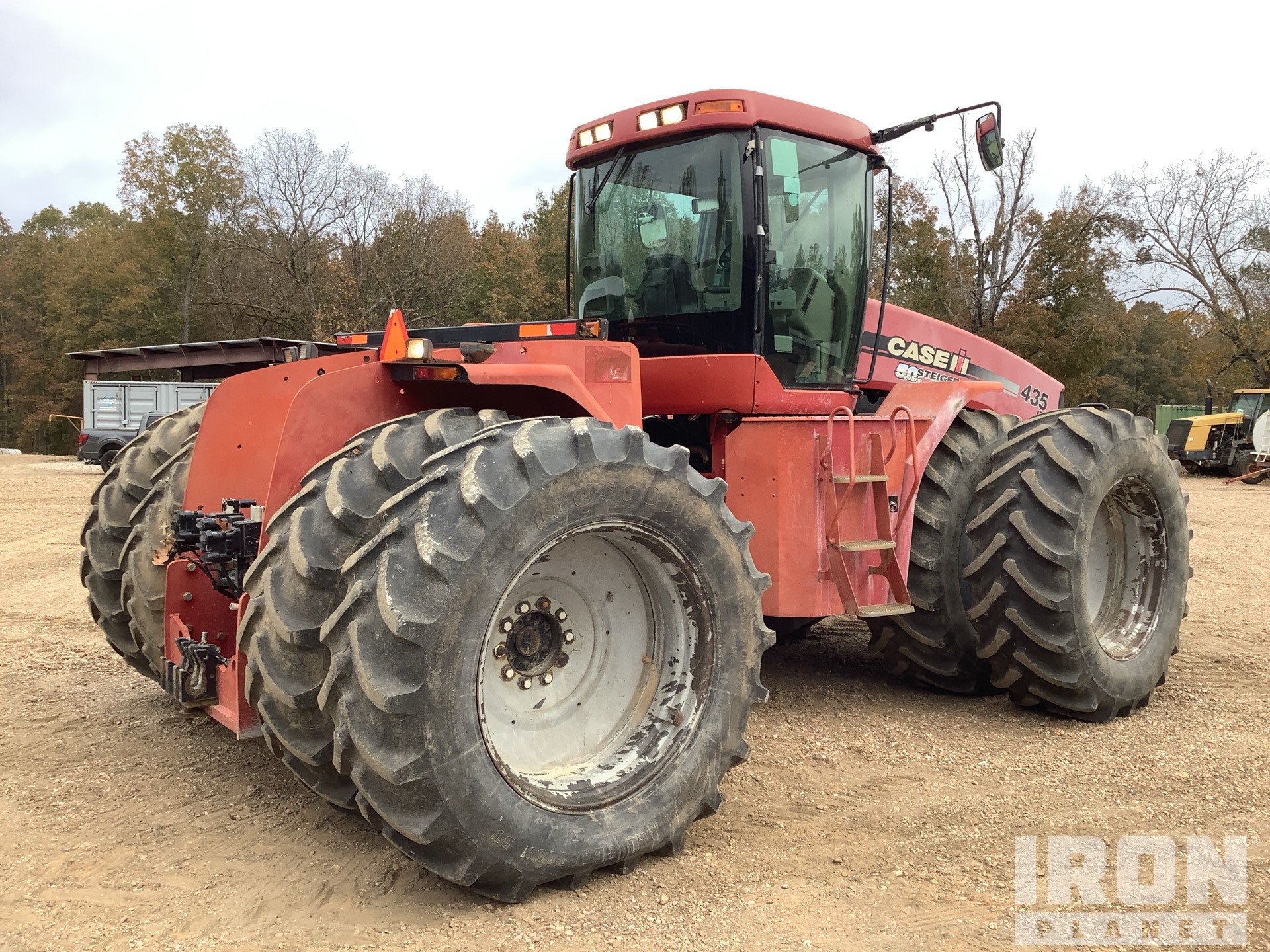

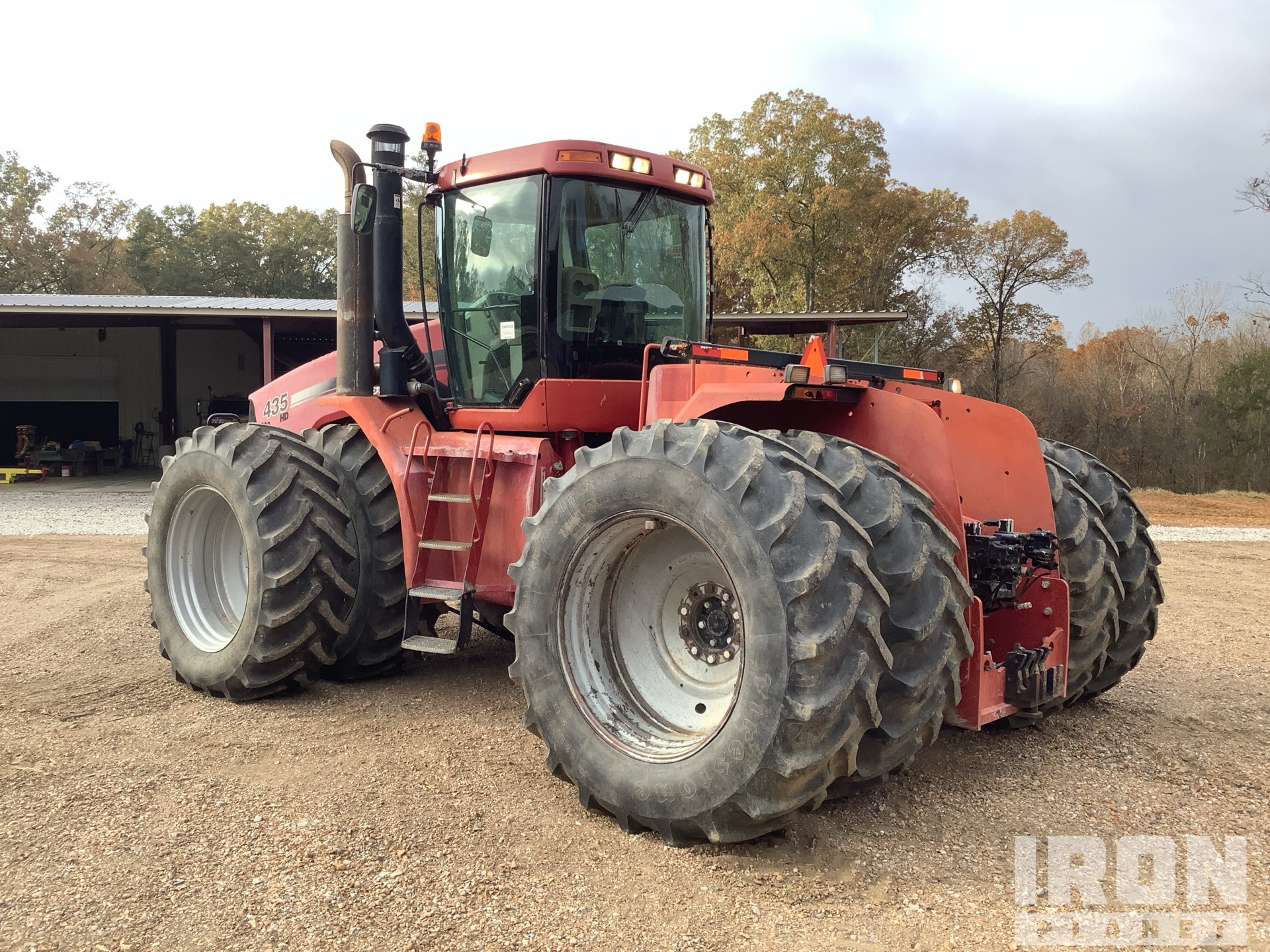

2008 Case IH Steiger 435S Scraper Tractor
Located
Yazoo City, MS
Yazoo City, MS
Serial number
Z8F109860
Z8F109860
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14353797
In yard
No
Features
Enclosed Cab, Air Conditioner, Air Ride Seat, Differential Lock, 16 Forward 2 Reverse, Power Shift, Forward/ Reverse Shuttle, Front Weights, 4 Rear Remotes, Scraper Hitch, Dual 620/70R42 Tires
General Appearance
Serial Number / VIN
Z8F109860
CE Mark
No CE mark found
Hour Meter / Odometer
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, some broken
Safety
Travel Alarm
Missing
Horn
Weak
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Mirrors
Seats/Armrests
Air controls inoperable
Passenger seat
Yes, Torn cover
Hydraulic Controls
Not operationally checked
Steering Control
Drivetrain Controls
Problem with shifting in reverse. Reverse only will shift into 2 gears by it self , if you put in forward and go to 4 and then shift reverse will show 4th gear but will not shift
Oil Pressure
59 PSI
Warning Lights
Warning light stays on, Had armrest fault several times during inspection, had to shut off and restart to reset
Gauges
Operational
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Emission Label
Painted over
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Reverse only will shift into 2 gears, if you put in forward and go to 4 and then shift reverse will show 4th gear but will not shift
Front Drive Axle
Dripping Leak
Rear Drive Axle
Limited Function Check
The drivetrain was operational. Does not shift through all gears
Chassis
Articulating Center Pins
Steering Wheel Play
Frame Condition
Limited Function Check
The main chassis components were operational in a limited check.
Brake Type
Hydraulic
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held on grade
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Left Front Tire
Left Rear Tire
Right Rear Tire
Low air pressure
Right Front Tire
Wheel Condition
Wheel Studs
Left rear is missing 1 Bolt for outer wheel
Hydraulics
Pumps (Hydraulics)
Not able to check function
Rear Remote Hydraulic Circuits
Not operationally checked
Hydraulic Tank
Hoses
Some hoses are wrapped and are not visible
Limited Function Check
The hydraulic system could not be operationally checked.
Specialty
Counterweights
Front: 1800
Scraper Hitch
Operational
Oil Sample Analysis
Oil Sample Analysis
| engine | transmission | |
|---|---|---|
| date of analysis | Nov 25, 2025 | Nov 25, 2025 |
| Silicon | 0 PPM | 0 PPM |
| Tin | 2.37 PPM | 0.54 PPM |
| Silver | 0 PPM | 0.19 PPM |
| Aluminum | 2.07 PPM | 0 PPM |
| Chromium | 0.13 PPM | 0.19 PPM |
| Lead | 2.35 PPM | 1.45 PPM |
| Copper | 4.98 PPM | 9.98 PPM |
| Nickel | 0 PPM | 0.04 PPM |
| Iron | 6.13 PPM | 121.68 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
