125 Photos
2007 Link-Belt 218 Hylab 110 ton Lattice-Boom Crawler Crane
Located
Suffolk, VA
Suffolk, VA
Usage
21,039 hrs
21,039 hrs
Serial number
N6J79684
N6J79684
Loading...
ID number
#15213714
In yard
No
Features
Air Conditioner, Anti Two-Block, Load Moment Indicator, 2007 US EPA Label, 180 ft Boom, Auxiliary Hoist, 3rd Drum, Overhaul Ball, 64070 lb Counterweight, Counterweight Removal System, 36 in Track Shoes, Expandable Width Tracks

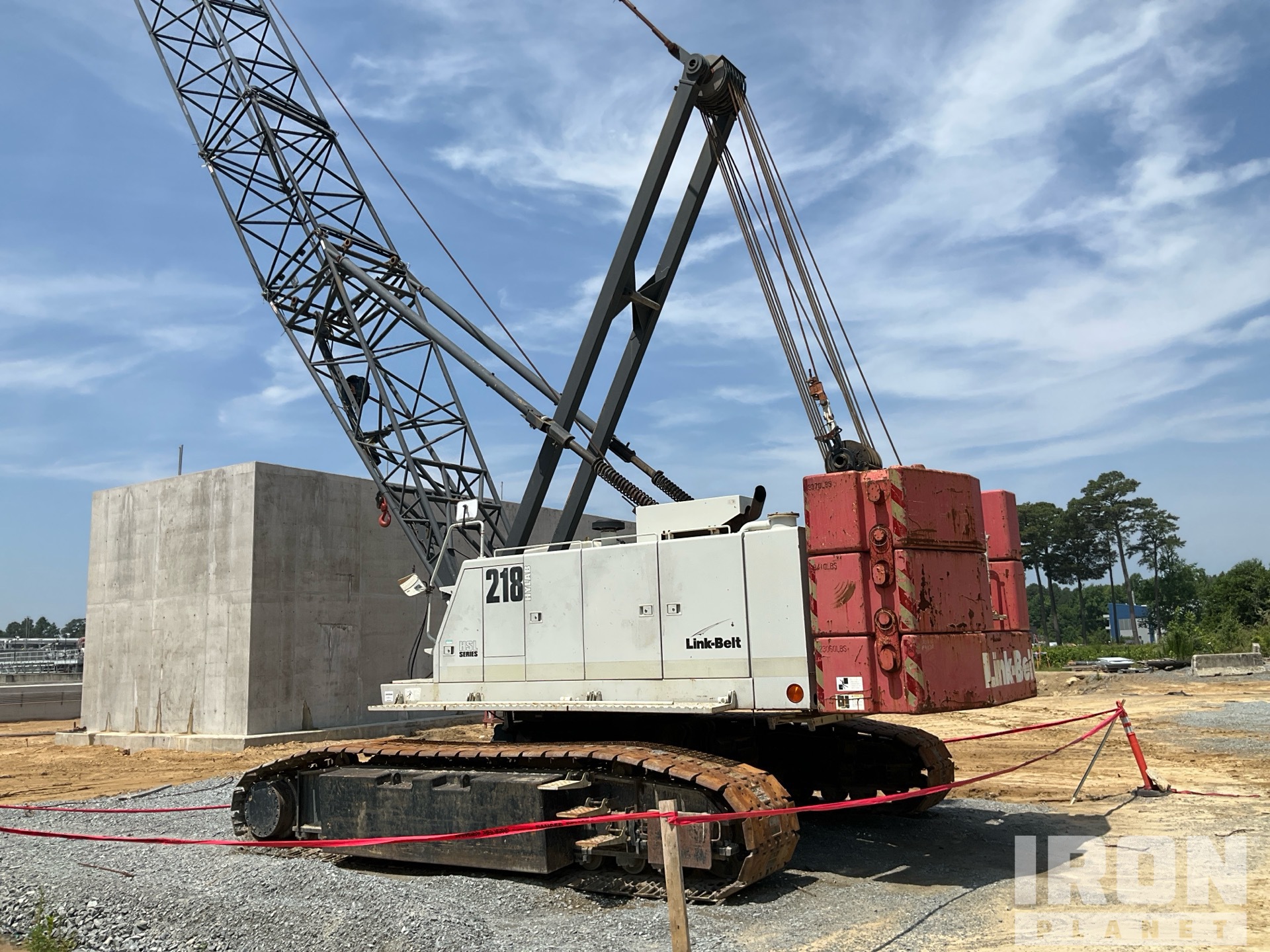

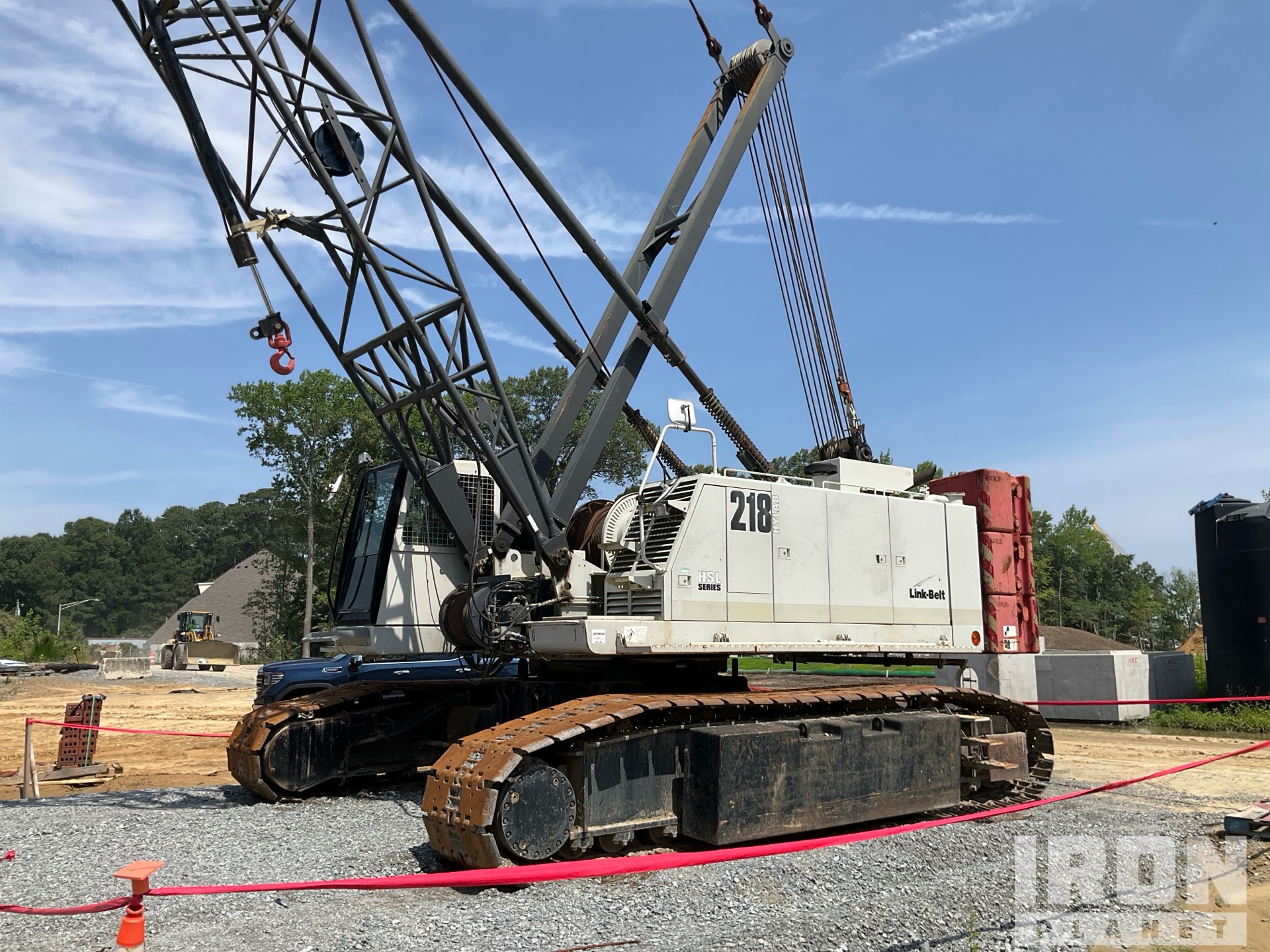

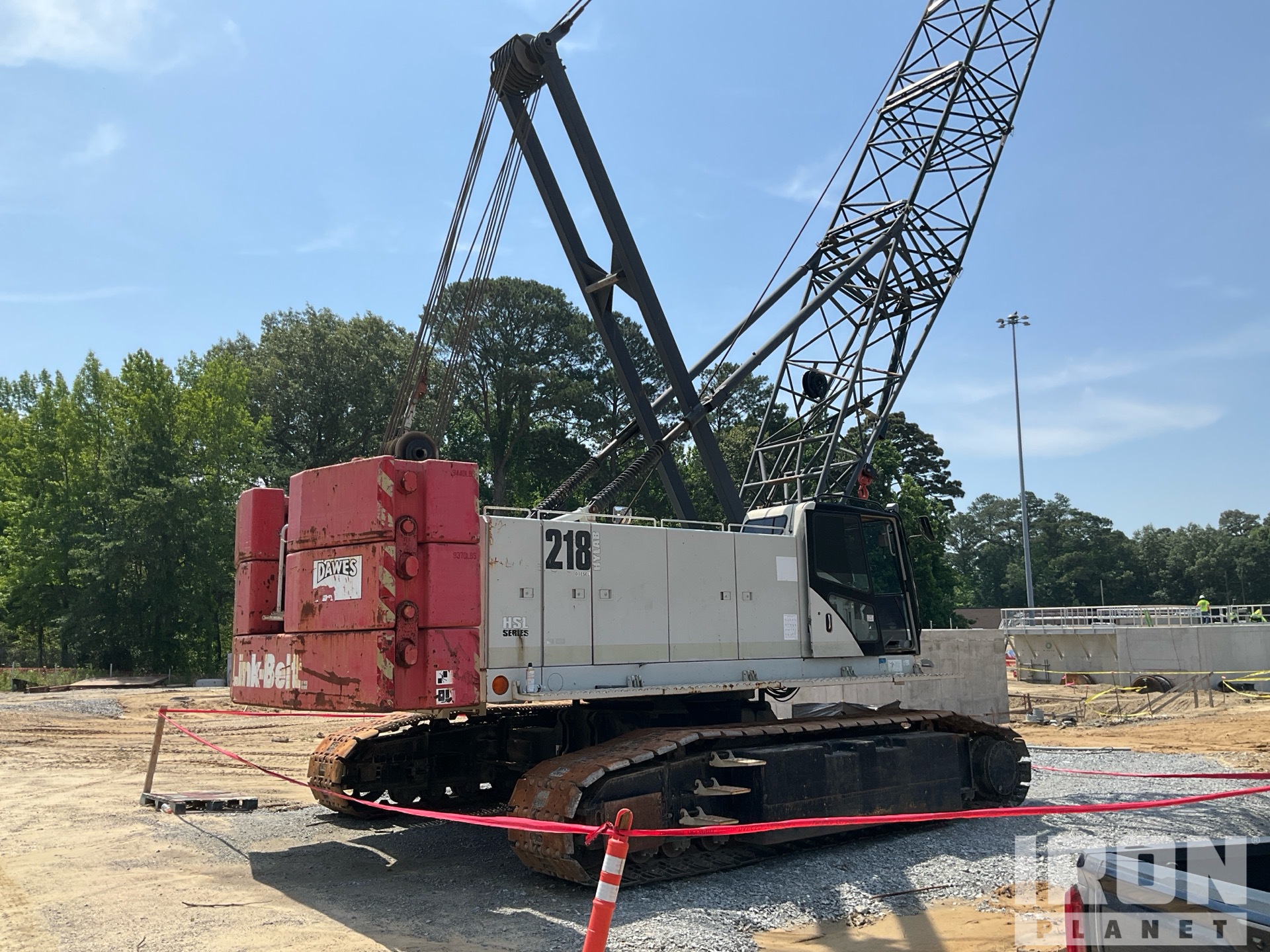

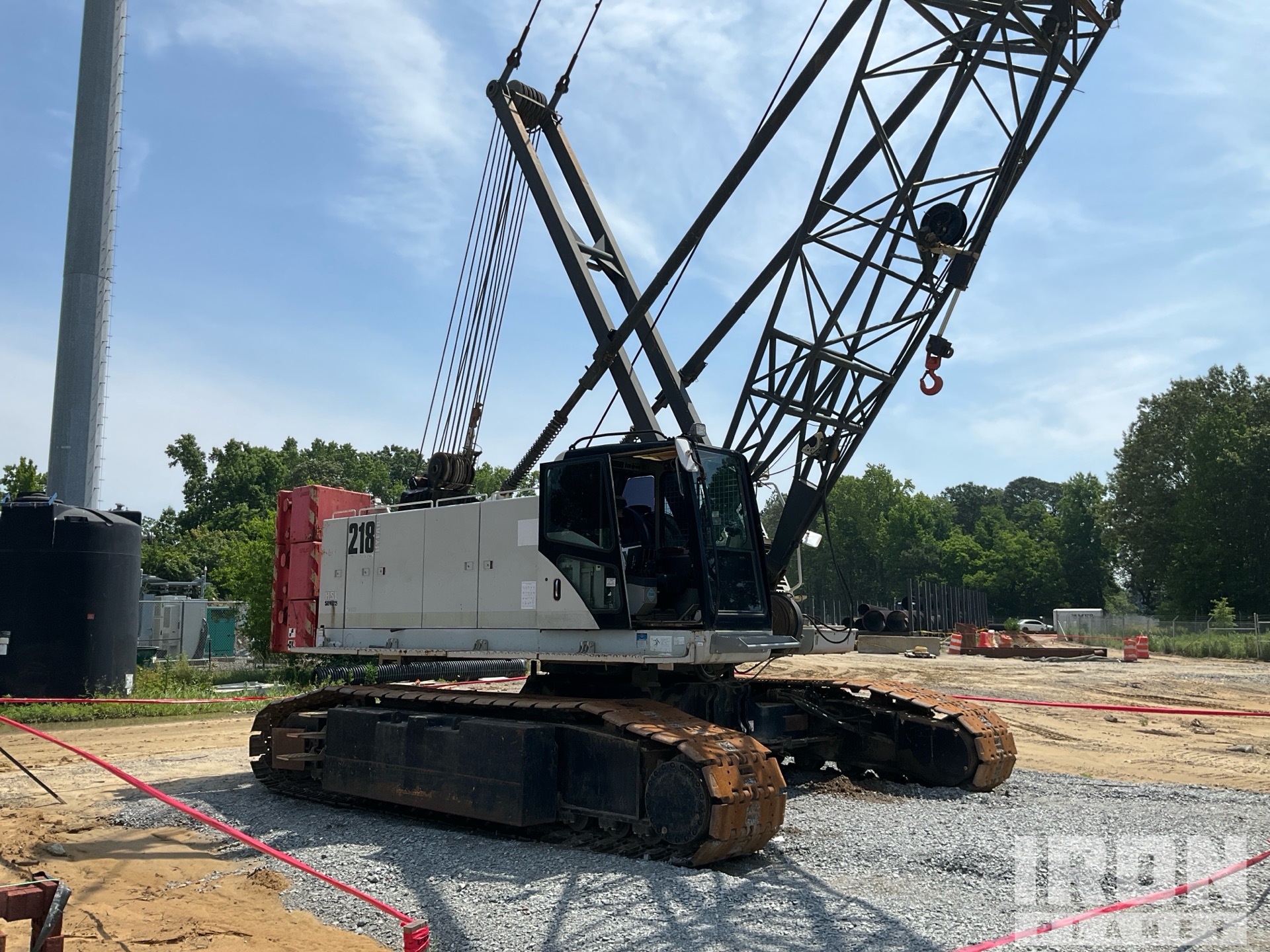

General Appearance
Serial Number / VIN
N6J79684
Hour Meter / Odometer
21039 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 10/17/2025
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Inoperable, There was no information for it
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Operational, Not much air flow from vents
Heater
Operational, Not much air flow from vents
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2007 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
180 ft overall length, 4 Sections, Couldn’t measure sections
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
NA mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
NA mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Overhaul Ball
Fairlead
Third Drum
Disconnected
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jun 25, 2026 |
| Silicon | 0 PPM |
| Tin | 0.63 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0 PPM |
| Lead | 1.02 PPM |
| Copper | 0.01 PPM |
| Nickel | 1.27 PPM |
| Iron | 0.31 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
