104 Photos
2005 Link-Belt HTC8675 75 ton 8x4 Hydraulic Truck Crane
Located
Hayward, CA
Hayward, CA
Usage
40,924 mi
40,924 mi
Serial number
1F9F2J5705L028647
1F9F2J5705L028647
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15246464
In yard
No
Features
Eaton Fuller 15 Speed Manual Transmission, 5859 hrs Carrier Engine, 2004 US EPA Label, Detroit Series 60 6 Cylinder 12.7 L Diesel Carrier Engine, Air Conditioner, Anti Two-Block, Link-Belt Load Moment Indicator, 36 ft Minimum 115 ft Maximum Boom Length, 36.5 ft to 61 ft Hydraulic Offset Jib, 397 lb 12 ton Capacity Overhaul Ball, 12000 lb Counterweight, Counterweight Removal System
Notes
***This truck is still in use and will accrue additional miles. Upon purchase, the buyer can request verification of condition and current hours***

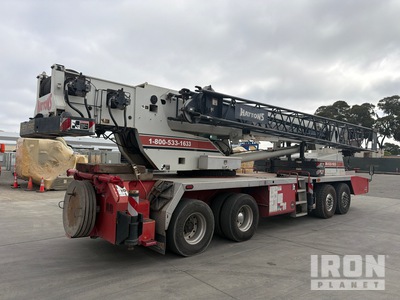

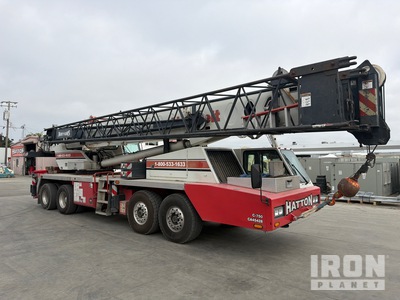

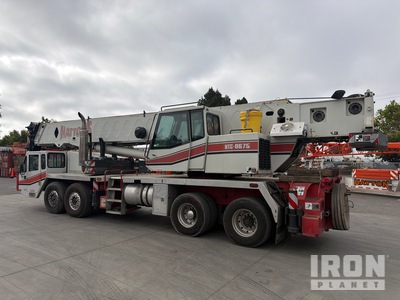

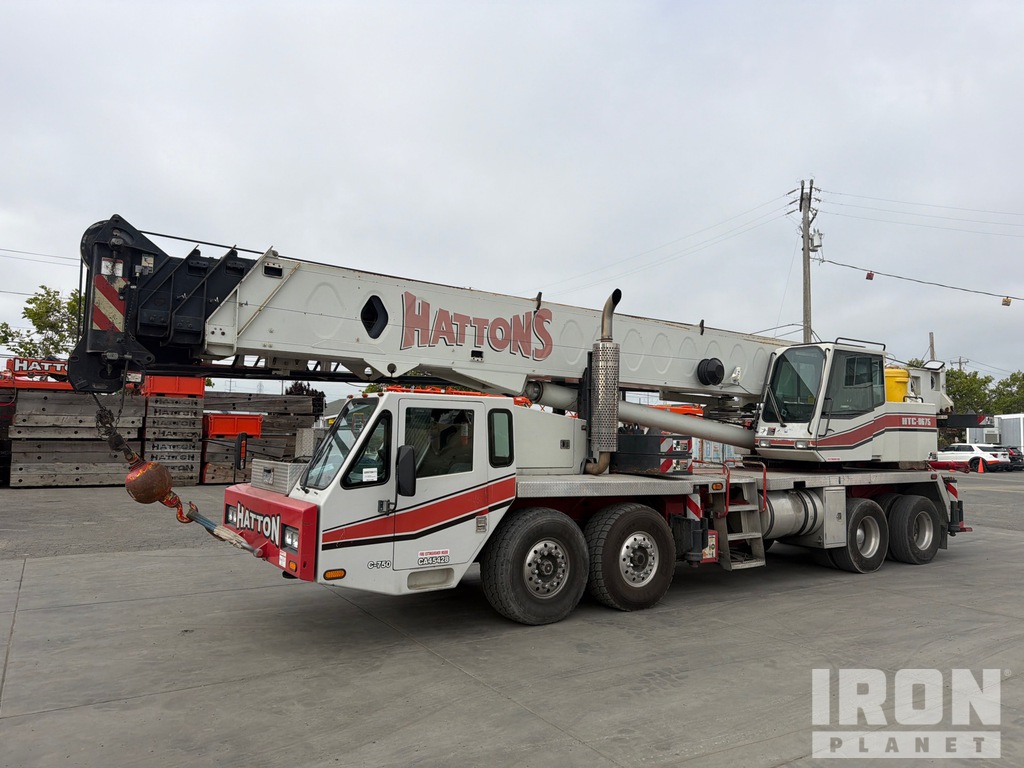

General Appearance
Serial Number / VIN
1F9F2J5705L028647
Hour Meter / Odometer
40924 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 11/5/24
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
5859 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Operational
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Clutch
Engages
PTO Control
Air engaged, Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
Other 2004 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Clutch
Engages
PTO Pump
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Axle Bump Stops
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Held against power, Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Air Bags
Frame Condition
Cross Members
Tire Condition
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Glass
Seats/Armrests
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Oil Pressure
The gauge registers in the operating range. 32 PSI
Exterior Lights
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Specialty
Jib
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jul 15, 2026 |
| Silicon | 0 PPM |
| Tin | 0.5 PPM |
| Silver | 0 PPM |
| Aluminum | 0 PPM |
| Chromium | 0 PPM |
| Lead | 1.69 PPM |
| Copper | 0 PPM |
| Nickel | 0.05 PPM |
| Iron | 3.07 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
