99 Photos

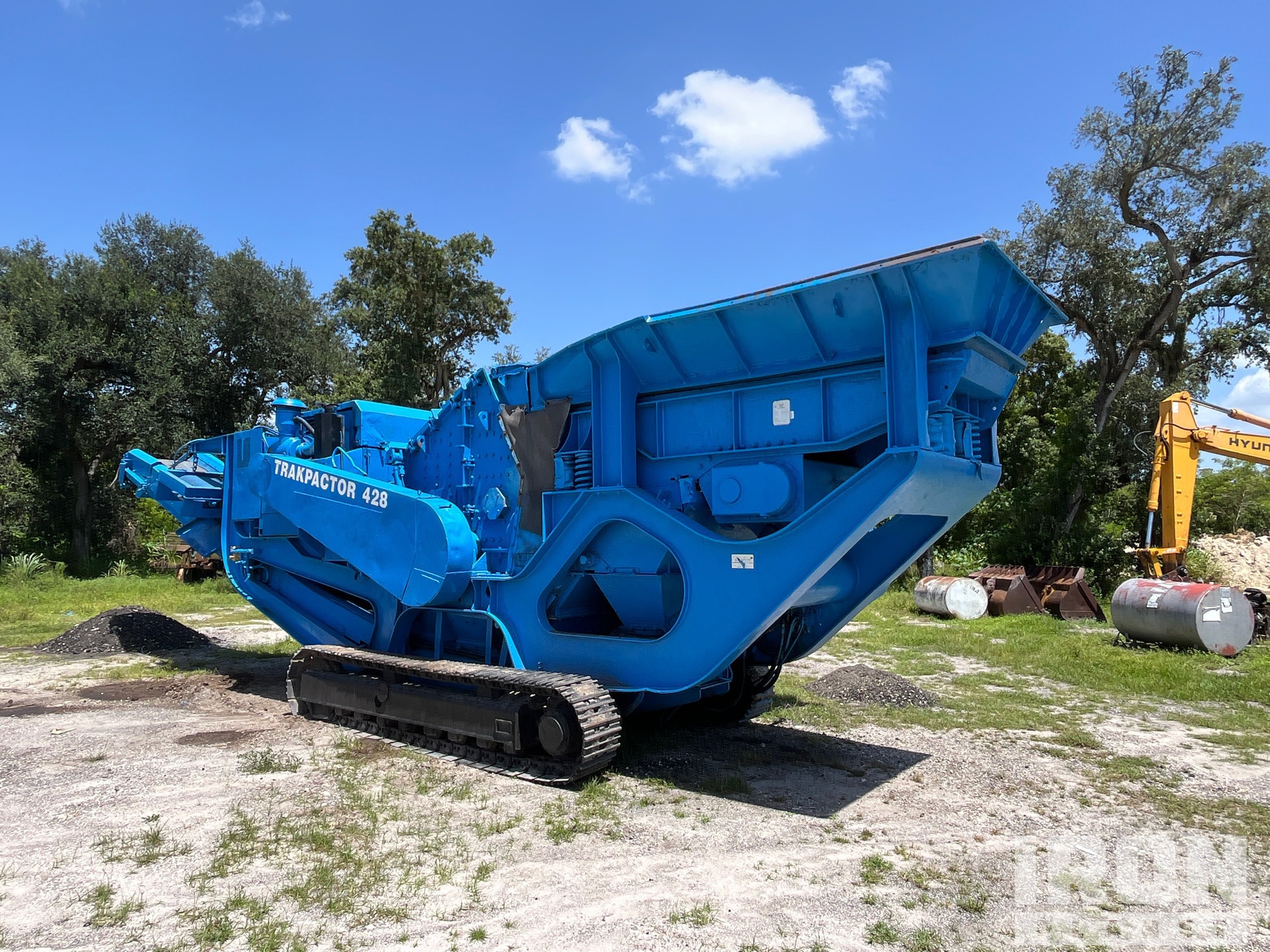

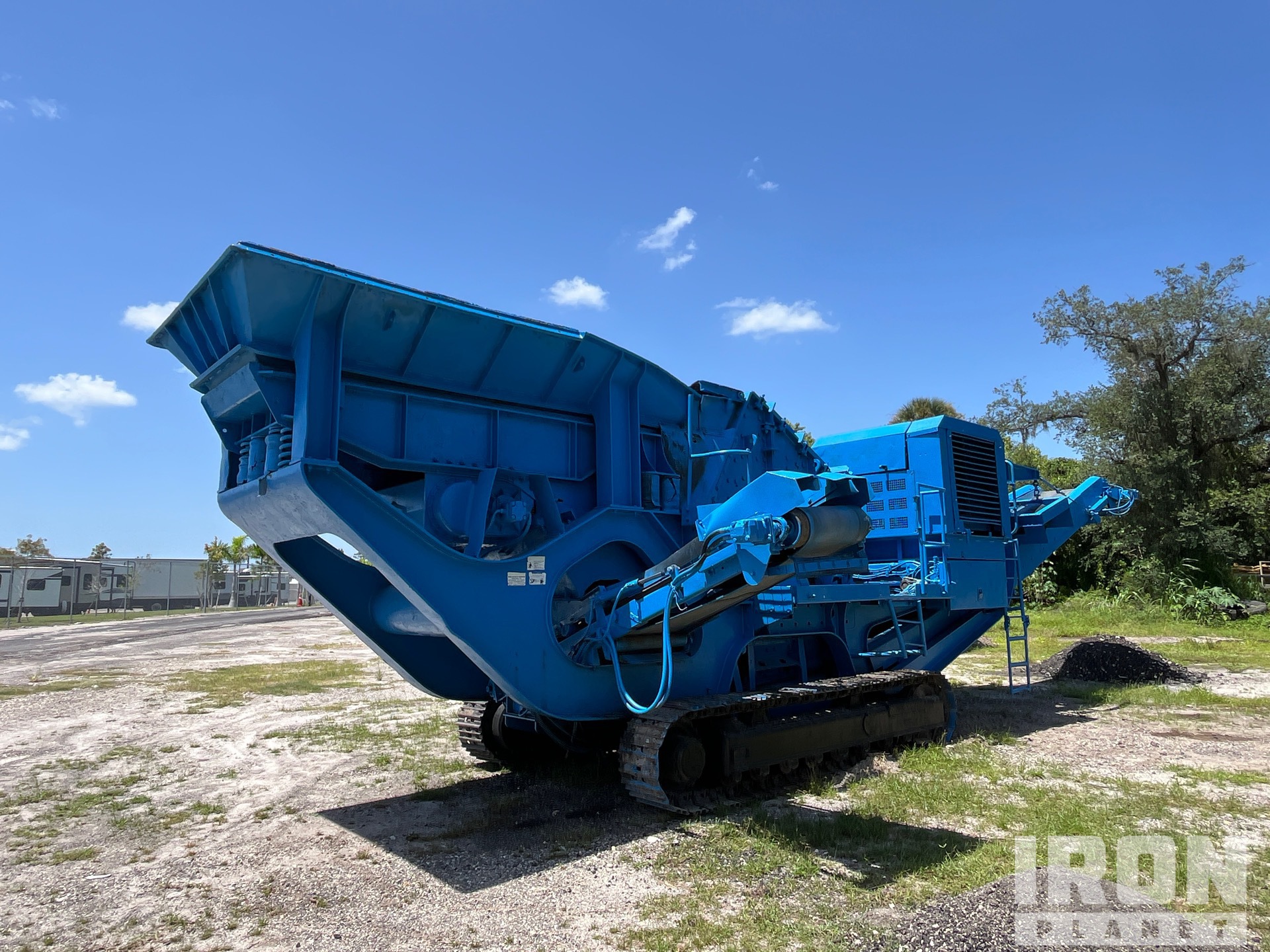

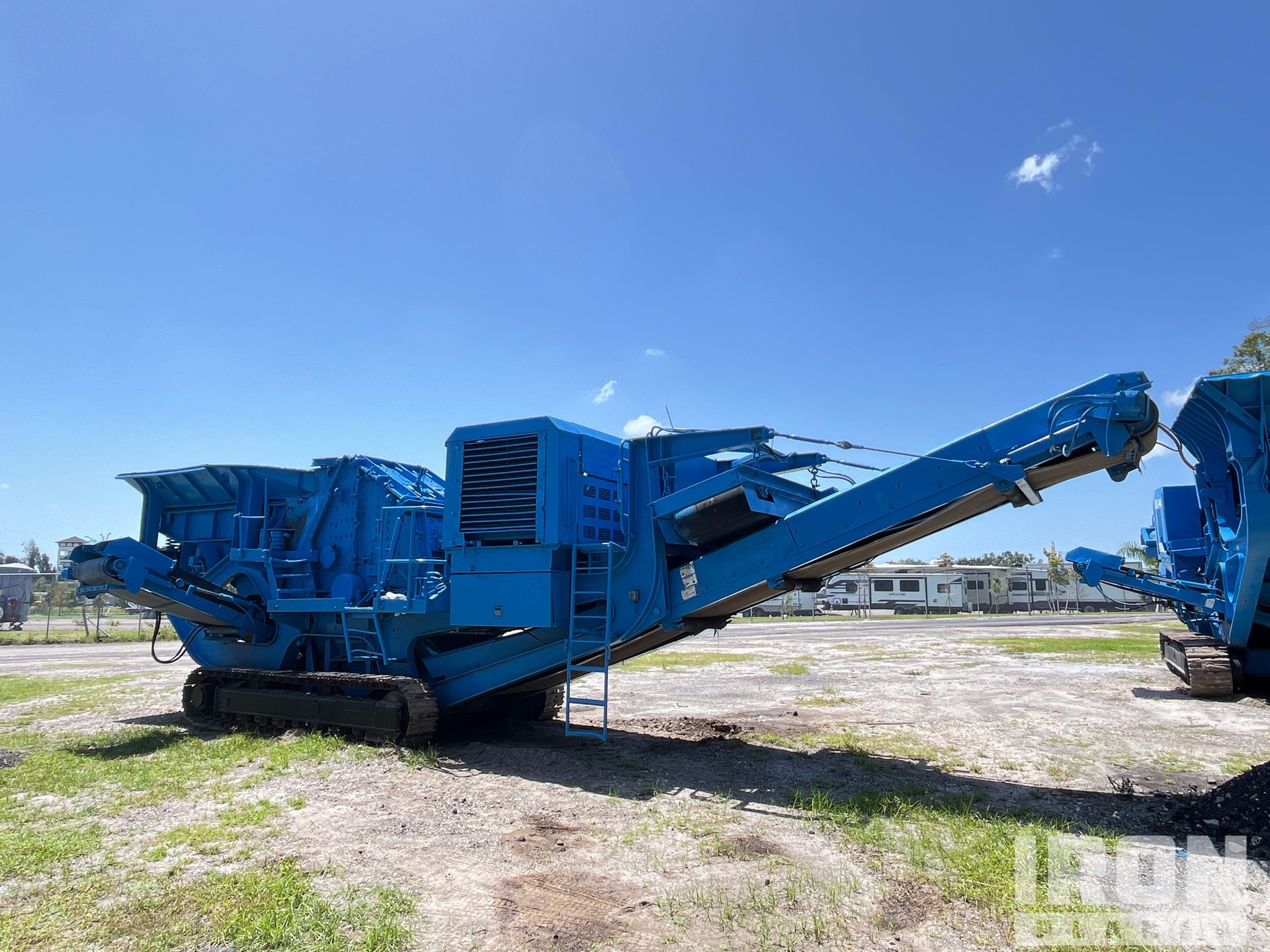

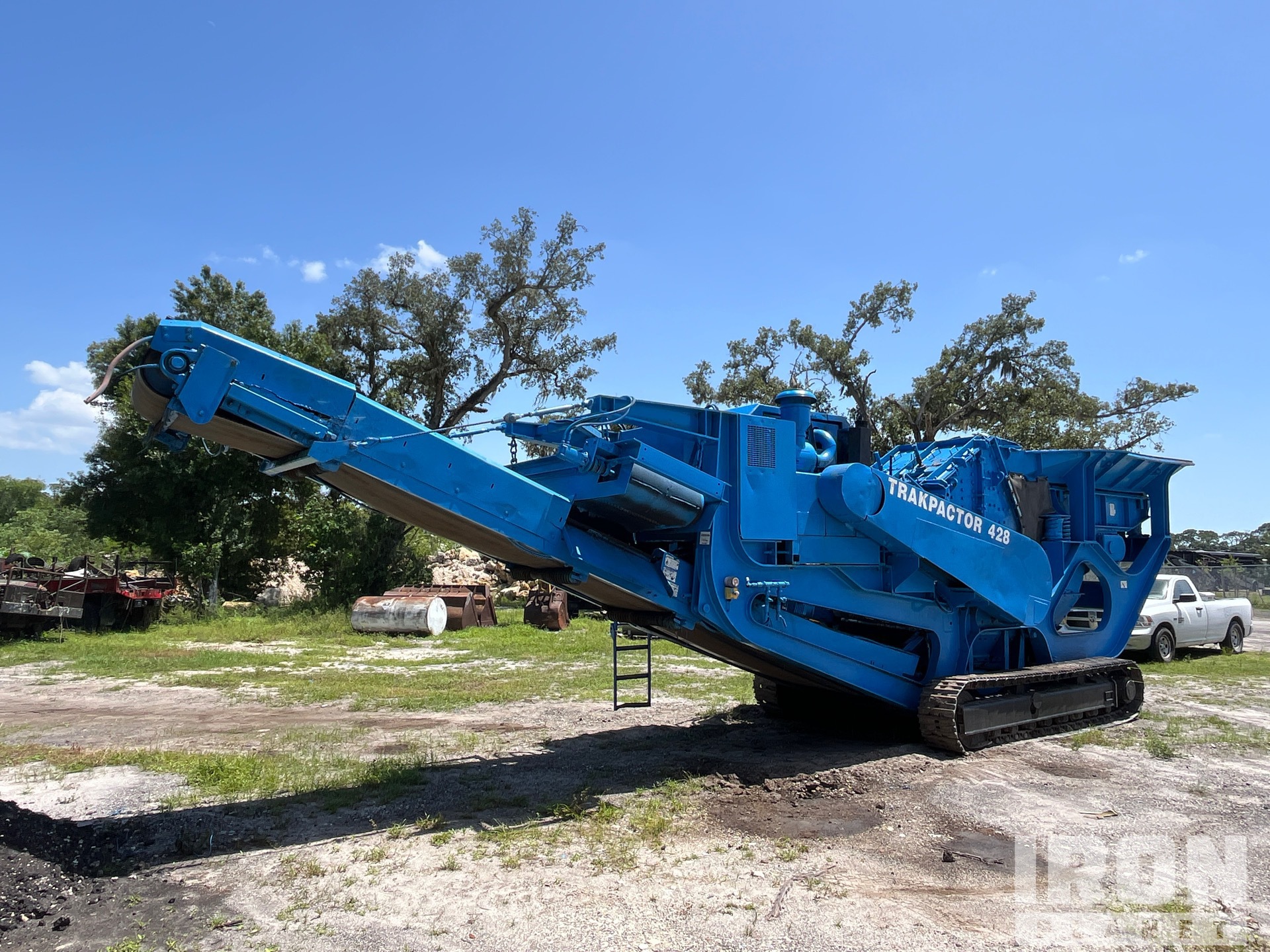

2003 Terex Pegson Trakpactor 428 Tracked Impact Crusher Plant
Located
Cape Coral, FL
Cape Coral, FL
Usage
13,533 hrs
13,533 hrs
Serial number
QM021098
QM021098
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15725763
In yard
No
Features
Cat C9 6 Cylinder 8.8 L Diesel Engine, Vibratory Grizzly Feeder 40 in 22 in Wide Fines Discharge Conveyor, 40 in Wide End Discharge Conveyor, 29 in Conveyor, 29 in Cross Belt Magnet, Cable Remote Control, 15.7 in Triple Grouser Track Shoes
General Appearance
Serial Number / VIN
QM021098
Hour Meter / Odometer
13533 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
US EPA Label not legible
Emission Certification Label
Not legible
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Dripping leak, Dripping leak at rear valve body below hopper
Hydraulic Tank
Hoses
Many hoses show dry rot and cracking
Crusher Door Cylinders
Not operationally check
Conveyor Cylinders
Power Travel Drive System
2 Travel Speeds, Feels weak, Drifts left, Left drive motor dripping leak
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 7 ft, Width @ top: 7 ft, Grizzly length: 7 ft, Width between grizzly bars: 3/4 in
Crusher Base Frame
Crusher Chamber Frame
Crusher Drive System
VSI / HSI Crusher Chamber
Crusher Roll Condition
Roll dia. and width 40 in Width
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Worn damaged
Discharge Conveyor Head and Tail Pulley
Deck Frames / Wear Bars
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
22 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Track Tensioner
Right Track Pads
Right Grouser Height
22 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
