110 Photos

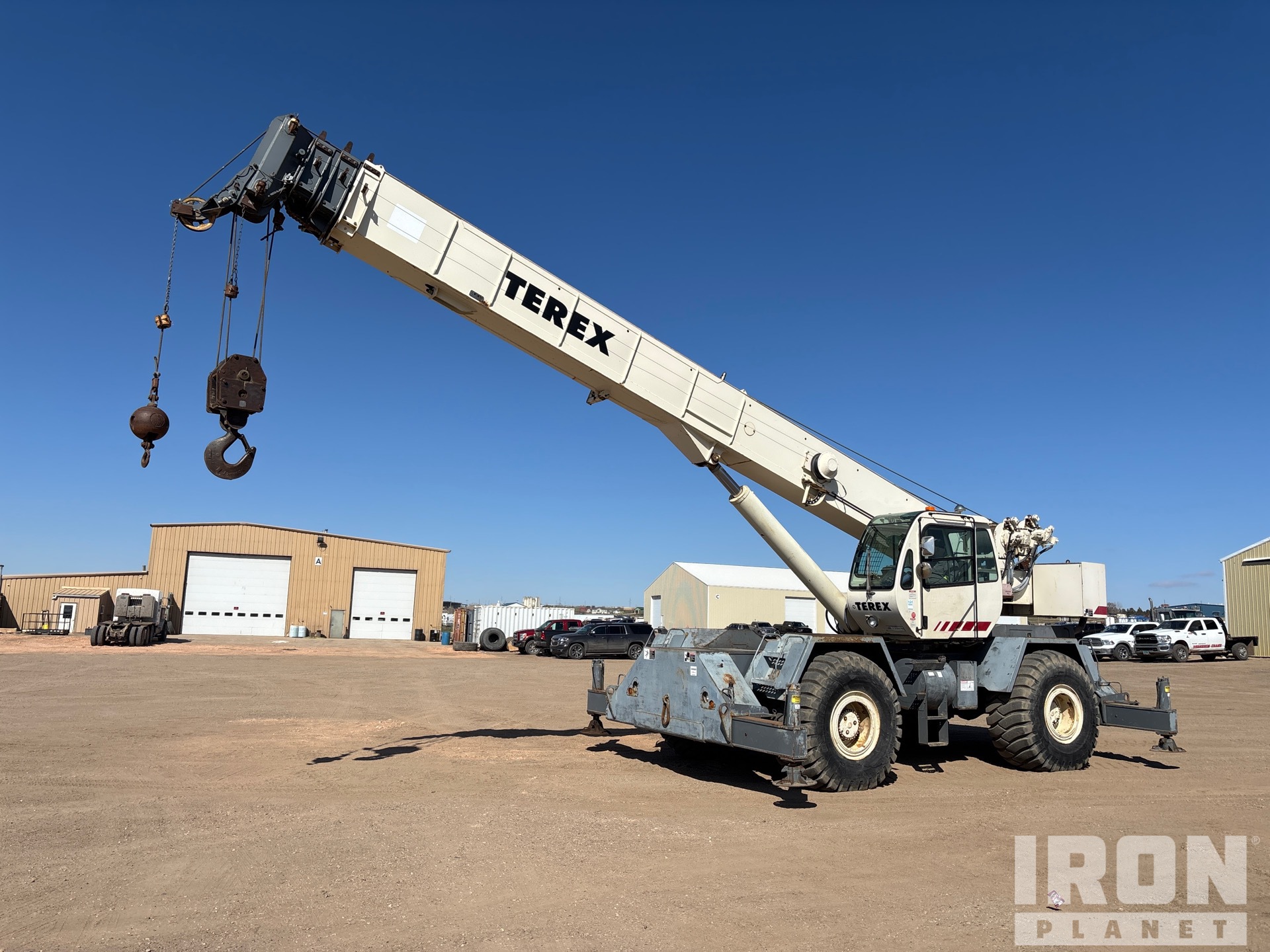

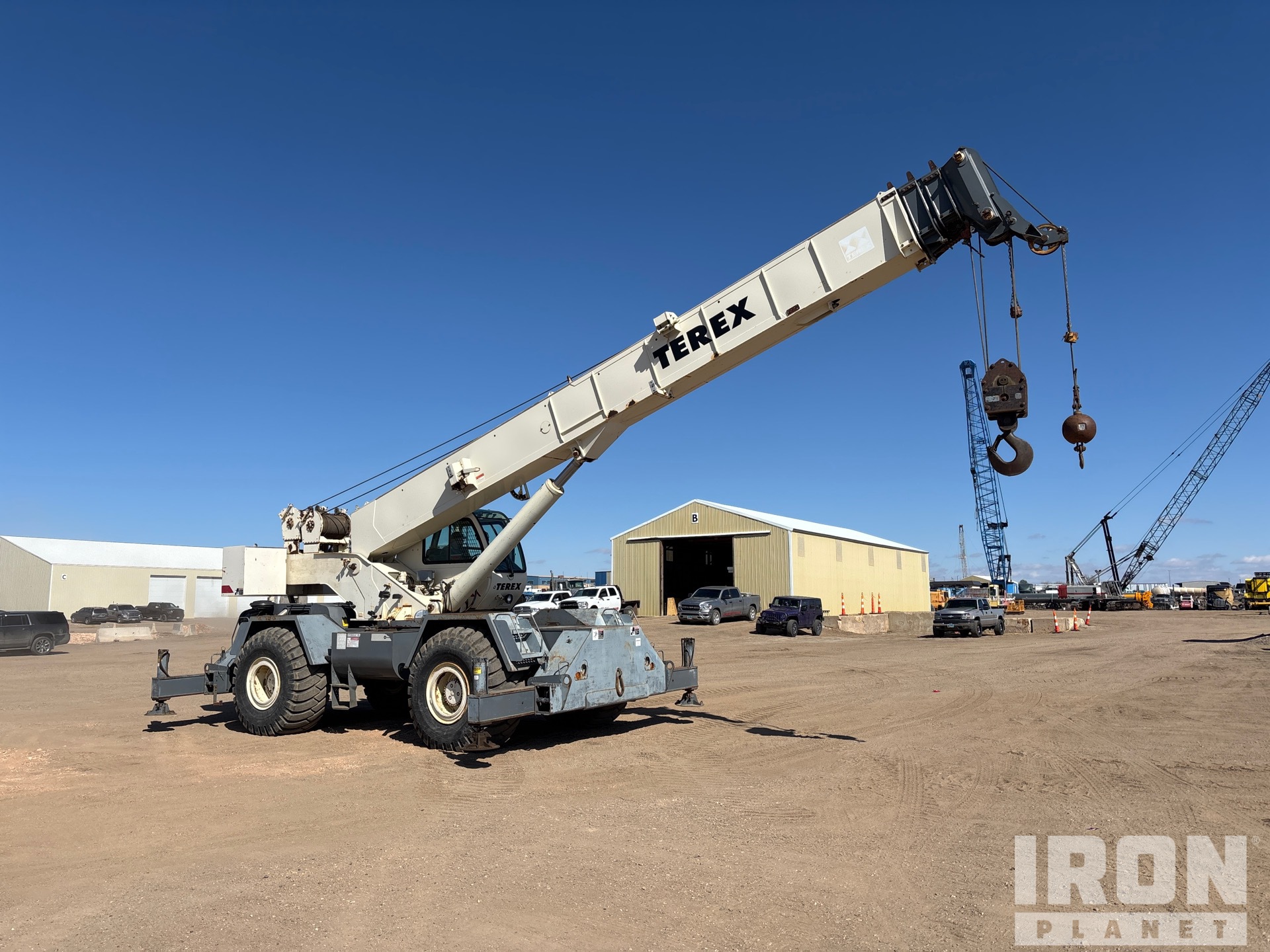

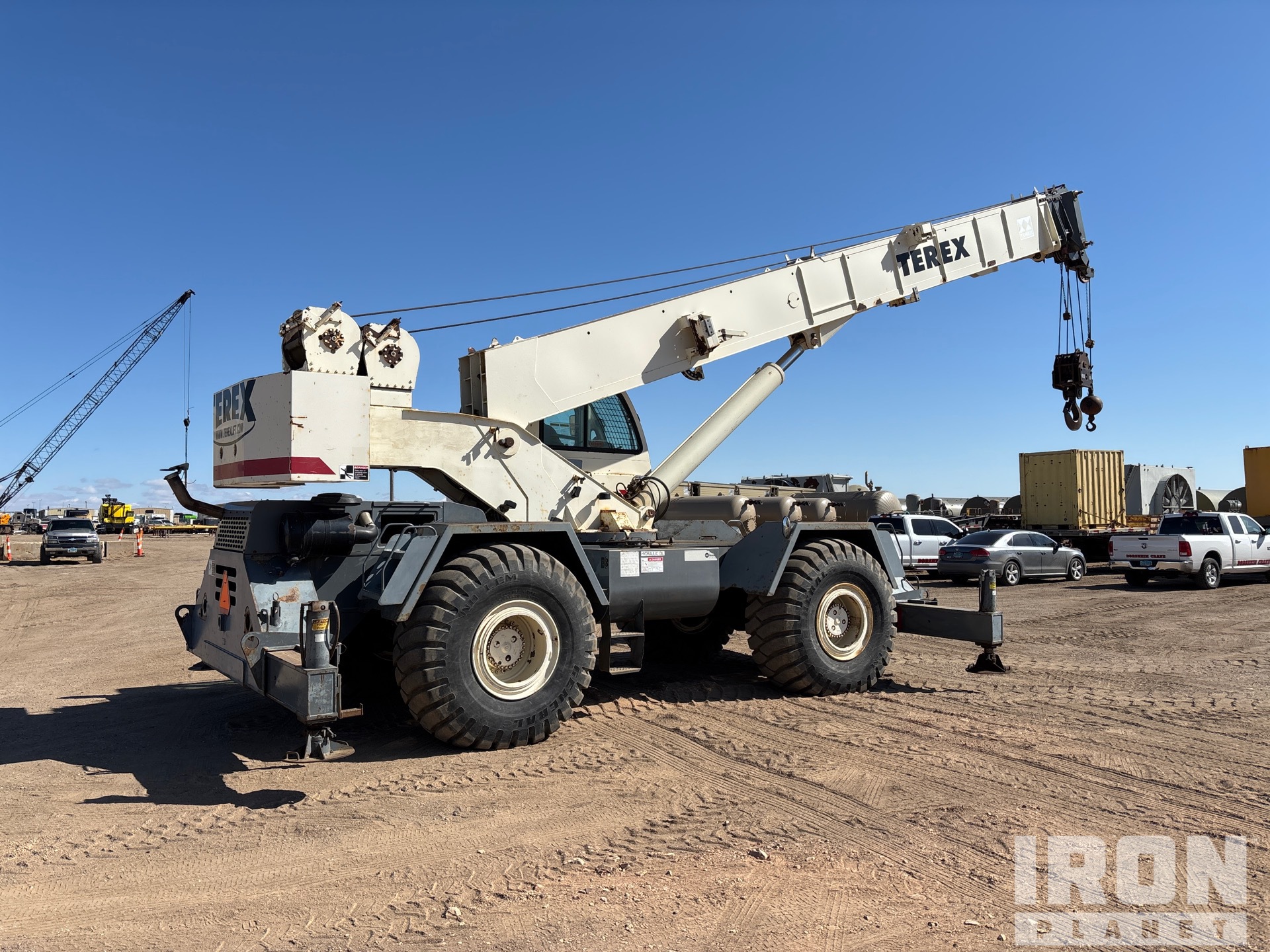

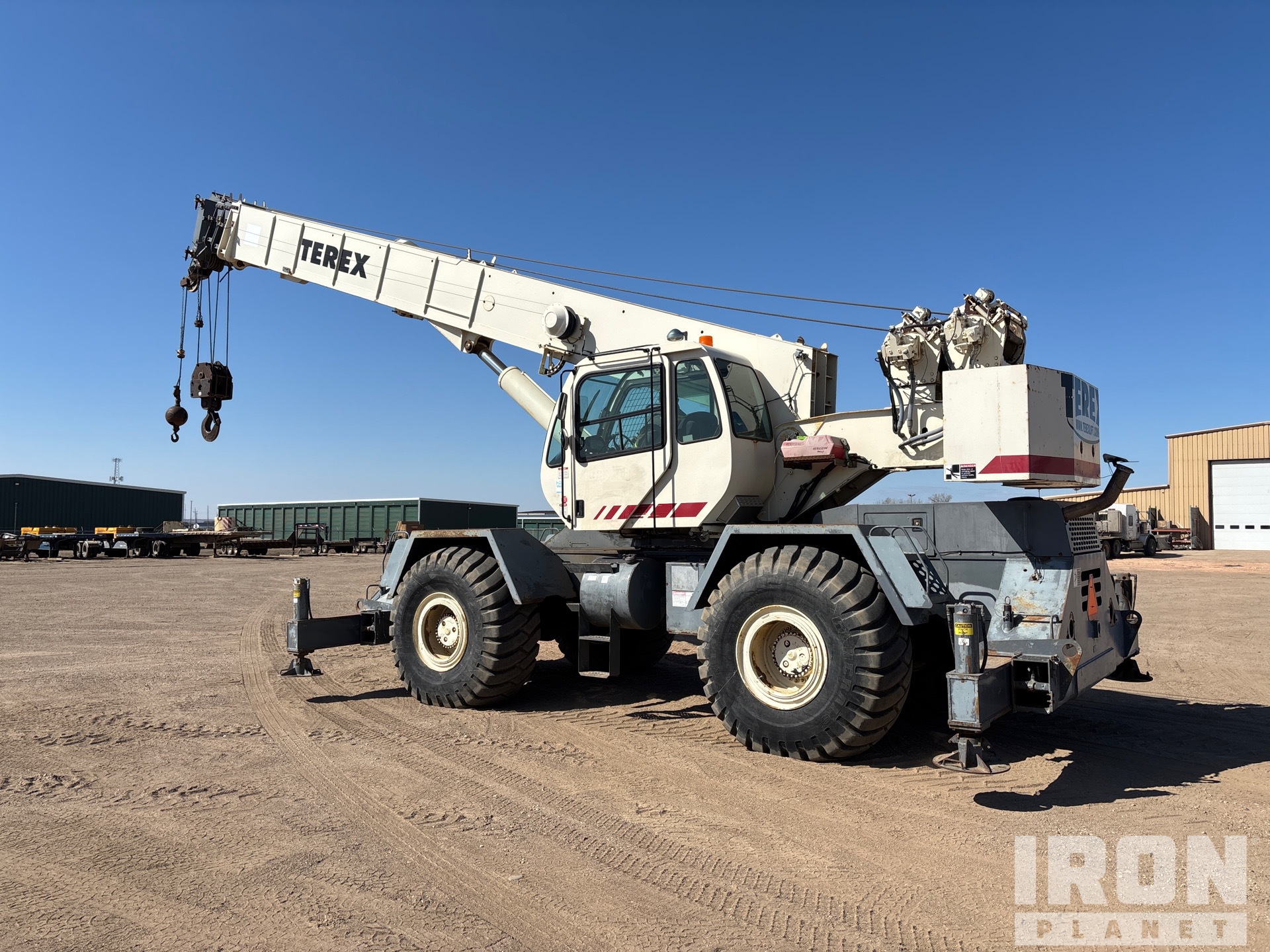

2002 Terex RT 555 55 ton 4x4 Rough Terrain Crane
Located
Williston, ND
Williston, ND
Serial number
12869
12869
Loading...
ID number
#15060227
In yard
No
Features
Anti Two-Block, Greer RCI510 Load Moment Indicator, 2001 US EPA Label, Cummins B5.9C 6 Cylinder 174 hp 5.9 L Diesel Engine, 35 ft Minimum 100 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 790 lb 55 ton Capacity Koehring 5 Sheave Hook Block, 250 lb 7 ton Capacity Overhaul Ball, 14200 lb Counterweight
General Appearance
Serial Number / VIN
12869
CE Mark
No CE mark found
Hour Meter / Odometer
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Glass
Exterior Lights
Not operational
Safety Certification Label
There is a safety certification label with a date of 10-14-2024
Safety Certification Report
Safety Certification Report Available, In office
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Operational
Anti Two Block
Operational
Hydraulic Controls
Drivetrain Controls
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Drum Rotation Indicator
Operational
Air Conditioner
Inoperable
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
Other 2001 US EPA Label
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Front of engine, Rear of engine, Oil Pan, Valve cover
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Transmission
Operational
Front Drive Axle
Front Axle Oscillating Pin
Rear Drive Axle
Final Drives
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Cylinder Pins and Bushings
Limited Function Check
The hydraulic system was operational.
Chassis
Steering Linkage
Steering Cylinders
Steering Wheel Play
Suspension Cylinders
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Turntable Bearing
Frame Condition
Tire Size
All of the tires are the same size, 26.5-25 Front tires
Left Front Tire
Left Rear Tire
Right Rear Tire
Right Front Tire
Wheel Condition
Wheel Studs
Limited Function Check
The main chassis components were operational in a limited check.
Outrigger Cylinders
Dripping leak
Outrigger Condition
Outrigger Beams
Outrigger Floats/Pads Condition
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Boom Angle Indicator
Limited Function Check
The main crane components functioned when checked without a load.
Specialty
Main Load Block
Overhaul Ball
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | May 18, 2026 |
| Silicon | 0 PPM |
| Tin | 0.33 PPM |
| Silver | 0 PPM |
| Aluminum | 0.29 PPM |
| Chromium | 0 PPM |
| Lead | 0.81 PPM |
| Copper | 0 PPM |
| Nickel | 0.65 PPM |
| Iron | 1.33 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
