207 Photos

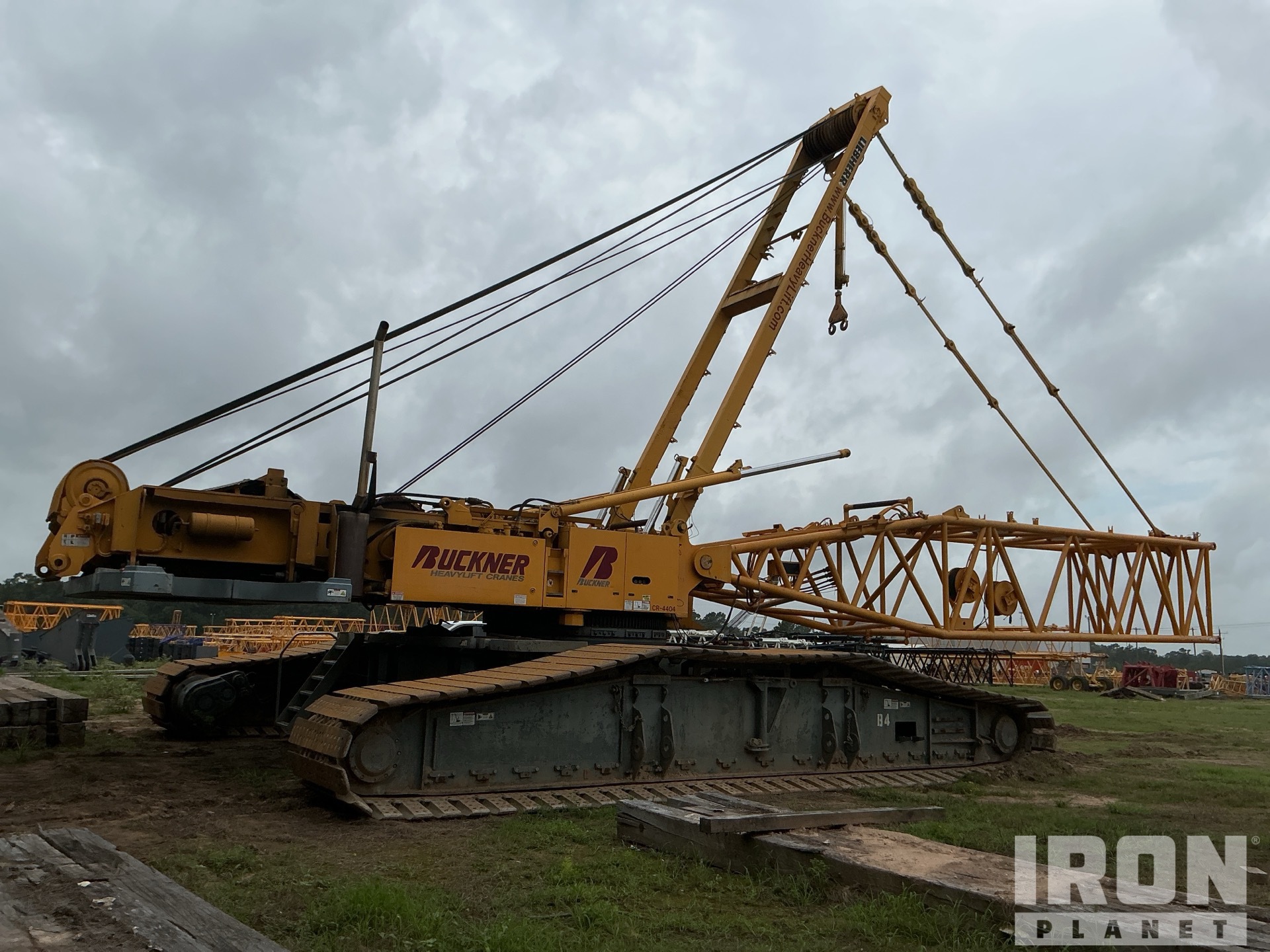

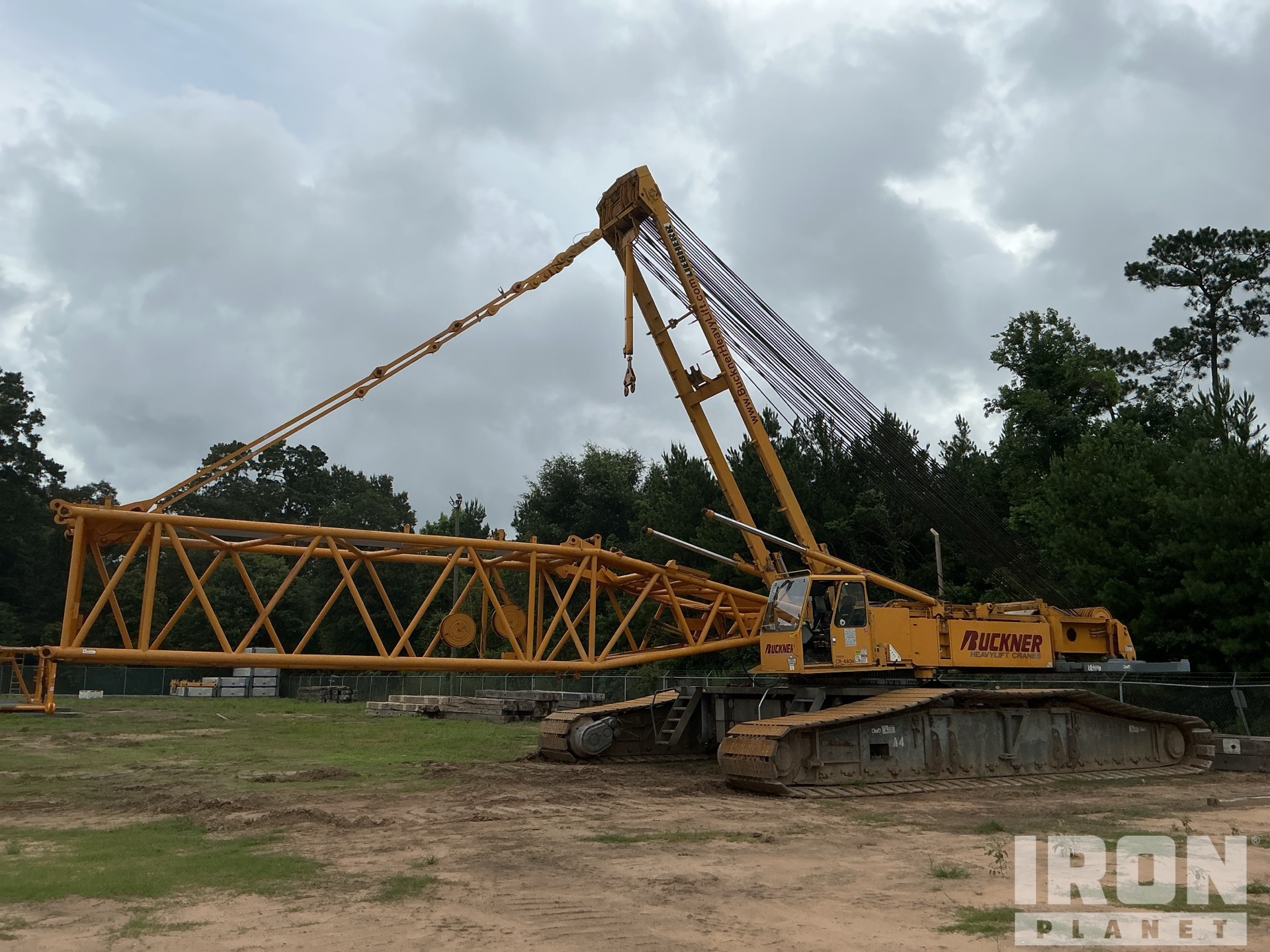

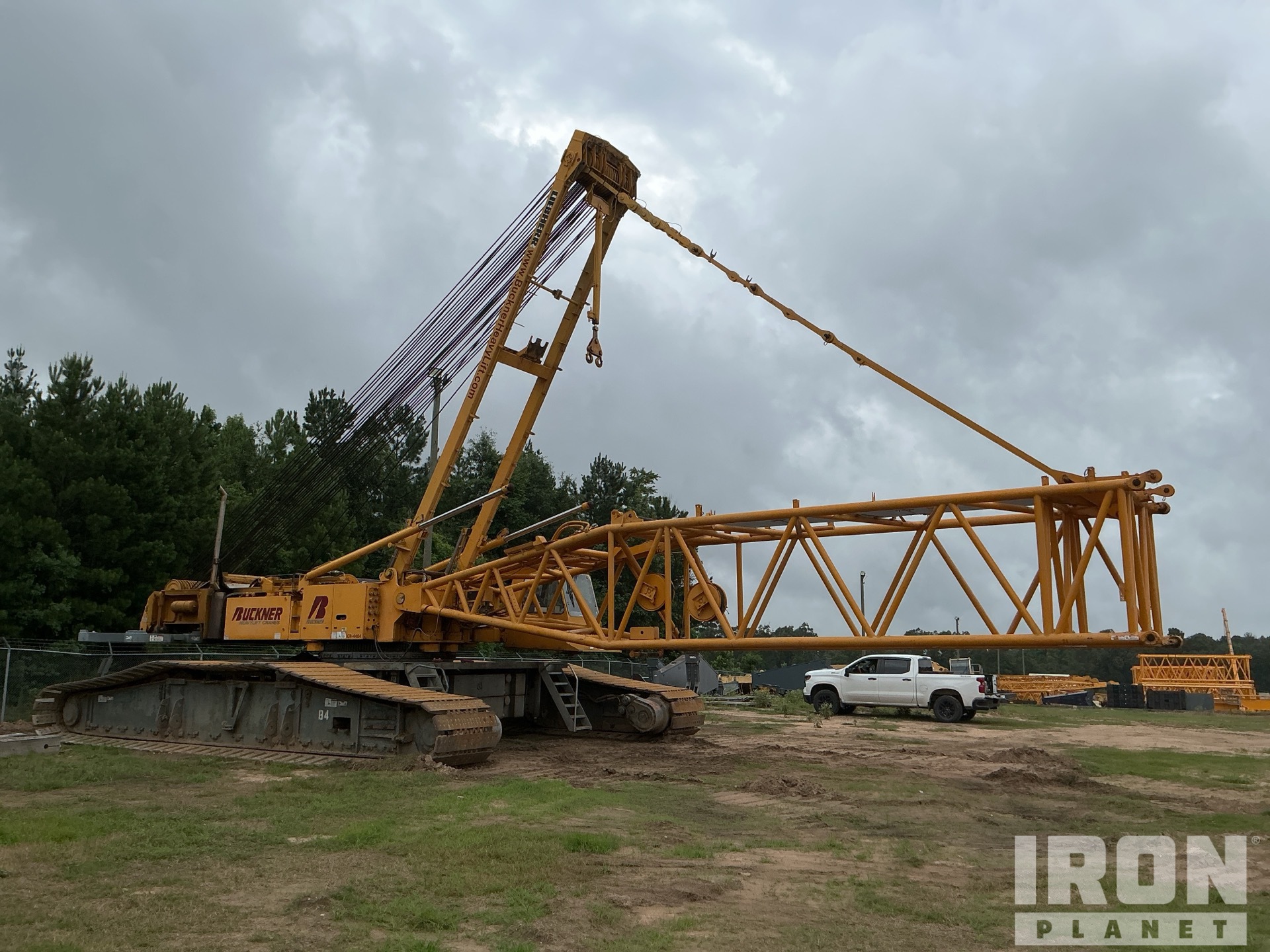

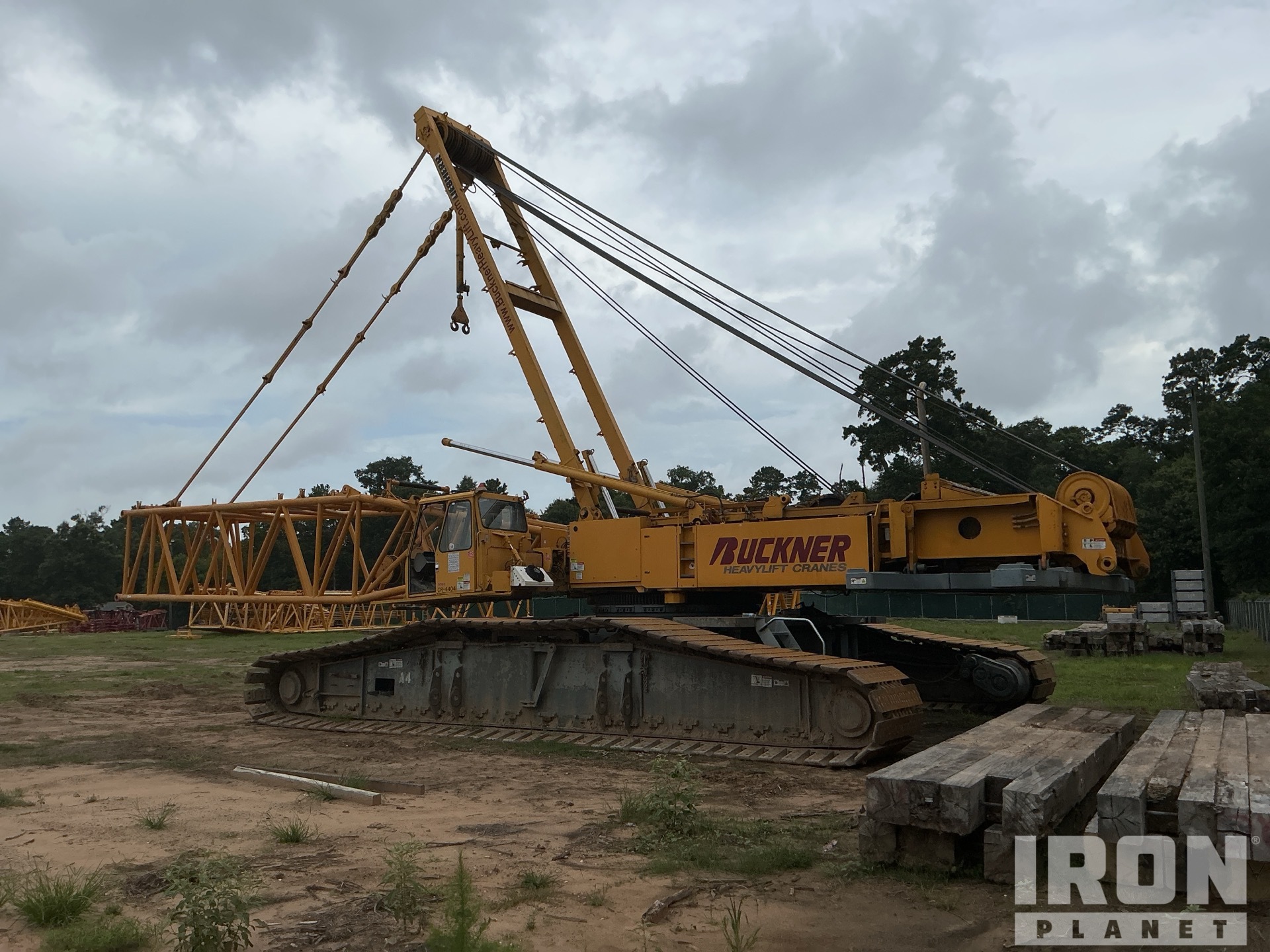

2001 Liebherr LR1400/2 440 ton Lattice-Boom Crawler Crane
Located
Splendora, TX
Splendora, TX
Serial number
074033
074033
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15350062
In yard
No
Features
184 ft Boom, Self Erecting, Auxiliary Hoist, Rooster Sheave, 3 Sheave Hook Block, 117 t Counterweight, Counterweight Removal System, 59 in Smooth Track Shoes
General Appearance
Serial Number / VIN
074033
CE Mark
CE Marked
Hour Meter / Odometer
Hours are closer to 37,797 per site not confirmed-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety Certification Label
There is a safety certification label with a date of 12-04-26
Safety Certification Report
Safety Certification Report Not Available
Load Chart
No
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load., Lieberr, Liccon
Controls Hydraulic or Air
Load Charts
None found
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Hoist Brakes
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
Could not get to upper panels to remove for video
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Oil Pan, Light seepage on oil pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Seepage
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Not tested
Auxiliary Hoist
Not tested
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation, Not tested
Boom Drums
Hydraulic Operation
Main Boom Pins
Pendant Line (Boom Tension Line)
Rod Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Boom Length
184 ft overall length, 25 ft 0 in tip section, 3 Sections, 115 ft Length, 44 ft 0 in base section
Boom Angle Indicator
Missing
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Track Links
Left Track Bushings
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Track Links
Right Track Bushings
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Counterweights
Additional information
