187 Photos
2001 Grove GMK5100 120 ton 10x8x10 All Terrain Crane
Located
Charlotte, NC
Usage
106,617 mi (171,582 km)
Serial number
W091005901WG12089
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#13809441
In yard
Yes
Year
2001
Manufacturer
Model
Asset type
Serial number or VIN
W091005901WG12089
Features
Daimer 5 Speed Automatic Transmission, 2000 US EPA Label, Mercedes-Benz OM460LA V8 15.9 L Diesel Carrier Engine, Air Conditioner, Tilt Cab, Anti Two-Block, Grove EKS-4 Load Moment Indicator, Mercedes-Benz Diesel Upper Engine, 42 ft Minimum 167 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 36 ft to 112 ft Bifold Swingaway Offset Jib, 2028 lb 80 ton Capacity Johnson 5 Sheave Hook Block, 714 lb 12 ton Capacity Overhaul Ball, 68300 lb Counterweight, Counterweight Removal System
Notes
<br><p style="font-size: 16px; color:red;"><strong>TODAY'S PRICE: $220,000 <strike> $250,000 </strike> 12% OFF</strong> </p> <br><a href="/mpe-justreducedprices">Click here to shop for more discounted items</a>
General Appearance

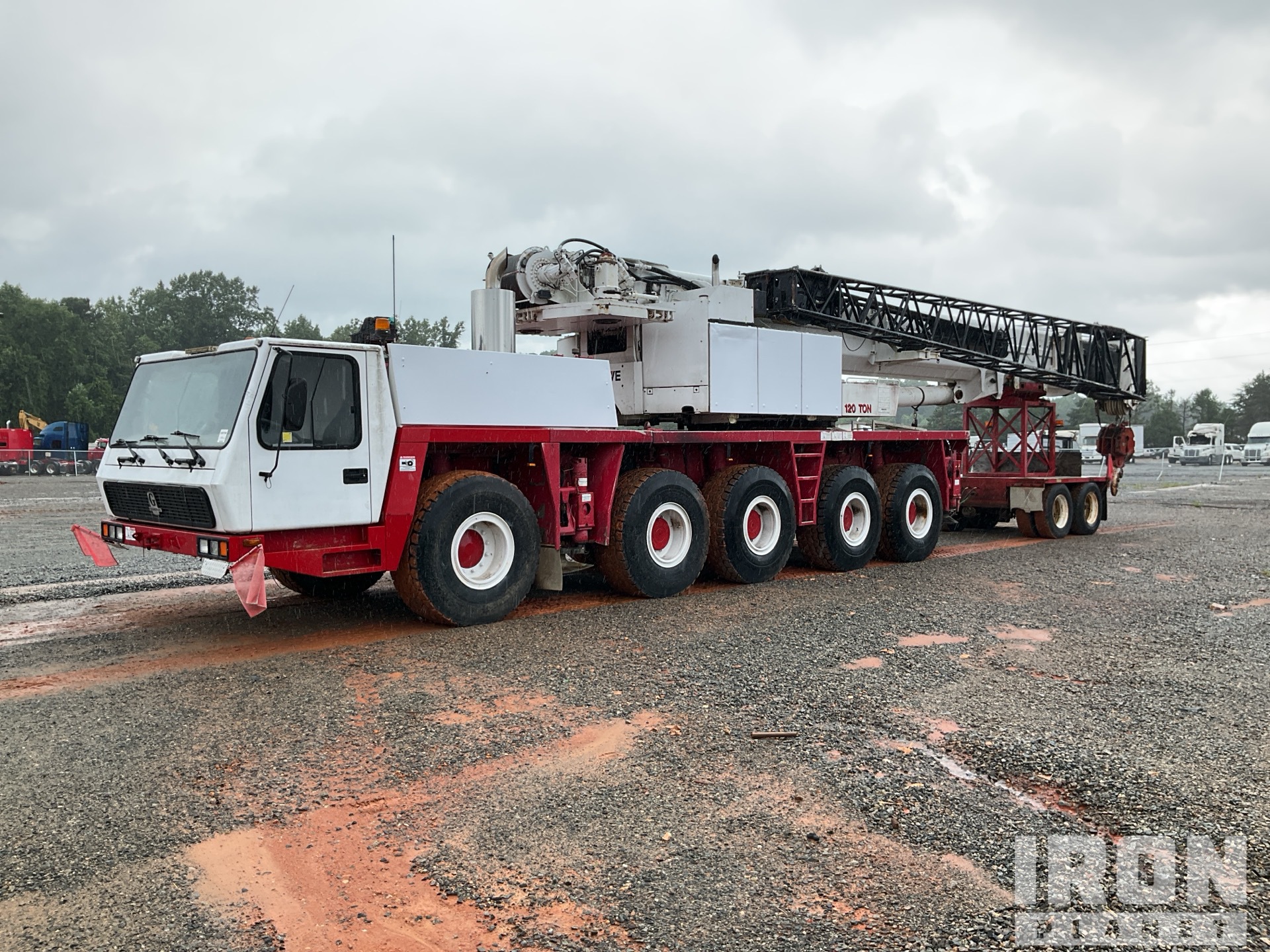

Picture, Left Front Corner

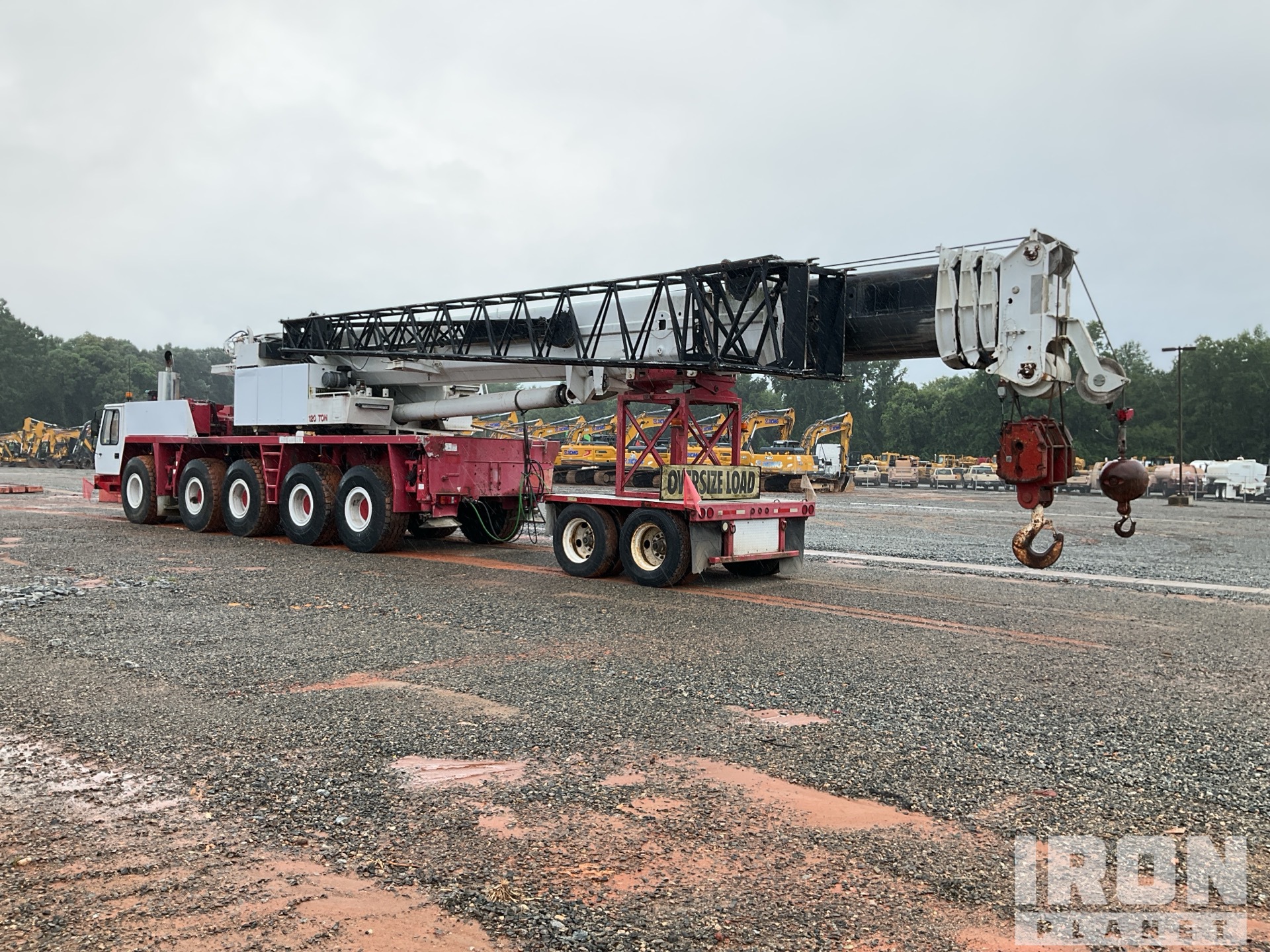

Picture, Left Rear Corner

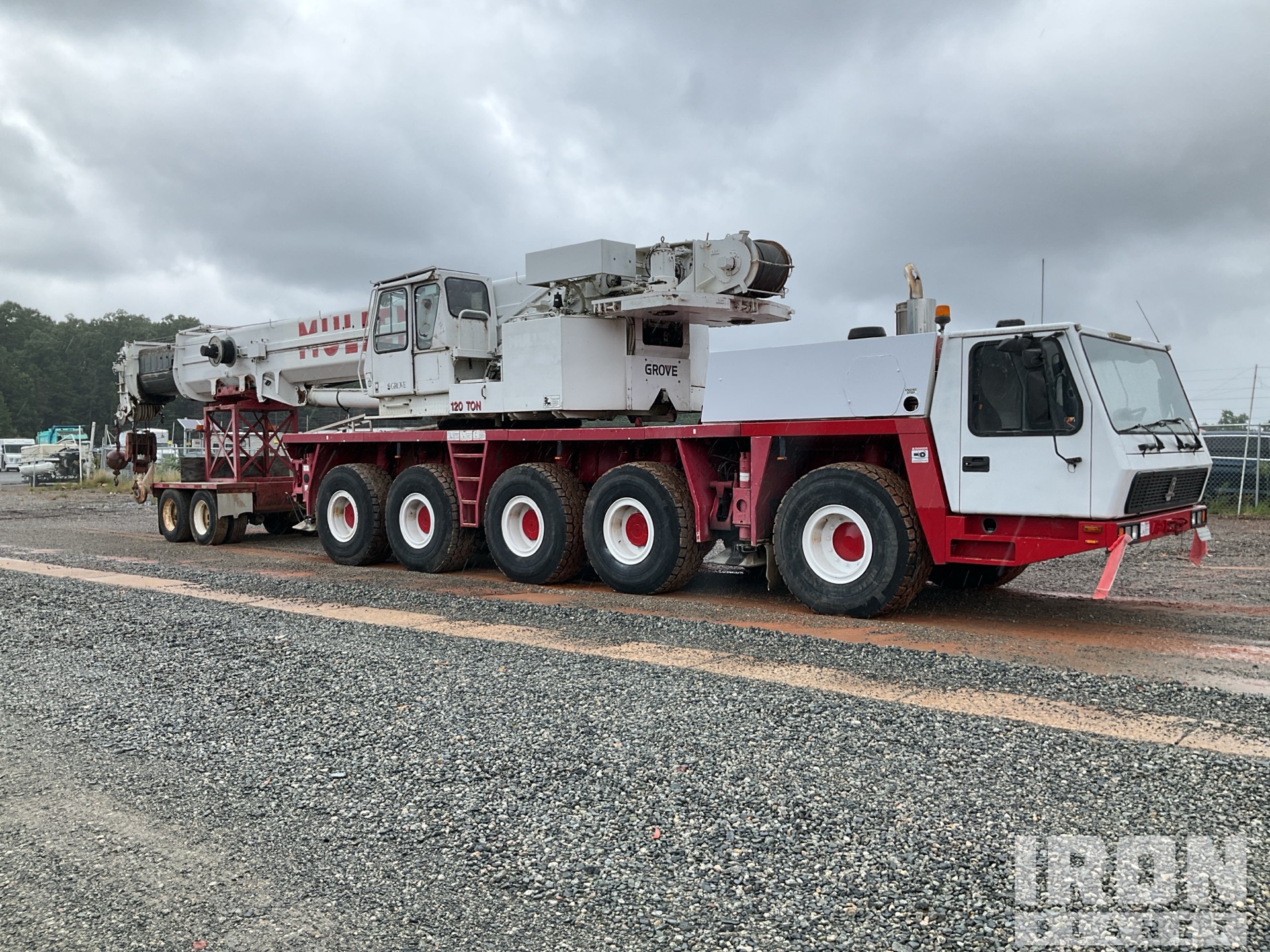

Picture, Right Rear Corner

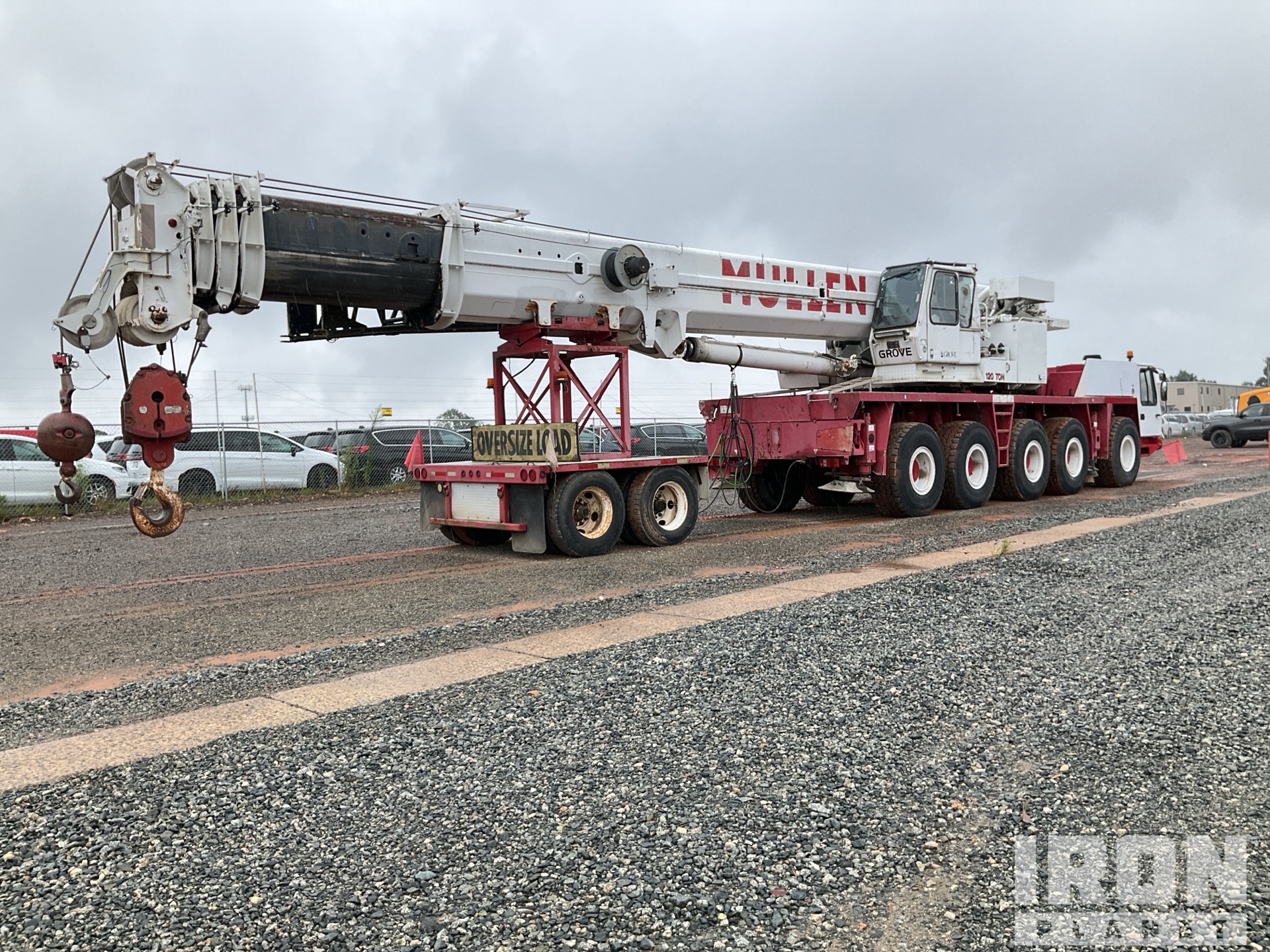

Picture, Right Front Corner

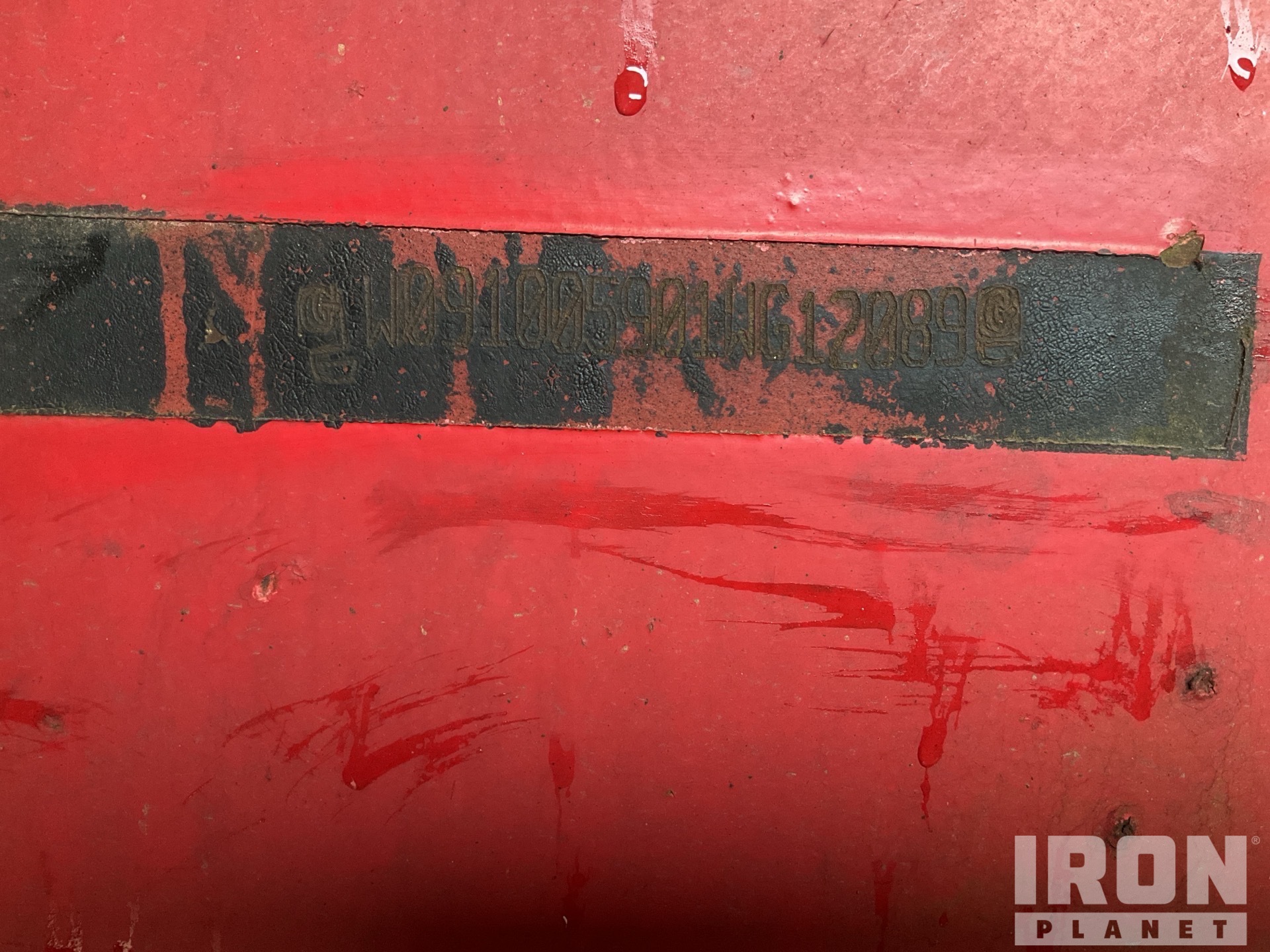

Serial Number / VIN
W091005901WG12089
Hour Meter / Odometer
171582 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Scraps/scratches
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Good
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of 6-1-24
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Operational, Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
Unable to retrieve
Mirrors
Window Controls
Operational Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Heavy steering wheel play
Horn
Operational
Engine Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational, Transmission/service/fault light on.
Gauges
Operational
Gear Selector
Service light on. Intermittent function
Brake Control
Engine Brake
Not operationally checked
Heater
Operational, Noisy fan
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Label
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational, Air leaks at rear dolly boom lock control
Fuel System
Operational
Exhaust System
Rusty exhaust tip.
Radiator
Oil Leaks
Rear of engine, Valve cover
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran. There are loose/disconnect wires.
Underbody
Transmission
Operational, Dripping leak, Service/fault light on
Retarder
Exhaust: Retarder
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Seepage
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Damaged dust covers/heavy movement
Steering Wheel Play
Heavy movement
Brake Type
Air
Master Cylinder/Brake Control
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Rear dolly
Frame Condition
Cross Members
Automatic Lube System
Yes
Tire Condition
Normal wear
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Valves
Oil accumulation
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Oil accumulation left front.
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
1522.44 Hours-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Seat Belts
Not equipped
Mirrors
Glass
Good/ left rear side glass not sealed, bent metal
Seats/Armrests
Horn
Operational
Safety Lock Out/Stop
Operational
Load Moment Indicator
Powers On, Not operationally checked
Anti Two Block
Operational
Hydraulic Controls
Damaged dust covers
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Exterior Lights
Operational
Warning Lights
Operational
Gauges
Operational
Drum Rotation Indicator
Operational
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted. Loose panels/cracked a damaged outside panels. Cab door will not latch.
Upper Engine
Emission Certification Label
None found
A/C Compressor
Compressor will not engage
Blow by @ idle (subjective visual observation)
Visible
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Chassis
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Urethane sheaves has gouges/ broken sections
Boom Head Section
Wear Pads
Moderate wear
Boom Angle Indicator
Screen indicator
Turntable Bearing
Limited Function Check
The main crane components functioned with wear and damage.
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Crane Superstructure Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Oil accumulation
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Limited Function Check
The hydraulic system was operational.
Specialty
Jib
Not functionally checked
Main Load Block
Operational with wear/ cracked pin spacers.
Overhaul Ball
Operational with bent swivel mount.
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine-1 | engine-2 | hydraulic | |
|---|---|---|---|
| Aluminum | 1.94 PPM | 1.98 PPM | 3.05 PPM |
| Chromium | 1.56 PPM | 0.51 PPM | 1.38 PPM |
| Copper | 0.88 PPM | 0.84 PPM | 10.18 PPM |
| date of analysis | Aug 18, 2025 | Aug 18, 2025 | Aug 18, 2025 |
| Iron | 13.19 PPM | 12.51 PPM | 45.2 PPM |
| Lead | 0.31 PPM | 3.74 PPM | 6.07 PPM |
| Nickel | 0.1 PPM | 0.19 PPM | 0.09 PPM |
| Silicon | 3.26 PPM | 2.89 PPM | 2.88 PPM |
| Silver | 0 PPM | 0 PPM | 0 PPM |
| Tin | 0.09 PPM | 0.35 PPM | 1.39 PPM |
| Glycol | N/A | ||
| Water | N/A | ||
| Fuel | <5% |
