190 Photos

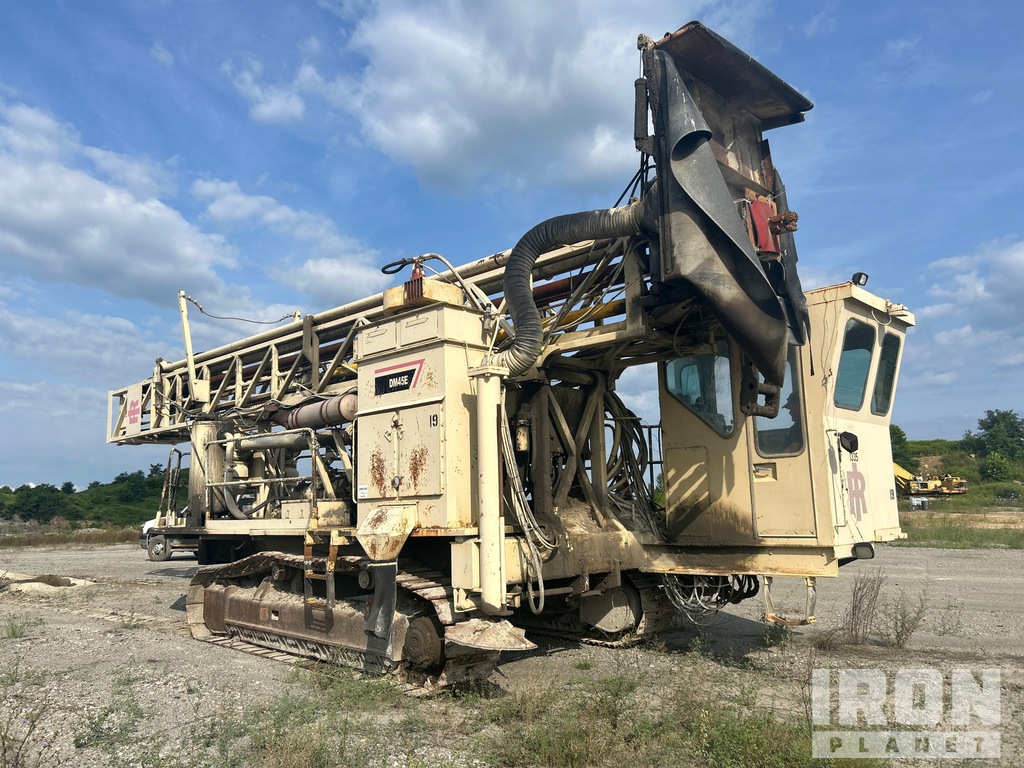

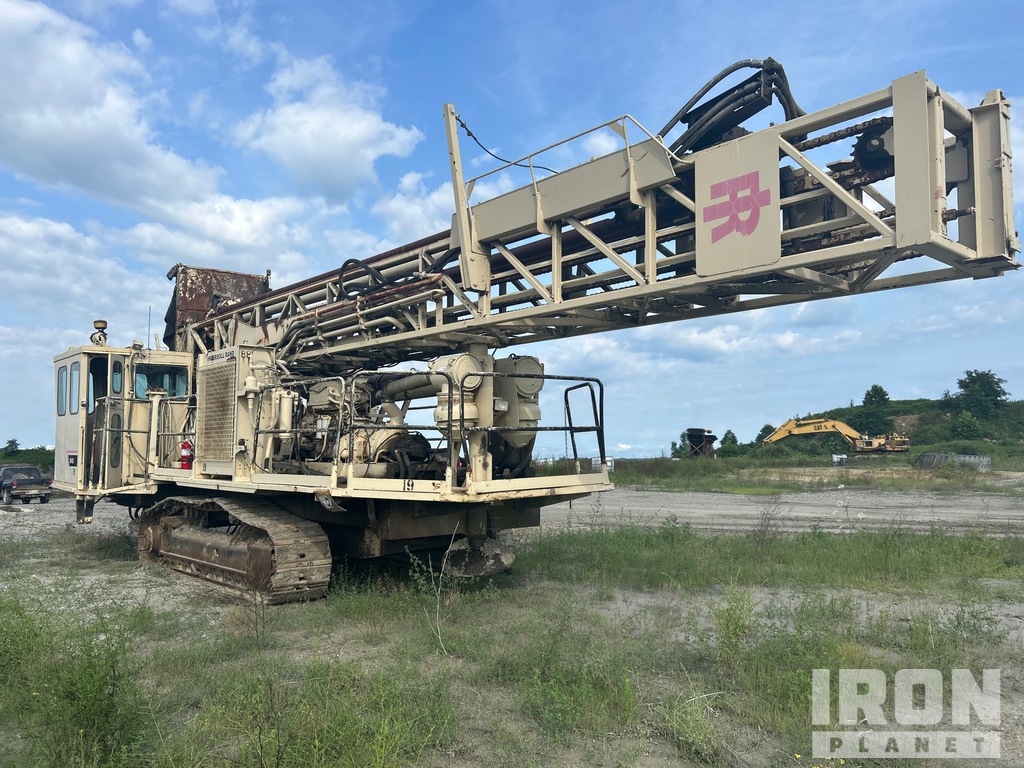

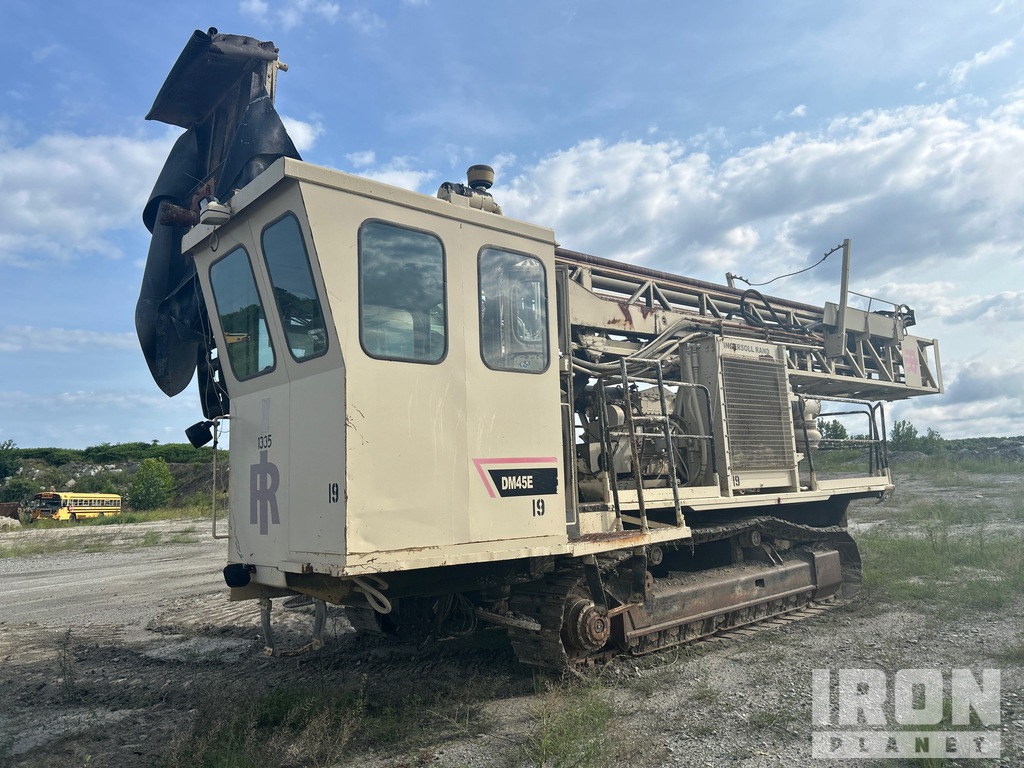

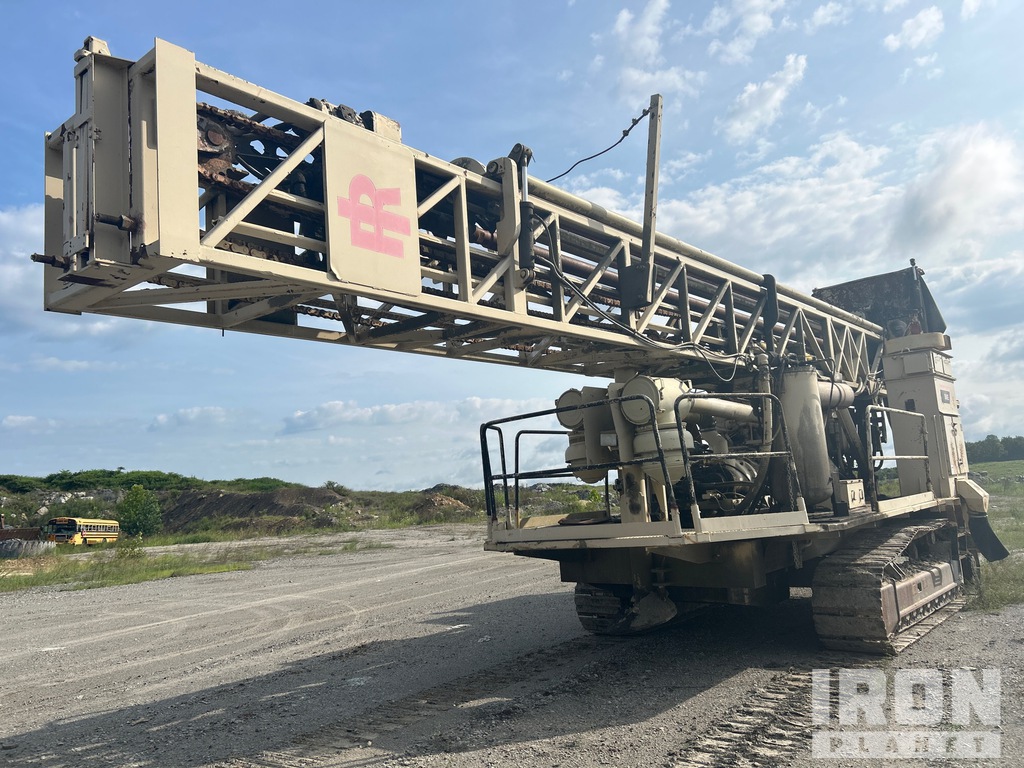

1997 Ingersoll-Rand DM-45-LP Blasthole Drill
Located
Hamden, OH
Hamden, OH
Usage
2,961 hrs
2,961 hrs
Serial number
7278
7278
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15548924
In yard
No
Features
Enclosed Cab, Air Conditioner, Pressurized Cab, 2894, Compressor Hours Cummins 6 Cylinder Diesel Engine, 40 ft Mast, Rod Changer, Dust Collector, ( 3 ) 6 in Drill Rods, 23.5 in Triple Grouser Track Shoes
General Appearance
Serial Number / VIN
7278
Hour Meter / Odometer
2961 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety
Travel Alarm
Operational
Horn
Operational
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Steering Controls
Hydraulic Controls
Not all controls were operationally checked
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Gauges
Operational
Air Conditioner
Inoperable
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Emissions Status
No US EPA Label Present
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
Visible
Starter
Operational; Burnt wire at starter solenoid
Exhaust System
Manifold is cracked with hole and heavy rust. Exhaust elbow damaged
Radiator
No cap
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Drivetrain
Drive Motors
Some oil on hoses
Final Drives
Dripping Leak
Limited Function Check (Drivetrain-Track)
The drivetrain was operational without a load.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Valves
Dripping leak
Hydraulic Tank
Dripping leak/weld repair
Hoses (Hydraulics)
Leaks throughout
Hydraulic Motors
Not operationally checked
Boom Lift Cylinder(s)
Heavy pin and bushing movement
Stabilizer Cylinders
Front cylinder drifts off
Limited Function Check
The hydraulic system was operational.
Chassis
Boom Condition
To much dirt to visually inspect good
Mast Condition
Weld repair
Main Frame
To much mud to visually inspect good
Thrust Chain / Sprockets
Kelly Drive Gear Box
Oil on box
Kelly Slide Wear Plates
Heavy movement
Hyd. Hose Carrier System
Vices
Not operationally checked
Drill Rod Loading System
Could not be operationally checked
Dust Collection System
Not operationally checked
Air Compressor
Operational
Limited Function Check
Some components could not be operationally checked
Undercarriage
Left Roller Frame
Weld repair, pin hole damage
Left Track Tensioner
Left Track Shoes
Most bolts are loose
Left Grouser Height
20 mm
Left Track Links
Heavy wear, pin hole damage
Left Carrier Rollers
Left Track Rollers
Heavy wear damage
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Shoes
Most pads are loose
Right Grouser Height
20 mm
Right Track Links
Right Carrier Rollers
Right Track Rollers
Some rollers are loose
Right Idler
Right Sprocket
