247 Photos

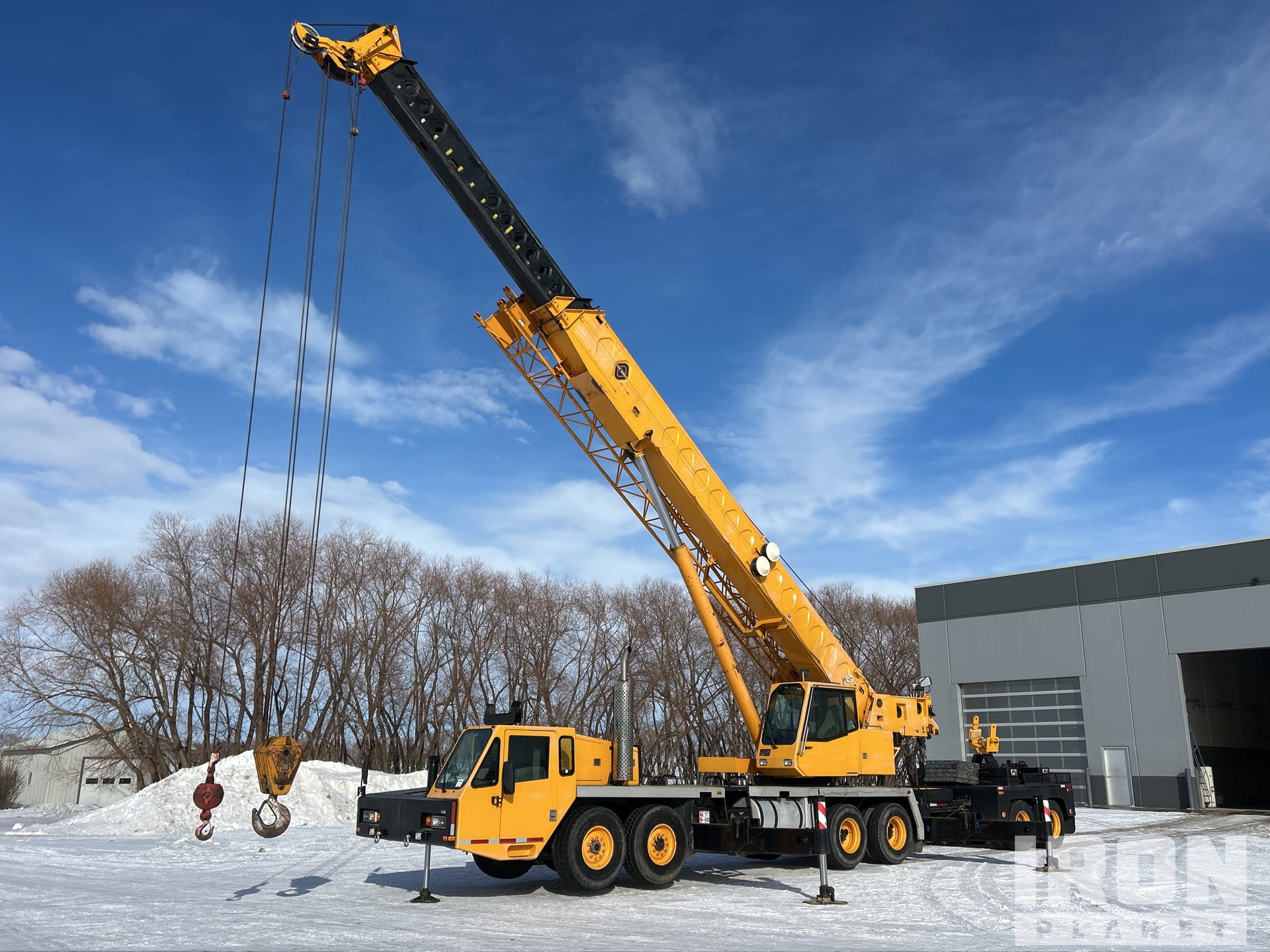

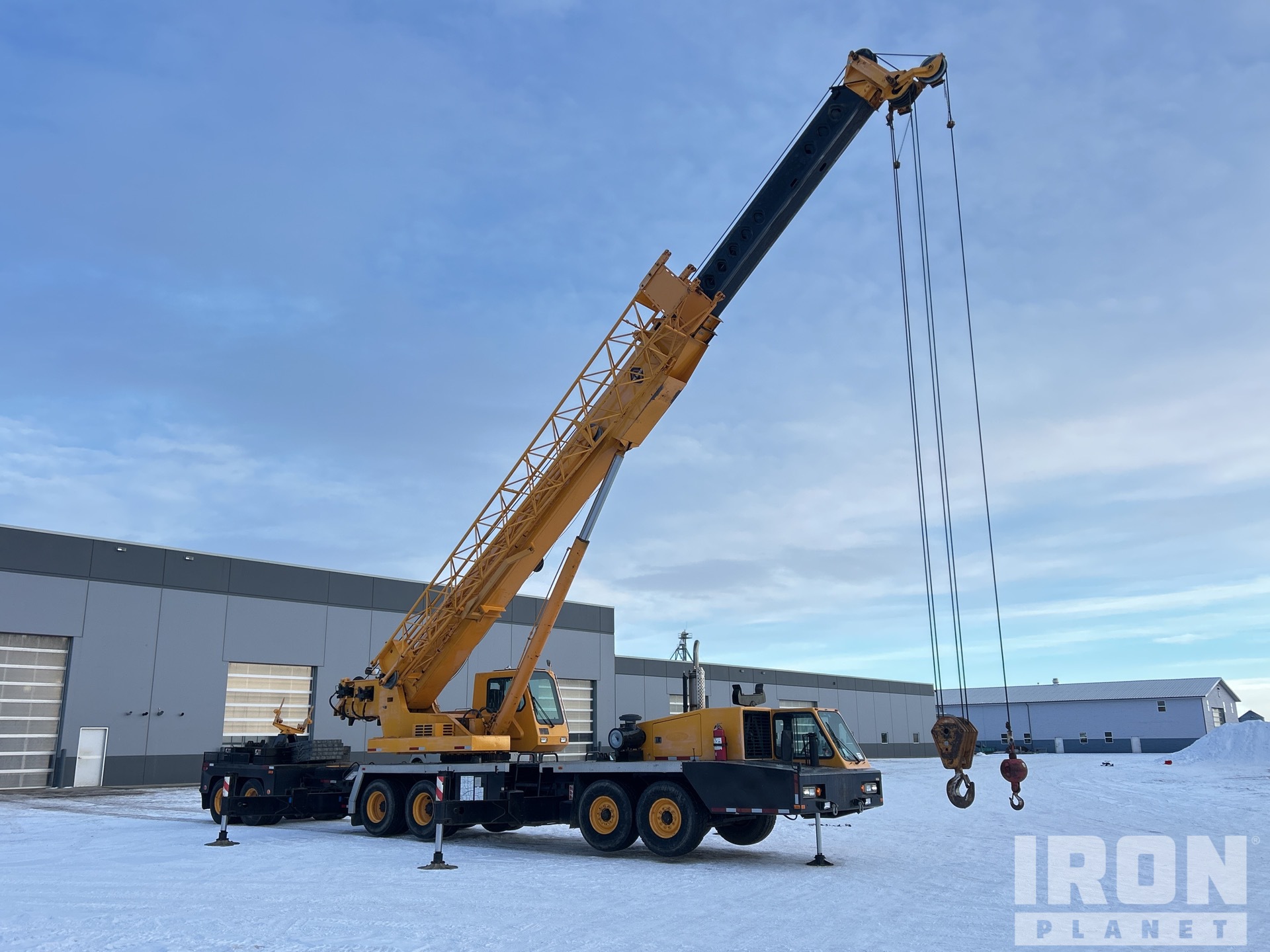

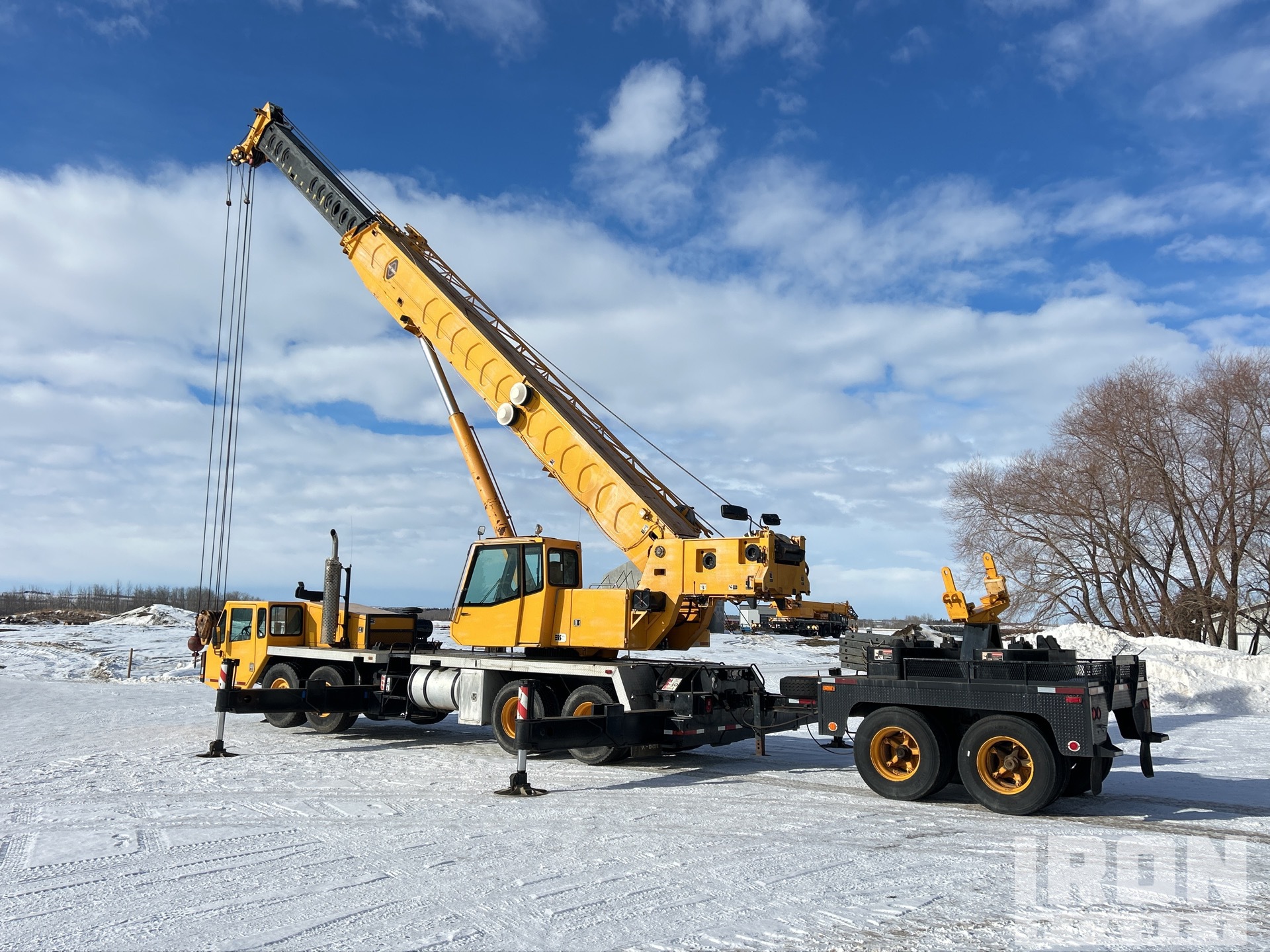

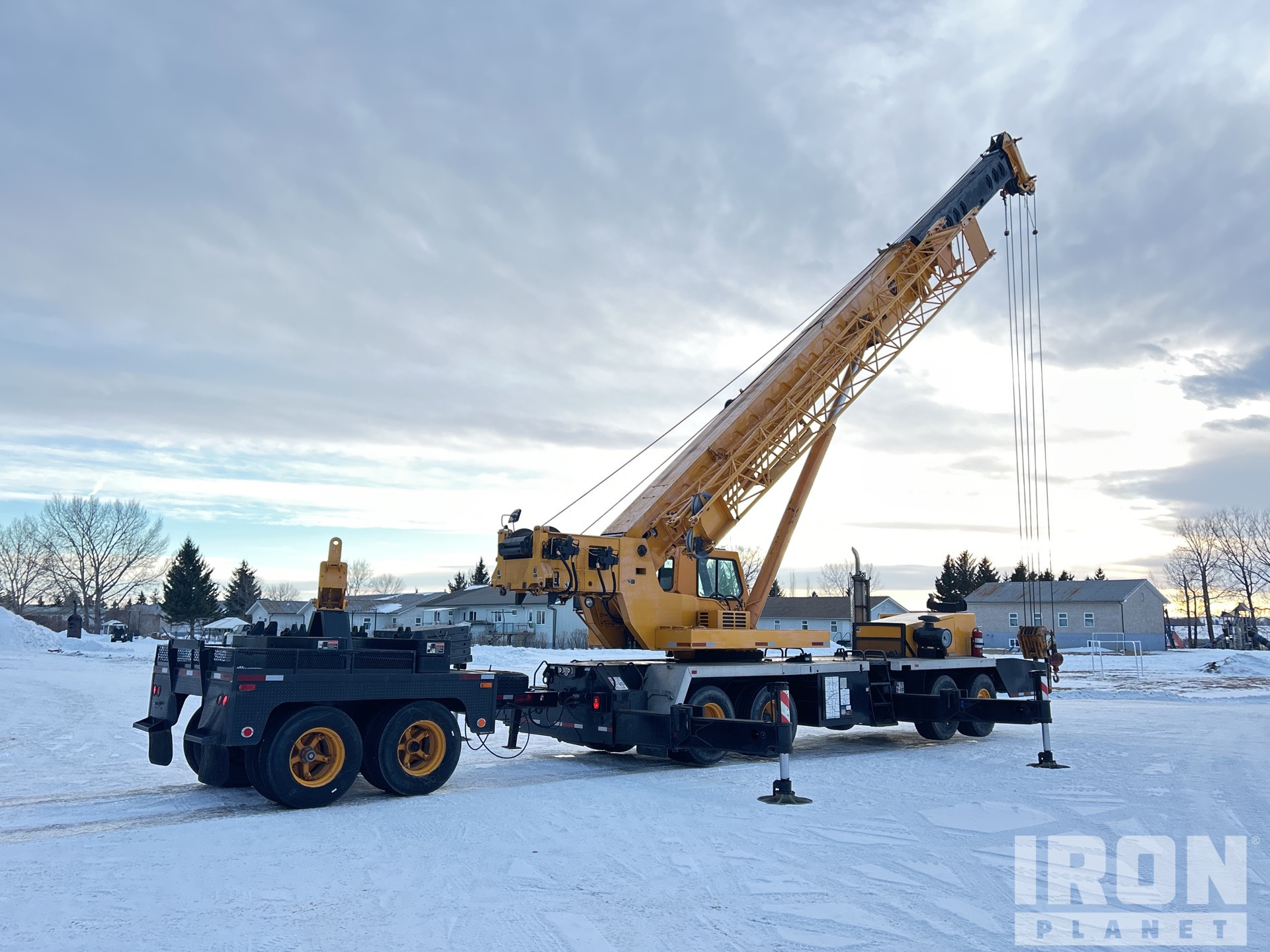

1994 Link-Belt HTC8665 65 ton 8x4x4 Hydraulic Truck Crane
Located
Clive, AB, CAN
Clive, AB, CAN
Usage
77,365 mi
77,365 mi
Serial number
D6141837
D6141837
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14770929
In yard
No
Features
Eaton Fuller 9 Speed Manual Transmission, 13980 hrs Carrier Engine, Cummins LTA10-C 6 Cylinder 10 L Diesel Carrier Engine, Anti Two-Block, Microguard 414 Load Moment Indicator, 35.5 ft Minimum 110 ft Maximum Boom Length, Auxiliary Hoist, Rooster Sheave, 34 ft to 56 ft Bifold Jib, 1364 lb 70 ton Capacity Johnson 5 Sheave Hook Block, 337 lb 8.5 ton Capacity Overhaul Ball, 12000 lb Counterweight, Counterweight Removal System, T/A Dolly
General Appearance
Serial Number / VIN
D6141837
Hour Meter / Odometer
77365 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Windshield is cracked
Exterior Lights
Operational
Safety Certification Label
There is a safety certification label with a date of April 27/2020
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Travel Alarm
Operational
Horn
Operational, Horn works in crane cab but not carrier cab
Seat Belts
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
13980 hrs Carrier Engine
Mirrors
Window Controls
Operational
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Inoperable
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Warning Lights Don’t Flash Up When Key is Turned
Gauges
Voltmeter Gauge Inoperable gauges are inoperable
Gear Selector
Brake Control
Engine Brake
Not operationally checked
Clutch
Engages
PTO Control
Cable engaged, Operational
Heater
Fan turns on but doesn’t blow air through vents
Limited Function Check
The main components are in place and operational as noted.
Engine
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational, Oil Buildup
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Oil build up around compressor and left side of engine.
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational, Missing cover
Clutch
Engages
Steer Axle
Front Drive Axle
Oil Leak
Rear Drive Axle
Non dripping oil leak
Axle Bump Stops
In place
Limited Function Check - Carrier
The drivetrain was operational without a load.
Steering Linkage
Brake Type
Air
Brake Lines/Hoses
Park Brake
Stopped the machine while rolling
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Tire Condition
Some cracking on inner tires.
Wheel Condition
Wheel Studs
Hydraulics - Crane Carrier/Chassis
Pumps (Hydraulics)
Dripping leak
Valves
Hydraulic Tank
Hoses (Hydraulic)
Stabilizer Cylinders
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Mirrors
No visible damage or missing components
Glass
Seats/Armrests
Horn
Operational, Horn works in crane cab but not carrier cab
Load Moment Indicator
Operational, Powers On
Anti Two Block
Operational
Hydraulic Controls
Gauges
RPM, Oil Pressure gauges are inoperable
Hoist Brakes
Drum Rotation Indicator
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Crane Superstructure
Main Boom Pins
Main Boom Sections
Sheaves
Boom Head Section
Wear Pads
Turntable Bearing
Limited Function Check
The main crane components functioned when checked without a load.
Outrigger Beams
Outrigger Pads
Crane Superstructure Hydraulics
Swing Motor
Main Hoist
Auxiliary Hoist
Lift Cylinders
Telescopic Boom Cylinders
Not Visually Inspected but are Operational.
Limited Function Check
The hydraulic system was operational.
Specialty
Jib
Main Load Block
Overhaul Ball
Fairlead
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Mar 10, 2026 |
| Silicon | 15.56 PPM |
| Tin | 0.29 PPM |
| Silver | 0.01 PPM |
| Aluminum | 3.65 PPM |
| Chromium | 2.63 PPM |
| Lead | 7.39 PPM |
| Copper | 6.99 PPM |
| Nickel | 0 PPM |
| Iron | 20.07 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
