187 Photos
1992 Kobelco 7150 165 ton Lattice-Boom Crawler Crane
Located
Houston, TX
Houston, TX
Usage
2,037 hrs
2,037 hrs
Serial number
JJ00131
JJ00131
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#15366570
In yard
No
Features
Air Conditioner, Anti Two-Block, LSI GS820 Load Moment Indicator, 100 ft Fixed Jib, Self Erecting, Auxiliary Hoist, Rooster Sheave, 7 Sheave Hook Block, Overhaul Ball, 47.5 in Smooth Track Shoes

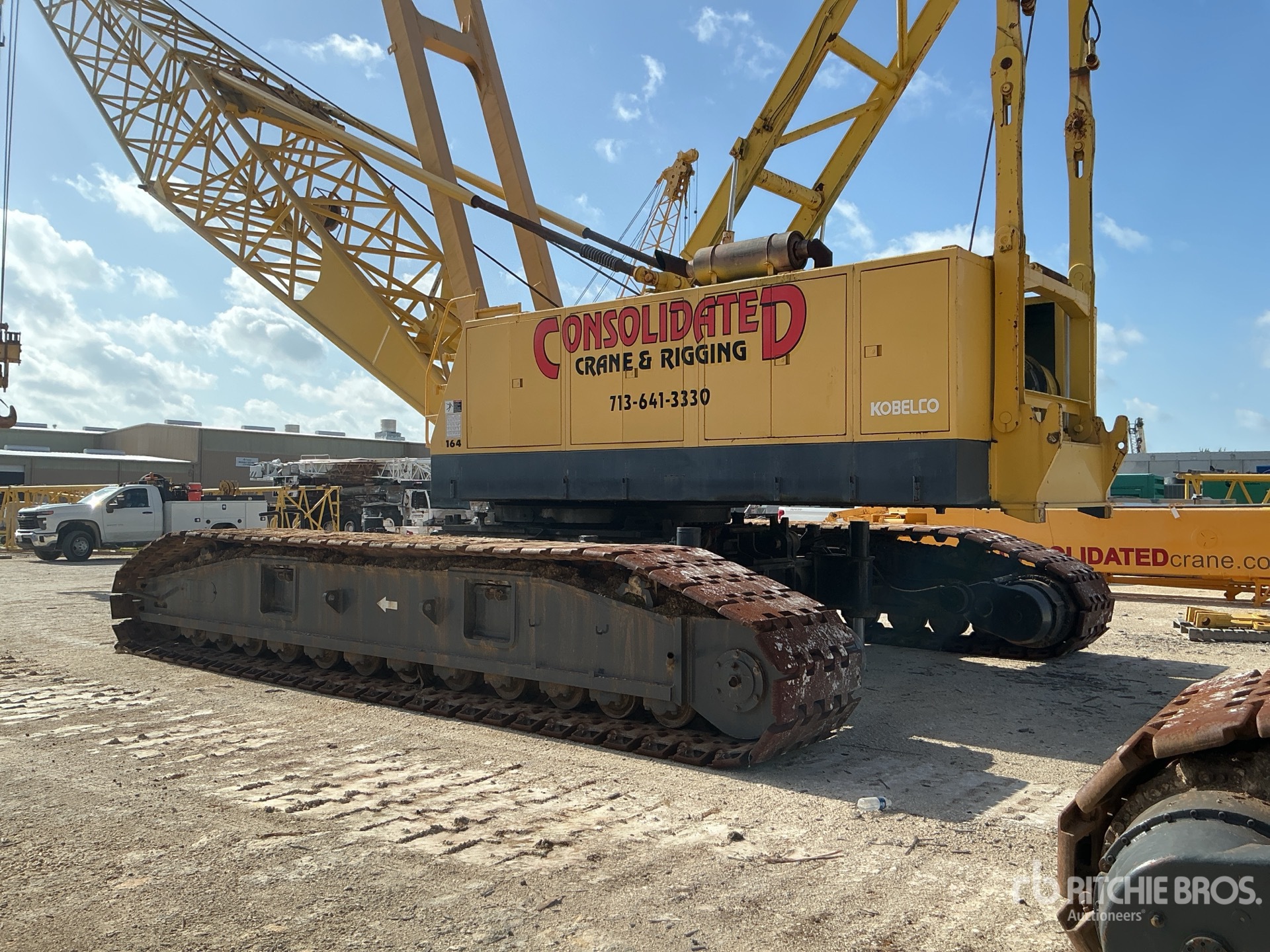

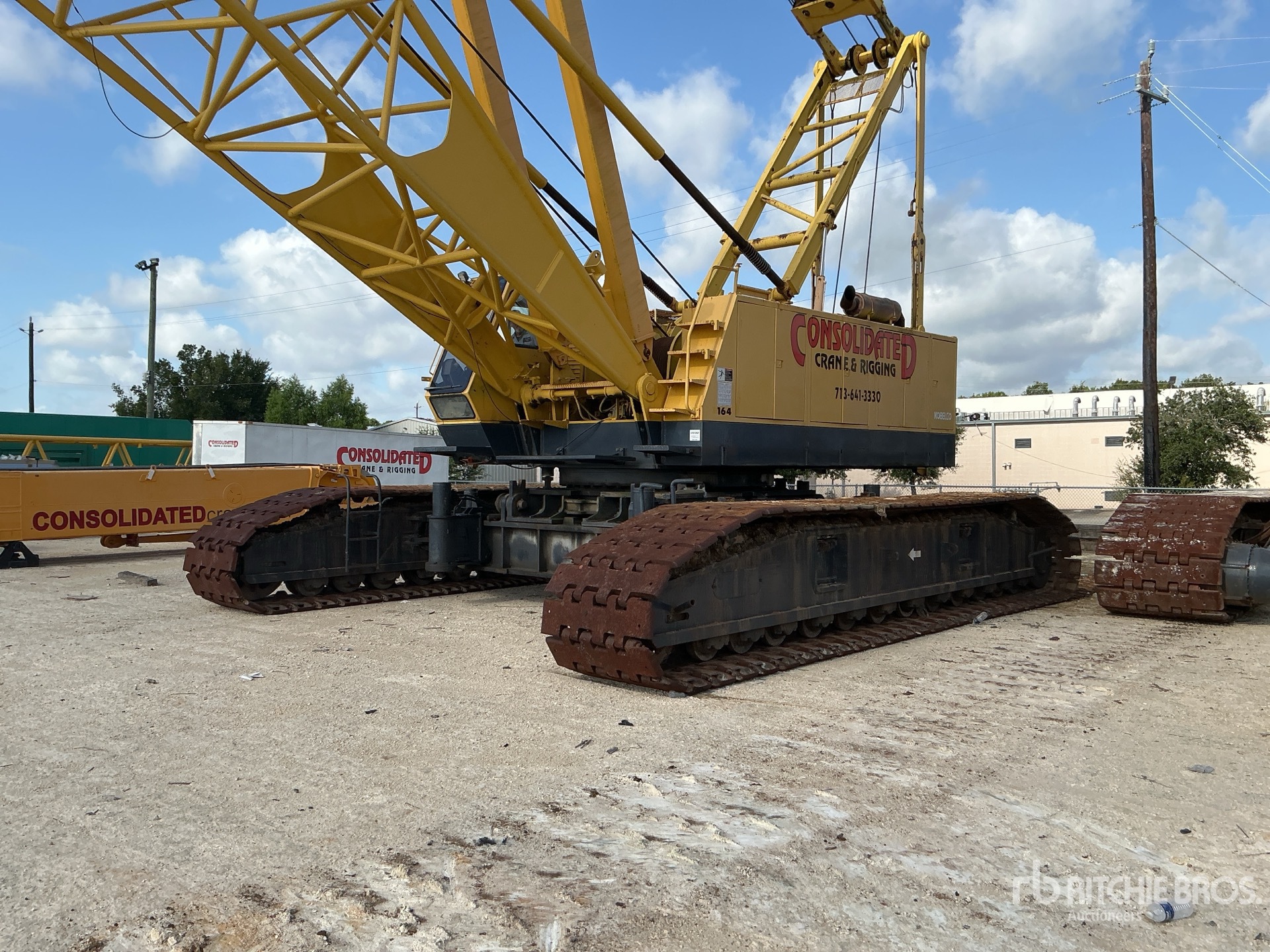

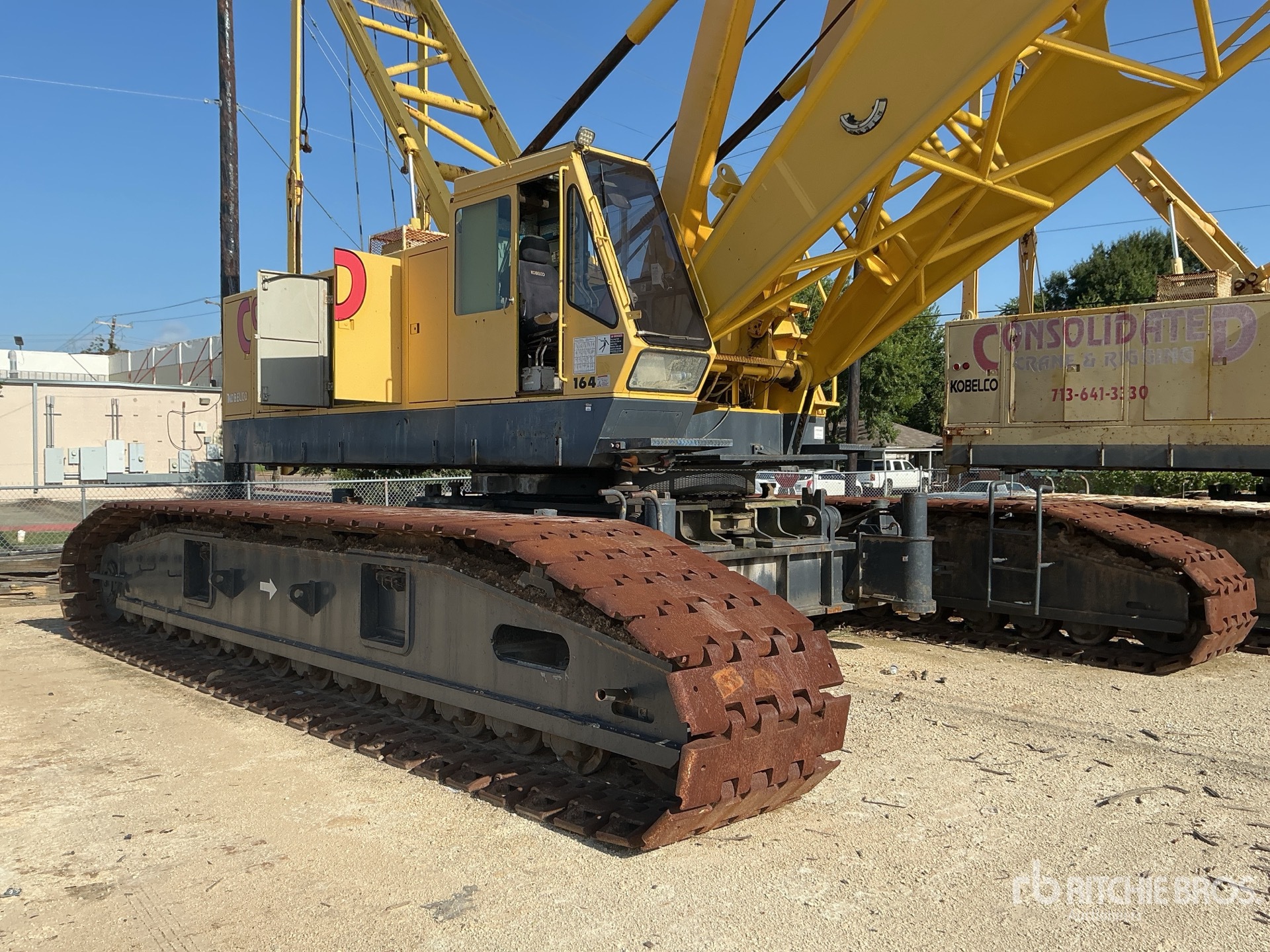

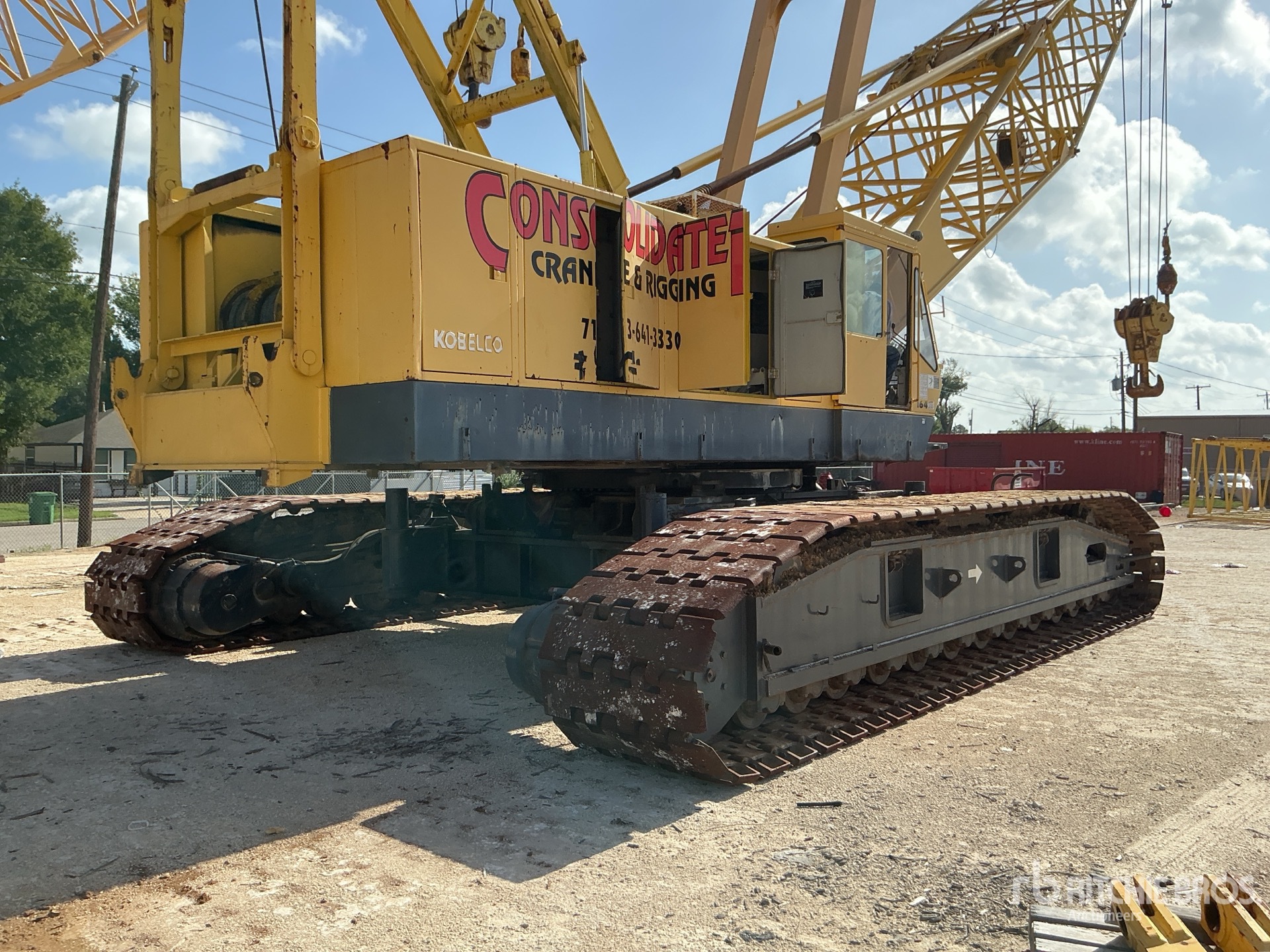

General Appearance
Serial Number / VIN
JJ00131
CE Mark
No CE mark found
Hour Meter / Odometer
2037.2 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety Certification Label
There is a safety certification label with a date of 11-29-24
Safety Certification Report
Safety Certification Report Not Available
Load Chart
No
Safety
Travel Alarm
Inoperable
Horn
Operational
Seat Belts
Not equipped
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Control Station - Upper
Mirrors
Glass
No visible damage
Seats/Armrests
Load Moment Indicator
LSI, GS820
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
Not confirmed
Warning Lights
Inoperable
Gauges
Not confirmed
Air Conditioner
Inoperable
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
Video capture could not be performed
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Service Brakes
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses (Hydraulic)
Boom hoist hose leaking site repairing
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Hydraulic Operation
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
220 ft 0 in overall length, 35 ft 0 in tip section, 6 Sections, 160 ft Length, 25 ft base section
JIB Length
100 ft 0 in overall length, 10 ft 0 in base section, 20 ft 0 in tip section, ( 4 ) 70 ft 0 in Center boom sections
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Hook Rollers
Swing Drive
Operational, Not viewed
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Track Links
Left Track Bushings
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Track Links
Right Track Bushings
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Jib
Main Load Block
Overhaul Ball
Counterweights
