122 Photos
1977 Link-Belt LS-318 80 ton Lattice-Boom Crawler Crane
Located
Springfield, OR
Springfield, OR
Usage
7,509 hrs
7,509 hrs
Serial number
21G7-1209F
21G7-1209F
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#13694990
In yard
No
Features
Drum Camera, Anti Two-Block, Cranesmart Load Moment Indicator, US EPA Label, 120 ft Boom, 30 ft Jib, 3 Sheave Hook Block, Overhaul Ball, Counterweight Removal System, 36 in Smooth Track Shoes

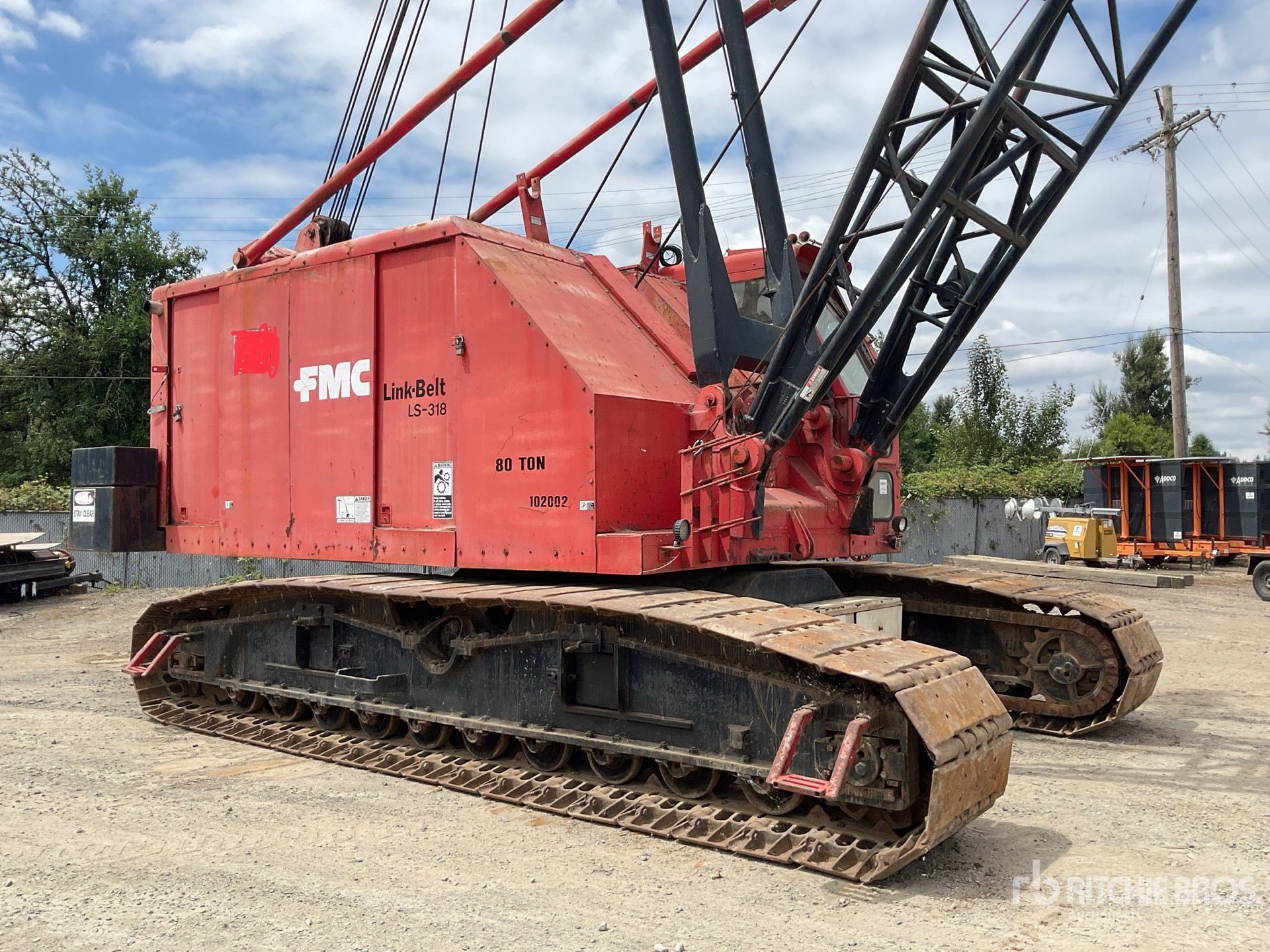

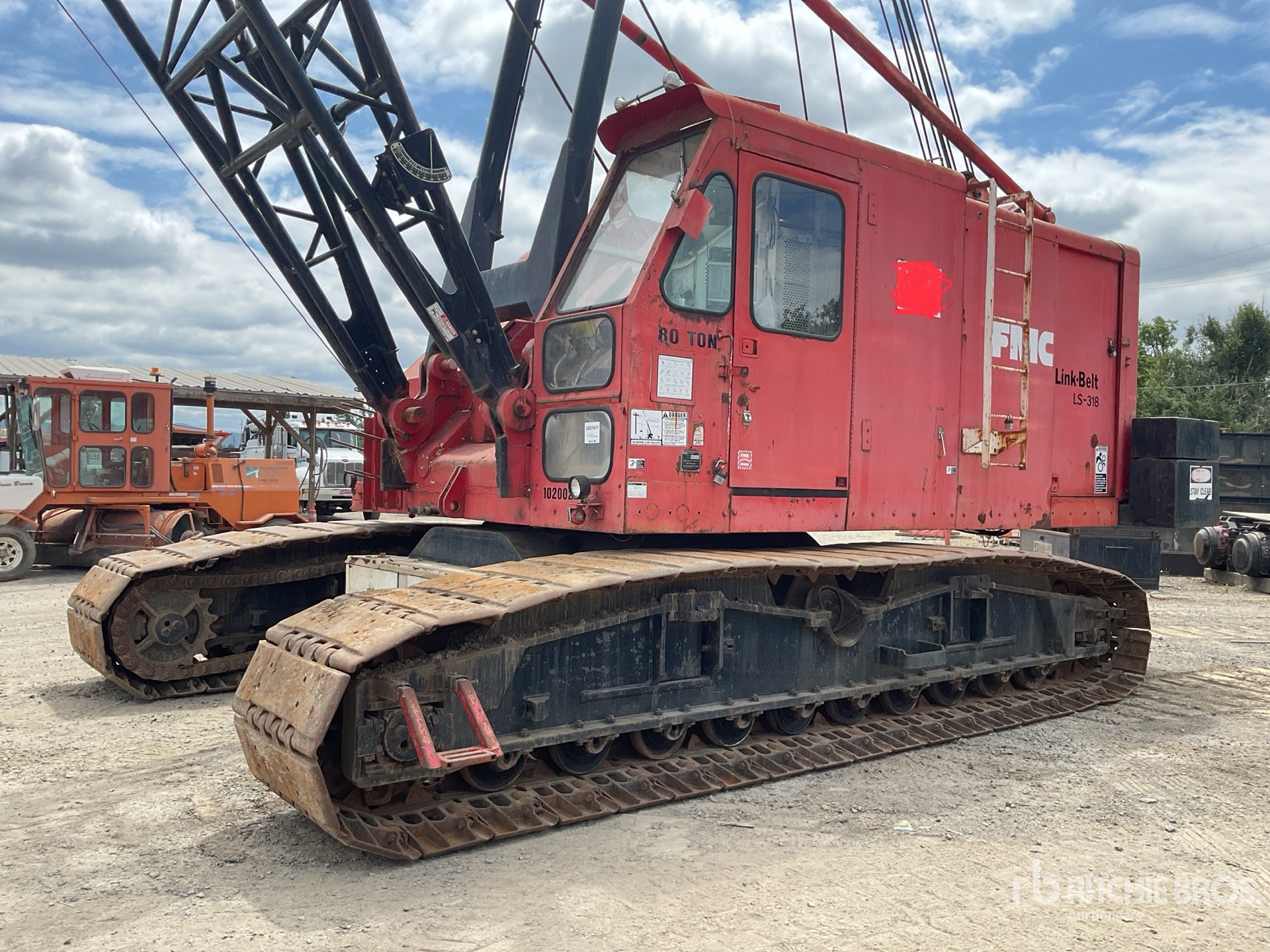

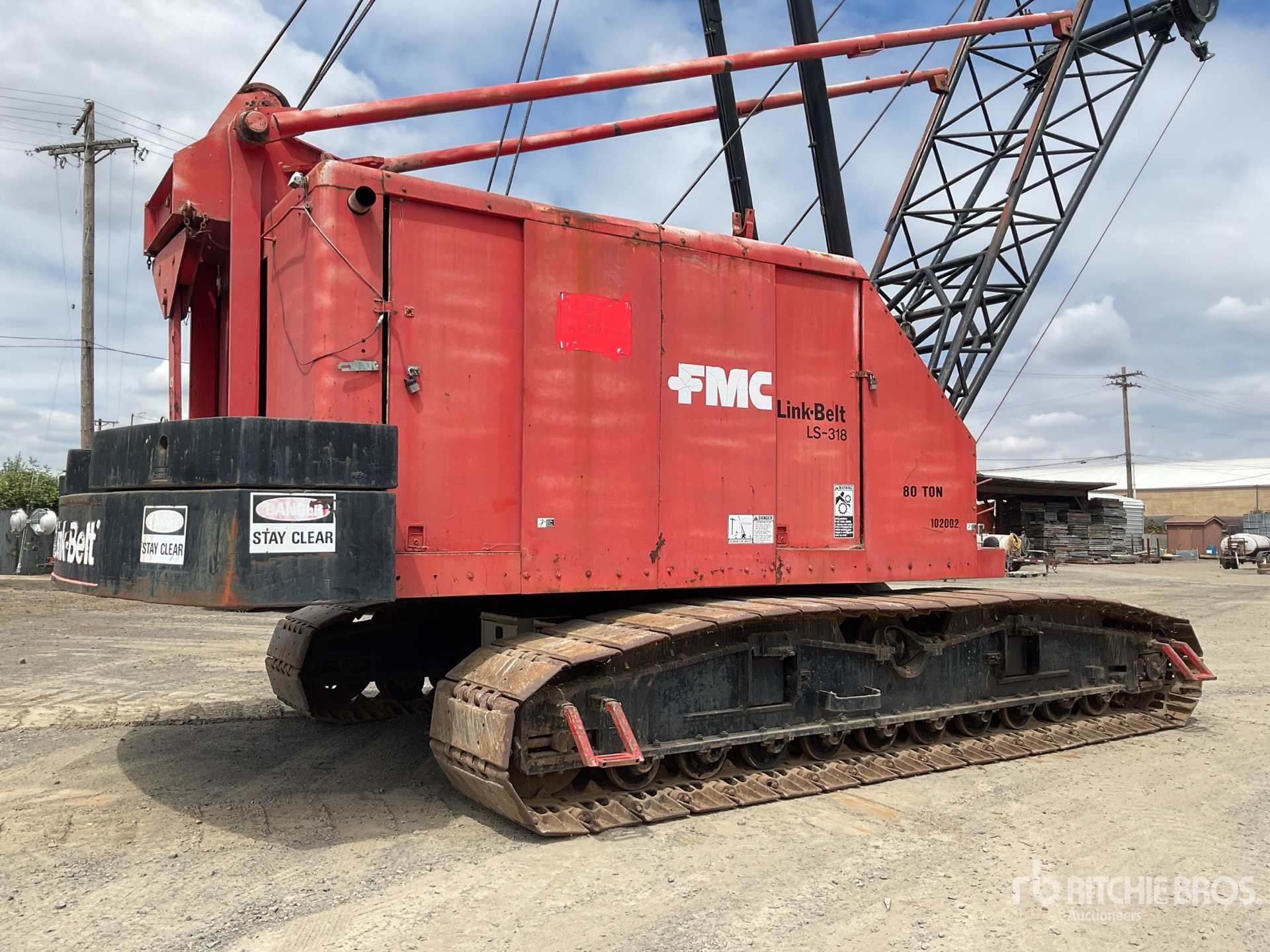

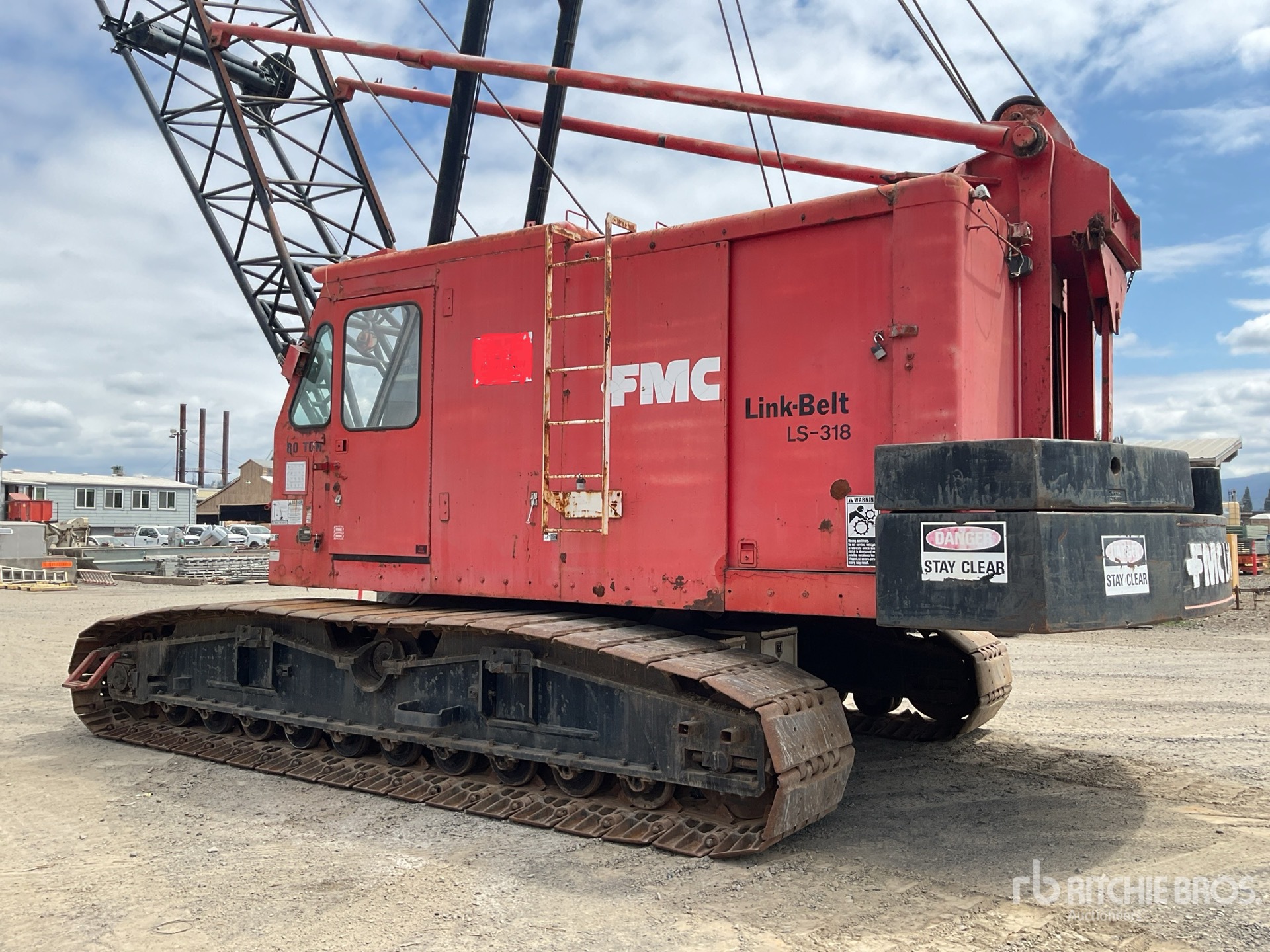

General Appearance
Serial Number / VIN
21G7-1209F
CE Mark
No CE mark found
Hour Meter / Odometer
7509 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Safety Certification Label
There is a safety certification label with a date of 5-1-14
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety
Horn
Operational
Seat Belts
Not equipped
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
Glass
Seats/Armrests
Load Moment Indicator
Not operationally checked with a load.
Controls Hydraulic or Air
Load Charts
Posted on cab wall, Chart book in cab
Oil Pressure
The gauge registers in the operating range.
Gauges
Operational
Hoist Brakes
Drum Rotation Indicator
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
US EPA Label
Emission Label
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Steering Clutches (Crane)
Steering Brakes
Service Brakes
Drive Chains/Sprockets
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Boom Drums
Mechanical Draw Works
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
120 ft overall length, 3 Sections, 40 ft Length, 20 ft base section
JIB Length
30 ft overall length
Boom Angle Indicator
Turntable Bearing
Swing Drive
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Track Tensioner
Left Track Pads
Left Track Links
Left Carrier Rollers
None
Left Track Rollers
Left Idler
Left Sprocket
Right Track Tensioner
Right Track Pads
Right Track Links
Right Carrier Rollers
None
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Jib
Main Load Block
Overhaul Ball
Third Drum
Disconnected
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jul 31, 2025 |
| Silicon | 2.52 PPM |
| Tin | 0 PPM |
| Silver | 0 PPM |
| Aluminum | 1.33 PPM |
| Chromium | 0.11 PPM |
| Lead | 0.36 PPM |
| Copper | 0.59 PPM |
| Nickel | 0.32 PPM |
| Iron | 10.73 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
