1977 American 5310 75 ton Lattice-Boom Crawler Crane
Located
Boonville, MO
Usage
8,950 hrs
Serial number
GS19065W
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#13056689
In yard
No
Year
1977
Manufacturer
Model
Asset type
Serial number or VIN
GS19065W
Features
140 ft Boom, 30 ft Fixed Jib, Auxiliary Hoist, 3rd Drum, 3 Sheave 55 ton Hook Block, 700 lb 13 ton Overhaul Ball, 40000 lb Counterweight, 36 in Track Shoes
General Appearance

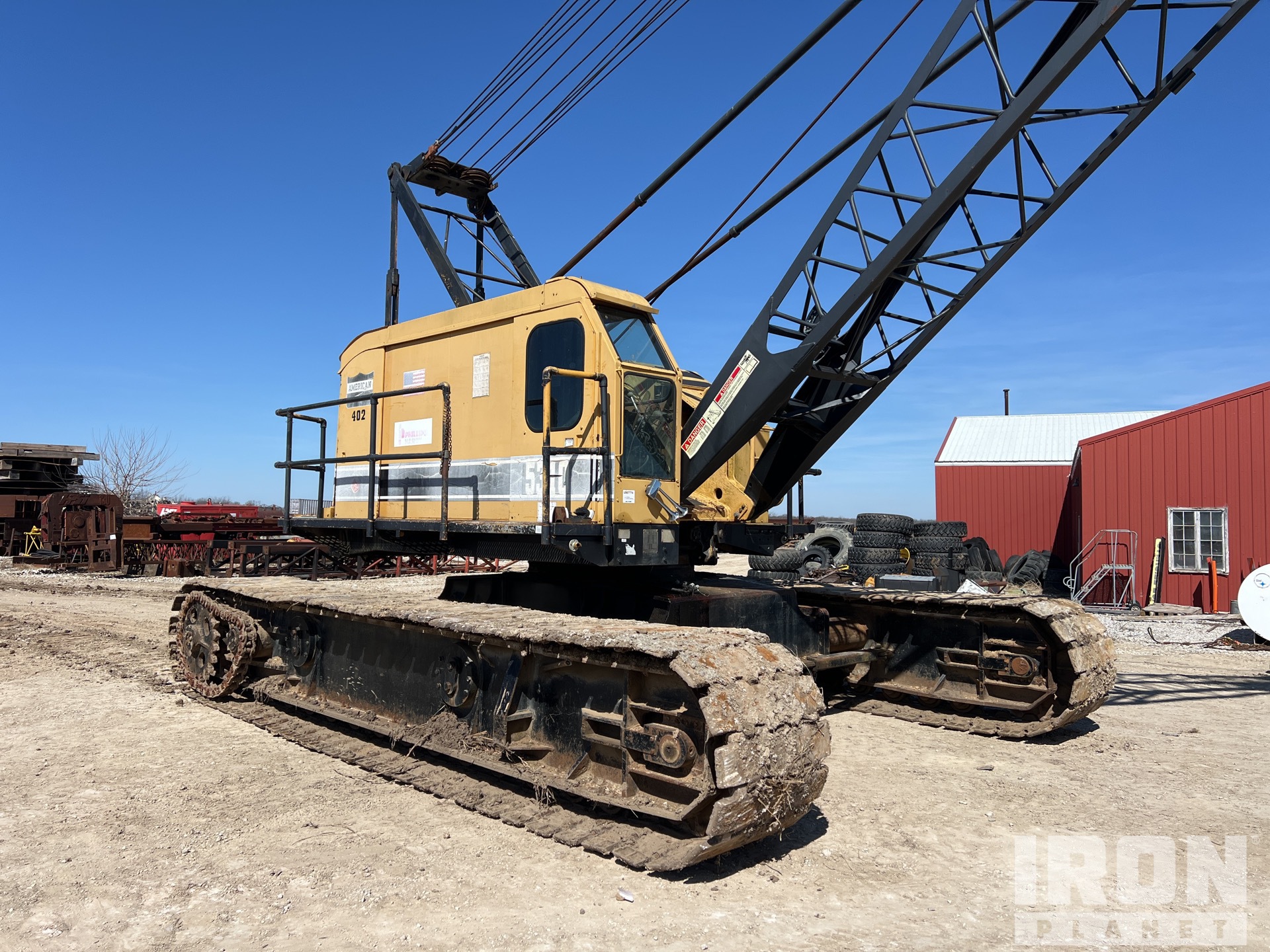

Picture, Left Front Corner

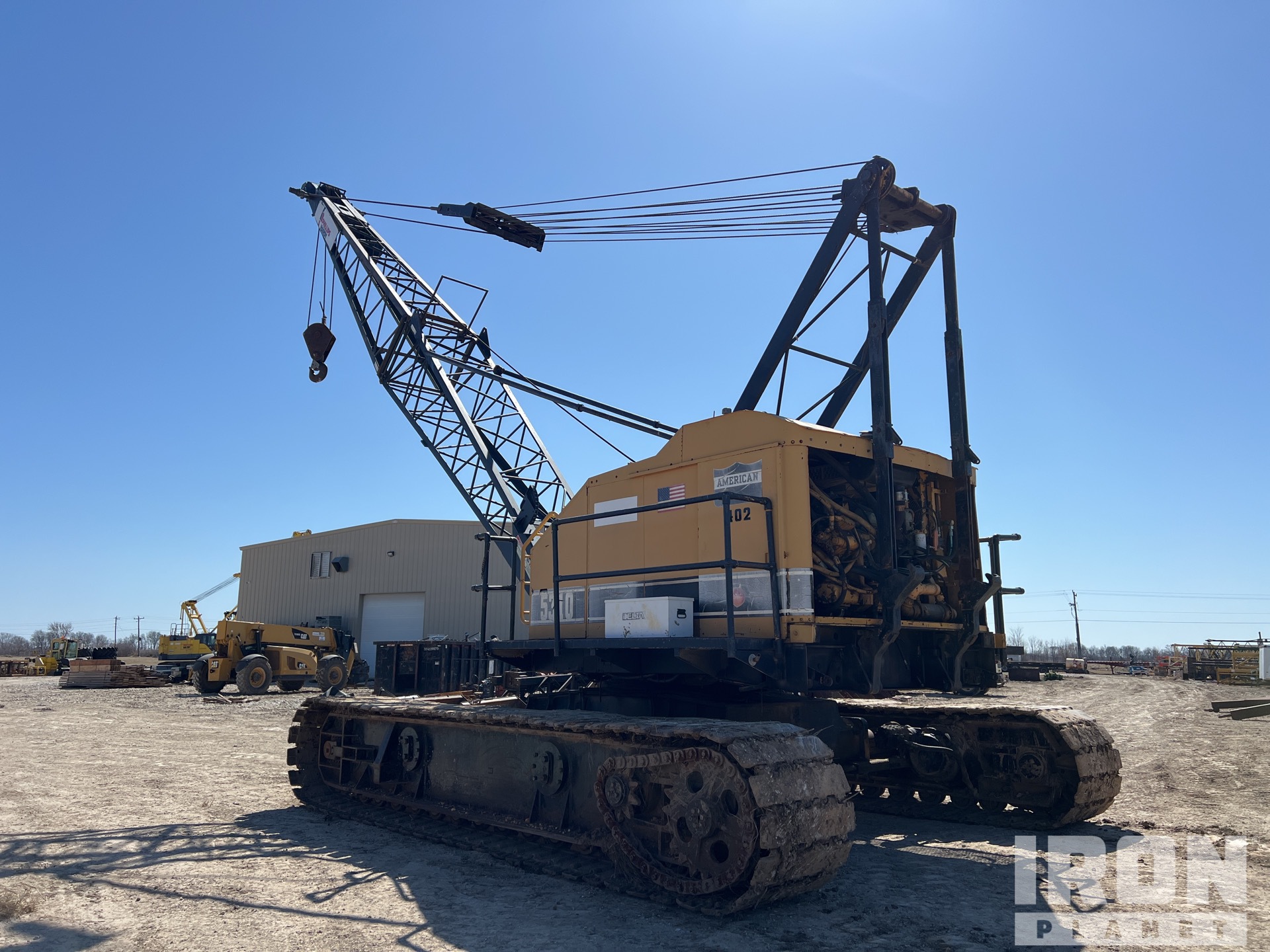

Picture, Left Rear Corner

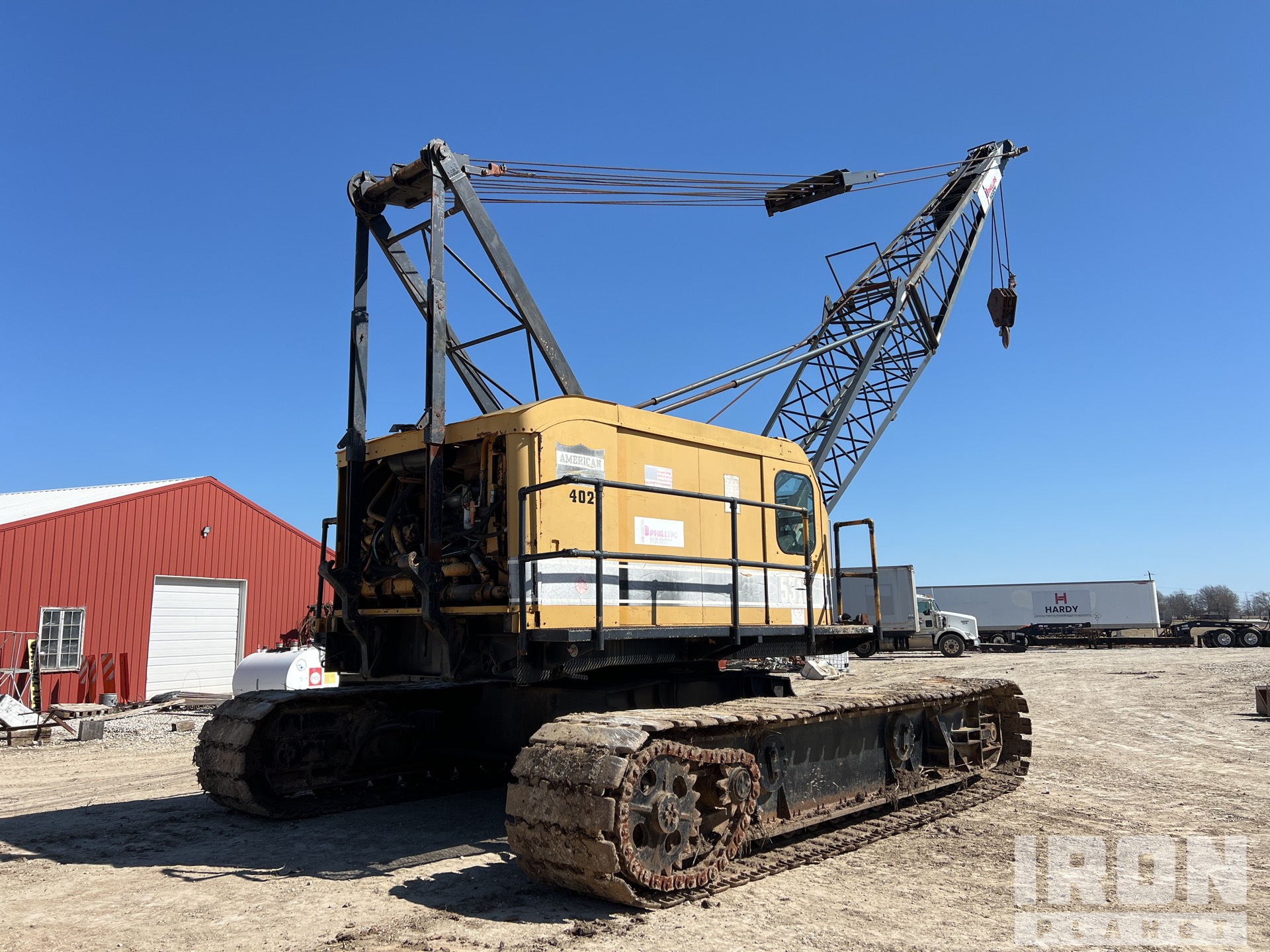

Picture, Right Rear Corner
Picture, Right Front Corner

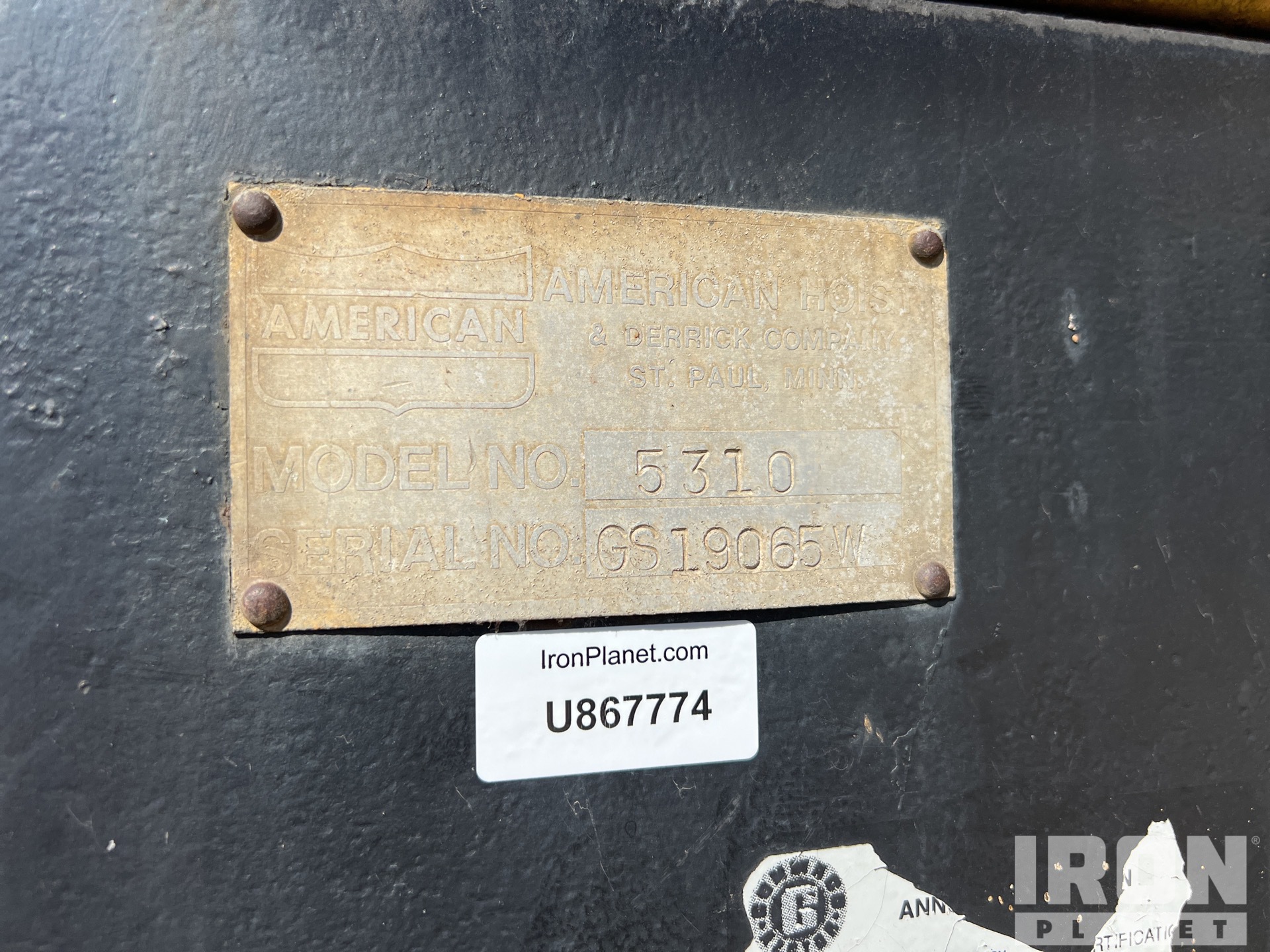

Serial Number / VIN
GS19065W
CE Mark
No CE mark found
Hour Meter / Odometer
8950 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Steps/Ladders
Hand Rails
Glass
Safety Certification Label
There is a safety certification label with a date of 6.2020
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
Glass
Front glass cracked.
Seats/Armrests
Controls Hydraulic or Air
Load Charts
Chart book in cab
Oil Pressure
The gauge registers in the operating range.
Gauges
Operational
Hoist Brakes
Heater
Inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Bent fins.
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Drive Chains/Sprockets
Drive Motors
Final Drives
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Pumps (Hydraulics)
Dripping leak
Hydraulic Motors
Dripping leak
Valves
Dripping leak
Hydraulic Tank
Dripping leak
Hoses (Hydraulic)
Leaking
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Mechanical Draw Works
Boom Drums
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Boom Length
140 ft overall length, 20 ft tip section, 20 ft base section, 2-40ft 1-20ft
JIB Length
30 ft overall length, 10 ft base section, 10 ft tip section, ( 3 ) 10 ft Center boom sections
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
40 mm
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
40 mm
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Jib
Disconnected 2 jibs included. 1-30ft 1-40ft
Main Load Block
Overhaul Ball
Third Drum
Not rigged.
Counterweights
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Mar 28, 2025 |
| Silicon | 24.72 PPM |
| Tin | 7.27 PPM |
| Silver | 0.28 PPM |
| Aluminum | 1.84 PPM |
| Chromium | 5.44 PPM |
| Lead | 3.93 PPM |
| Copper | 25.69 PPM |
| Nickel | 0.02 PPM |
| Iron | 120.74 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
