177 Photos
1975 Manitowoc 4100 Vicon 230 ton Lattice-Boom Crawler Crane
Located
Miami, FL
Miami, FL
Usage
8,977 hrs
8,977 hrs
Serial number
41304
41304
Loading...
ID number
#14279213
In yard
No
Features
154 ft Boom, Auxiliary Hoist, 48 in Smooth Track Shoes

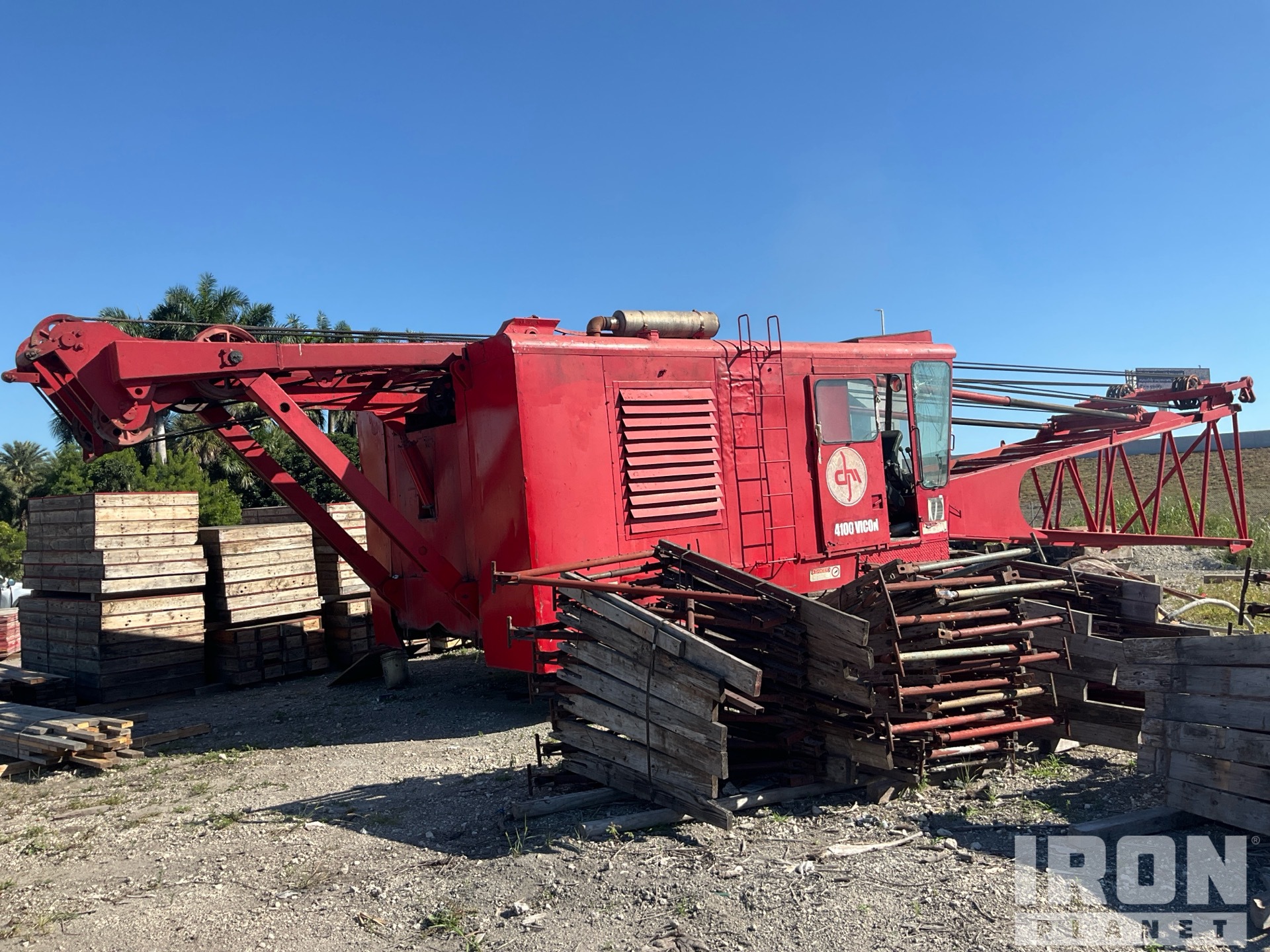

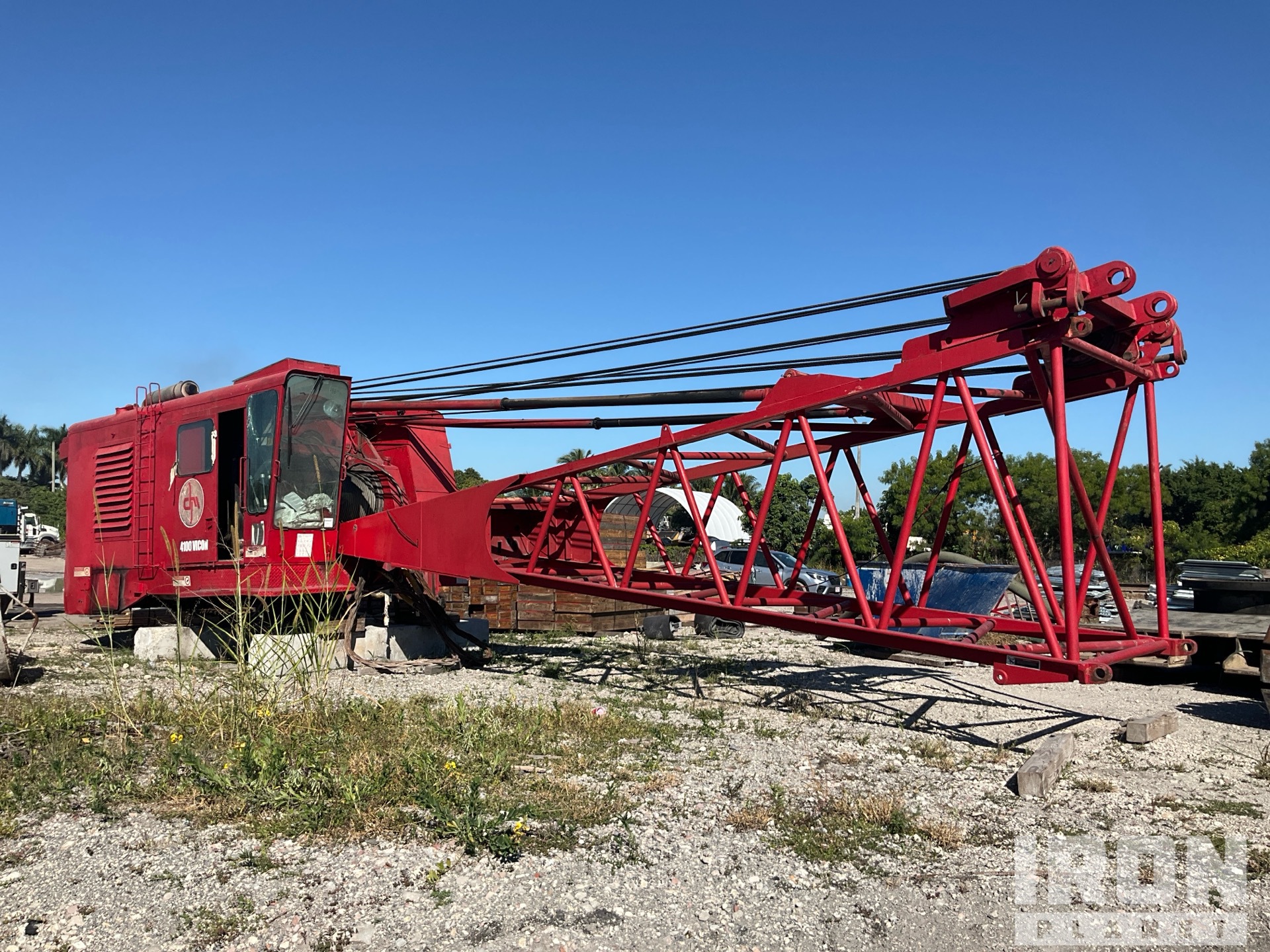

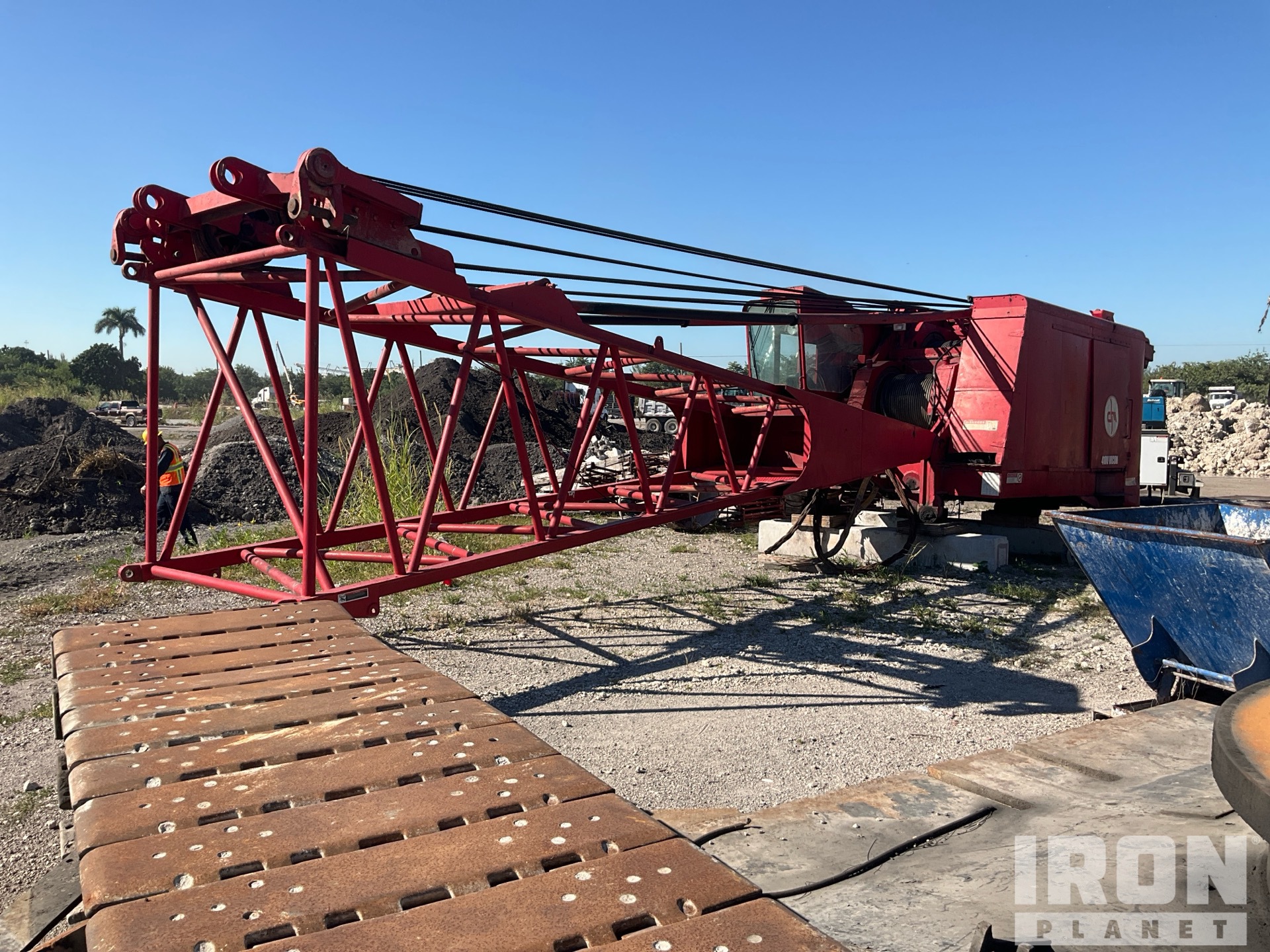

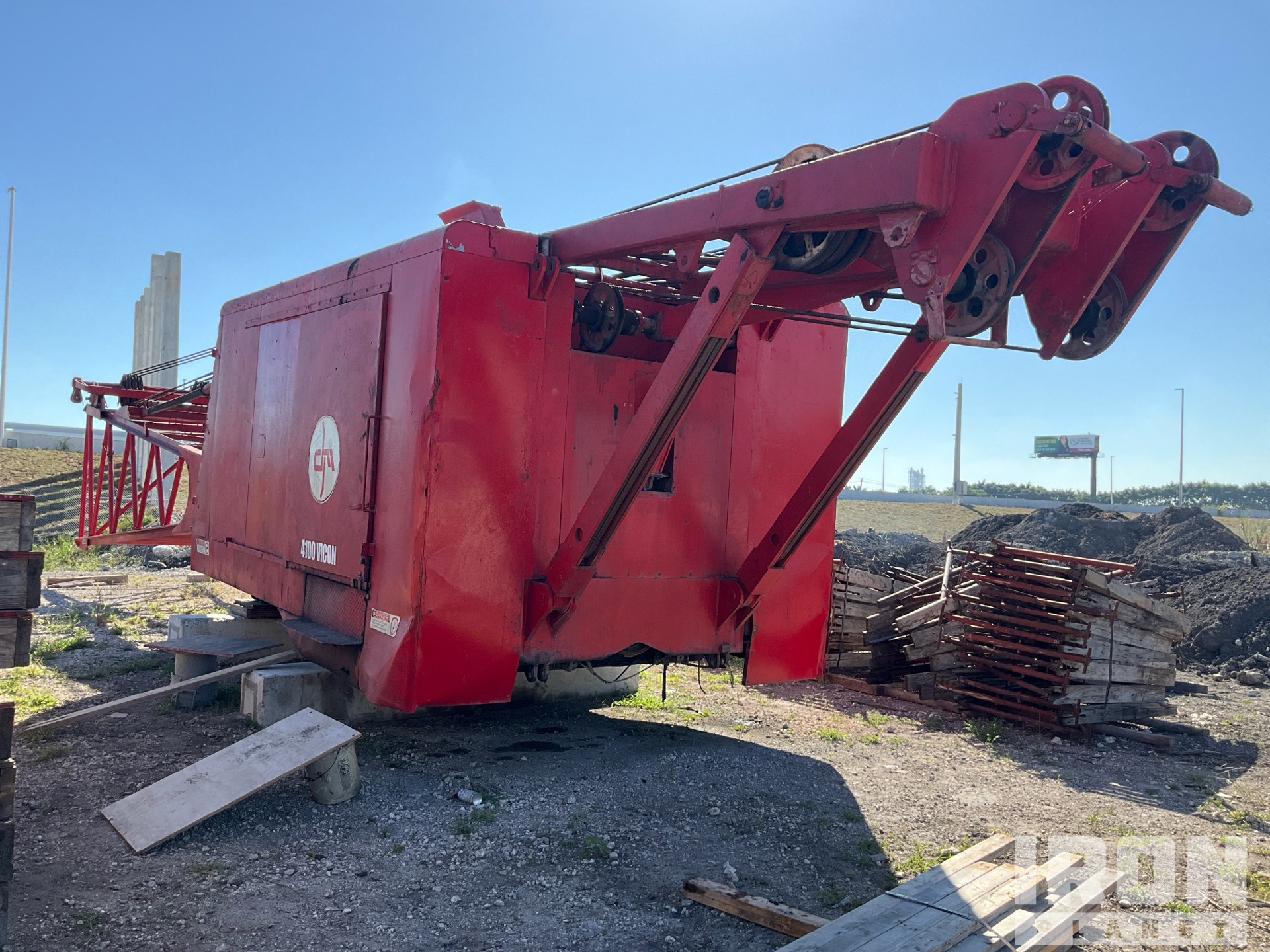

General Appearance
Serial Number / VIN
41304
CE Mark
No CE mark found
Hour Meter / Odometer
8977 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Windshield cracked
Exterior Lights
Not operational
Safety Certification Label
There is a safety certification label with a date of 7/25/25
Safety Certification Report
Safety Certification Report Available
Load Chart
Yes
Safety
Travel Alarm
Could not be operationally checked, undercarriage disabled
Horn
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Control Station - Upper
Mirrors
Glass
Windshield cracked
Seats/Armrests
Controls Hydraulic or Air
Load Charts
None found
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Inoperable
Gauges
Operational
Hoist Brakes
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Emission Label
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Steering Clutches (Crane)
Drive Chains/Sprockets
Drive Motors
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain could not be operationally checked., Under carriage separated from cab
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Boom Drums
Hydraulic Operation
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Boom Stops
Main Boom Chords
Boom Length
{values=[154], unitId=14} overall length, 4 Sections
Boom Angle Indicator
Not equipped
Turntable Bearing
Bottom Covers
Swing Drive
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
None Supplied, Not on location. POC to confirm location of assets
Overhaul Ball
None Supplied, Not on location. POC to confirm location of assets
Counterweights
Non attached
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Nov 21, 2025 |
| Silicon | 0.06 PPM |
| Tin | 2.79 PPM |
| Silver | 0 PPM |
| Aluminum | 0.58 PPM |
| Chromium | 0 PPM |
| Lead | 0 PPM |
| Copper | 0.85 PPM |
| Nickel | 0 PPM |
| Iron | 0 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
