141 Photos
1975 Link-Belt HC138A 65 ton 65-Ton Lattice-Boom Truck Crane
Located
Schererville, IN
Schererville, IN
Usage
2,057 hrs
2,057 hrs
Serial number
19G50101
19G50101
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15794753
In yard
No
Features
9 Speed Manual Transmission, 1381 hrs Carrier Engine, Detroit V8 Diesel Carrier Engine, Detroit Diesel Upper Engine, 80 ft Boom, 3rd Drum, Counterweight Removal System

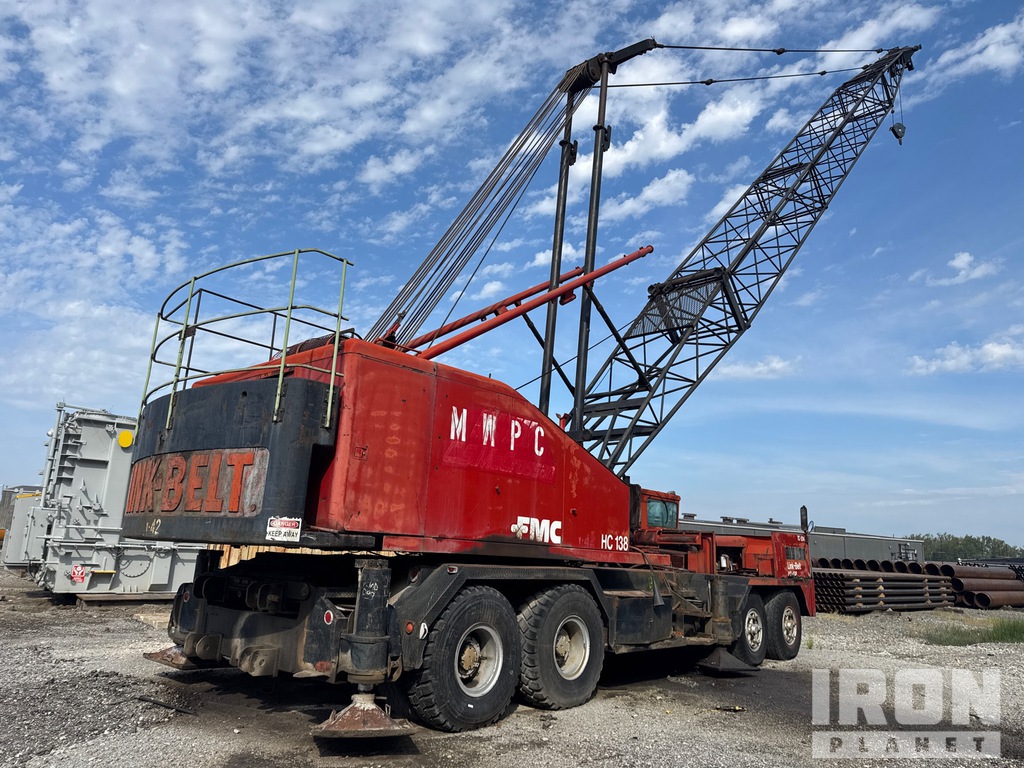

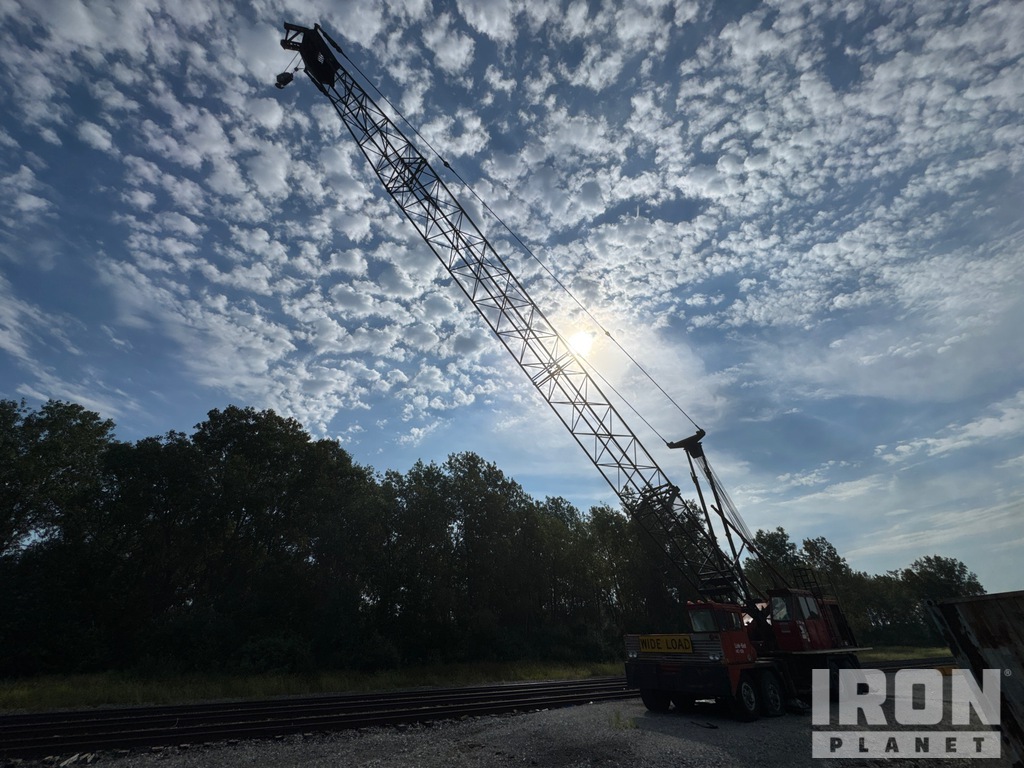

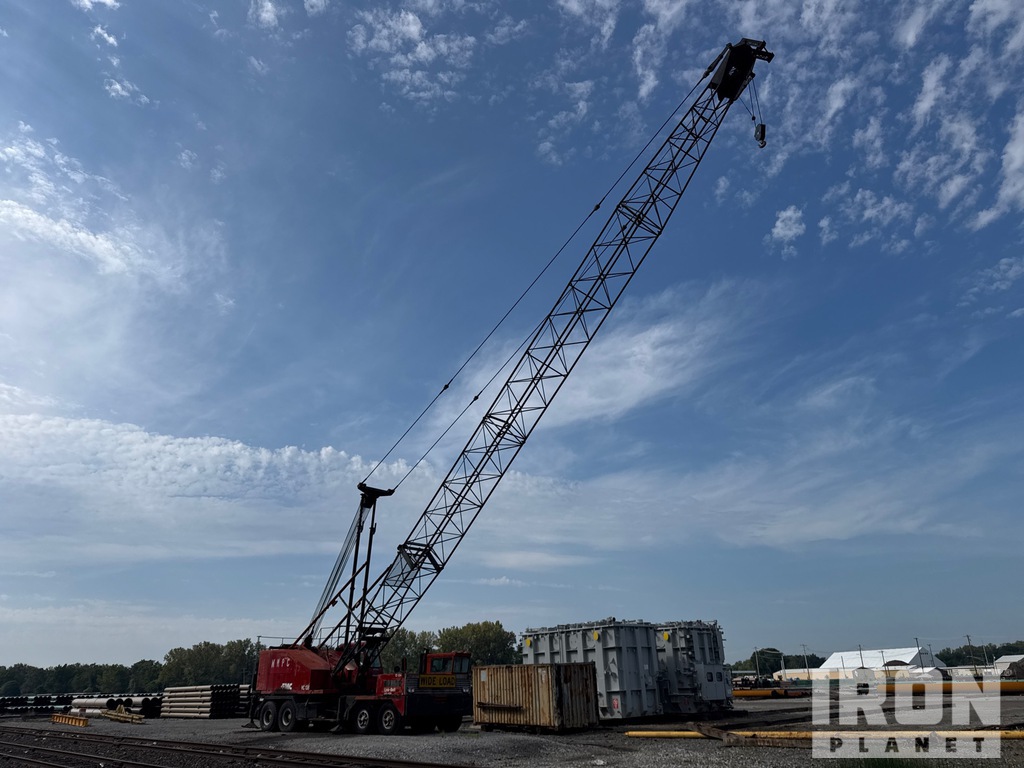

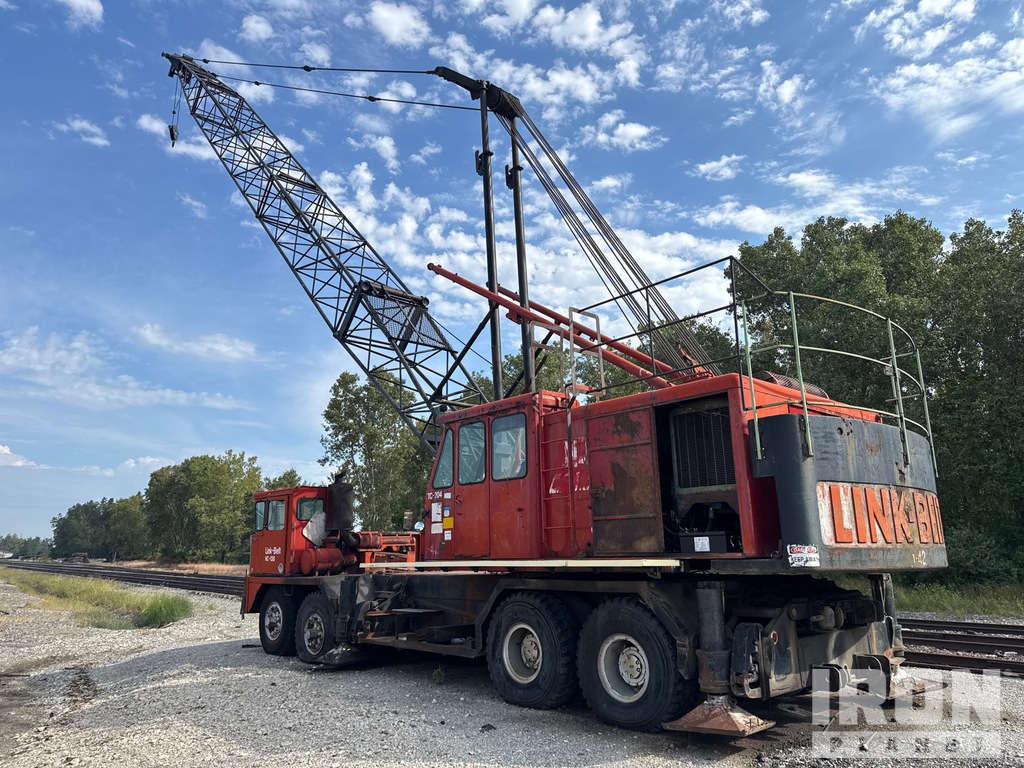

General Appearance
Serial Number / VIN
19G50101
Hour Meter / Odometer
2057 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Not operational
Safety Certification Label
Safety Certification Label not legible.
Safety Certification Report
Safety Certification Report Not Available
Load Chart
Yes
Safety
Horn
Inoperable
Seat Belts
Not equipped
Safety Lock Out/Stop
Missing
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Lower/Carrier Engine Hours
1381 hrs Carrier Engine
Seats/Armrests
Small rip
Mirrors
Steering Controls
Cracked and worn
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Inoperable
Gauges
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Underbody
Transmission
Operational
Clutch
Engages
PTO Pump
Operational
Steer Axle
Front Drive Axle
Rear Drive Axle
Final Drives
Limited Function Check - Carrier
The drivetrain was operational without a load.
Carrier Chassis
Steering Linkage
Steering Wheel Play
Brake Type
Air
Master Cylinder/Brake Control
Brake Lines/Hoses
Park Brake
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Frame Condition
Cross Members
No visible damage
Tire Size
All of the tires are the same size, 14.00R20 Front tires
Tire Condition
Tread Depth
LF 9 /32", LR 15 /32", LMI 11 /32", LMO 20 /32", LRI 10 /32", LRO 20 /32", RRI 8 /32", RRO 20 /32", RMI 9 /32", RMO 20 /32", RR 9 /32", RF 8 /32"
Wheel Condition
Wheel Studs
Outrigger Beams
Outrigger Cylinders
Outrigger Pads
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulic)
Swing Motor
Hidden
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Upper Control Station
Hour Meter Reading
2052 Hours, There is an hour meter replacement/change label that has 1784-IronPlanet makes no guarantees as to actual hours/miles; we can only report what can be visually observed.
Control Station - Upper
Glass
Top Glass Cracked
Seats/Armrests
Controls Hydraulic or Air
Load Charts
Posted on cab wall
Oil Pressure
Gauge inoperable
Warning Lights
Gauges
Hoist Brakes
Drum Rotation Indicator
Operational
Heater
Operational
Limited Function Check
Upper Engine
Emission Certification Label
None found
Starter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
Crane Superstructure
Hoist Drums
Boom Drums
Hoist and Boom Clutches
Main Boom Pins
Pendant Line (Boom Tension Line)
Rod Type
Point Sheaves
Boom Point Section
Gantry/Mast
Boom Stops
Main Boom Chords
Boom Length
20 ft overall length, 20 ft tip section, 2 Sections, 20 ft Length, 20 ft base section
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Specialty
Main Load Block
Counterweights
