72 Photos
Simon TC-4485 22 ton Straight Boom on 1988 Mack DMM6856S 8x6 Boom Truck
Located
Waukesha, WI
Waukesha, WI
Usage
3,410 mi
3,410 mi
Serial number
1M2E126C0JW004091
1M2E126C0JW004091
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15280272
In yard
No
Features
Mack 6 Cylinder Diesel Engine, 2628 Engine hrs, Air Conditioner, Mack Manual Transmission, 425/65R22.5 Front Tires, 11R22.5 Rear Tires, Air Lift Pusher Axle, Double Frame, Camelback Spring Suspension, 242 in Wheelbase, PTO, 27 ft - 85 ft 3 Section Boom, 172 lb Overhaul Ball 7 ton Capacity, Out and Down Outriggers, Rear Outriggers, 20 ft x 102 in Bed
Notes
**Title may not be available for up to 25 business days after auction.**

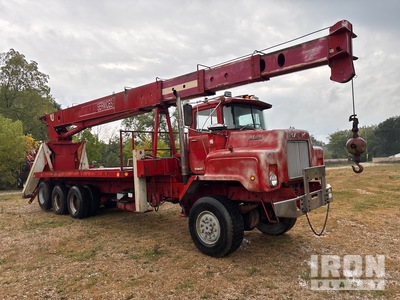

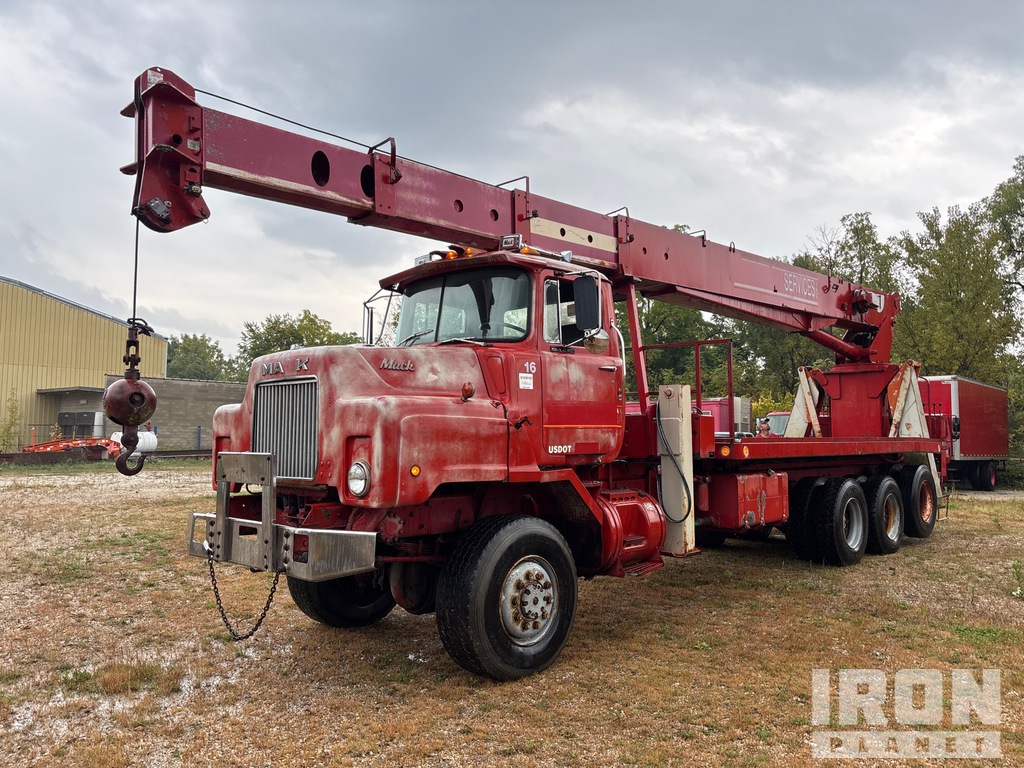

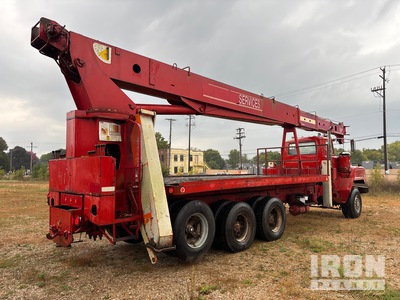

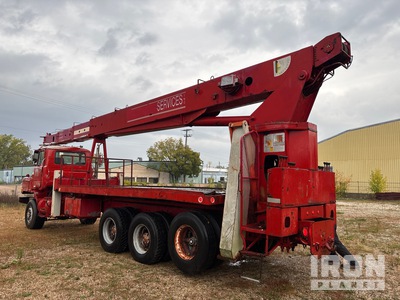

General Appearance
(14)
Serial Number / VIN
1M2E126C0JW004091
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
3410 mi, Miles seem low compared to age and condition of unit-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, Head lights are not operational
Brakes / Tires
Steer Axle
- 7/32" Steel
- Disc
- Disc
- 7/32" Steel
Rear Axle
- 18/32" Steel
- 18/32" Steel
- Drum
- Drum
- 12/32" Steel
- 18/32" Steel
Rear Axle
- 14/32" Steel
- 17/32" Steel
- Drum
- Drum
- 24/32" Steel
- 15/32" Steel
Rear Axle
- 8/32" Steel
- 8/32" Steel
- Drum
- Drum
- 14/32" Steel
- 12/32" Steel
Engine
(10)
Emissions Information
No US EPA Label Present
A/C Compressor
Compressor will not engage
Blow-by (subjective visual observation)
Minor
Starter
Operational
Air Compressor
Operational, Wet with residue
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
(13)
Engine Hours
2628 Engine hrs
Mirrors
Broken mirror glass on left spot mirror
Window Controls
Both Manual
Seats/armrests
Torn left seat cover
Seat Belts
Operational
Steering Control
Horn
Air horn weak, Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Clutch
Engages
PTO Control
Air engaged, Operational
Air Conditioner
Inoperable
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
(18)
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational, Seepage
PTO Pump
Operational, Seepage
Frame Condition
Front Drive Axle
Rear Drive Axle
Pinion seal leak
Non-Driven Rear Drop Axle
Limited Function Check
The drivetrain was operational without a load.
Suspension Springs/Hangers
Suspension Bushings
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
(17)
Bed Body
Support Frame
Valves
Dripping leak
Hoses (Hydraulic)
Swing Motor
Dripping leak
Boom Lift Cylinder(s)
Boom Extension Cylinder
Stabilizer Cylinders
Boom Wear Guides
Boom Condition
Turntable Bearing
Stabilizer Beams
Stabilizer Controls
Control Console
Hydraulic Controls
Safety Lock Out/Stop
Operational
Gauges
Operational
Limited Function Check
The hydraulic system was operational.
