68 Photos
Powerscreen Mark II Portable Screen Plant
Located
Griffith, IN
Serial number
2738479
Loading...
Detailed equipment information
This lot is protected by IronClad Assurance
Buy with confidence knowing that this lot has been given a full and detailed inspection by a qualified inspector.
ID number
#12915494
In yard
No
Manufacturer
Model
Asset type
Serial number or VIN
2738479
Features
5 ft x 12 ft Belt Feeder w/Grizzly 6 ft x 4 ft Double Deck Screen, 24 in Wide Feed Conveyor, S/A Carrier
General Appearance

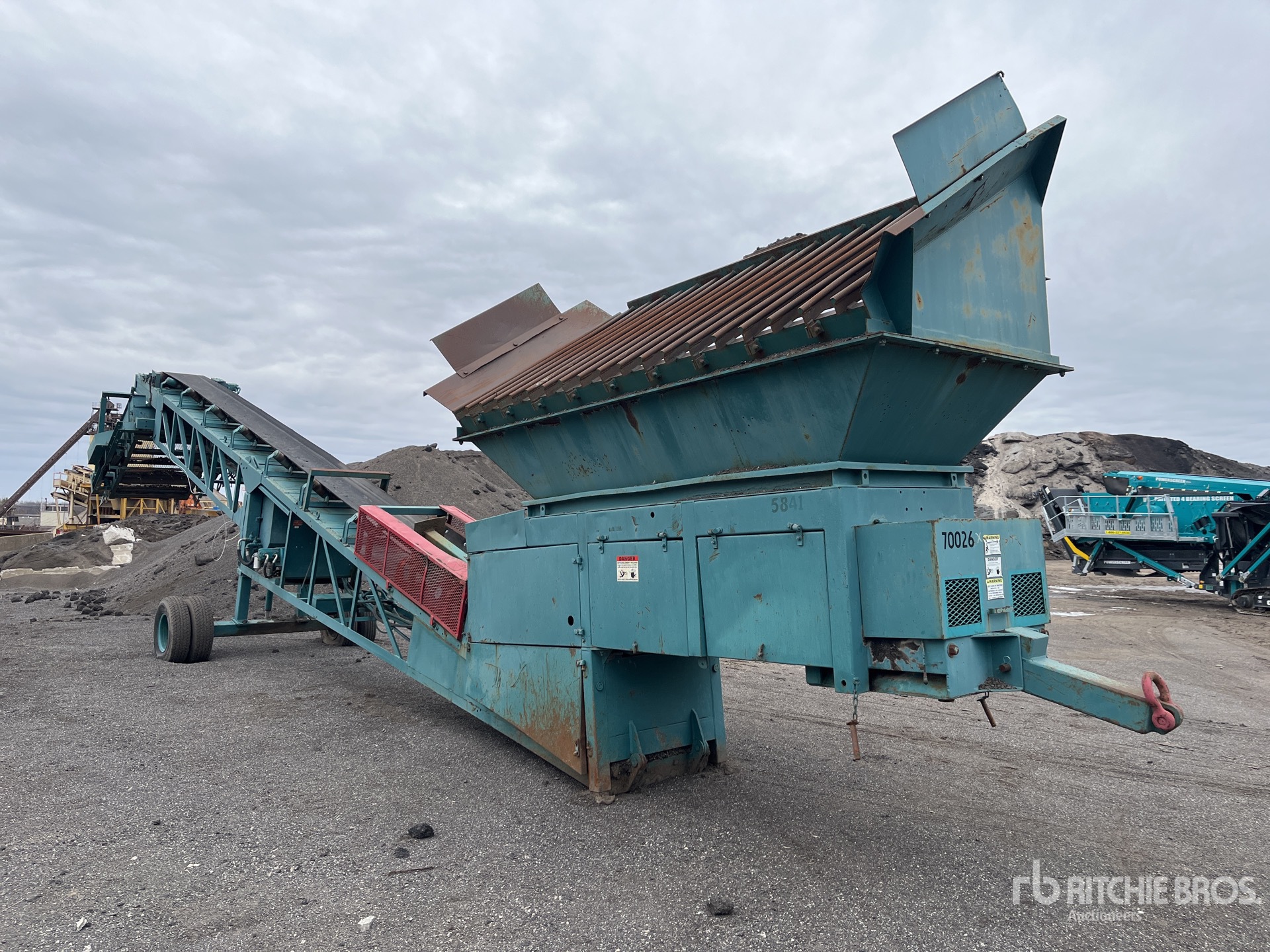

Picture, Left Front Corner

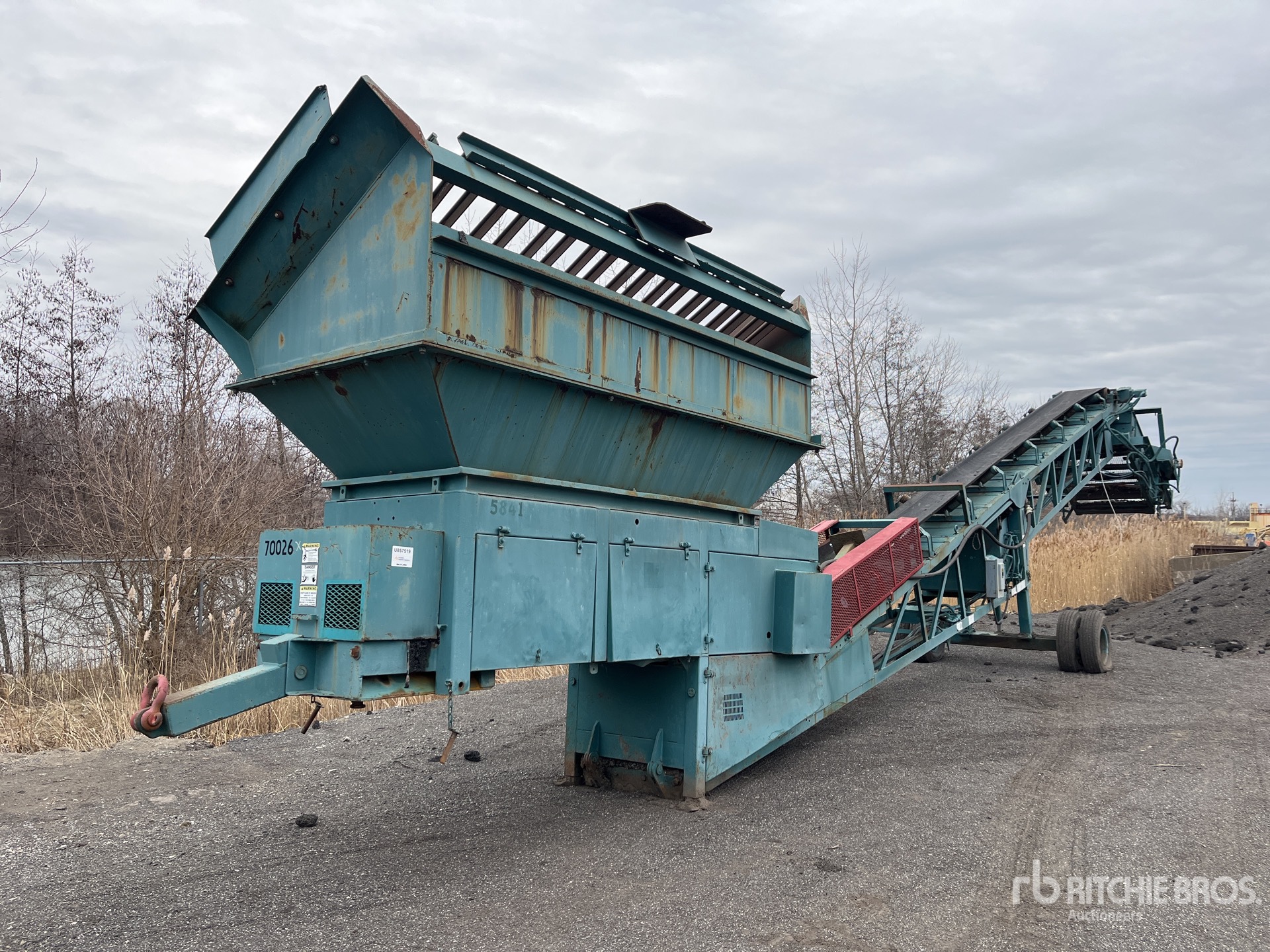

Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner

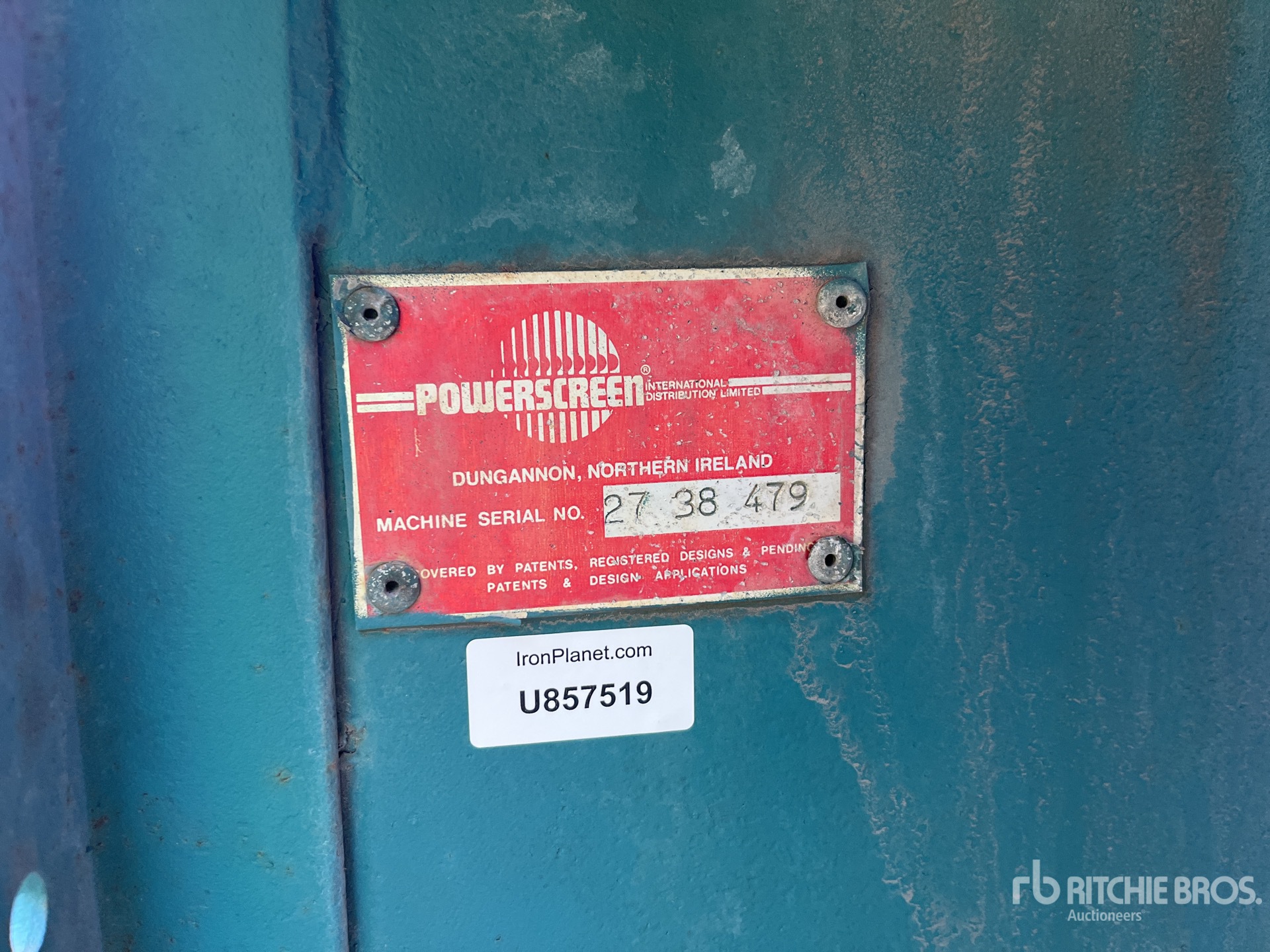

Serial Number / VIN
2738479
Control Station
Crusher/Screen Controls
Not operationally checked
Limited Function Check
Electric not hooked up cannot operationally check
Electrical
Electric Motors
Manufacture brand WEG, Horsepower: 30, Not hooked up. Not operationally checked
Disconnect Switch
Not operationally checked
Cables and Connections
Hydraulics
Pumps (Hydraulics)
Not operationally checked visually looks ok
Hydraulic Motors
Not operationally checked
Valves
Dripping leak, Not operationally checked. Drip leak at feeder control valve.
Hydraulic Tank
Sight glass leak
Hoses
Fluid seepage near valves
Conveyor Cylinders
Not operationally checked visually looks ok
Limited Function Check
The hydraulic system could not be operationally checked.
Chassis
Feed Hopper
Length @ top: 13ft 4in, Width @ top: 6ft, Grizzly length: 6ft, Width between grizzly bars: 6in
Feed Conveyor Condition
24 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Drive Motor
Not operationally checked
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Wear
Screen Deck
Number of decks: 2, End tension bottom deck, Some Wear
Deck Frames / Wear Bars
Wear
Screen Cloth
Heavy wear
Chute Condition
Chutes have been lined
Carrier
Axle Condition
Limited Function Check
The main chassis components could not be operated.
Tire Size
235/85r16 Front tires, LF kenda radial, RF Ironman
Tire Condition
Seller will have tires checked before pickup. Right side flat
Wheel Condition
Wheel Studs
Tongue/ Hitch Condition
No visible damage
Frame Rails/ Main Beams Condition
Bent metal
Landing Gear / Tongue Jack
Not operationally checked. Manual adjustment
