McCloskey S-190 3DT Tracked Screen Plant
Located
Canton, OH
Canton, OH
Usage
564 hrs
564 hrs
Serial number
91581
91581
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15961701
In yard
No
Features
Cat 4 Cylinder Diesel Engine, Requires Diesel Exhaust Fluid, 3 ft x 14 ft Belt Feeder w/Hydraulic Raise Grizzly Na 20 ft x 5 ft Triple Deck Screen, Spray/Wash System, 46 in Wide Feed Conveyor, 31 in Wide Fines Discharge Conveyor, 47 in Wide Under Screen Conveyor, 31 in Wide Left Discharge Conveyor, 31 in Wide Right Discharge Conveyor, 41 in Wide End Discharge Conveyor, 25 in x 29 ft Left side Conveyor, Cable Remote Control, 19.5 in Triple Grouser Track Shoes

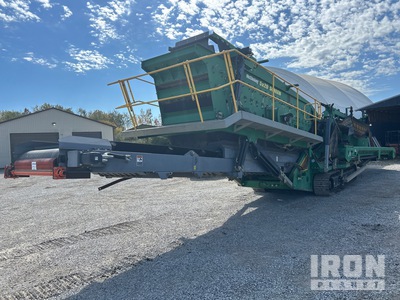

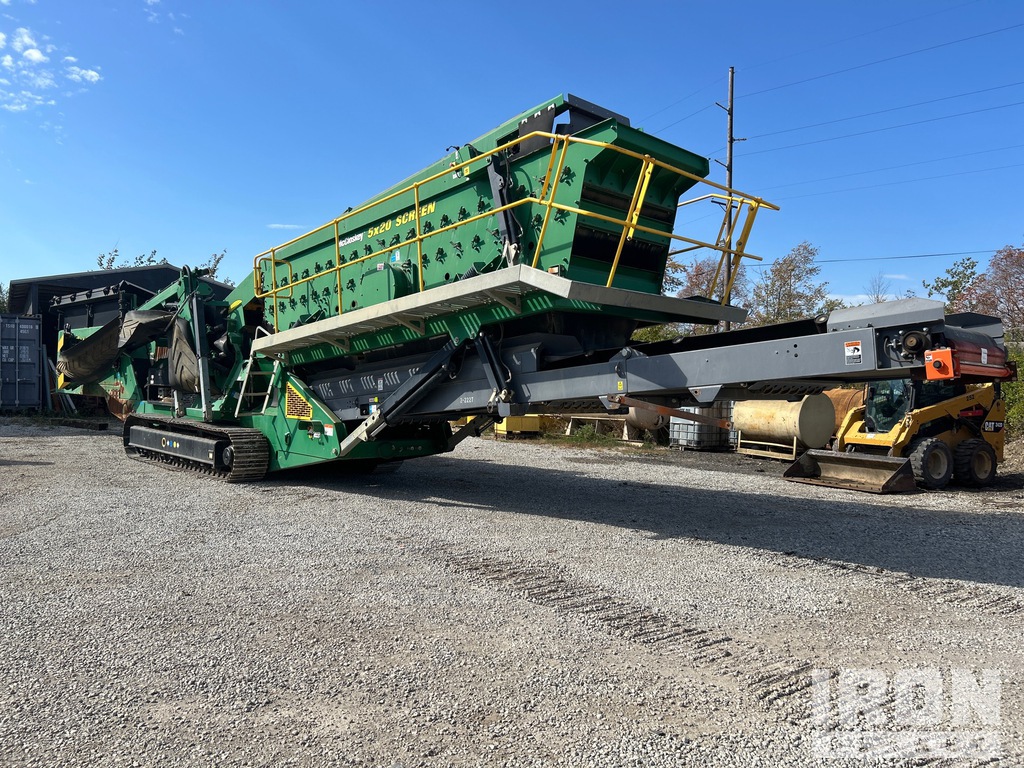

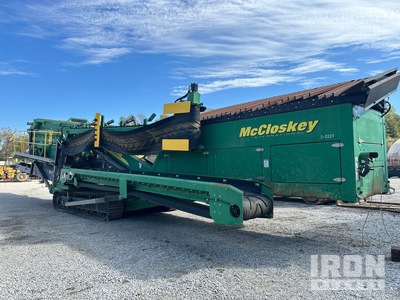

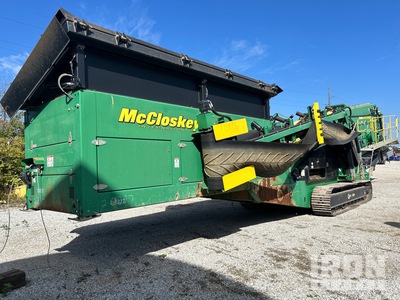

General Appearance
(12)
Serial Number / VIN
91581
Hour Meter / Odometer
564 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
(12)
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
(11)
Emissions Status
No US EPA Label Present
Emission Certification Label
None found
Blow by @ idle (subjective visual observation)
Recirculating system
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
(19)
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Conveyor Cylinders
Stabilizer Jack Cylinders
Auxiliary Hydraulic Plumbing
Not operationally checked, Front
Power Travel Drive System
Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
(45)
Feed Hopper
Length @ top: 14 ft 6 in, Width @ top: 5 ft 6 in, Grizzly length: 6 ft 6 in, Width between grizzly bars: 4.5 in
Feed Conveyor Condition
47 in wide feed belt
Feed Conveyor Frame
Feed Conveyor Drive Motor
Operational
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Incline screen, Number of decks: 3, Side tension bottom deck
Deck Frames / Wear Bars
Screen Cloth
Chute Condition
Undercarriage
(19)
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
22 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
22 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
