Fassi F410A.24 Knuckle Boom on 2004 Mack CV713 8x4 Boom Truck
Located
Waukesha, WI
Waukesha, WI
Usage
157,847 mi
157,847 mi
Serial number
1M2AG11C84M009005
1M2AG11C84M009005
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15280271
In yard
No
Features
Mack AI 6 Cylinder 728 cid Diesel 400 hp Engine, 2003 US EPA Label, 13427 Engine hrs, Air Conditioner, Cruise Control, Engine Brake, Mack 10-Speed Manual Transmission, Air Ride Cab, Aluminum Outer Wheels, 425/65R22.5 Front Tires, 11R22.5 Rear Tires, Air Lift Tag Axle, Dual Steering Boxes, Double Frame, Camelback Spring Suspension, 292 in Wheelbase, PTO, 8 ft - 40 ft 4 Section Boom, Out and Down Outriggers, Rear Outriggers, 22 ft x 102 in Bed, Pintle Hitch
Notes
**Title may not be available for up to 25 business days after auction.**

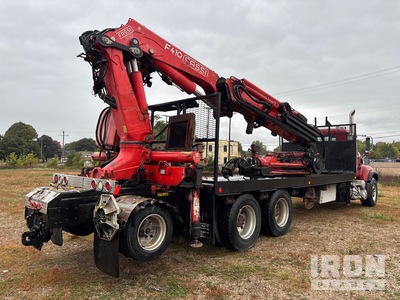

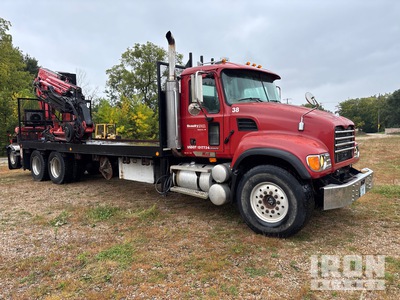

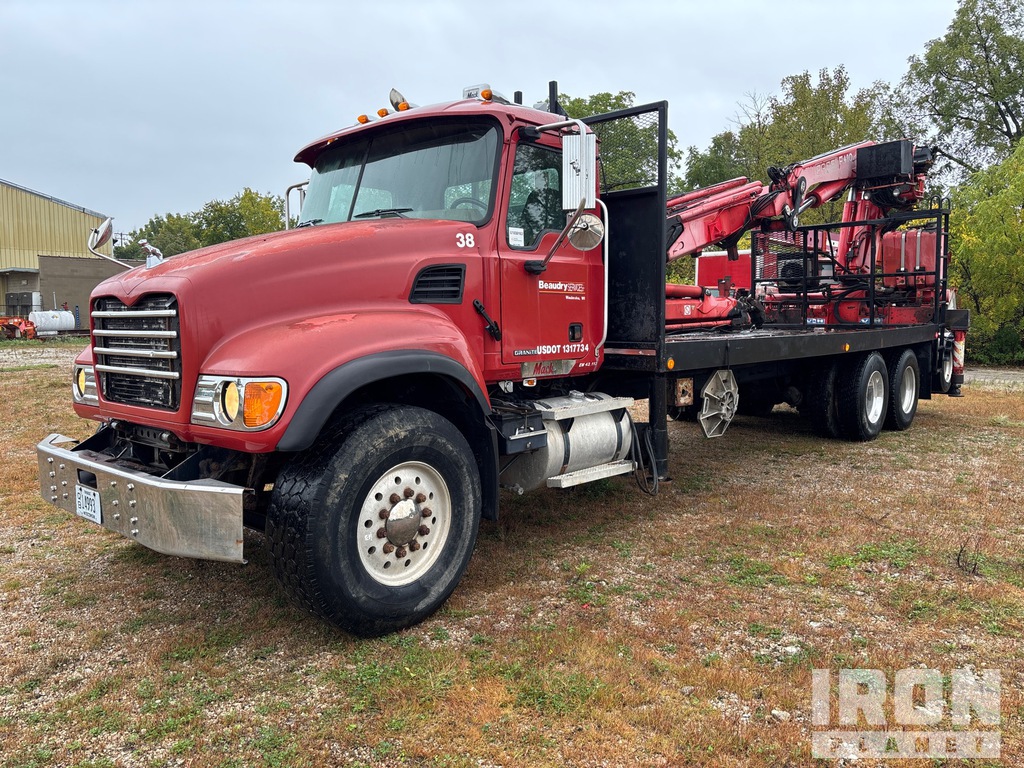

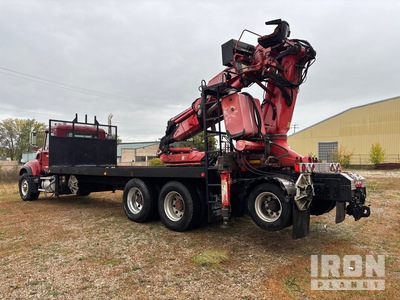

General Appearance
(15)
Serial Number / VIN
1M2AG11C84M009005
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
157847 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Clearcoat peeling on hood
Sheet Metal (fiberglass) Condition
Damaged grille
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational
Brakes / Tires
Steer Axle
- 12/32" Aluminum
- Covered
- Covered
- 14/32" Aluminum
Rear Axle
- 19/32" Aluminum
- 21/32" Steel
- Drum
- Drum
- 8/32" Steel
- 19/32" Aluminum
Rear Axle
- 11/32" Aluminum
- 12/32" Steel
- Drum
- Drum
- 12/32" Steel
- 12/32" Aluminum
Rear Axle
- 16/32" Aluminum
- 16/32" Aluminum
- Drum
- Drum
- 18/32" Aluminum
- 16/32" Aluminum
Engine
(11)
Emissions Information
2003 US EPA Label
Emission Label
A/C Compressor
Not operationally checked
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational, Audible air leaks after shut-down, Dripping leak
Fuel System
Operational
Exhaust System
Radiator
Low coolant level in reservoir
Oil Leaks
Side of engine, Rear of engine
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran. The engine would not re-start after shutting down without jump starting.
Cab
(15)
Engine Hours
13427 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, Electric fault light stays on
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
Clutch
Engages
PTO Control
Air engaged, Operational
Air Conditioner
Not operationally checked, Missing climate control function and temperature control knobs
Heater
Not operationally checked, Missing climate control function and temperature control knobs
Limited Function Check
The main components are in place and operational as noted.
Underbody
(21)
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational, Air operated, Dripping leak
PTO Pump
Operational, Dripping leak
Frame Condition
Front Drive Axle
Rear Drive Axle
Non-Driven Rear Drop Axle
Limited Function Check
The drivetrain was operational without a load.
Cab Suspension Air Bags
Suspension Springs/Hangers
Rusty
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
(17)
Bed Body
Support Frame
Valves
Wet with residue
Hoses (Hydraulic)
Spraying leak from front right outrigger hoses
Swing Motor
Boom Lift Cylinder(s)
Rod seals wet with residue
Boom Extension Cylinder
Stabilizer Cylinders
Dripping leaks
Boom Wear Guides
Boom Condition
Turntable Bearing
Stabilizer Beams
Stabilizer Controls
Control Console
Hydraulic Controls
Safety Lock Out/Stop
Operational
Limited Function Check
Too many leaks to fully check every operation.
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Oct 09, 2026 |
| Silicon | 24.13 PPM |
| Tin | 0.22 PPM |
| Silver | 0.04 PPM |
| Aluminum | 6.55 PPM |
| Chromium | 2.29 PPM |
| Lead | 17.52 PPM |
| Copper | 9.84 PPM |
| Nickel | 0.34 PPM |
| Iron | 77.81 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
