Czero Skid-Mounted Hydraulic Power Unit
Located
Fort Collins, CO
Fort Collins, CO
Loading...
ID number
#13331685
In yard
No
Features
600 HP HPU, 5,000 psi rated system, 130 gpm plumbed to 2 of 3 rails, variable displacement Parker pumps, 1500 gal. reservoir, PLC controlled, 480V 3 phase primary power, VFD motor control, outdoor rated, skid mounted, remote oil cooler, pump and motor group can be added to third rail for future expansion.
Notes
Seller Supplied Information: Hydraulic power supply currently configured with two rails, optional third rail plumbed - Rail A: One 200hp driving 270CC/Rev pump (5000psi and 132 gpm) - Rail B: Two 200hp motors each driving 140 CC/Rev pump (5000psi and 127gpm) - Rail C: Optional rail plumbed in, two open bays for additional pump/motor groups. Rail rated for 5000psi,flow dependent on user pump selection. - Highly configurable system. Equipped with motor speed control(VFD) and variable displacement pumps. Plumbed with three pressure rails all rated and capable of 5000psi. Designed for five pump motor groups, currently configured with three that supply two rails. Mounting provisions exist for additional 2 pump motor groups. Control Method - The unit is PLC controlled and web interfaceable. - 1500-gallon reservoir - US made. Uses the highest quality motors, pumps and VFDs - Single HPU skid with remote cooling unit - Indoor/outdoor rated - Estimated 650 hrs<BR><BR>** Please see seller supplied Specs/additional information attached in the documentation section below ** <br><br>**Buyer may also take the used hydraulic oil pictured as well**</p> <br><p style="font-size: 16px; color:red;"><strong>TODAY'S PRICE: $225,000 <strike> $290,000 </strike> 22% OFF</strong> </p> <br><a href="/mpe-justreducedprices">Click here to shop for more discounted items</a>

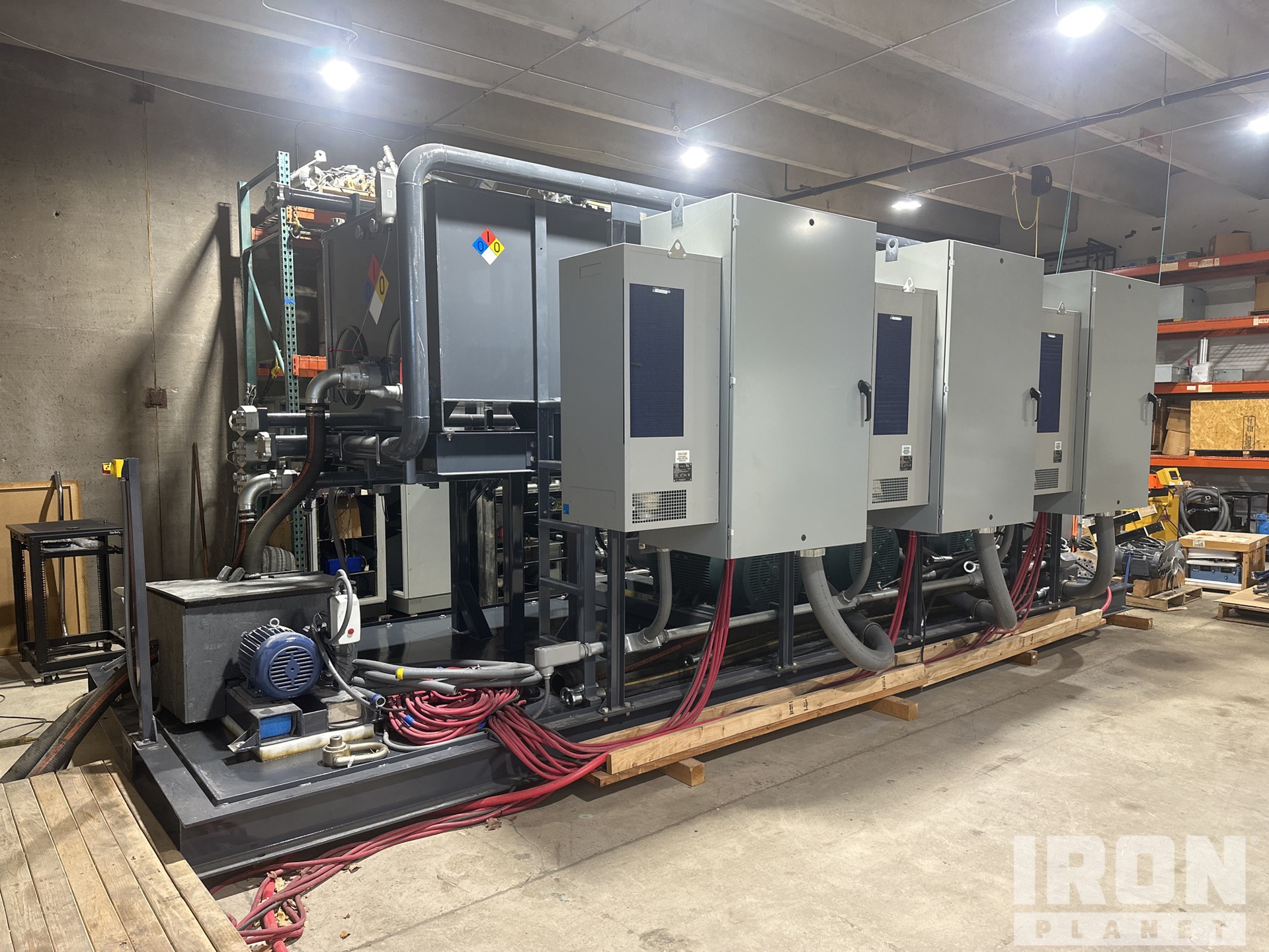

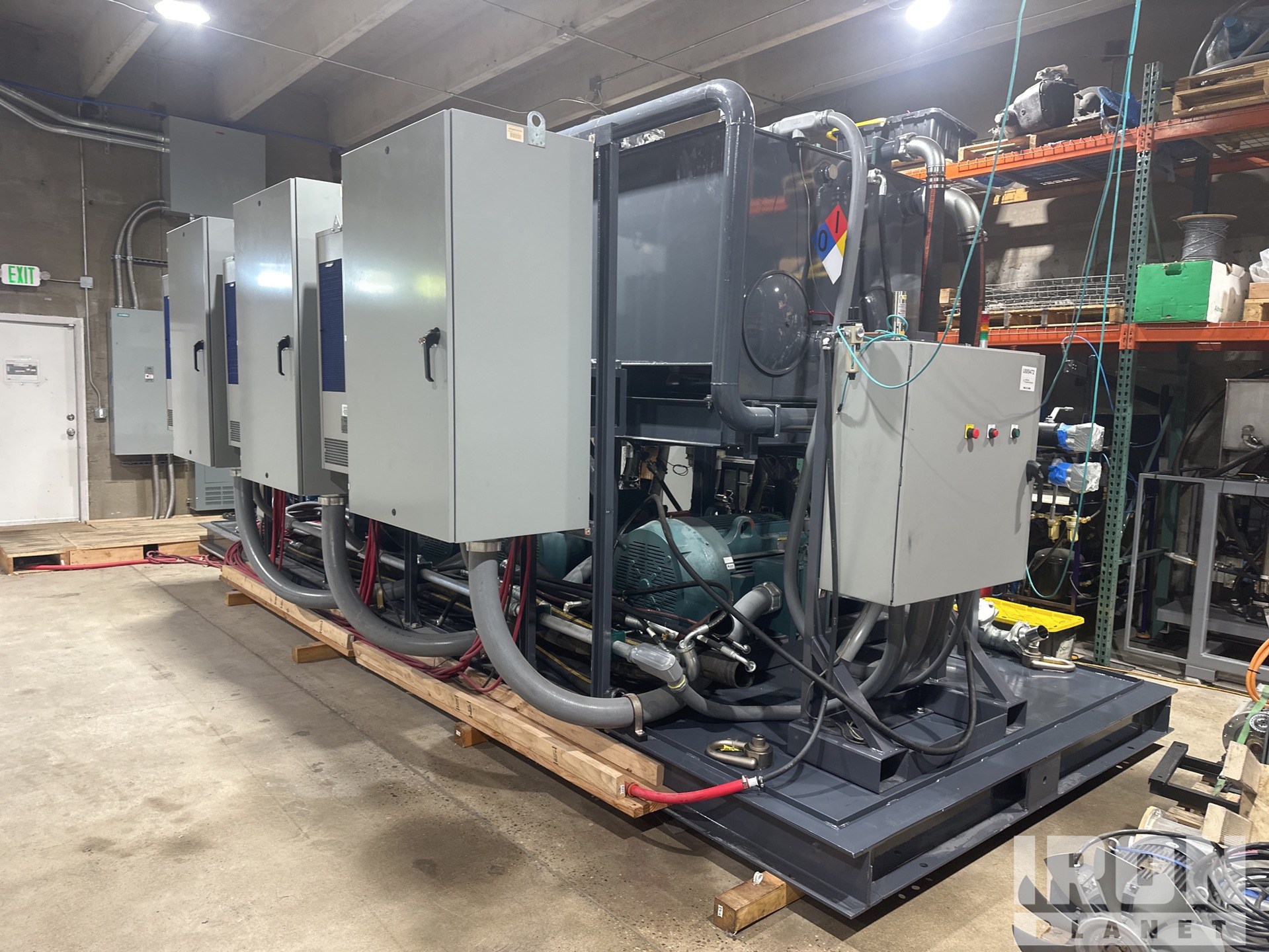

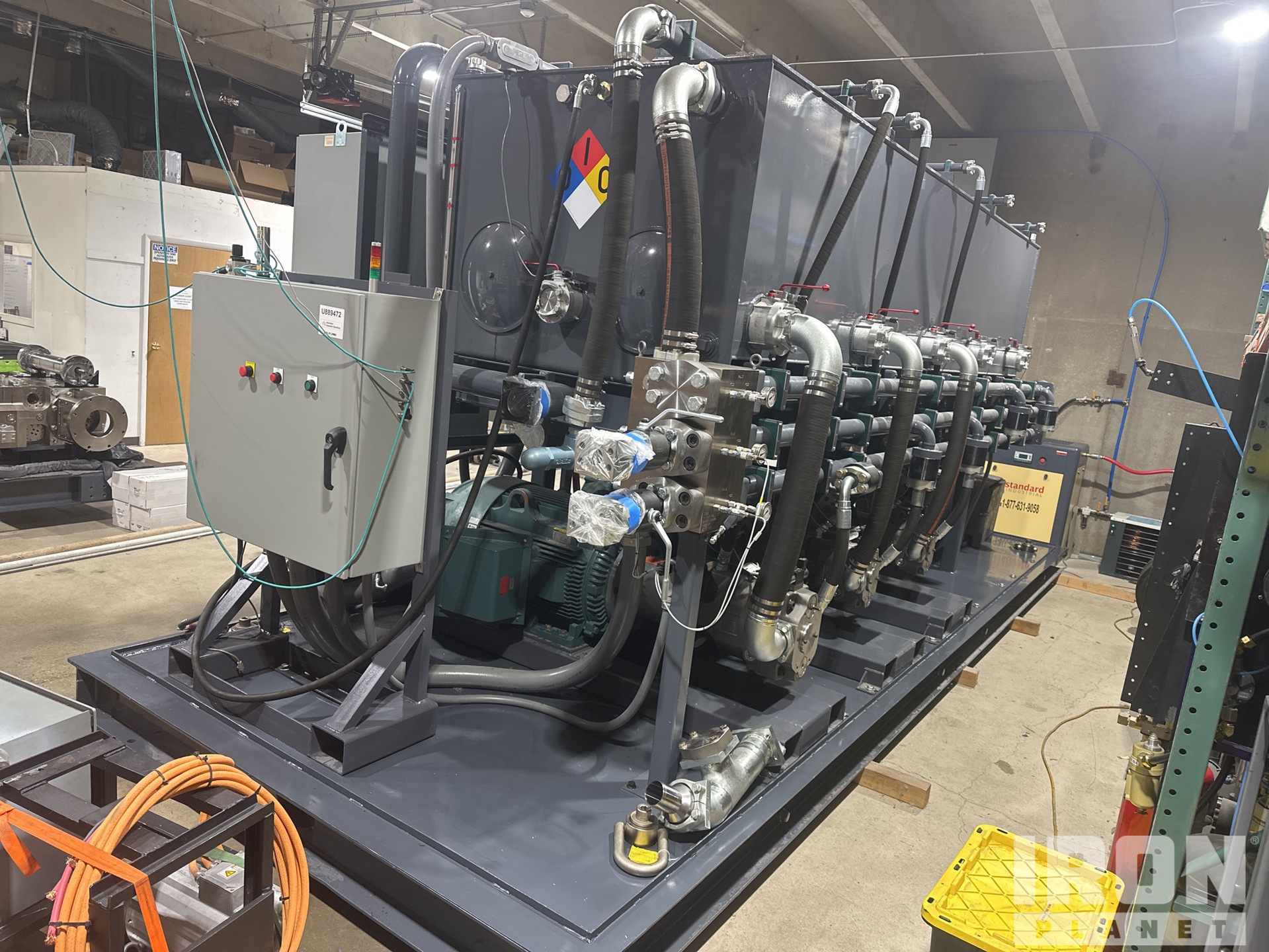

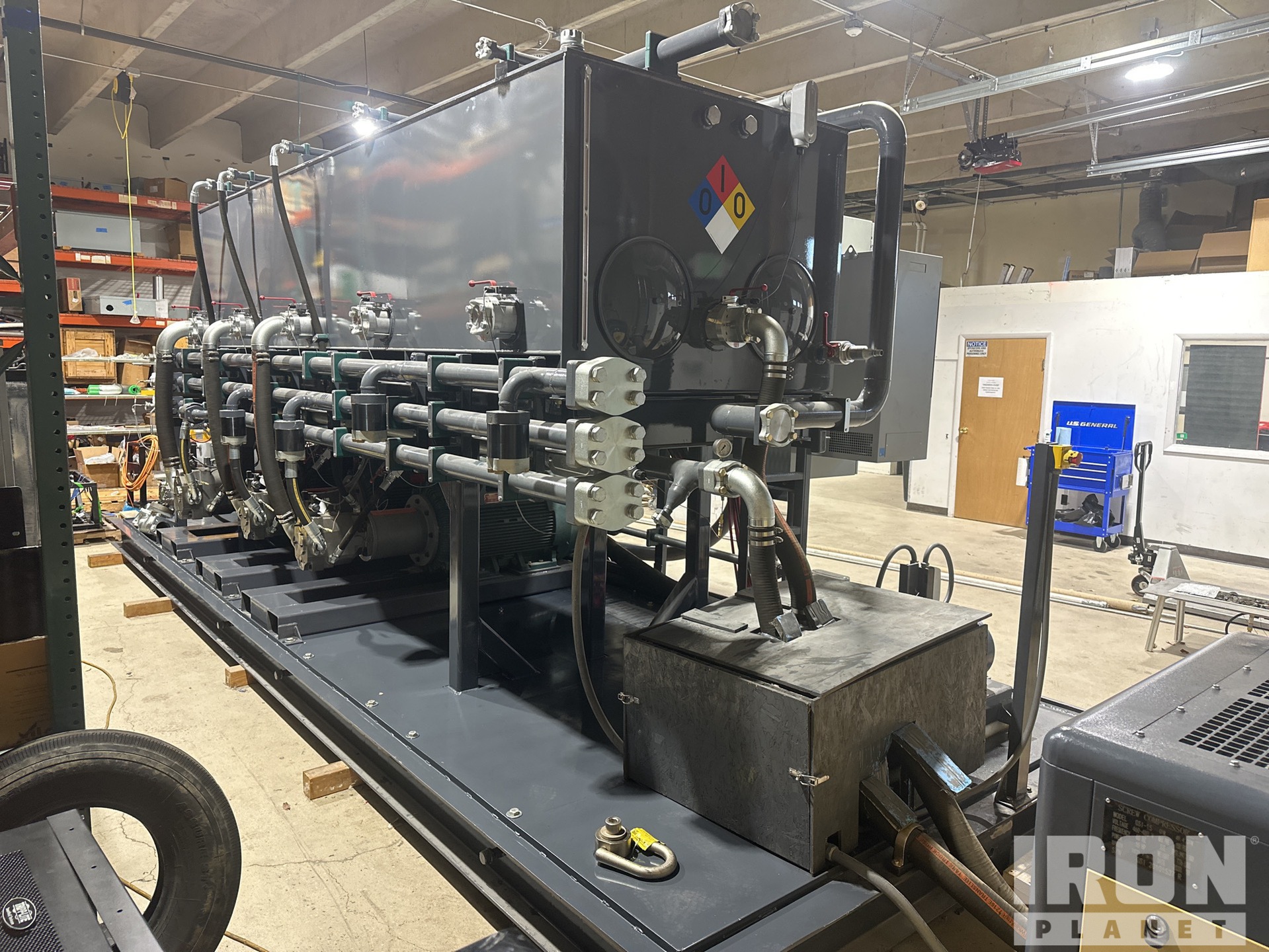

General Appearance
Featured Photo
Serial Number / VIN
No serial number or manufacturer’s identifying number found. This unit may be difficult to export.
CE Mark
No CE mark found
Control Station
Limited Function Check
The item was not operational. The main components could not be operationally checked.
Hydraulics
Limited Function Check
The hydraulic system could not be operationally checked.
