Barko 595ML Heel Boom Log Loader
Located
Buena Vista, GA
Buena Vista, GA
Usage
6,575 hrs
6,575 hrs
Loading...
ID number
#15260192
In yard
No
Features
Air Conditioner, Hydraulic Tilting Cab, 2014 US EPA Label, Knuckle Boom w/Live Heel, 30 in Triple Grouser Track Shoes, Rock Guards

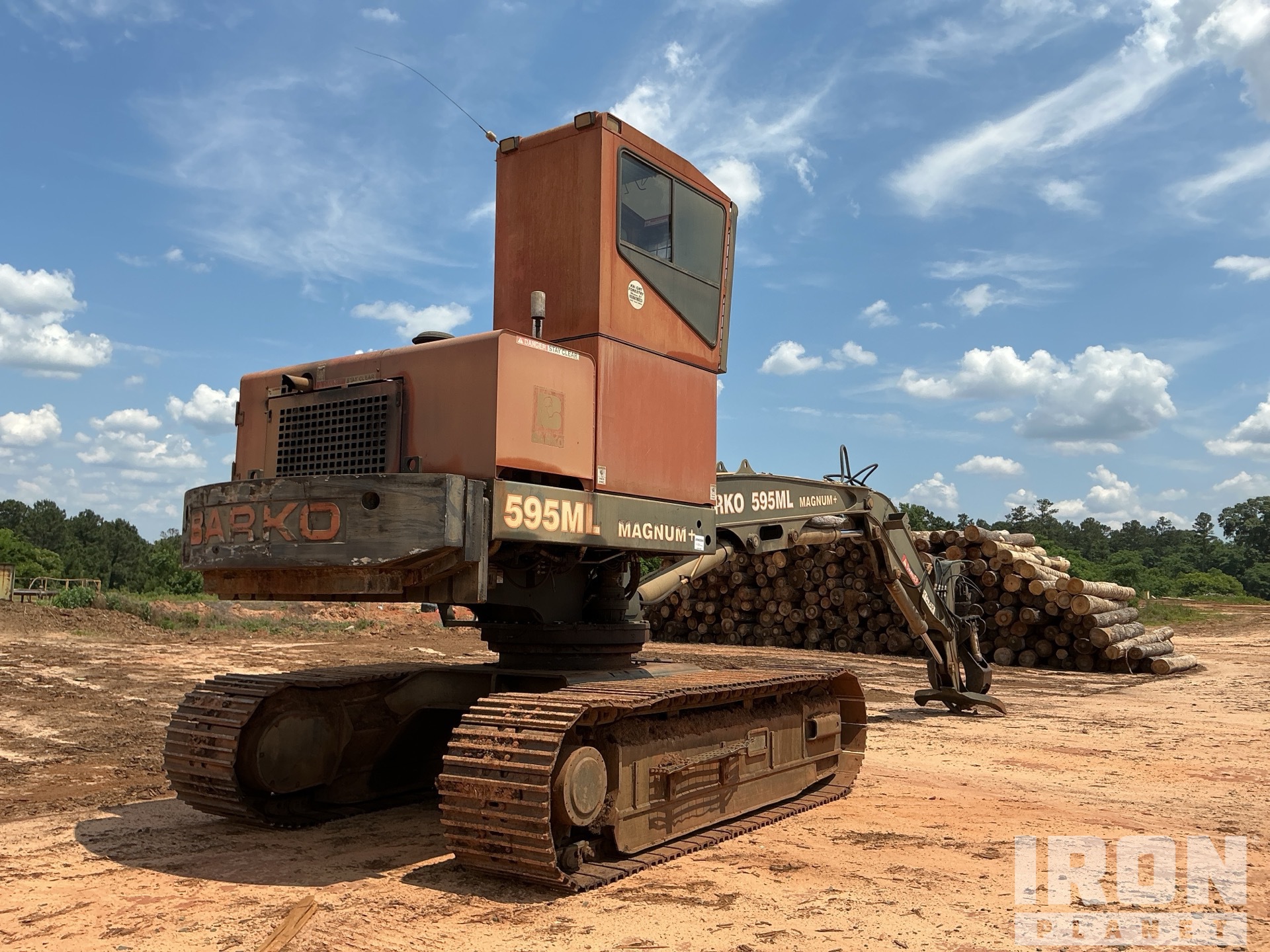

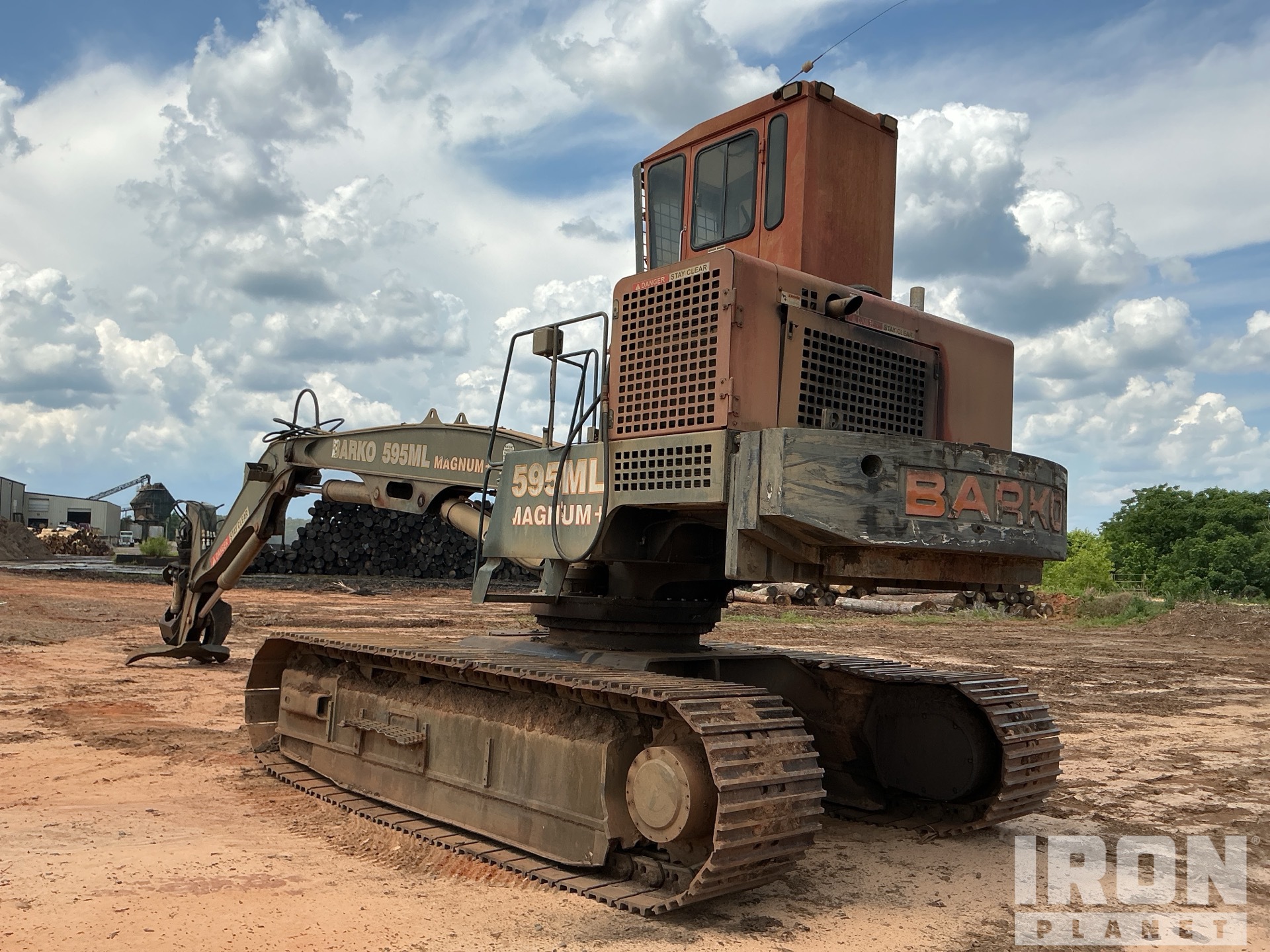

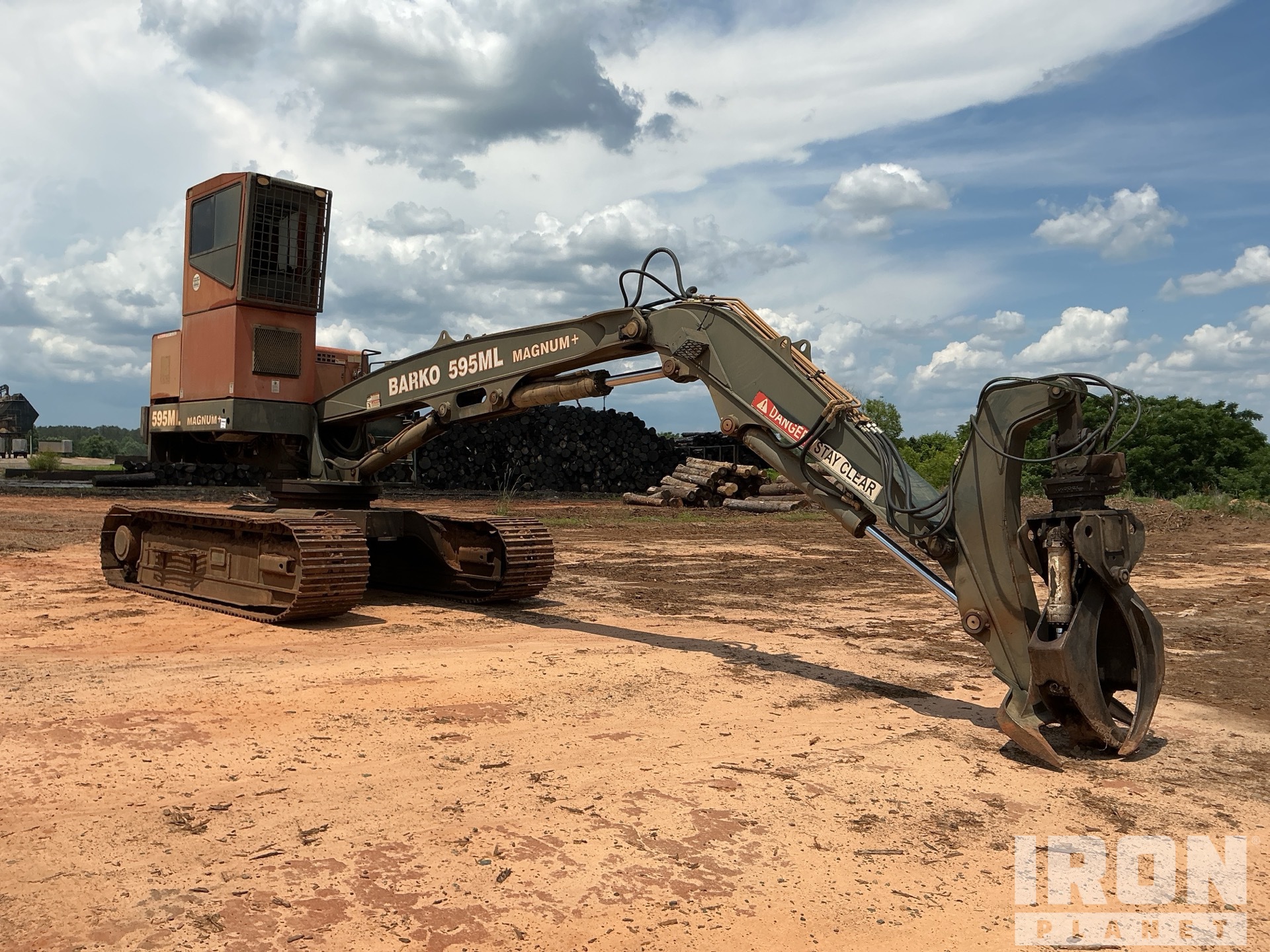

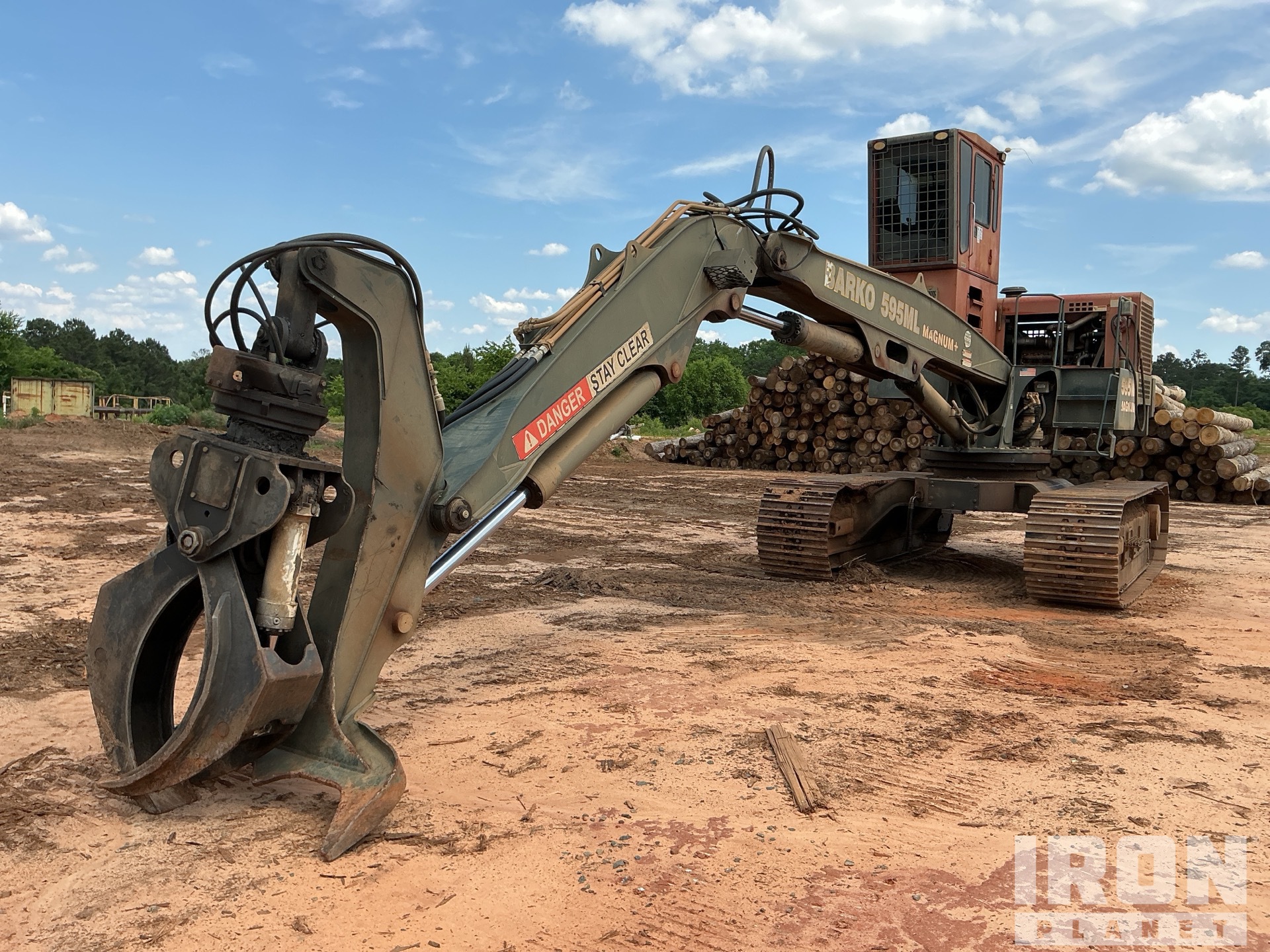

General Appearance
Serial Number / VIN
No serial number or manufacturer’s identifying number found. This unit may be difficult to export.
CE Mark
No CE mark found
Hour Meter / Odometer
6575 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, 2 lights are not operational
Safety
Travel Alarm
Inoperable
Horn
Inoperable
Seat Belts
Operational
Swing Brake
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station
Seats/Armrests
Steering Controls
Hydraulic Controls
Auxiliary Hydraulic Control
Drivetrain Controls
Dash Console
Engine Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational, High hydraulic oil temperature light stays on
Gauges
Operational
Air Conditioner
Operational
Heater
Not operationally checked
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
2014 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Left Drive Motor
Right Drive Motor
Left Final Drive
Right Final Drive
Limited Function Check
The drivetrain was operational.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses (Hydraulics)
Auxiliary Hydraulic Plumbing
Operational, End of stick
Swing Motor
Hydraulic Center Swivel
Boom Lift Cylinder(s)
Slight seepage
Stick Cylinder
Live Heel Cylinder
Grapple Clamp Cylinders
Grapple Rotation Motor
Limited Function Check
The hydraulic system was operational.
Chassis
Grapple Condition
Boom Condition
Stick Condition
Boom Base Pin and Bushings
Pin and Bushings Boom to Stick
Pins and Bushings Stick to Grapple
Turntable Bearing
Bottom Covers
Limited Function Check
The main components were operational in a limited check.
Grapple Arm Pins and Bushings
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
25 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
25 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | May 29, 2026 |
| Silicon | 0 PPM |
| Tin | 1.41 PPM |
| Silver | 0 PPM |
| Aluminum | 1.79 PPM |
| Chromium | 0.43 PPM |
| Lead | 0.58 PPM |
| Copper | 0.6 PPM |
| Nickel | 0.3 PPM |
| Iron | 11.57 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
