119 Photos
2025 Ranger SRT20 Tracked Trommel Screen (Unused)
Located
Columbus, TX
Columbus, TX
Usage
33 hrs
33 hrs
Serial number
255141
255141
Loading...
ID number
#14022669
In yard
No
Features
2023 US EPA Label, CARB Compliant, Deutz TD2.9 L4 55.4 kW 2.9 L Diesel Engine, Astec 6 ft 2 in x 12 ft Belt Feeder w/Hydraulic Raise Grizzly 18 ft x 6 ft 7 in Trommel Screen, 47 in Wide Feed Conveyor, 39 in Wide Fines Discharge Conveyor, 30 in Wide Under Screen Conveyor, 30 in Wide Right Discharge Conveyor, 39 in Wide End Discharge Conveyor, Radio Remote Control, 15.75 in Triple Grouser Track Shoes

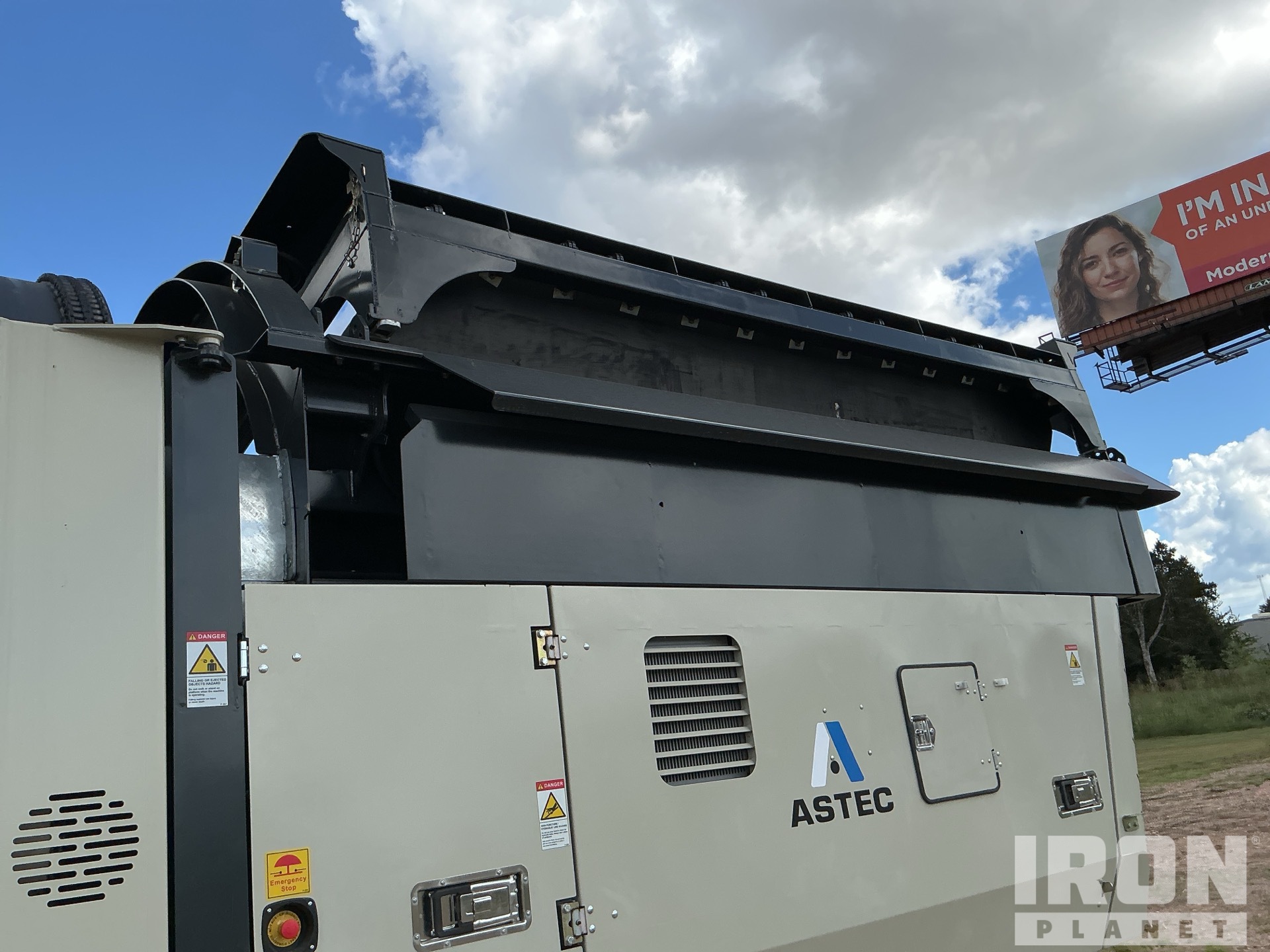

Chassis
Feed Hopper
Length @ top: 10’, Width @ top: 6’, Grizzly length: 12’, Width between grizzly bars: 8”
Feed Conveyor Condition
47 in wide feed belt
Feed Conveyor Drive Motor
Operational
Feed Conveyor Rollers
Feed Conveyor Head and Tail Pulley
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Incline screen, Number of decks: 1, End tension bottom deck
General Appearance
Serial Number / VIN
255141
CE Mark
No CE mark found
Hour Meter / Odometer
33 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Engine
Emission Certification Label
US EPA certification label
Block Heater
No
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Hydraulic Motors
Valves
Hydraulic Tank
Hoses
Conveyor Cylinders
Power Travel Drive System
2 Travel Speeds, Fault code is on travel, will not move
Limited Function Check
The hydraulic system was operational.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
18 mm
Left Track Links
Left Track Bushings
Rotating Bushings
Left Carrier Rollers
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
18 mm
Right Track Links
Right Track Bushings
Rotating Bushings
Right Carrier Rollers
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Oct 13, 2025 | Oct 13, 2025 |
| Silicon | 6.06 PPM | 2.33 PPM |
| Tin | 0.09 PPM | 0 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 0.77 PPM | 0.21 PPM |
| Chromium | 0.53 PPM | 0 PPM |
| Lead | 0.08 PPM | 0.03 PPM |
| Copper | 7.9 PPM | 0.44 PPM |
| Nickel | 0.09 PPM | 0.18 PPM |
| Iron | 4.6 PPM | 0.74 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
