2023 Eagle Crusher 1200-CC Portable Impact Crusher Plant
Located
Boise, ID
Boise, ID
Usage
1,043 hrs
1,043 hrs
Serial number
32052
32052
Loading...
ID number
#14961622
In yard
No
Features
2022 US EPA Label, Honda GX240 1 Cylinder Gasoline Engine, Vibratory Pan Feeder Eagle UM-25 Impact Crusher, 300 hp Drive Motor, 17 ft x 5 ft Triple Deck Screen, 40 in Wide Under Crusher Conveyor, 40 in x 36 ft Crusher to Screen Conveyor, 20 in Wide Under Screen Conveyor, 20 in Wide Left Discharge Conveyor, 24 in Wide Right Discharge Conveyor, Tri/A Carrier, Air Ride

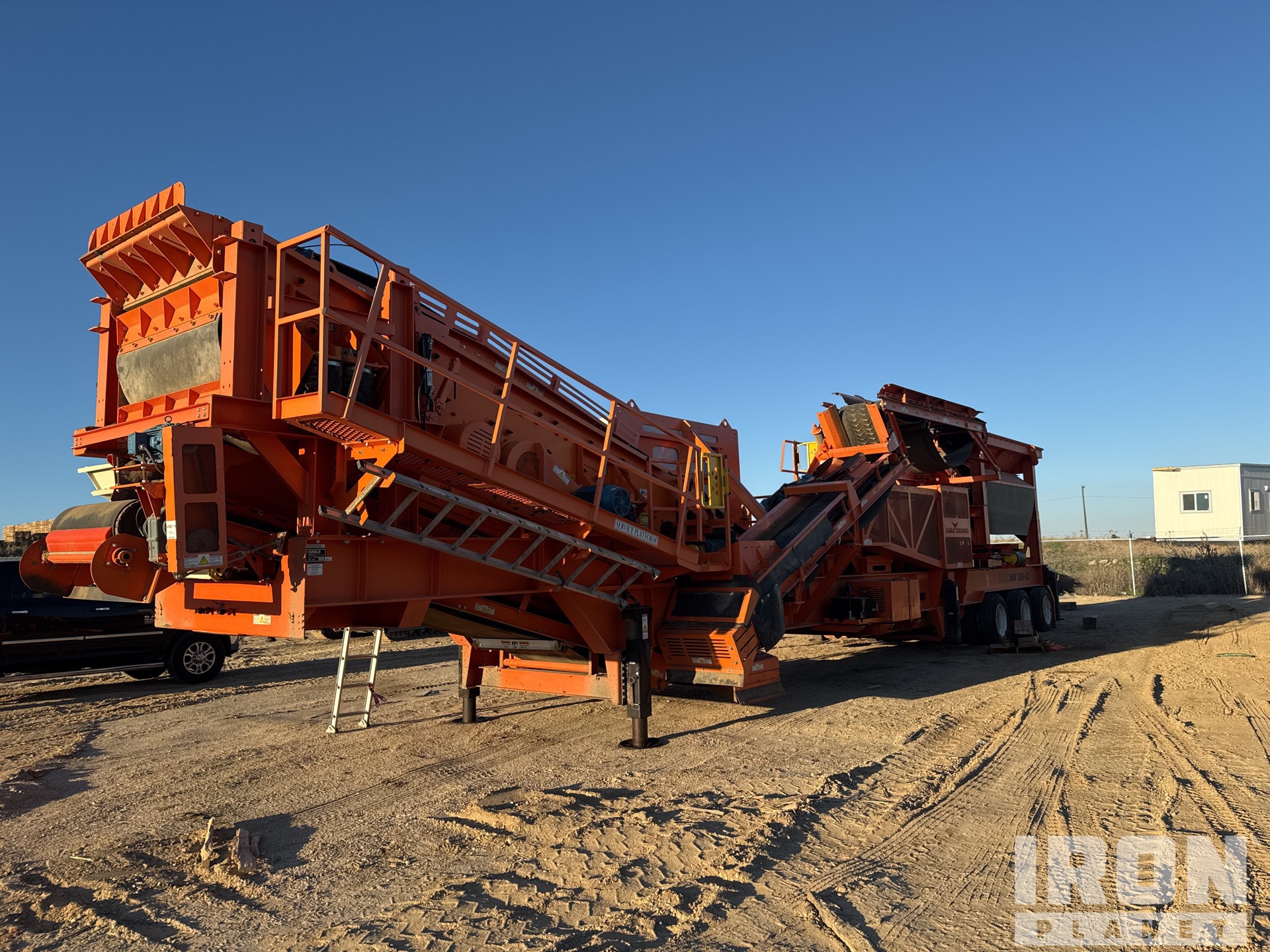

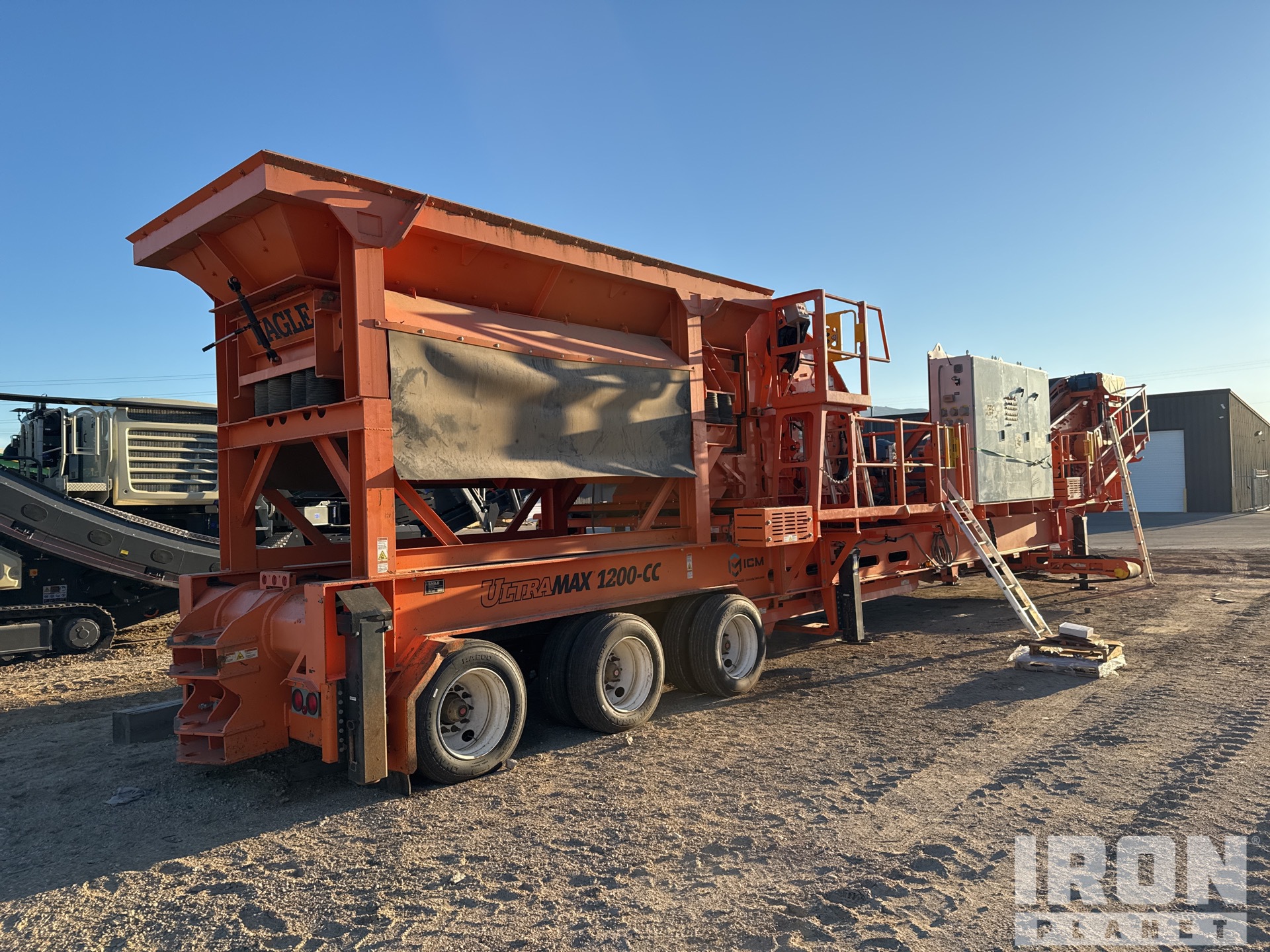

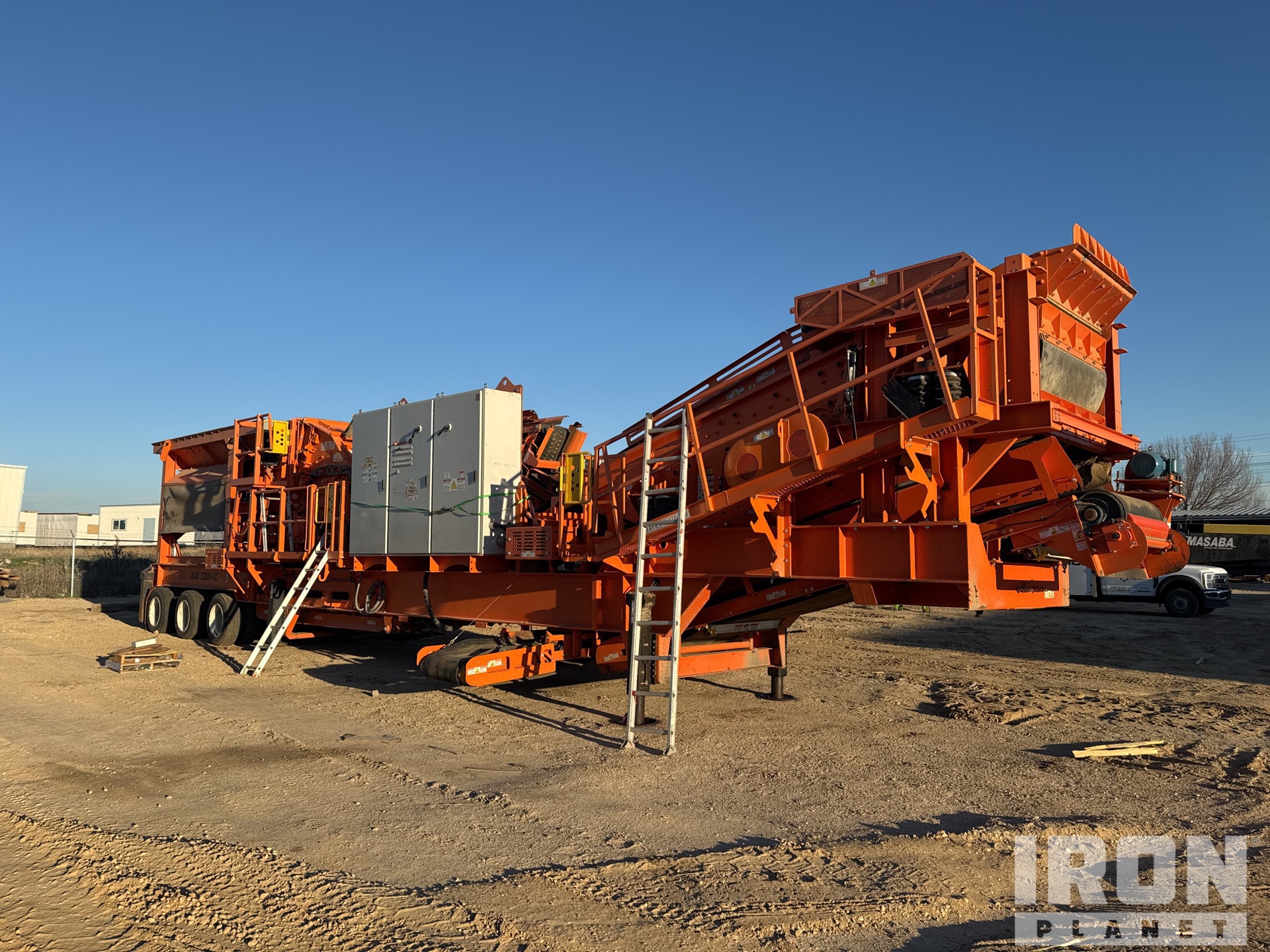

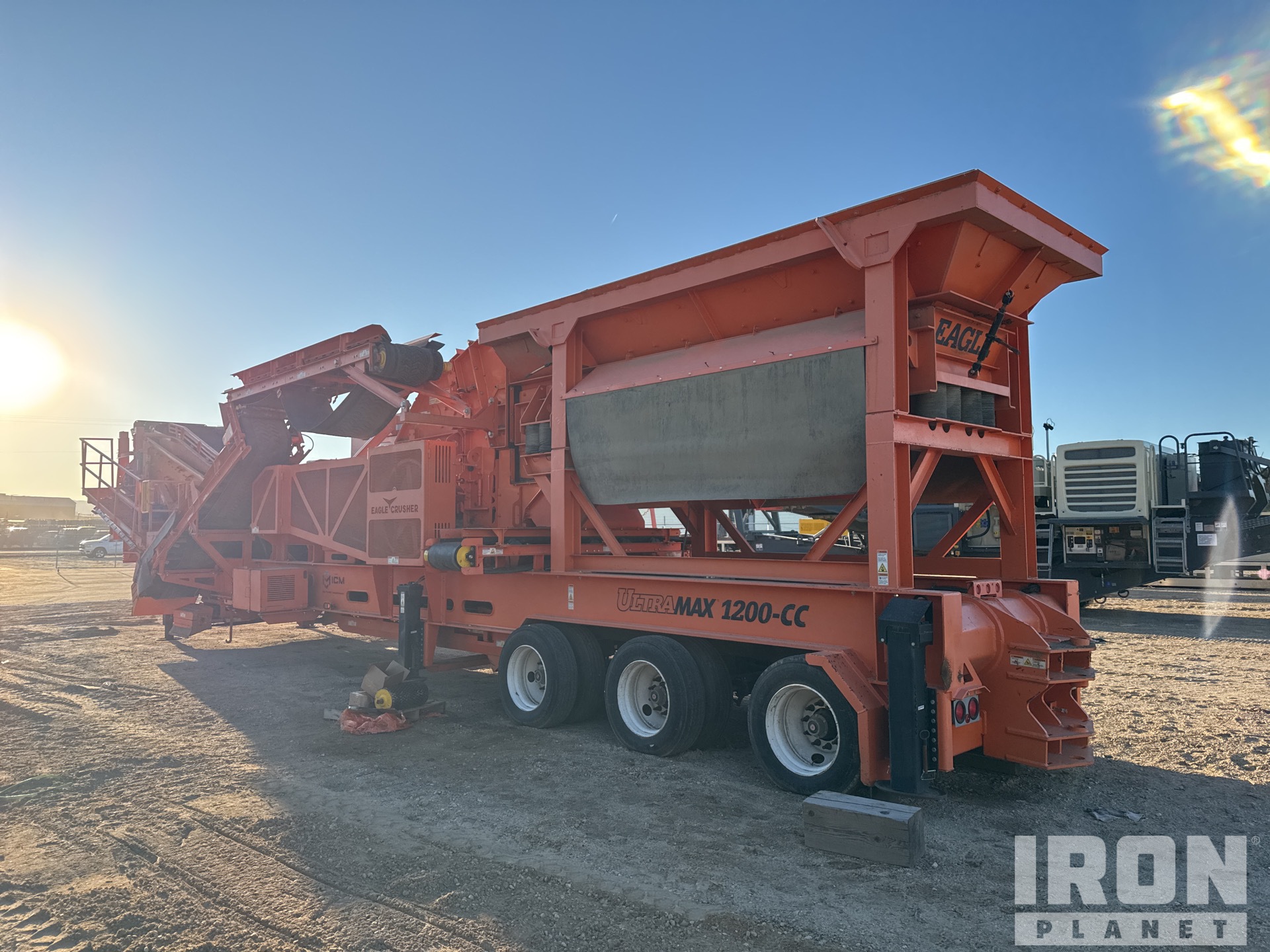

General Appearance
Serial Number / VIN
32052
CE Mark
No CE mark found
Hour Meter / Odometer
1043 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Crusher/Screen Controls
Limited Function Check
No able to function test machine, not connected to power
Electrical
Electric Motors
Manufacture brand WEG, Horsepower: 300
Switch Gear
Fixed, Unable to open all panels to determine number of starters
Disconnect Switch
Not operationally checked
Cables and Connections
Engine
Emission Certification Label
US EPA certification label
Starter
Operational
Exhaust System
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Engine - Left Side
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Stabilizer Jack Cylinders
Front stabilizer jacks seeping
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 17.5', Width @ top: 7.5', Grizzly length: 36, Width between grizzly bars: 2”
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
VSI / HSI Crusher Chamber
Crusher Roll Condition
Roll dia. and width 40” diameter 47” wide
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Horsepower: 15, Not operationally checked
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Screen Deck
Incline screen, Number of decks: 3
Deck Frames / Wear Bars
Chute Condition
Serviceable
Carrier
Axle Condition
Trailer Brakes
Air
Brake Lines/Hoses
Not operationally checked
Limited Function Check
The main chassis components could not be operated.
Tire Size
275/70R22.5 Front tires
Tire Condition
Tread Depth
LF 16 /32", LR 16 /32", LMI 16 /32", LMO 16 /32", LRI 16 /32", LRO 16 /32", RRI 16 /32", RRO 16 /32", RMI 16 /32", RMO 16 /32", RR 16 /32", RF 16 /32"
Wheel Condition
Wheel Studs
Tongue/ Hitch Condition
No visible damage
Power Receptacle Functional
Yes, Not operationally checked
Lights/Wiring Condition
Not operationally checked
Frame Rails/ Main Beams Condition
Stabilizer Jacks
Number of jacks 6, Hydraulic
