128 Photos

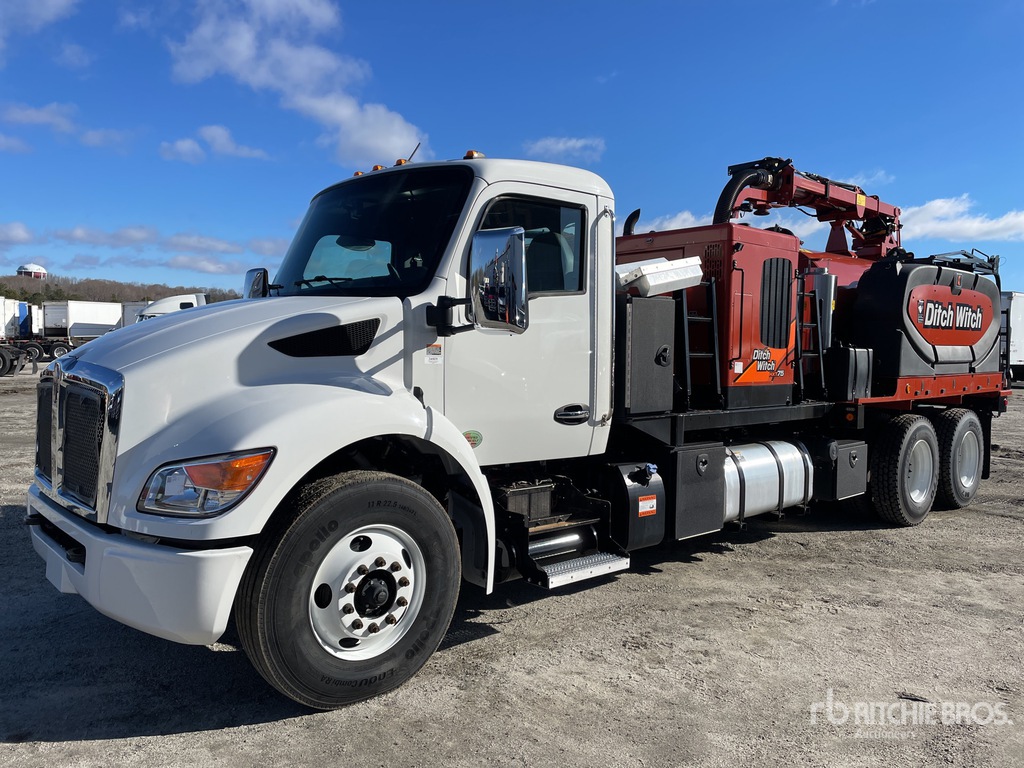

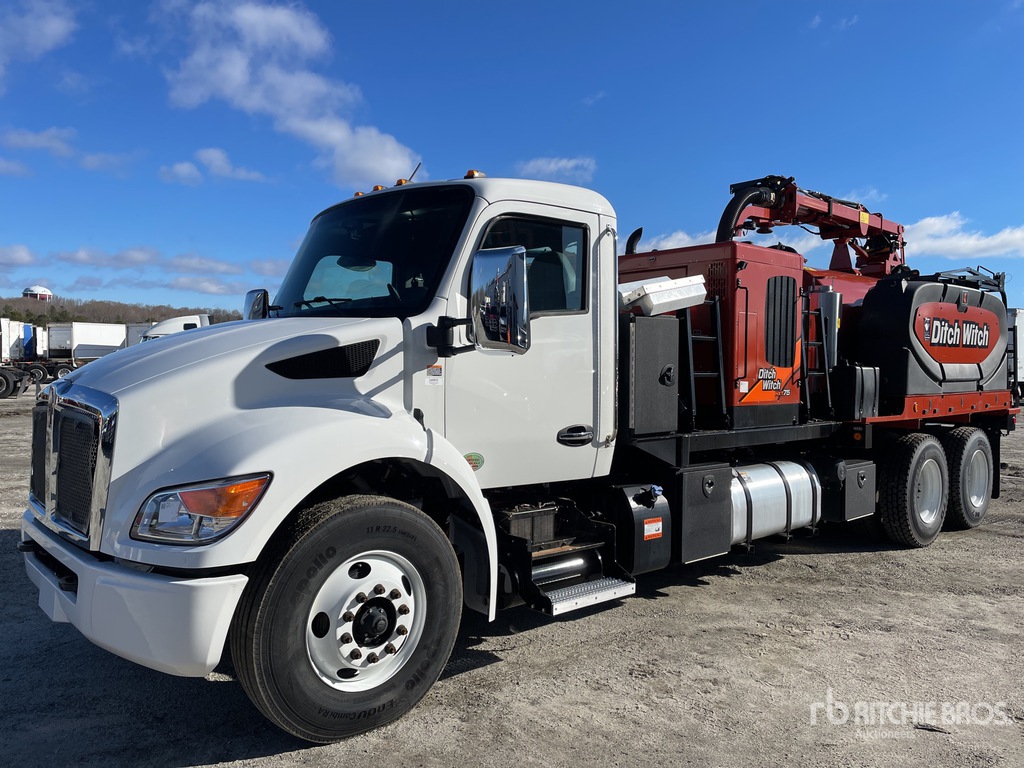

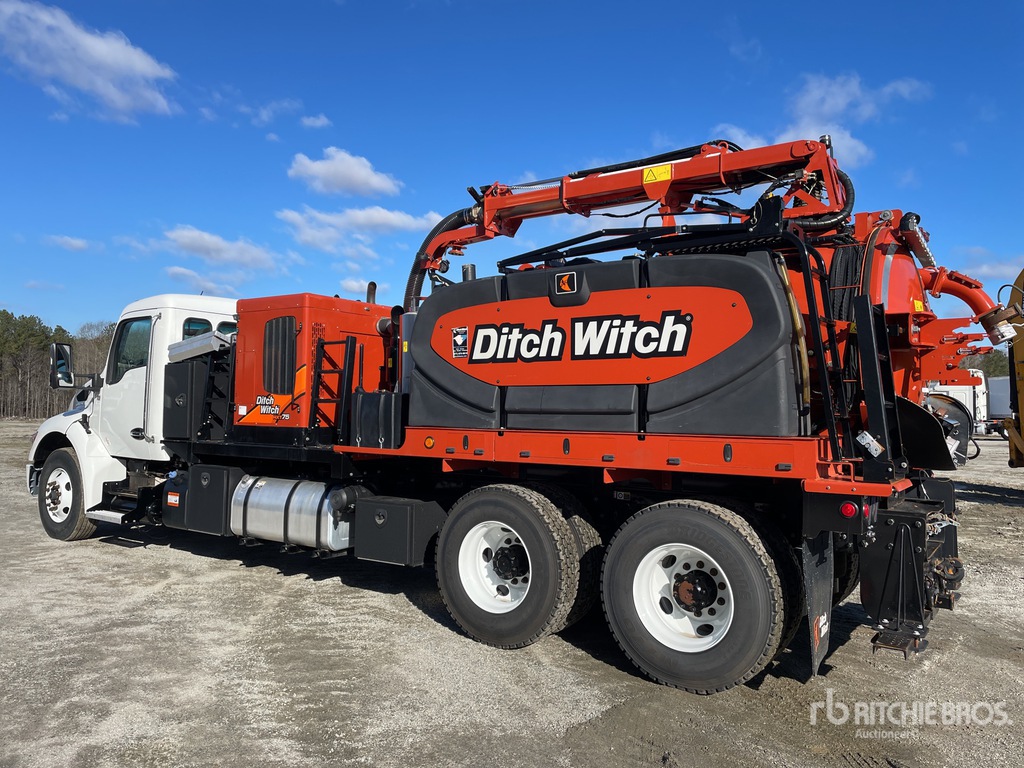

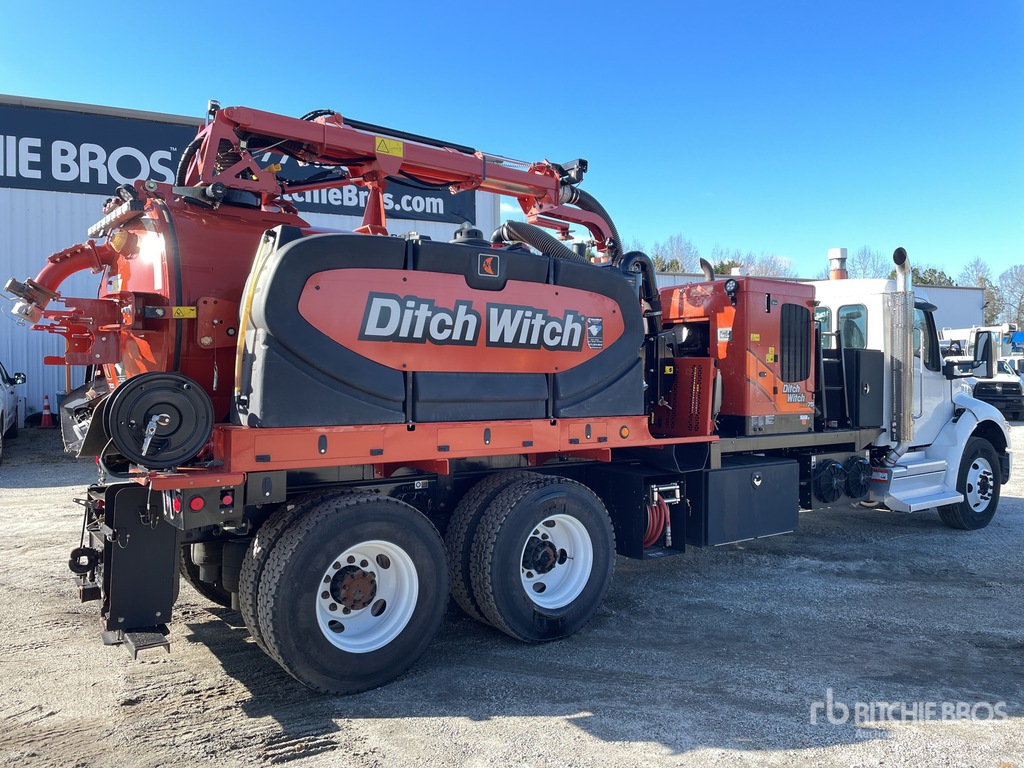

2023 Ditch Witch DW HXT75 on 2023 Kenworth T480 6x4 Vacuum Excavator Truck
Located
Newnan, GA
Newnan, GA
Usage
6,767 mi
6,767 mi
Serial number
2NK5LJ9X1PM240835
2NK5LJ9X1PM240835
Loading...
ID number
#12862715
In yard
No
Features
Paccar PX-9 6 Cylinder 8.9 L Diesel 360 hp Engine, 2022 US EPA Label, Requires Diesel Exhaust Fluid, 890 Engine hrs, Engine Brake, Allison 3000 6-Speed Automatic Transmission, Differential Lock, 13200 lb Front Axle, 40000 lb Rears, Dana Drive Axles, 5.29:1 Axle Ratio, 53200 lb GVWR, Air Ride Cab, 11R22.5 Front Tires, 11R22.5 Rear Tires, Paccar Air Ride Suspension, 264 in Wheelbase, PTO, Steel 1200 gal Debris Tank, 400 gal Fresh Water Tank, Hydraulic Lift Tailgate, Wash Down System, Hydraulic Tailgate Locks, Telescopic Boom, 6 in Suction Hose, Vanair PTO Driven Pump, Blower, DW270 Boiler, Cordless Remote Control

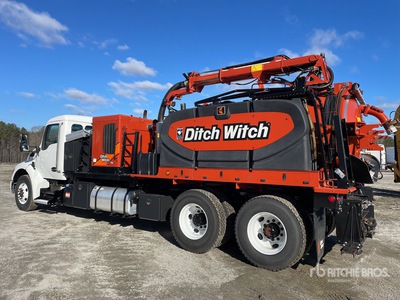

General Appearance
Featured Photo
Serial Number / VIN
2NK5LJ9X1PM240835
Second Serial Number/VIN Photo
Hour Meter / Odometer
6767 mi-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Ding in drivers door
Steps/Ladders
Hand Rails
Glass
Good
Exterior Lights
Operational
Engine
Emissions Information
2022 US EPA Label, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
GOOD
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
After jump starting, the engine ran.
Cab
Engine Hours
890 Engine hrs
Window Controls
Both Power, GOOD
Seats/armrests
Seat Belts
Operational
Steering Control
GOOD
Horn
Air horn operational, Electric horn operational
Oil Pressure
The fault indicator shuts off after the engine oil pressure rises.
Warning Lights
Operational
Gauges
Operational
Gear Selector
GOOD
Brake Control
Operational
Engine Brake
Not operationally checked
PTO Control
Operational
ECM Miles
6487 ECM mi
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted. The the truck would not start without a jumpstart.
Underbody
Steering Components
GOOD GOOD
Steer Axle
GOOD
Transmission
Operational, GOOD
Power Take Off
Operational, GOOD
Frame Condition
GOOD
Front Drive Axle
GOOD
Rear Drive Axle
GOOD
Limited Function Check
The drivetrain was operational without a load.
Cab Suspension Air Bags
GOOD
Suspension Springs/Hangers
GOOD
Suspension Bushings
GOOD
Suspension Air Bags
GOOD
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
GOOD
Wheel Studs
GOOD
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
Chassis
Vacuum Intake Hose
6 inches, GOOD
Silencer
GOOD
Oil Separator
GOOD
Vacuum Pump
GOOD
Vacuum Drive
Engine driven
Secondary Trap
GOOD
Primary Trap
GOOD
Debris Tank
Hydraulic Door Locks, GOOD
Water Tank
Not operationally checked
Boom Condition
GOOD
Pressure Pump - Water
Auxiliary Engine, Not functionally checked due to extreme cold weather.
Hose Reel
GOOD
Jet Rodder
Penetrator Nozzle, Not functionally checked
Wash Down System
Not functionally checked
Remote Control
Not operationally checked
Tool/Storage Boxes
GOOD
Limited Function Check
The main chassis components functioned when checked without a load.
Upper Engine
Emission Certification Label
US EPA certification label
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
GOOD
Radiator
GOOD
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check (Engine)
The engine started and ran.
