Lot 261

2023 (unverified) Screen Machine 4043T Crushing Plant

Located

Charlotte, NC


Usage

442 hrs


Serial number

4043T-1235




Inspection report:

A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.

ID number

#12607685


In yard

No


Year

2023


Manufacturer


Model



Serial number or VIN

4043T-1235


Features

Vibratory Pan Feeder Screen machine 4043T 43 in Impact Crusher, 13 ft x 5 ft Double Deck Screen, Spray/Wash System, 43 in Wide Feed Conveyor, 20 in Wide Fines Discharge Conveyor, 42 in Wide Under Crusher Conveyor, 42 in x 16 ft Crusher to Screen Conveyor, 48 in Wide Under Screen Conveyor, 20 in Wide Left Discharge Conveyor, 48 in Wide End Discharge Conveyor, MSI 28 in x 80 in Cross Belt Magnet, Radio Remote Control, Tier 4, 2022 US EPA Label, Cat C9.3B 6 Cylinder 375 hp 9.3 L Diesel Engine, Requires Diesel Exhaust Fluid, 20 in Triple Grouser Track Shoes


Notes

Our standard transaction fees do not apply. A flat transaction fee of 12% will be applied to each Lot purchased ; Will not complete swing out/cracks conveyor frame/Belt very loose will not rotate

General Appearance
General Appearance with Picture, Left Front Corner
General Appearance with Picture, Left Rear Corner
General Appearance with Picture, Right Rear Corner
General Appearance with Picture, Right Front Corner
General Appearance with Serial Number / VIN
General Appearance with Hour Meter / Odometer
General Appearance with
General Appearance with
General Appearance with
General Appearance with
General Appearance with
General Appearance with
General Appearance with
General Appearance with
General Appearance with
General Appearance with

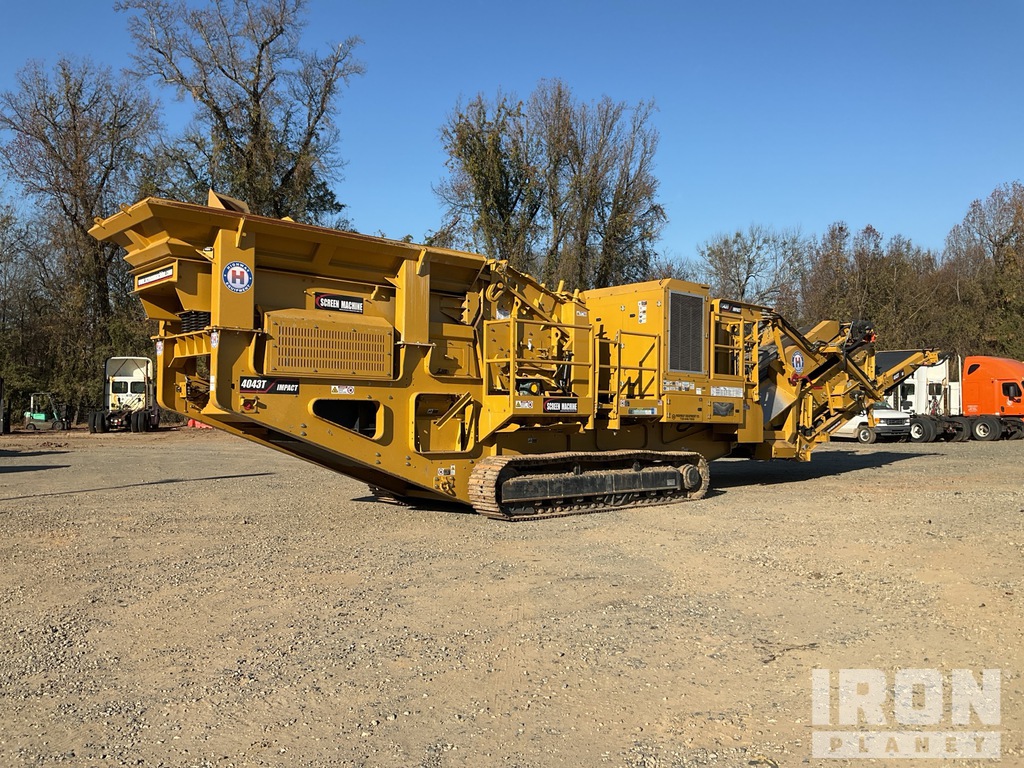

Picture, Left Front Corner

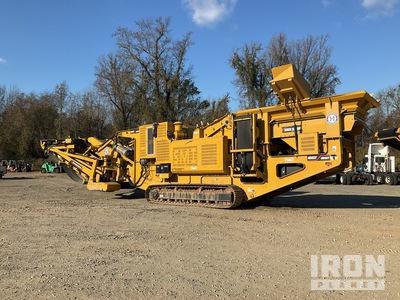

Picture, Left Rear Corner

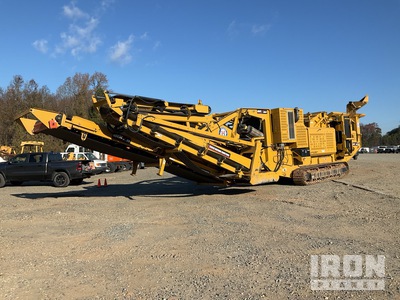

Picture, Right Rear Corner

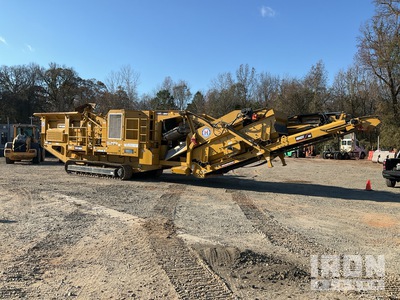

Picture, Right Front Corner


Serial Number / VIN

4043T-1235


Hour Meter / Odometer

442 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.

Control Station
Control Station with Gauges
Control Station with Engine Controls
Control Station with Crusher/Screen Controls
Control Station with Limited Function Check
Control Station with
Control Station with
Control Station with

Gauges

Operational


Engine Controls


Crusher/Screen Controls


Limited Function Check

The main components are in place and operational as noted.

Engine
Engine with Emission Certification Label
Engine with Blow by @ idle (subjective visual observation)
Engine with Exhaust System
Engine with Radiator
Engine with Oil Leaks
Engine with Fuel Leaks
Engine with Cooling System Leaks
Engine with Engine - Left Side
Engine with Engine - Right Side
Engine with DEF / AdBlue Tank
Engine with Limited Function Check (Engine)
Engine with
Engine with
Engine with
Engine with
Engine with
Engine with
Engine with

Emission Certification Label

US EPA certification label


Blow by @ idle (subjective visual observation)

Minor


Starter

Operational


Exhaust System

Bent exhaust pipe


Radiator


Oil Leaks

No dripping leaks


Fuel Leaks

No dripping leaks


Cooling System Leaks

No dripping leaks


Engine - Left Side


Engine - Right Side


DEF / AdBlue Tank


Limited Function Check (Engine)

The engine started and ran.

Hydraulics
Hydraulics with Pumps (Hydraulics)
Hydraulics with Hydraulic Motors
Hydraulics with Valves
Hydraulics with Hydraulic Tank
Hydraulics with Hoses
Hydraulics with Crusher Door Cylinders
Hydraulics with Conveyor Cylinders
Hydraulics with Power Travel Drive System
Hydraulics with
Hydraulics with
Hydraulics with
Hydraulics with
Hydraulics with
Hydraulics with

Pumps (Hydraulics)


Hydraulic Motors


Valves


Hydraulic Tank


Hoses


Crusher Door Cylinders


Conveyor Cylinders


Power Travel Drive System

Travels properly


Limited Function Check

The hydraulic system was operational.

Chassis
Chassis with Feed Hopper
Chassis with Crusher Base Frame
Chassis with Crusher Chamber Frame
Chassis with Jaw, Blow Bar and Anvil Wear Surface
Chassis with Crusher Drive System
Chassis with VSI / HSI Crusher Chamber
Chassis with Crusher Roll Condition
Chassis with Discharge Conveyor Condition
Chassis with Discharge Conveyor Drive Motor
Chassis with Discharge Conveyor Rollers
Chassis with Discharge Conveyor Head and Tail Pulley
Chassis with Screen Deck
Chassis with Deck Frames / Wear Bars
Chassis with Screen Cloth
Chassis with Chute Condition
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with
Chassis with

Feed Hopper

Length @ top: 14’, Width @ top: 6’


Crusher Base Frame


Crusher Chamber Frame


Jaw, Blow Bar and Anvil Wear Surface

Heavy wear on two blow bars


Crusher Drive System


VSI / HSI Crusher Chamber


Crusher Roll Condition


Discharge Conveyor Condition

Left discharge conveyor will not complete swing out. Cracked conveyor frame/belt very loose will not rotate. Cracks in frame housing were conveyor swing mounts.


Discharge Conveyor Drive Motor


Discharge Conveyor Rollers


Discharge Conveyor Head and Tail Pulley


Screen Deck

Incline screen, Number of decks: 2, Side tension bottom deck, Top screen need adjusting


Deck Frames / Wear Bars


Screen Cloth


Chute Condition

Undercarriage
Undercarriage with Left Roller Frame
Undercarriage with Left Track Tensioner
Undercarriage with Left Track Pads
Undercarriage with Left Grouser Height
Undercarriage with Left Track Links
Undercarriage with Left Track Bushings
Undercarriage with Left Carrier Rollers
Undercarriage with Left Track Rollers
Undercarriage with Left Idler
Undercarriage with Left Sprocket
Undercarriage with Right Roller Frame
Undercarriage with Right Track Tensioner
Undercarriage with Right Track Pads
Undercarriage with Right Grouser Height
Undercarriage with Right Track Links
Undercarriage with Right Track Bushings
Undercarriage with Right Carrier Rollers
Undercarriage with Right Track Rollers
Undercarriage with Right Idler
Undercarriage with Right Sprocket
Undercarriage with

Left Roller Frame


Left Track Tensioner


Left Track Pads


Left Grouser Height

25 mm


Left Track Links


Left Track Bushings

Bushings have not been turned


Left Carrier Rollers


Left Track Rollers


Left Idler


Left Sprocket


Right Roller Frame


Right Track Tensioner


Right Track Pads


Right Grouser Height

25 mm


Right Track Links


Right Track Bushings

Bushings have not been turned


Right Carrier Rollers


Right Track Rollers


Right Idler


Right Sprocket

Oil Sample Analysis

Oil Sample Analysis

enginehydraulic
date of analysisDec 19, 2024Dec 19, 2024
Silicon44.29 PPM4.22 PPM
Tin0.9 PPM0 PPM
Silver0 PPM0 PPM
Aluminum4.08 PPM0.85 PPM
Chromium0.83 PPM0.18 PPM
Lead2.99 PPM0 PPM
Copper34.42 PPM0.8 PPM
Nickel1.09 PPM1.12 PPM
Iron24.48 PPM2.98 PPM
GlycolNEGN/A
WaterNEGN/A
Fuel<5%<5%
